How To Add Checkboxes In Google Sheets: A Comprehensive Productivity Guide
Inserting checkboxes in Google Sheets transforms static lists into interactive project management tools by assigning true or false boolean values to cell data. This feature allows users to track task completion, filter data based on specific status updates, and build sophisticated dashboards without requiring complex scripts or manual data entry.
Prerequisites for Interactive Spreadsheet Design
Before implementing checkboxes, ensure your workspace is configured to support interactive elements. Google Sheets checkboxes function as data validation controls, meaning they exist within the cell structure rather than floating over it. This allows for seamless integration with functions like COUNTIF, SUMIF, and Conditional Formatting.
- Essential Requirements:
- Access to a Google account with Google Sheets permissions.
- A target dataset formatted into columns or rows where status tracking is required.
- Familiarity with the basic ribbon menu navigation.
- Estimated Setup Duration: Less than two minutes for the initial implementation.
- Technical Prerequisite: Understanding that a checked box equals TRUE and an unchecked box equals FALSE in the underlying data layer.
Execution Workflow for Checkbox Integration
Step 1: Selecting the Target Range
Navigate to your Google Sheet and identify the cell, range, or entire column where you intend to display your checkboxes. Clicking and dragging your mouse allows you to select a specific contiguous range of cells. If you want to add checkboxes to an entire column, click the letter header at the top of the column to highlight all rows. This method ensures that if you add new rows later, the checkbox validation remains active if you apply the rule to the entire column.
Step 2: Accessing the Data Validation Menu

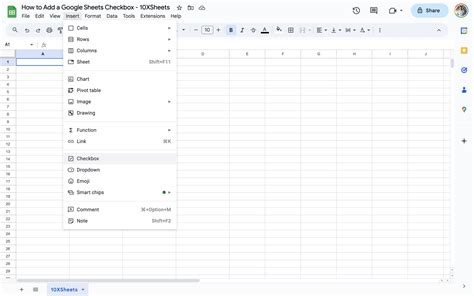

With your desired cells selected, locate the Insert tab in the top navigation ribbon. Select the option labeled Checkbox. This is the most efficient method for rapid deployment. Alternatively, you can right-click the selected range, navigate to Data validation, and choose Checkbox from the Criteria dropdown menu. This secondary path is preferred if you intend to customize the underlying values beyond the default True or False settings.
Step 3: Configuring Custom Values
Once the checkbox is inserted, it defaults to TRUE when checked and FALSE when unchecked. If your workflow requires specific outputs—such as Complete or Incomplete—navigate back to Data Validation. Within the settings menu, check the box labeled Use custom cell values. Enter your preferred text in the Checked and Unchecked fields. This modification is critical when integrating checkboxes with third-party software or API exports that require specific string values rather than Boolean logic.
Step 4: Applying Conditional Formatting for Visual Feedback
To elevate the usability of your sheet, apply Conditional Formatting. Highlight the rows related to your checkboxes and select Format, then Conditional Formatting. Set the rule to custom formula and enter the formula pointing to your checkbox column, for example: $A2=TRUE. Set the formatting style to Strikethrough or a background color change. This provides immediate visual confirmation of task completion.
Pro-Tip: If you need to remove checkboxes, simply select the relevant cells, go to the Data menu, select Data validation, and click Remove rule. Clearing the content with the delete key will not remove the data validation rule, only the current state of the box.
How to Insert a Checkbox in Google Docs (with screenshots!)
Technical Parameters and Attribute Comparison
The following table outlines the behavioral characteristics of Google Sheets checkboxes compared to traditional manual entry methods.
| Feature | Standard Checkbox | Manual Text Entry | Data Validation Dropdown |
|---|---|---|---|
| Primary Input | Mouse Click / Spacebar | Keyboard Entry | Menu Selection |
| Underlying Data | Boolean (TRUE/FALSE) | Custom Strings | Custom Lists |
| Sortability | High (True/False) | Low (Case Sensitive) | Medium (List dependent) |
| Formatting Triggers | Native Support | Requires Regex | Requires Exact Match |
| User Fatigue | Low (Rapid toggling) | High (Repetitive typing) | Medium (Menu interaction) |
Troubleshooting Common Implementation Errors
Root Cause: Checkboxes are not appearing despite applying the formatting rule.
Actionable Fix: Verify that you have not restricted the cell input via previous data validation rules. Navigate to Data validation under the Data menu and ensure no conflicting criteria are present that would override the checkbox command.
Root Cause: Formulas calculating the total checked count return zero or an error.
Actionable Fix: Ensure your formula is referencing the correct range and that the checkbox values haven't been manually altered to non-Boolean strings. Use the =COUNTIF(Range, TRUE) formula to verify the exact count of active selections.
Root Cause: Checkboxes disappear when sorting data or filtering.
Actionable Fix: Always anchor your checkboxes to the row data by ensuring the checkbox column is included in your filter range. If the checkboxes remain static while data moves, recreate the filter view with the checkbox column selected as part of the primary array.
Frequently Asked Questions
Can I toggle multiple checkboxes at once?
Yes, you can highlight a group of existing checkboxes and press the Spacebar on your keyboard. This will toggle the state of every selected checkbox simultaneously, switching them from unchecked to checked or vice versa.
Are Google Sheets checkboxes compatible with mobile devices?
Yes, checkboxes are fully functional on the Google Sheets mobile app. Tap any checkbox cell once to toggle its status, which is optimized for touch interfaces compared to standard dropdown menus.
Can I use checkboxes in charts?
You cannot directly visualize a checkbox in a chart; however, you can use the Boolean values generated by checkboxes to drive a helper column. You can then use this helper column to feed data into charts for progress tracking or completion rate visualizations.
How do I link a checkbox to another cell?
Checkboxes are tied to the cell they occupy. To link a status to another area, use a simple reference formula, such as =A1, where A1 is the cell containing the checkbox. This will display the Boolean status elsewhere in your document.
Can I change the color of the checkbox itself?
You can change the color of the checkbox by selecting the cell and changing the text color in the font formatting toolbar. The checkbox will inherit the color applied to the cell's font.
Optimize Your Workflow Today
Implement these interactive checkbox controls to reduce manual entry errors and streamline your project tracking workflows. Start by applying checkboxes to your most frequently used templates and observe the immediate increase in data clarity and team efficiency.
