Master The Art Of Wax Seals: Precision Application And Technical Guide

Master the science of wax sealing by balancing thermal control, wax viscosity, and matrix dwell time. Applying wax seals using flexible resin-based wax heated to 55°C–65°C (130°F–150°F) alongside a chilled brass stamp ensures crisp, raised impressions without paper warping or wax adhesion failure. This technical standard covers professional application protocols for wedding stationers, designers, and high-volume crafters.

Substrate Mechanics and Tool Calibration

Successful wax sealing requires an understanding of thermodynamics and material compatibility. The process involves transferring molten thermoplastic or organic resin onto a fibrous substrate, where it must form a mechanical bond without saturated bleeding or thermal distortion. Achieving clean, repeatable impressions requires calibrated equipment and high-grade materials.

(Note: Formatting rule strictly excludes visual ASCII/code graphics; all requirements detailed in text below.)

Substrate Selection

Standard printer paper (70–80 GSM) lacks the structural integrity to support hot wax. The thermal load from a 60°C wax pool causes light paper to pucker due to rapid moisture evaporation and localized fiber contraction. Always select paper stocks with a minimum density of 120 GSM. For envelopes and custom stationery, 250–300 GSM cotton or linen rag paper provides optimal thermal resistance and mechanical interlocking for the cooling wax.

Heat Matrix Engineering

The brass stamp head acts as a thermal sink. Solid brass is preferred over aluminum or zinc alloys due to its superior thermal conductivity (approx. 110 W/m·K) and specific heat capacity. A heavy brass matrix rapidly draws heat out of the liquid wax, enabling rapid solidification while preventing the wax from fusing to the fine relief lines of the engraved design.

Equipment & Materials Checklist

• Primary Seal Matrix: Solid brass stamp head (25mm or 30mm standard diameter) with an ergonomic wooden or weighted metallic handle.
• Wax Formulation: Flexible resin-based sealant sticks (for mailability) or traditional shellac/rosin sticks (for hand-delivered documents).
• Thermal Heat Source: Low-temperature glue gun (0.44-inch/11mm dual-temp set to LOW) or a stainless steel/copper melting spoon with an adjustable candle melting furnace.
• Cooling Station: Ice pack wrapped in a lint-free microfiber cloth or a solid aluminum chilling block.
• Auxiliary Tools: Silicone craft mat (for off-envelope pre-making), ceramic spoon rest, lint-free cloth, and metallic highlighting ink pads or oil-based paint pens.
• Metric Standards: Target wax melting temperature of 55°C to 65°C (130°F to 150°F); minimum paper substrate density of 120 GSM; matrix dwell time of 10 to 15 seconds.
• Project Benchmarks: Estimated preparation time of 10 minutes; application rate of 40–60 seals per hour (gun method) or 12–20 seals per hour (spoon method); setup budget ranging from $25 to $80.

Precision Execution Workflow for Wax Seal Application

Step 1: Surface and Die Thermal Stabilization

Prepare a flat, non-porous workspace. Position your ice pack immediately adjacent to your primary work station. Screw the brass seal die firmly onto its handle. Place the brass matrix directly onto the wrapped ice pack for a minimum of 60 seconds prior to making your first impression.

Pro-Tip: Lowering the matrix temperature below ambient room temperature accelerates the phase-change transition of the liquid wax. This creates a thermal shock that prevents the wax polymers from gripping the micro-grooves of the engraved metal.

Before placing the chilled die onto hot wax, aggressively wipe the face of the brass matrix across a dry microfiber towel. Any residual water droplets will flash-steam upon contacting the hot wax, creating unsightly void pockets or surface bubbling on your finished seal.

Step 2: Thermal Processing of the Wax

Load your flexible wax sticks into a low-temperature glue gun or cut wax beads into your melting spoon.

• Glue Gun Method: Turn the gun to its LOW temperature setting (approx. 105°C–120°C nozzle internal temp). Allow the unit to preheat for 5–7 minutes. Squeeze the trigger slowly to flow wax through the chamber, allowing internal heating elements to bring the core melt to a uniform, honey-like consistency.

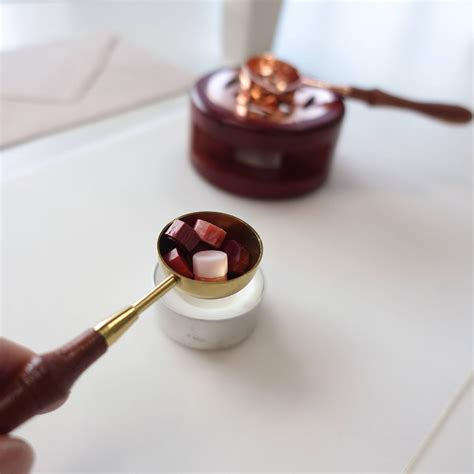

• Spoon & Flame Method: Place 3–4 standard wax beads (for a 25mm seal) into a copper melting spoon. Hold the spoon 1 to 2 inches above the flame of a tea light candle. Do not rest the spoon directly in the flame. Direct contact scorches the wax, introduces black carbon soot to the alloy, and causes internal boiling, which creates structural air bubbles.

Warning: If your wax begins to smoke, bubble aggressively, or run like water, it is overheated. Overheated wax severely degrades polymer flexibility, increases substrate bleed, and bonds directly to the brass die, ruining the impression.

Step 3: Volumetric Deposition

Hold the glue gun nozzle or melting spoon perpendicularly (at a 90-degree angle) precisely one inch above the target paper substrate. Center the delivery point directly over your target seal area.

1. Depress the glue gun trigger steadily (or pour from the spoon) to create a circular puddle.
2. Target a liquid volume of approximately 1.0 to 1.2 milliliters for a standard 25mm (1-inch) stamp die.
3. Visually gauge the puddle size: a 25mm die requires a wax puddle roughly 20mm to 22mm in diameter.
4. Allow the natural surface tension of the molten wax to form a raised, circular meniscus on the paper.
5. When finishing the pour, execute a quick, tight clockwise swirl with the tip or spout to snap the wax tail and prevent fine strings from trailing across the envelope stock.

Step 4: Die Alignment and Matrix Insertion

Remove the brass die from the cooling pack and verify that the face is dry. Align the engraving orientation (ensure the top of the design faces 12 o'clock relative to your paper layout).

1. Hold the stamp handle vertically with a light two-finger pinch grip.
2. Lower the brass matrix straight down into the exact geometric center of the liquid wax pool.
3. Apply moderate, uniform downward pressure straight along the vertical axis.
4. Do NOT press the metal head all the way down to hit the underlying paper substrate; allow a 0.5mm to 1.0mm cushion of wax to remain beneath the deepest relief points.
5. Release manual pressure immediately once the die is settled. Let the mass of the brass handle maintain downward force naturally.

Pro-Tip: Pushing the brass die completely down to the paper creates ultra-thin center walls that easily puncture or tear during postal machine sorting. Maintain a uniform cushion of wax beneath the die face.

Step 5: Dwell Time and Phase Release

Allow the matrix to rest undisturbed in the cooling wax for a mandatory dwell period of 10 to 15 seconds. During this window, the wax transitions from a viscous liquid to an amorphous solid, locking in fine line details.

To test for complete thermal release, touch the edge of the brass head; it should feel slightly warm as it absorbs heat from the wax. Lightly nudge the wooden handle sideways. If you feel structural resistance or elastic drag, the core wax remains molten. Wait an additional 5 seconds. Once the wax has fully set, lift the stamp straight up along the vertical axis. The brass matrix should separate smoothly, leaving a clean rim around the central impression.

Material Properties and Thermal Performance Metrics

Selecting the correct wax formula determines whether your seals survive mechanical transit or snap during handling. The table below compares technical parameters across major sealing wax categories.

Seal Integrity Troubleshooting and Field Correctives

Scenario 1: Brass Matrix Adheres to Wax and Tears Substrate

• Root Cause: The brass stamp head was overheated from repeated use without adequate cooling intervals, causing the molten wax to bond to the metal's microscopic pores. Alternatively, the die was lifted before the wax reached its heat-deflection point.
• Actionable Fix: Chill the brass stamp head on an ice pack for 2 minutes. Wipe all condensation completely dry before your next impression. If wax remains stuck inside the fine lines of the engraving, do not use metal tools to scrape it out. Warm the brass die gently with a heat gun or hot water until the residual wax melts, then wipe clean with a stiff nylon brush and isopropyl alcohol.

Scenario 2: Black Carbon Streaks in Finished Wax Seal

• Root Cause: Soot build-up on the underside of the melting spoon caused by placing the spoon directly inside the yellow diffusion zone of a open candle flame.
• Actionable Fix: Elevate the spoon at least 1 to 2 inches above the tip of the flame, where heat transfer occurs via hot air convection rather than direct combustion contact. Switch to high-purity paraffin wax tea lights or tea lights with 100% lead-free cotton wicks. Clean the exterior bottom of your spoon with alcohol and a paper towel after every three pours.

Scenario 3: Seals Fracture or Snap in Postal Transit

• Root Cause: Use of traditional shellac-based wax. Shellac dries into a rigid, glass-like crystal structure designed historically to show evidence of tampering. Modern automated postal roller sorters apply extreme shear force, shattering brittle waxes instantly.
• Actionable Fix: Formulate or purchase seals composed exclusively of Ethylene-Vinyl Acetate (EVA) or specialized flexible sealing wax resins. Test flexibility by bending a cooled seal in half; a mailable seal should flex 180 degrees without showing surface crazing or stress fractures.

Scenario 4: Void Spaces and Surface Bubbling

• Root Cause: Rapid thermal expansion caused by severe overheating of the wax pool, or moisture contamination from an un-wiped chilled die.
• Actionable Fix: Lower the operating temperature of your heat source. If using a spoon, pull the spoon away from the flame instantly if you see small air bubbles rising to the surface. Stir the molten pool slowly with a wooden toothpick to vent trapped atmospheric air before pouring. Ensure your brass die is wiped dry of all surface water droplets.

Frequently Asked Questions

How do you prevent wax seals from breaking when mailing envelopes?

Use flexible resin or glue-gun wax formulations specifically engineered with flexible EVA polymers. Never use traditional shellac wax on modern mail. Additionally, request hand-canceling at your local post office, or place the sealed envelope inside a protective outer mailing envelope to shield the seal from automated sorting rollers.

How many wax seals can you make from a single stick of wax?

A standard 4-inch by 0.44-inch (11mm) glue gun wax stick yields approximately 10 to 12 finished 25mm (1-inch) seals. If using melting beads, a standard 25mm seal requires 3 to 4 individual beads, whereas a 30mm seal requires 4 to 5 beads for full coverage and a thick rim.

Why is my wax sticking to the metal stamp matrix?

Wax sticks when the brass matrix becomes too hot to draw heat away from the poured wax, or when the stamp is pulled away before the wax has fully cooled. Keep your brass die sitting on an ice pack between uses, dry off moisture before pressing, and allow a full 10 to 15 seconds of dwell time before lifting.

Can you make wax seals in advance on parchment paper?

Yes. Pouring wax directly onto a non-stick silicone baking mat or parchment paper allows you to manufacture seals ahead of time. Once cooled, the seals peel away effortlessly. You can then apply double-sided high-tack adhesive dots to the backs of the seals for rapid application to project materials.

Elevate Your Stationery and Branding Design

Mastering the physical dynamics of thermal sealing allows you to transform ordinary mailings into elevated, tactile art. Stock your workspace with high-grade flexible waxes, industrial-density paper stocks, and precision-engraved brass dies to achieve professional-grade results every time.
