How To Bend PVC Pipe: The Complete Professional Guide

Bending polyvinyl chloride (PVC) pipe requires applying uniform thermal energy—typically via a heat gun, heating blanket, or hot liquid—to soften the thermoplastic polymer until it reaches its glass transition temperature without exceeding its degradation threshold. By utilizing internal support mechanisms such as bending springs or sand packing, technicians can achieve smooth, kink-free radiuses essential for clean electrical and plumbing runs.

Pre-Operation & Equipment Checklist

Executing clean, structurally sound PVC bends requires a methodical approach to preparation, safety compliance, and tool selection. Unlike metals, plastics exhibit strict thermal limits; exceeding them causes chemical degradation, discoloration, and structural failure.

• Essential Tools and Materials: Industrial variable-temperature heat gun (or PVC heating blanket), leather heavy-duty work gloves, internal bending spring or fine dry mason sand with duct tape, permanent marker, measuring tape, and a flat wooden or metal forming jig.
• Safety Gear & Environment: Heat-resistant gloves, safety glasses, and a well-ventilated workspace equipped with an organic vapor respirator to protect against harmful chlorine gas emissions released if the polymer overheats and burns.
• Prerequisite Knowledge & Benchmarks: Schedule roughly 30 to 45 minutes per bend for setups requiring sand packing, or 10 to 15 minutes for direct heat gun applications. Standard schedule 40 and schedule 80 PVC pipes soften at approximately 160°F (71°C) to 212°F (100°C), but thermoforming typically occurs safely between 250°F (121°C) and 300°F (149°C).

Step-by-Step Thermal Forming Process

Step 1: Measuring and Marking the Bending Zone

1. Calculate the total length of the pipe required for your run, including the section that will undergo the radius transformation.
2. Use a permanent marker to clearly indicate the start and end points of the desired bend on the exterior wall of the PVC pipe.
3. Keep in mind that the inner radius of the bend will compress slightly while the outer radius stretches, so dry-fit your components before applying any thermal energy.

Step 2: Internal Support Implementation

1. Select an internal support method to prevent the hollow PVC pipe from collapsing, flattening, or kinking during the forming process.
2. If using a steel internal bending spring, slide it down the pipe so that the center of the spring aligns precisely with your marked bending zone.
3. If using the sand-packing method, tightly tape one end of the PVC pipe, fill the interior completely with bone-dry mason sand, pack it down by tapping the pipe firmly on the ground, and tape the top end securely shut.

Warning: Never use wet or damp sand. Trapped moisture turns to steam rapidly when heated, creating high internal pressure that can rupture the PVC pipe and cause severe burn injuries.

Step 3: Applying Uniform Heat

1. Power on your heat gun and set it to a medium-high setting, keeping it continuously in motion to avoid concentrating thermal energy on a single spot.
2. Hold the nozzle approximately 2 to 3 inches away from the pipe surface, rotating the pipe constantly along its longitudinal axis to ensure even heat distribution across the entire marked zone.
3. Sweep the heat gun back and forth across the outer bounds of the bend, extending the heat envelope about 2 inches past your marked lines for a gradual transition.

Pro-Tip: Watch for the physical cues of the plastic; when the PVC begins to take on a glossy appearance and yields easily to a gentle manual twist test, it has reached its optimal forming window.

Step 4: Forming and Cooling the Radius

1. Wearing heavy-duty leather gloves to protect your hands from thermal transfer, gently and steadily bend the softened pipe around your forming jig or mold to the desired angle.
2. Hold the pipe firmly in position without applying excessive force that could wrinkle the inner wall or flatten the cross-section.
3. Maintain the shape while cooling the pipe rapidly by wiping it down with a wet cloth or spraying it gently with cool water until the polymer rigidifies.

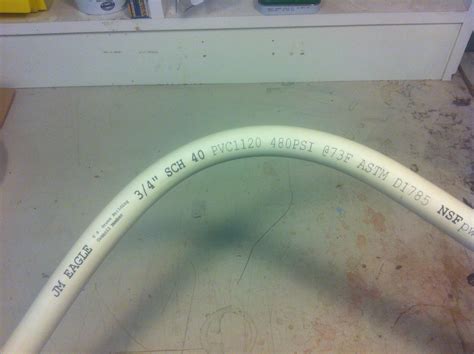

Step 5: Post-Forming Inspection and Finishing

1. Once the pipe is completely cool to the touch, slide out the internal bending spring using a pull wire, or cut the tape and empty out the sand packing.
2. Inspect the inner and outer radius of the bend closely for any signs of flattening, micro-cracking, discoloration, or structural rippling.
3. Clean away any marker residue using a standard cleaner or primer, ensuring the exterior surface is pristine before installation.

PVC Bending Methods and Performance Specifications

Common Site Failures and Field Fixes

• Root Cause: Pipe collapses or flattens into an oval shape during the bending process.


  • Actionable Fix: The internal support was either missing, too loose, or improperly centered. Ensure your bending spring matches the exact interior diameter of your schedule rating, or pack sand much tighter with zero air pockets.
• Root Cause: The PVC pipe turns brown, bubbles, or emits a sharp chemical odor.


  • Actionable Fix: Localized overheating has caused thermal degradation of the polymer chains. Discard the damaged section immediately, as its structural integrity is compromised, and keep the heat gun moving continuously in subsequent attempts.
• Root Cause: The outer wall of the bend wrinkles or buckles inward.


  • Actionable Fix: The heating zone was too narrow, concentrating the bend radius over too short a span. Extend your heating area further outward along the pipe axis to create a wider, more gradual thermal transition zone.
• Root Cause: The pipe springs back significantly toward its original straight shape after cooling.


  • Actionable Fix: The material was not held securely in place long enough, or cooling occurred before the internal stress relaxed. Over-bend the pipe slightly past your target angle to compensate for memory elastic recovery, and hold it rigidly until fully cooled.

Frequently Asked Questions

What is the minimum bend radius for PVC pipe?

As a general rule of thumb for safe cold or warm bending without specialized tooling, the radius of the bend should be at least five to six times the outside diameter of the pipe. Forcing a tighter radius increases the risk of wall thinning, kinking, and ultimate structural failure under pressure.

Can you bend PVC pipe without applying heat?

Yes, small diameter PVC pipes (such as 1/2-inch or 3/4-inch conduit) can be hand-bent using an internal spring over a wide radius without heat. However, this method induces high internal stress, making spring-back likely, and is generally not recommended for clean, permanent, or pressurized fluid applications.

Is it safe to use a propane torch to bend PVC?

No, open-flame devices like propane torches, blowtorches, or weed burners deliver uncontrollable, hyper-localized heat that instantly scorches, ignites, or degrades PVC. Always use controlled electric heat sources such as industrial heat guns, heating blankets, or liquid baths.

Does bending PVC reduce its internal pressure rating?

Yes, the mechanical forming process stretches the outer wall and compresses the inner wall, resulting in localized wall thinning. For high-pressure fluid applications, factory-formed molded elbows should always be utilized instead of field-bent thermal modifications.
