How To Bleed A Bottle Jack: A Complete Step-by-Step Hydraulic Maintenance Guide

Air bubbles trapped within the hydraulic fluid circuit are the primary cause of spongy, erratic, or unresponsive bottle jack performance. By properly locating the release valve, clearing the fluid chamber, and cycling the ram under zero-load conditions, you can completely restore factory lifting pressure and extend the operational lifespan of your equipment.

Pre-Operation & Equipment Checklist

Hydraulic bottle jacks rely on Pascal's law to lift heavy loads, utilizing an incompressible fluid to multiply force within a closed system. Over time, service maintenance is required when air infiltrates the oil reservoir due to low fluid levels, improper horizontal storage, or thermal expansion during seasonal temperature shifts. Before initiating the bleeding procedure, ensure you have gathered all necessary materials and established a clean, stable workspace to prevent contamination of the internal valving system.

• Essential Gear and Materials: ISO 32 or ISO 22 anti-wear hydraulic jack oil (never use brake fluid, transmission fluid, or motor oil), a flathead screwdriver or the slotted end of the jack handle, a clean shop towel, a pair of protective utility gloves, and safety glasses.
• Prerequisite Knowledge and Standards: The jack must be positioned on a completely level, rigid surface. Never attempt to bleed a bottle jack while it is supporting a vehicular load or any weight whatsoever; the ram must encounter zero resistance during the air-purge cycles.
• Estimated Budget and Duration Benchmarks: Total cost for a standard quart of hydraulic jack oil ranges from ten to fifteen dollars, and the entire maintenance procedure takes approximately twenty to thirty minutes.

Step-by-Step Hydraulic Air-Purge Execution

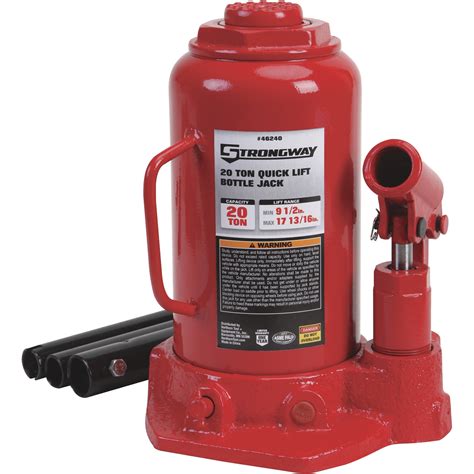

Step 1: Position the Bottle Jack on a Level Surface

Place your hydraulic bottle jack upright on a firm, level workbench or concrete floor. Ensure the base sits completely flat without rocking, as an angled posture can trap air pockets within the remote corners of the fluid reservoir chamber. Clean any dirt or debris from the surrounding housing, paying special attention to the release valve and the oil filler plug to prevent particulate contamination from entering the internal cylinder during servicing.

Step 2: Open the Release Valve

Locate the release valve stem, which is typically situated at the base of the jack near the handle socket. Using the slotted end of your operating handle or a flathead screwdriver, turn the release valve counterclockwise by approximately one full turn to open the internal bypass circuit. Opening this valve allows fluid to flow freely back from the high-pressure cylinder into the primary reservoir tank, relieving any residual pressure within the system.

Step 3: Remove the Oil Filler Plug

Locate the oil filler plug or rubber fill port plug on the side or rear upper section of the main reservoir cylinder. Carefully pry or unscrew the plug to expose the fluid chamber, taking care not to let any paint chips or external debris fall inside. Removing this plug provides the necessary atmospheric venting required for trapped air bubbles to escape as you pump the system.

Warning: Never remove the oil filler plug while the jack is supporting a load, as pressurized fluid and internal components can eject violently and cause severe personal injury.

Step 4: Rapidly Pump the Handle to Clear Air Pockets

With the release valve open and the filler plug removed, pump the operating handle rapidly downward ten to fifteen times to flush out trapped air. Because the release valve is open, the ram will not rise significantly, but the plunger action will force trapped air bubbles up through the fluid circuit and out of the open filler port. Listen for a gurgling sound or watch for small air bubbles escaping from the reservoir opening as the air clears.

Step 5: Check and Top Off Hydraulic Fluid Levels

Inspect the fluid level inside the reservoir through the filler hole. The correct fluid level should sit precisely at the bottom edge of the fill port threading, allowing for a small air cushion at the top. If the fluid level is low, slowly pour fresh ISO-grade hydraulic jack oil into the reservoir until it reaches the proper baseline threshold.

Pro-Tip: Overfilling the reservoir prevents the filler plug from sealing correctly and starves the system of the necessary expansion air gap, which can cause fluid to leak out of the breathers during heavy lifting operations.

Step 6: Close the Release Valve and Test the Ram

Securely replace and tighten the oil filler plug, then turn the release valve clockwise until it is firmly closed. Insert the handle into the socket and pump the jack upward until the extension ram reaches its maximum height. Open the release valve to let the ram retract fully under its own weight or with a gentle downward push, then repeat this full-stroke cycle two to three times to verify smooth, consistent operation without stuttering.

Hydraulic Fluid and Maintenance Parameter Matrix

Common Hydraulic Failures and Field Fixes

Understanding the root causes of hydraulic malfunction ensures you apply the correct remedy instead of repeatedly forcing a failing mechanism.

• Symptom: The jack lifts under no load, but fails to rise when weight is applied.


  • Root Cause: Debris trapped beneath the ball check valve in the pump circuit, preventing the valve from seating properly.
  • Actionable Fix: Open the release valve, manually pull the ram up, and pump the handle rapidly twenty times to flush the check valve seats, then drain and flush the old fluid completely.
• Symptom: The jack lifts smoothly but slowly creeps downward under a stationary load.


  • Root Cause: A worn release valve seating surface, damaged internal pump plunger O-rings, or a leaking ram seal.
  • Actionable Fix: Inspect the release valve needle for scoring; if damaged, replace the needle or install a complete hydraulic seal rebuild kit.
• Symptom: The handle kicks back upward automatically while you are pumping.


  • Root Cause: Air trapped inside the high-pressure release valve chamber or a stuck release valve ball check.
  • Actionable Fix: Perform a complete system bleed with the oil filler plug open, ensuring the release valve is fully cleaned and properly torqued.
• Symptom: Hydraulic fluid leaks continuously from the top of the oil fill port during storage.


  • Root Cause: The jack was stored horizontally with a missing or cracked rubber filler plug, or the reservoir was overfilled.
  • Actionable Fix: Drain excess fluid to the proper fill line, replace degraded rubber plugs with threaded metal plugs if available, and store the jack strictly in the upright vertical position.

Frequently Asked Questions

Can I use motor oil instead of hydraulic oil to bleed my bottle jack?

While motor oil can be used in an absolute emergency, it is not recommended for long-term use. Motor oils contain detergent additives that can cause foaming and degrade the rubber internal seals over time, leading to internal leaks and pressure loss. Always use ISO-rated hydraulic jack oil for optimal performance and seal longevity.

Why does my bottle jack feel spongy even after I bled it?

A spongy or bouncy feel usually indicates that a residual air pocket remains trapped in the secondary pressure chamber or that the fluid level is critically low. Repeat the bleeding procedure from the beginning, making sure the release valve is fully open when purging air and that the fluid reaches the bottom of the fill hole.

How often should I change the hydraulic fluid in a bottle jack?

For jacks subjected to heavy professional use in automotive shops, changing the hydraulic fluid every twelve months is standard practice. For residential or occasional garage use, inspecting the fluid level annually and replacing the fluid every two to three years prevents internal corrosion and particulate buildup.

Why won't my bottle jack lower when I open the release valve?

This issue typically occurs when the release valve has been backed out too far, jamming the internal linkage, or when dirt is blocking the return fluid port. Gently tap the release valve stem with a rubber mallet while turning it, and ensure the ram is not binding against an unaligned load or frame bracket.

Does the bottle jack need to be weighted when bleeding air?

No, bleeding must always be performed with zero load on the extension ram. Applying weight during the air-purge cycle prevents the internal check valves from floating freely, trapping pressurized air bubbles within the high-pressure cylinder and worsening the spongy performance.

Restore peak lifting performance and safety to your hydraulic equipment today by performing a professional-grade fluid bleed and inspection. Keep your shop running safely and efficiently by maintaining your hydraulic tools according to manufacturer specifications.
