How To Build Bamboo Trellis: The Definitive DIY Structural Guide

Building a professional-grade bamboo trellis requires selecting mature, cured timber and utilizing slip-knot lashings to withstand intense wind loads and heavy crop weights. This comprehensive guide covers selecting the right culms, mastering structural joinery, and anchoring the frame for decades of reliable vertical gardening.

Pre-Operation & Equipment Checklist

Constructing a durable, aesthetically pleasing plant support requires more than simply lashing random poles together. Bamboo behaves differently than dimensional lumber; it possesses immense tensile strength along its length but can split easily if compressed improperly or drilled without pilot holes. Success relies on gathering the correct grade of timber, weatherproofing supplies, and fastening hardware before breaking ground.

• Essential Gear, Tools, and Materials:


  • Moso or Calcutta bamboo poles (minimum 1-inch to 1.5-inch diameter for primary uprights; 3/4-inch for cross-members)
  • Natural sisal, manila, or jute twine (minimum 3mm thickness, untreated for biodegradability or tarred for multi-season longevity)
  • Heavy-duty pruning shears or a fine-toothed Japanese pull saw (kataba) for clean, non-splitting cuts
  • Rebar stakes or galvanized steel ground anchors (3-foot length, 3/8-inch diameter)
  • Rubber mallet, tape measure, carpenter's square, and an outdoor-rated wood sealer or Linseed oil
• Mandatory Prerequisite Standards:


  • Source only cured, yellowish-brown bamboo culms; green bamboo shrinks, warps, and splits as it dries outdoors.
  • Ensure upright poles extend a minimum of 12 to 18 inches into the ground for structural stability against shear forces.
• Estimated Budget and Duration Benchmarks:


  • Budget: Thirty to sixty dollars for materials depending on trellis dimensions and pole quality.
  • Duration: Three to four hours of active fabrication and installation time for a standard 6x6 foot garden trellis.

Step-by-Step Structural Fabrication Workflow

Step 1: Material Sizing and Preparation

• Measure and cut your bamboo culms to the desired dimensions using a fine-toothed Japanese pull saw, cutting cleanly across the grain just above a node where the internal wall provides natural reinforcement.
• Sand any rough edges or splintered node rings with medium-grit sandpaper to protect delicate vine tendrils and prevent hand injuries during lashing.
• Treat the basal ends of the upright poles that will contact the soil by applying a liberal coat of exterior wood sealer or soaking them in raw linseed oil for twenty-four hours to mitigate fungal decay and moisture absorption.

Pro-Tip: Always make your cuts roughly a quarter-inch below or above a bamboo node. Nodes act as internal structural diaphragms that prevent the pole from crushing under tightening twine or splitting when driven into the earth.

Step 2: Laying Out the Framework Grid

• Lay your vertical and horizontal bamboo poles out on a flat surface in a grid pattern matching your crop's requirements, typically spacing horizontal rungs twelve to eighteen inches apart to accommodate heavy fruiting plants like indeterminate tomatoes, climbing roses, or pole beans.
• Use a carpenter's square to ensure all intersecting corners form precise ninety-degree angles, marking intersection points lightly with a pencil or chalk.
• Pre-drill pilot holes through the outer wall only if you are opting for galvanized screw fixation instead of traditional rope lashings, though lashing remains the gold standard for accommodating bamboo's natural flex.

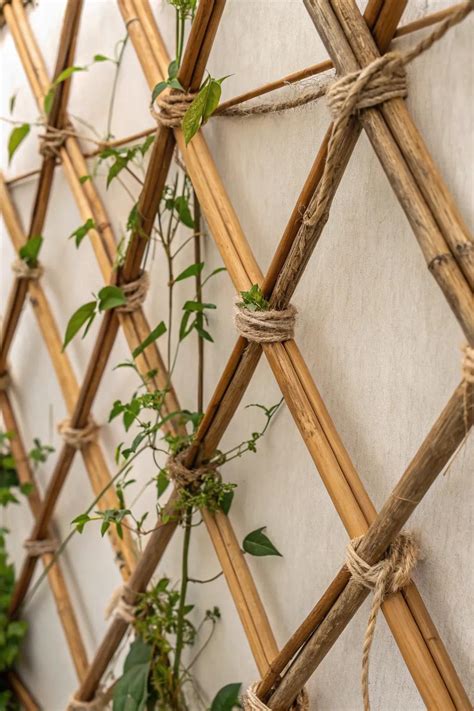

Step 3: Executing the Square Lashing Technique

• Begin your joinery by anchoring your sisal twine to the vertical pole just beneath the intersection using a clove hitch, pulling the knot tightly against the bamboo surface.
• Wrap the twine outward, going over the horizontal pole and under the vertical pole in a continuous square pattern for three to four tight revolutions, maintaining constant tension by foot-anchoring the frame.
• Finish the lashing by executing two "frapping turns"—wrapping the twine tightly between the two poles perpendicular to your previous wraps—to cinch the joint immaculately rigid before securing with a secure double square knot or taut-line hitch.

Warning: Never over-tighten twine on green or damp bamboo, as the wood expands when wet and contracts when dry, which can snap overly taut bindings or crush the outer protective skin of the culm.

Step 4: Ground Anchoring and Final Erection

• Drive your 3-foot rebar stakes or heavy steel ground anchors eighteen inches into the soil at the planned footprint locations of your vertical bamboo uprights, leaving roughly eighteen inches exposed above the soil line.
• Slide the hollow basal ends of your primary vertical bamboo poles directly over the protruding steel rebar stakes, using a rubber mallet to gently tap them down until they seat firmly against the earth.
• Double-check the plumb and level of the entire structure, then reinforce any secondary diagonal bracing poles if building a freestanding A-frame or heavy-duty panel trellis to prevent lateral swaying under high winds.

Comparative Structural Parameters of Trellis Materials

Common Site Failures and Field Fixes

• Failure: The base of the bamboo upright has split vertically from ground pressure and moisture swelling.


  • Root Cause: Driving the pole directly into hard clay without a pre-drilled pilot hole or failing to wrap the base with wire.
  • Actionable Fix: Cut the split section off cleanly above the damage, treat the new end with wood sealer, and slip the pole over a heavy steel rebar ground anchor wrapped tightly at the base with galvanized wire to prevent further splitting.
• Failure: The structural lashings slip downward along the vertical poles under the weight of mature vegetation.


  • Root Cause: Smooth bamboo skin allowed the twine to slide, or the initial clove hitch was tied without sufficient friction.
  • Actionable Fix: Untie the failing joint, score the outer waxy surface of the vertical bamboo slightly with sandpaper or a utility knife to create friction, and re-tie the square lashing directly over a small carved notch or just above a protruding node ring.
• Failure: The entire freestanding trellis structure catches the wind like a sail and leans or collapses.


  • Root Cause: Insufficient ground burial depth or lack of diagonal cross-bracing.
  • Actionable Fix: Erect diagonal support struts running from the top corners of the trellis down to independent ground stakes driven at a forty-five-degree angle away from the structure.

Frequently Asked Questions

How long does a bamboo garden trellis typically last?

A well-constructed bamboo trellis built from mature, cured Moso or Calcutta poles lasts between three to seven seasons outdoors. Longevity depends heavily on climate humidity, whether the basal ends were sealed against ground moisture, and if you store the structure indoors during harsh winter freezes.

Can I leave my bamboo trellis outside during the winter?

Yes, you can leave a bamboo trellis outside year-round provided it is securely anchored against heavy winter winds and snow loads. However, dismantling seasonal trellises or coating them annually in a breathable exterior clear sealer will significantly extend their operational lifespan.

What is the best type of twine to use for bamboo joinery?

Untreated natural sisal or manila twine is the industry standard because it grips the slick waxy surface of bamboo exceptionally well without slipping. While synthetic nylon rope lasts longer, it tends to slide against bamboo culms and can damage plant stems as they rub against the non-yielding plastic fibers.

How do I prevent bamboo poles from splitting when I tie them?

Prevent splitting by utilizing traditional Japanese rope lashings rather than drilling holes or driving standard nails through the hollow culms. Always center your lashings directly above or below a natural node ring, which serves as an internal solid bulkhead providing structural reinforcement.

Do I need to treat raw bamboo before building a trellis?

While pre-treated bamboo is ideal, raw bamboo can be prepared at home by wiping the culms down with a 10% bleach solution to kill mold spores, allowing them to dry thoroughly in the sun, and applying a coat of raw linseed oil or outdoor wood sealer.

Start your vertical garden transformation today by sourcing premium cured bamboo poles and building a sustainable, heavy-duty support system tailored to your crops.
