How To Build A Gambrel Roof: A Master Framing Guide For Maximum Headroom
Building a gambrel roof requires precision cutting of double-sloped truss frames to create a classic barn-style profile that maximizes usable upper-level loft space. Success hinges on accurate lower and upper pitch calculations, secure gusset reinforcement, and strict adherence to local wind-load and snow-load structural codes.
Pre-Operation & Equipment Checklist

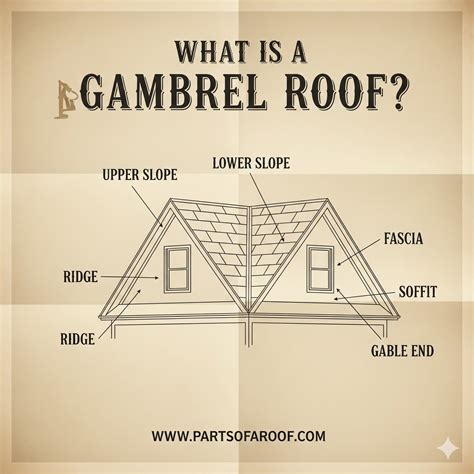

Constructing a structurally sound gambrel roof demands meticulous planning, heavy-duty framing materials, and precise geometric layout tools. This architectural style features two distinct slopes on each side—a steep lower pitch and a shallow upper pitch—which places unique lateral forces on the top plate and exterior walls.
- Essential Tools & Materials: Framing hammer, circular saw, miter saw, pneumatic framing nailer, 2x6 or 2x8 dimensional lumber for rafters and ceiling joists, 1/2-inch OSB or CDX plywood for gussets, chalk line, speed square, tape measure, scaffolding, and safety harnesses.
- Mandatory Standards & Knowledge: Familiarity with local building codes regarding roof-load capacities, collar tie spacing, and rafter tie requirements. A solid working knowledge of geometric layout, particularly calculating plumb cuts and level cuts for compound angles.
- Time & Budget Benchmarks: Typically requires a 3 to 5-day timeline for a standard two-person framing crew, with material budgets varying based on square footage, lumber grade selections, and finishing roofing materials.
Step-by-Step Gambrel Framing Workflow
Step 1: Verify Wall Plate Squareness and Layout
Before raising any framing components, measure the supporting top plates of the structure diagonally from corner to corner to ensure the building is perfectly square. Mark the exact layout spacing for your rafters or trusses directly on the top plates, standardizing centers at 16 inches or 24 inches depending on structural engineering specifications. Snap chalk lines along the plates to guide the installation of the lower wall plates and ceiling joists.
Pro-Tip: Double-check that your opposing walls are parallel and level; any discrepancies in the base will compound exponentially as you build upward, resulting in a twisted roof structure.
Step 2: Fabricate the Lower and Upper Rafter Templates
To maintain structural uniformity across the entire roof, build a master template for your gambrel trusses on a flat, level work surface or a dedicated jig table. Cut a sample lower rafter and upper rafter, establishing the critical transition point known as the gambrel joint or break.
- Cut the lower rafter with a plumb cut at the ridge/joint and a birdsmouth cut to rest securely on the top wall plate.
- Cut the upper rafter to match the shallower slope, ensuring its lower heel mates cleanly with the top of the lower rafter.
- Fasten temporary wood blocks around your sample pieces on the jig table so you can rapidly replicate identical cuts for all remaining rafters.
Step 3: Cut and Reinforce the Gambrel Joints with Gussets
Assemble the rafter pairs on the ground or directly on the structure using structural plywood gussets to lock the upper and lower slopes together. Place 1/2-inch OSB or CDX plywood gussets on both sides of the gambrel joint where the upper and lower rafters intersect. Secure the gussets using structural ring-shank nails or engineered framing screws driven in a designated pattern specified by your local building code.
Warning: Never rely solely on toe-nailing or face-nailing at the gambrel break; the outward thrust of the roof load will cause the joint to fail without rigid plywood or steel gusset reinforcement.
Step 4: Erect the End Trusses and Align the Ridge
Raise the front and rear gable end trusses first, bracing them temporarily with 2x4 framing members anchored firmly to the ground or interior floor joists. Plumb both end trusses meticulously using a spirit level, then run string lines from peak to peak and along the gambrel breaks to serve as alignment references for the intermediate trusses.
Step 5: Install Intermediate Rafters and Ceiling Joists
Set the remaining intermediate rafter pairs into place sequentially along the chalk lines, securing the lower birdsmouths to the top plate with hurricane ties. Install horizontal ceiling joists across the base of the lower rafters to tie the opposing walls together and prevent outward wall spreading under load. Complete the structural skeleton by installing collar ties across the upper rafter span to stabilize the ridge against wind uplift.
Gambrel Roof Trusses Span Tables
Gambrel Roof Technical Specifications and Pitch Ratios
| Component | Common Pitch Ratio | Typical Material Grade | Primary Structural Function |
|---|---|---|---|
| Lower Roster Slope | 60 to 75 degrees (steep) | No. 2 or better 2x8 / 2x10 | Maximizes headroom and usable loft floor space |
| Upper Rafter Slope | 22 to 30 degrees (shallow) | No. 2 or better 2x6 | Sheds precipitation while minimizing peak wind resistance |
| Gusset Plates | 1/2-inch thickness | CDX or OSB Plywood | Bridges and locks the lower and upper rafter intersection |
| Collar Ties | Horizontal placement | 2x6 dimensional lumber | Prevents upper rafter separation and ridge sag |
Common Site Failures and Field Fixes
- Failure: Outward bowing of the exterior supporting walls after roof installation.
- Root Cause: Inadequate ceiling joist ties or failure to install structural rafter ties at the base of the lower slope.
- Actionable Fix: Install heavy-duty structural steel tension ties or retrofitted 2x8 ceiling joists anchored to the wall studs with framing hardware to pull the walls back to plumb.
- Failure: Sagging or twisting at the gambrel joint break.
- Root Cause: Undersized gusset plates or insufficient fastener schedules connecting the upper and lower rafter segments.
- Actionable Fix: Remove existing undersized gussets and replace them with larger 3/4-inch exterior-grade plywood gussets fastened with structural screws on both sides of every rafter pair.
- Failure: Water infiltration along the gambrel break transition line.
- Root Cause: Improper flashing installation or a failure to maintain continuous underlayment protection across the pitch change.
- Actionable Fix: Strip back the roofing material 2 feet above and below the break, install self-adhering ice and water shield membrane across the crease, and reinstall step flashing designed for variable roof slopes.
Frequently Asked Questions
What is the ideal pitch ratio for a gambrel roof?
The traditional design pairs a steep lower slope (often 60 to 75 degrees) with a much shallower upper slope (typically 22 to 30 degrees). This specific combination optimizes interior headroom for a loft or second story while ensuring adequate water runoff on the upper section.
Do I need an engineer to design a gambrel roof?
While simple utility sheds can be built using standard framing tables, residential structures with habitable loft spaces almost always require engineered truss designs or stamped blueprints. Local building departments generally mandate engineering calculations to verify snow-load and wind-load resistance for gambrel profiles due to their unique geometry.
How do you prevent a gambrel roof from sagging at the peak?
Sagging is prevented by installing properly sized ridge boards, structural collar ties on the upper rafters, and adequate vertical support struts if spanning wide distances. Using straight, kiln-dried lumber of sufficient dimensional depth also mitigates long-term sagging.
Can I build a gambrel roof without interior support walls?
Yes, provided that your ceiling joists and collar ties are correctly engineered and sized to handle the outward thrust of the rafters. Without interior load-bearing walls, the entire structural integrity relies on the rigidity of the exterior walls and the strength of the rafter ties.
Start Framing Your Gambrel Project Today
Mastering the structural geometry of a gambrel roof transforms a standard outbuilding or home addition into a spacious, aesthetically striking structure with unmatched architectural character. Gather your precision measuring tools, secure your engineering approvals, and begin cutting your framing members with confidence.
