How To Build A Steam Shower: A Technical Guide To Waterproofing And Installation

Constructing a residential steam shower requires a vapor-tight enclosure capable of withstanding 100 percent relative humidity and continuous moisture exposure. The process mandates a sealed ceiling with a slope, specific tile selection, a dedicated steam generator unit, and a high-performance moisture barrier that prevents steam from migrating into wall cavities.

Prerequisites, Structural Requirements, and Essential Components

Building a steam shower is a high-stakes construction project where the primary enemy is vapor migration. Unlike a standard shower, where tile and grout provide sufficient protection, a steam shower acts as a pressurized vessel. If the moisture barrier is compromised, hidden mold, dry rot, and structural decay will occur behind the finished surface.

Essential Equipment and Material Checklist:

• Steam Generator: Size the generator based on the cubic footage of the enclosure. Factors include room dimensions, wall surface material (tile, marble, or glass), and ceiling height.
• Vapor-Proofing Membrane: Use a bonded waterproof membrane system, such as a high-density polyethylene sheet or a liquid-applied vapor barrier specifically rated for steam room applications.
• Control Unit: A low-voltage, digital temperature and time controller mounted outside the steam enclosure for safety.
• Steam Head: A high-temperature-rated steam head with fragrance reservoir capabilities.
• Sub-Floor Requirements: A secondary drain or a shower pan liner integrated with a pre-slope (minimum 1/4 inch per foot) towards the drain.
• Estimated Budget: $3,000 to $8,000 for standard residential retrofits depending on generator brand and tile choice.
• Project Duration: 7 to 10 working days, primarily dictated by the drying times of moisture-proofing membranes and tile setting materials.

Technical Workflow for Steam-Tight Installation

Step 1: Structural Framing and Steam Generator Placement

The framing must accommodate a ceiling height of no more than 8 feet. Any height beyond this requires a significantly larger steam generator to reach operational temperature. The steam generator should be located within 25 feet of the shower enclosure, preferably in an attic, basement, or utility closet, to minimize heat loss through the steam line. Insulate the walls and ceiling of the shower enclosure to prevent rapid heat dissipation, ensuring the studs are positioned to support the weight of heavy stone or ceramic tile.

Step 2: The Critical Vapor Barrier Installation

This is the most important phase of the build. Standard cement board or backer board is not waterproof. You must wrap the entire interior of the shower—including walls, ceiling, and curb—in a Class I vapor retarder. If using a sheet-applied membrane, ensure all seams are overlapped by at least 2 inches and sealed with a high-performance, steam-rated sealant.

Warning: Never use traditional plastic sheeting (polyethylene) behind the backer board. This creates a "double-wall" condition that traps moisture between the vapor barrier and the tile, leading to catastrophic rot within the wall cavity.

Step 3: Installing the Steam Plumbing and Electrical

Rough-in the copper or brass steam supply line before closing the walls. Do not use PEX or PVC for the first 5 feet of piping coming off the generator, as these materials cannot withstand the extreme heat. The pipe should be pitched slightly back toward the generator so that any condensed water drains back into the unit rather than dripping out of the steam head. Ensure the steam head is placed 6 to 12 inches above the finished floor, away from the seating area to prevent scalding.

Step 4: Flooring, Sloping, and Drainage

The shower floor must slope towards the drain at a consistent pitch. The steam room floor should be finished with slip-resistant tile. Apply the same waterproof membrane to the floor, ensuring it ties seamlessly into the wall membranes to create a "bath-tub" effect. All penetrations for the drain must be reinforced with a waterproof collar or membrane patch to prevent leakage around the plumbing flange.

Step 5: Tiling and Finishing

Choose porcelain or ceramic tile with a low absorption rate. Natural stone can be used but requires professional-grade penetrating sealers to prevent staining and moisture absorption. Use a high-quality epoxy grout rather than standard cement-based grout, as epoxy is impervious to moisture and resistant to the growth of mold or mildew. Ensure the ceiling has a slight pitch—at least 2 inches per foot—to prevent condensation from dripping directly onto the user's head.

Technical Comparison of Steam Enclosure Parameters

Troubleshooting Common Enclosure Failures

• Failure Scenario: Steam Escaping Under the Door


  • Root Cause: Improper door fitment or lack of a bottom gasket.
  • Actionable Fix: Install a high-temperature silicone rubber door sweep designed specifically for steam shower units to create an airtight seal at the threshold.
• Failure Scenario: Generator Cycling Off Frequently


  • Root Cause: Incorrect generator sizing or excessive heat loss through uninsulated walls.
  • Actionable Fix: Check the square footage calculation; add supplemental insulation if the enclosure walls are cooling down too rapidly.
• Failure Scenario: Water Pooling in the Steam Pipe


  • Root Cause: The pipe is pitched away from the generator or has "bellies" in the run.
  • Actionable Fix: Re-route the piping to ensure a constant downward pitch back toward the steam generator, eliminating any low spots that trap condensed water.

Frequently Asked Questions

Can I build a steam shower in an existing bathroom?

Yes, but you must gut the existing shower down to the studs to ensure the vapor barrier is continuous from floor to ceiling. You will also need to verify that your electrical panel has sufficient amperage to support the dedicated circuit required for a steam generator.

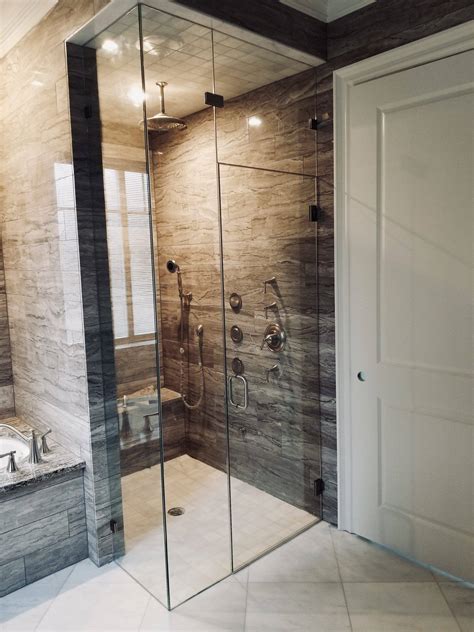

Does a steam shower require a different type of door?

A steam shower requires a door with a full-perimeter gasket seal to keep the steam inside the enclosure. Standard swing or bypass doors used in traditional showers allow too much air exchange, preventing the room from reaching the necessary saturation levels.

Is glass block appropriate for steam shower walls?

Glass blocks can be used, but you must ensure the mortar joints are fully sealed with a waterproof, steam-rated product. Because glass block has lower thermal mass, it may require a larger steam generator to maintain consistent heat levels.

How often should I descale the steam generator?

Descaling frequency depends on your local water hardness. For areas with hard water, perform a maintenance flush every 3 to 6 months using a manufacturer-approved descaling solution to prevent mineral buildup on the heating elements.

Install your steam shower with precision-engineered components to ensure decades of reliable, spa-quality relaxation in your home. Consult a certified plumber and electrician to verify your final connections and ensure compliance with local building codes.
