How To Calibrate A Speedometer: A Comprehensive Technical Guide For Mechanical And Electronic Systems

To calibrate a speedometer, you must match the gauge's velocity display with the vehicle's actual ground speed, typically by swapping physical transmission gears or reprogramming the Powertrain Control Module (PCM). Achieving accuracy within the SAE J678 industry standard of plus or minus four percent requires precise tire revolution calculations, high-precision GPS tracking, or electronic pulse-per-mile configuration.

Pre-Calibration Planning & Precision Equipment Requirements

Calibrating a vehicle's speedometer is critical after altering the factory tire diameter, changing the differential gear ratio, or replacing a faulty instrument cluster. An uncalibrated speedometer not only leads to speeding tickets but also causes inaccurate odometer readings, premature transmission shift points, and malfunctions in the anti-lock braking system (ABS).

Before executing the calibration, you must determine whether your vehicle utilizes a mechanical cable-driven speedometer (predominantly found on vehicles manufactured before 1990) or an electronic speedometer (standard on most modern vehicles manufactured after 1990).

Essential Gear, Tools, and Information Checklist

• Diagnostic & Programming Tools: A high-precision GPS device or smartphone-based GPS speed application, an OBD-II flash programmer or calibration module (for electronic systems), and a digital tire pressure gauge.
• Mechanical Calibration Components: A socket set, a drain pan (to catch transmission fluid), a flathead screwdriver, and replacement transmission driven gears (for mechanical systems).
• Mandatory Technical Data: The vehicle’s exact rear axle gear ratio, the manufacturer's specified tire rolling circumference, and the current drive gear tooth count on the transmission output shaft.
• Required Standards: Reference the SAE J678 standard, which dictates that speedometers must be accurate within a range of plus or minus four percent of the actual vehicle speed at a baseline of 60 miles per hour (MPH).
• Project Benchmarks:


  • Estimated Budget: $15 to $50 for mechanical gear replacements; $100 to $350 for electronic calibration modules or OBD-II programmers.
  • Estimated Duration: 1 to 2 hours of labor, including road testing and verification.

Procedural Execution: How to Calibrate Mechanical and Electronic Speedometers

Step 1: Establish Your Baseline Speedometer Error

To resolve a speed discrepancy, you must first calculate the exact percentage of error between your speedometer and your vehicle's actual ground speed.

1. Inflate all tires to the exact cold tire inflation pressure specified on the vehicle's door placard.
2. Find a straight, flat stretch of highway with minimal traffic where you can safely maintain a steady speed.
3. Accelerate the vehicle to exactly 60 MPH according to your dashboard speedometer.
4. While maintaining this speed, have a passenger monitor your speed on a high-precision GPS application. Alternatively, use a stopwatch to time how long it takes to travel exactly one mile using highway mile markers. At exactly 60 MPH, it should take exactly 60 seconds to travel one mile.
5. Note the difference. If your speedometer reads 60 MPH but your GPS reads 54 MPH, your speedometer is reading ten percent too fast.
6. Calculate the error rate using this formula: Error Percentage = ((GPS Speed minus Speedometer Speed) divided by GPS Speed) multiplied by 100.

Pro-Tip: If using the highway stopwatch method, calculate your actual speed with this formula: Actual Speed (MPH) = 3600 divided by the number of seconds to travel one mile.

Step 2: Calibrate a Mechanical Speedometer via Gear Swapping

If your vehicle has a mechanical speedo, calibration is achieved by changing the plastic driven gear located at the end of the speedometer cable inside the transmission tailhousing.

1. Locate the speedometer cable entry point on the driver or passenger side of the transmission tailshaft housing.
2. Place a drain pan beneath the tailhousing to capture any transmission fluid that escapes when removing the gear assembly.
3. Remove the retaining bolt securing the speedometer cable housing to the transmission using a socket wrench.
4. Gently pull the speedometer cable sleeve out of the transmission. The plastic driven gear will be attached to the end of this assembly.
5. Count the number of teeth on the driven gear. Write this number down.
6. Check your transmission drive gear tooth count (the gear permanently mounted to the transmission output shaft inside the tailhousing). Consult your vehicle's service manual if you cannot visually inspect it.
7. Calculate the new driven gear tooth count using this formula: New Driven Gear Teeth = (Drive Gear Teeth multiplied by Axle Ratio multiplied by Tire Revolutions per Mile) divided by 1001.
8. To calculate your Tire Revolutions per Mile, use this formula: Revolutions per Mile = 20826 divided by Tire Diameter in Inches.
9. Purchase and install a new driven gear with the calculated tooth count. Slide the new gear onto the end of the cable, lubricate the O-ring with fresh transmission fluid, and reinsert the assembly into the tailhousing. Secure the retaining bolt to factory torque specs.

Warning: Do not over-tighten the retaining bolt on the speedometer gear housing. This housing is typically made of soft aluminum or plastic and can easily crack, causing transmission fluid leaks and gear misalignment.

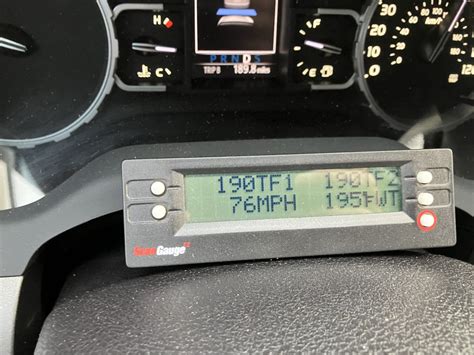

Step 3: Calibrate an Electronic Speedometer using an OBD-II Flash Programmer

Modern electronic speedometers read signals from a Vehicle Speed Sensor (VSS) mounted on the transmission or transfer case. The PCM processes these pulses and translates them into a speed reading on your instrument cluster.

1. Connect your vehicle to a battery charger or maintainer during the programming process. A drop in voltage while flashing the PCM can corrupt the vehicle's computer.
2. Locate the OBD-II diagnostic port beneath the driver's side dashboard.
3. Plug the OBD-II connector of your handheld programmer, tuner, or specialized speedometer calibrator into the port.
4. Turn the ignition key to the Run position, but do not start the engine.
5. Navigate the programmer's on-screen menu to select the vehicle tuning or speedometer calibration submenu.
6. Select your calibration parameter: most modern programmers allow you to input your exact tire size (either in overall diameter or metric size, such as 285/70R17) or your custom differential gear ratio (such as 4.10 or 4.56).
7. If your programmer requires manual tire measurement, use a tape measure to find the exact vertical distance from the ground to the top of the tire. This provides a more accurate rolling radius than the nominal size printed on the sidewall.
8. Apply the changes and wait for the programmer to write the new configuration data to the PCM. Turn the ignition off when prompted, disconnect the programmer, and start the vehicle.

Step 4: Calibrate Aftermarket Electronic Speedometers (PPM Mode)

Aftermarket electronic speedometers, such as those made by AutoMeter or VDO, use a push-button programming sequence based on a Pulses Per Mile (PPM) calibration drive.

1. Identify a flat, measured two-mile stretch of road. You can use highway mile markers or pre-measure the distance using a secondary, calibrated vehicle.
2. With the vehicle's engine off, press and hold the calibration button on the face or rear of the aftermarket speedometer.
3. While holding the button, turn the ignition key to the On position. Release the button when the digital odometer displays CAL, Calibration, or begins flashing.
4. Start the engine. The speedometer needle should remain at zero, indicating that it is ready to record the calibration run.
5. Drive to the starting point of your measured two-mile course. Stop the vehicle completely.
6. Press the calibration button once. The display will show that the pulse counter has initiated.
7. Drive the exact two-mile distance. Avoid sudden acceleration, braking, or wheel spin. The speedometer will count the sensor pulses as you drive.
8. Stop the vehicle completely at the exact end of the two-mile course.
9. Press the calibration button one final time. The speedometer will save the calculated PPM value to its internal memory, and the needle will sweep to show it has finished calibrating.

Step 5: Verify Calibration Accuracy

Whether you utilized the mechanical or electronic calibration path, verification is required to confirm that the vehicle speed is accurate across multiple driving ranges.

1. Drive the vehicle at 30 MPH, 45 MPH, and 60 MPH.
2. Compare the speedometer readings against your GPS at each of these increments.
3. Confirm that the error percentage remains within the plus or minus four percent tolerance across all speeds. If the speedometer is accurate at 30 MPH but deviates at 60 MPH, check for non-linear errors caused by incorrect tire inflation or tire expansion at high speeds.

Technical Parameters & Calibration Methodology Comparison

Different calibration approaches offer varying levels of accuracy, cost, and complexity. The table below compares the four primary methods used to adjust a speedometer.

Common Field Failures & Troubleshooting Remedies

Scenario 1: Speedometer needle bounces erratically after mechanical gear replacement

• Root Cause: The speedometer cable was kinked during reinstallation, the casing lacks proper internal lubrication, or the newly installed driven gear is not fully meshed with the drive gear.
• Actionable Fix: Remove the speedometer cable from its casing and inspect it for kinks or sharp bends. Coat the inner cable with high-quality graphite lubricant. When reinserting the gear housing into the transmission, rotate the housing slightly until you feel the gears seat completely before tightening the bracket bolt.

Scenario 2: Calibration fails to save on OBD-II programmer

• Root Cause: The vehicle's battery voltage dropped below 12.0 volts during the programming cycle, or the vehicle's Security Gateway Module (SGW) blocked the programmer from writing to the PCM.
• Actionable Fix: Connect a dedicated battery maintainer to the vehicle. If you are working on a newer vehicle (such as a 2018 or newer Chrysler, Dodge, Jeep, or Ram), install a bypass harness to connect your programmer directly to the vehicle's CAN-bus architecture, bypassing the security gateway.

Scenario 3: Non-linear speed errors (speedometer is accurate at 30 MPH but highly inaccurate at 70 MPH)

• Root Cause: The program's assumed tire expansion rate does not match the actual behavior of your tires at speed, or the wrong pulses-per-mile baseline was programmed into an aftermarket gauge.
• Actionable Fix: Measure the rolling circumference of your tires at high speeds by tracking your GPS distance over a longer 10-mile run. If using an aftermarket electronic speedometer, restart the calibration process and complete the two-mile test run on a perfectly flat road without shifting gears or varying engine RPM excessively.

Scenario 4: Traction control or ABS warning lights illuminate after recalibration

• Root Cause: The PCM's tire size setting has been updated, but the Body Control Module (BCM) or ABS module is still reading the old tire size from wheel speed sensors, triggering a system plausibility error.
• Actionable Fix: Use a professional-grade diagnostic scan tool to clear all history codes in the ABS, BCM, and transmission modules. Ensure that your tuning tool is designed to update the tire size across all onboard modules simultaneously, rather than just updating the PCM.

Frequently Asked Questions

How far off can a speedometer be legally?

Under SAE J678 and federal manufacturing guidelines, speedometers must maintain an accuracy within plus or minus four percent of the actual vehicle speed at 60 MPH. While police radar devices are calibrated regularly, driving with a speedometer that deviates by more than this margin can leave you liable for speeding tickets or lead to premature powertrain wear.

Does changing tire size always require speedometer calibration?

If your new tire diameter differs from your original tire diameter by more than three percent, you must calibrate your speedometer. Even a small one-inch increase in tire diameter can cause your speedometer to read three to four miles per hour slower than your actual speed at highway velocities.

Can a dealership calibrate my speedometer for larger tires?

Many dealerships can recalibrate your speedometer, but only for tire sizes that were offered as factory options for your specific vehicle model year. If you have installed aftermarket off-road tires or extreme low-profile tires that exceed factory specifications, you will need to use an aftermarket OBD-II flash programmer or inline calibration module to complete the job.

Why is my digital speedometer slower than my GPS speed?

GPS speed calculations measure the time it takes to travel across physical coordinates, which is highly accurate on flat ground. Your vehicle's speedometer estimates speed based on tire rotation; if your tires are worn, under-inflated, or larger than the vehicle's computer expects, the speedometer will display a slower speed than your actual GPS velocity.
