How To Change Hoop Size In Embrilliance: The Definitive Technical Configuration Guide

To change the hoop size in Embrilliance, navigate to the Preferences menu via the gear icon or the Edit menu, select the Hoops tab under Program Preferences, and choose your specific machine brand and hoop dimensions from the provided list. Accurate hoop selection is critical for defining the maximum embroidery field, ensuring design centering, and preventing stitch-out failures caused by exceeding the machine's physical sewing limits.

Pre-Configuration Essentials for Embroidery Design Scaling

Before modifying your digital workspace, you must understand the technical relationship between your embroidery machine's physical capabilities and the software's virtual boundaries. Embrilliance acts as a safety gate; if your design exceeds the selected hoop size, the software will often provide visual warnings or prevent the file from being saved in certain formats to protect your machine's hardware.

Proper hoop selection requires knowledge of the "Sewing Field," which is often slightly smaller than the physical plastic frame. For instance, a 100mm x 100mm hoop (approximately 4 inches by 4 inches) denotes the maximum area the needle bar can travel, not the outer dimensions of the hoop itself. Selecting an incorrect hoop size can lead to "Out of Bounds" errors on your machine's LCD screen or, in worst-case scenarios, cause the needle to strike the hoop frame.

• Essential Software/Tools: Embrilliance Essentials, Enthusiast, or StitchArtist (any version of the Platform), and your machine's technical manual.
• Mandatory Prerequisite Knowledge: Knowledge of your machine’s maximum embroidery area (measured in millimeters) and the specific file format requirements (e.g., .PES, .DST, .JEF).
• Metric Standard: While many US-based hobbyists use inches, the embroidery industry operates globally on a millimeter (mm) standard. Always verify mm measurements for 100% accuracy in fit.
• Estimated Duration: 2 minutes for standard selection; 5 minutes for custom hoop configuration.
• Budgetary Benchmark: Changing hoop sizes is a core feature of the base Embrilliance platform and requires no additional paid plugins beyond the initial software license.

Executive Workflow for Modifying Hoop Dimensions in Embrilliance

The following procedures apply to the entire Embrilliance platform. Whether you are using the free Express mode for lettering or the professional-grade StitchArtist for digitizing, the hoop management engine remains consistent.

Step 1: Accessing the Program Preferences

Initialization begins by entering the backend settings of the software. On a Windows machine, navigate to the top menu bar and select Edit, then click on Preferences. On a macOS system, click the Embrilliance name in the top left menu (next to the Apple icon) and select Settings or Preferences, or use the keyboard shortcut Command + Comma.

Alternatively, you can click the Gear Icon located on the main toolbar. This is the fastest method to access the hoop configuration interface. Once the window opens, ensure you are looking at the left-hand navigation pane. Under the Program Preferences category, click on Hoops.

Step 2: Selecting the Machine Brand and Format

The Hoops tab is divided into several sections. At the top, you will see a dropdown menu labeled Brand or Format. Embrilliance includes an extensive library of pre-set hoops for major manufacturers.

1. Click the dropdown menu to select your machine brand (e.g., Brother, Janome, Baby Lock, Bernina, Viking, or Singer).
2. Selecting a brand filters the list below to show only hoops compatible with those specific machines.
3. If you use a multi-needle machine or a commercial machine that uses Tajima (.DST) files, you may prefer to select the generic "Standard" or "Commercial" categories to see universal millimeter sizes.

Pro-Tip: If you own a Brother or Baby Lock machine, always check if your hoop requires a 90-degree rotation. Many machines in this ecosystem read the hoop in a "landscape" orientation, even if you hoop the fabric "portrait." Selecting the correct brand in Embrilliance often automates this orientation logic.

Step 3: Choosing the Specific Hoop Size

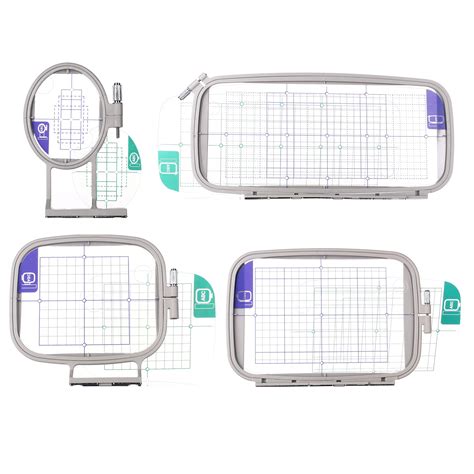

Once the brand is selected, the list below will populate with standard sizes. These are typically listed in both millimeters and inches (e.g., 130mm x 180mm / 5" x 7").

• Scroll through the list to find the hoop that matches the physical frame you intend to use.
• Left-click the hoop name to highlight it.
• Observe the "Hoop Style" column. Some hoops are designated as "Multi-Position." These are specialized hoops for small-field machines (like a 4x4 machine using a 4x7 multi-position hoop) that allow you to stitch larger designs in sections without re-hooping. Only select these if you physically own a multi-position sliding hoop.

Step 4: Configuring Custom Hoop Dimensions

If you are using a third-party hoop, such as a specialized magnetic hoop (Dime Snap Hoop) or a hat hoop that is not listed in the defaults, you must create a custom hoop size to ensure your design stays within the safe stitching zone.

1. Click the New button at the bottom of the Hoops preference pane.
2. A dialog box will appear asking for the hoop name and dimensions.
3. Enter a recognizable name (e.g., "7x7 Magnetic Hoop").
4. Input the Width and Height in millimeters. If you only have the inch measurement, multiply the inches by 25.4 to get the millimeter equivalent.
5. Set the Hoop Shape (Rectangular, Oval, or Round).
6. Click OK or Save to add this to your permanent library.

Warning: When creating custom hoops, never set the dimensions to the exact outer edge of the plastic frame. Always subtract 2mm to 5mm from each side to account for the presser foot's width and to prevent the needle bar from colliding with the hoop edge.

Step 5: Applying Orientation and Centering

After selecting your hoop, you may need to adjust how it appears on your screen.

• Rotate 90 Degrees: If your machine’s embroidery arm moves in a way that requires the design to be sideways compared to how you view it on screen, check the "Rotate 90" box.
• Apply and OK: Click Apply at the bottom of the window to see the change reflected on your design page immediately, then click OK to close the preferences.
• Center the Design: Once the hoop size is changed, your existing design might appear off-center. Go to the Utility menu and select Center in Hoop, or use the shortcut Ctrl+H (Windows) or Cmd+H (Mac). This ensures the design's origin point (0,0) aligns perfectly with the center of the selected hoop.

Technical Specifications and Machine Compatibility Matrix

The following table outlines standard hoop sizes and their corresponding machine formats. This serves as a reference for selecting the correct digital field when working with various equipment.

Correcting Hoop Alignment and Software Calibration Errors

Even with the correct hoop selected, technical anomalies can occur during the digitizing or file export phase. Below are real-world failure scenarios and their technical remedies.

Scenario 1: Design Shows a Red Outline or "X" After Hoop Change

• Root Cause: The design exceeds the "Safe Zone" of the newly selected hoop. This occurs even if only a single stitch or a jump stitch tail crosses the boundary.
• Actionable Fix: Use the "Fit to Hoop" tool in the toolset to automatically scale the design down by a percentage that accommodates the margin. Alternatively, check for "stray stitches" or long jump threads at the edges of your design and delete them in the Objects pane.

Scenario 2: The Physical Machine Rejects the Saved File

• Root Cause: You selected a hoop size in Embrilliance that is larger than the maximum field your machine is hardware-locked to support. For example, selecting a 5x7 hoop in software but trying to load it on a Brother SE600 (4x4 limit).
• Actionable Fix: Verify your machine's maximum sewing field in the manufacturer's manual. Re-open Preferences in Embrilliance and select a hoop that does not exceed those dimensions. Ensure you are saving in the correct format (.PES for Brother, .JEF for Janome) as machines will often ignore files saved for larger hoops.

Scenario 3: Design is Centered in Software but Offset on the Machine

• Root Cause: The "Hoop Offset" or "Origin Point" is misconfigured. Some older machines expect the design origin to be the top-left corner rather than the center, or the design was moved manually in the software after the "Center in Hoop" command was run.
• Actionable Fix: Always perform a final "Center in Hoop" (Utility > Center in Hoop) immediately before saving your final stitch file. In the Hoops preference pane, ensure that "Maintain Center" is checked if available for your brand.

Scenario 4: Hoop Orientation is Upside Down or Sideways on Stitch-out

• Root Cause: The "Rotate 90" checkbox was incorrectly toggled. This is common when switching between flatbed and multi-needle machines.
• Actionable Fix: Return to the Hoops tab in Preferences. If your design stitches out sideways on your machine, toggle the "Rotate 90" setting to the opposite of its current state. Save the file again with a new name and test the orientation on the machine's preview screen.

Frequently Asked Questions

Can I use a hoop size larger than what my machine supports?

No, selecting a larger hoop size in the software does not override the physical hardware limitations of your embroidery machine. While the software will allow you to layout a larger design, the embroidery machine will display an error message or the file will not appear on the machine's USB menu because the carriage cannot physically move to those coordinates.

How do I make the hoop disappear from the workspace?

If you find the hoop outline distracting while digitizing, you can toggle its visibility without changing the settings. Navigate to the View menu and uncheck Draw Hoop. This allows you to work on a clean canvas, though it is recommended to turn it back on before final saving to ensure the design is within bounds.

Why does Embrilliance sometimes change my hoop size automatically?

Embrilliance has an "Auto-Hoop" feature in some versions that attempts to select the smallest hoop that fits your current design. To disable this and maintain a fixed hoop size, go to Preferences > Hoops and ensure you have manually selected a hoop and clicked "Apply." Avoid using the "Automatic" brand setting if you want to lock in a specific frame.

What is the difference between the red hoop and the blue hoop in the software?

In Embrilliance, the red line typically represents the absolute physical limit of the embroidery field, while the blue or black lines may represent the hoop's plastic frame or a specific "Safe Zone." Always keep your stitches within the innermost boundary to ensure the presser foot does not strike the inner edge of the hoop during high-speed stitching.

How do I add a "Ghost Hoop" for multi-hooping projects?

For designs larger than any available hoop, you must use the "Multi-Hooping" feature found in the Enthusiast or StitchArtist levels. This is not a simple hoop size change but a process where the software calculates "split points." You will select your target hoop size, and the software will overlay multiple instances of that hoop to show you where the design must be divided.
