How To Change Sway Bar Bushings: A Step-by-Step Suspension Restore Guide

To change sway bar bushings, elevate the vehicle safely on jack stands to neutralize suspension tension, unbolt the mounting brackets securing the stabilizer bar to the subframe, slide off the worn rubber insulators, and install lubricated replacements before torquing the fasteners to factory specifications (typically 20 to 35 lb-ft). This essential suspension service eliminates front-end clunking noises, minimizes excessive body roll, and restores predictable steering response in under two hours.

Pre-Operation Diagnostic & Equipment Checklist

Sway bar bushings (also known as stabilizer bar bushings) act as the mounting interface between the vehicle’s steel anti-roll bar and the chassis subframe. Over time, these rubber components suffer from dry rot, environmental contamination from oil and road salt, and mechanical wear due to constant torsional forces. When they degrade, the sway bar develops play within the mounting brackets, resulting in a distinct metallic clunking sound over bumps and compromised handling characteristics.

Before lifting the vehicle, verify that the noise is indeed the bushings. Visually inspect the brackets for torn rubber squeezing out, or use a pry bar to check for movement between the sway bar and the frame. If play is detected, gather the following tools and prepare your workspace.

Essential Gear, Tools, and Materials

• Safety Equipment: ANSI-rated safety glasses, heavy-duty mechanics gloves, and wheel chocks.
• Lifting Tools: Hydraulic floor jack (minimum 2-ton capacity) and two high-quality jack stands.
• Hand Tools: 3/8-inch or 1/2-inch drive ratchet, metric and standard socket set, combination wrench set, and a flathead screwdriver or pry bar.
• Precision Instruments: A calibrated click-type torque wrench measuring in inch-pounds or foot-pounds.
• Chemicals & Lubricants: Penetrating oil (such as PB Blaster or Liquid Wrench), brake cleaner, emery cloth (medium-grit), and synthetic silicone-based grease (or PTFE marine grease). Do not use petroleum-based grease on rubber bushings, as it degrades the elastomer compound.

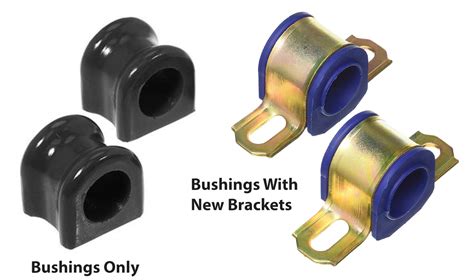

• Replacement Parts: Vehicle-specific OEM rubber or aftermarket polyurethane sway bar bushings matching the exact outer diameter of your sway bar.

Prerequisite Knowledge & Safety Standards

• Suspension Neutrality: The sway bar is a spring. If only one side of the vehicle is raised, the bar will be under immense torsional tension. Always lift both sides of the axle equally to neutralize the load on the sway bar.
• Chassis Support: Never work underneath a vehicle supported solely by a hydraulic floor jack. Always place jack stands under approved frame rails or pinch welds.
• Sway Bar Diameter Verification: Vehicles often feature multiple suspension package options. Use a digital caliper to measure the thickness of your sway bar (common sizes range from 15mm to 32mm) before purchasing replacement parts to ensure a snug fit.

Project Benchmarks

• Estimated Budget: $15 to $50 for standard replacement parts; up to $80 for premium polyurethane upgrades.
• Estimated Duration: 1 to 2 hours, depending on undercarriage rust levels and clearance constraints.

Step-by-Step Stabilizer Bar Bushing Replacement

Step 1: Secure and Elevate the Vehicle

Park the vehicle on a flat, level concrete surface. Apply the parking brake firmly. Place wheel chocks behind the rear tires if you are servicing the front suspension, or in front of the front tires if servicing the rear. Locate the vehicle's designated front lift points and use your hydraulic floor jack to raise the entire front end of the car. Position jack stands securely under the subframe or frame rails, then slowly lower the jack until the vehicle rests entirely on the stands. Shake the vehicle gently to verify stability before crawling underneath.

While removing the front wheels is not always mandatory, doing so provides significantly better lighting, tool clearance, and physical access to the mounting bracket bolts. If you choose to remove the wheels, loosen the lug nuts slightly before raising the vehicle, then spin them off once the vehicle is elevated.

Step 2: Prepare the Fasteners and Clear Road Grime

Locate the two sway bar bushing brackets secured to the vehicle’s subframe. Due to their location beneath the engine bay, these fasteners are constantly exposed to water, road debris, and salt, making them highly susceptible to rust and seizing.

Use a stiff wire brush to clean any loose scale and road grime off the bolt heads and exposed thread shafts extending through the subframe. Generously apply a high-quality penetrating oil to the mounting bolts. Allow the oil to penetrate the threads for at least 10 to 15 minutes. This simple step prevents stripped threads or snapped bolt shafts, which turn a simple job into a complex extraction process.

Pro-Tip: If the bracket bolts are severely rusted, tap the head of each bolt gently with a brass hammer after applying penetrating oil. The vibration helps break the micro-crystalline rust seal within the thread paths, allowing the fluid to penetrate deeper.

Step 3: Remove the Mounting Brackets

Identify the mounting configuration of your brackets. Some vehicles utilize a two-bolt design, while others feature a hook-and-bolt design where one side of the bracket slots into a frame tab and the other side is secured by a single bolt.

Using the correct socket size, slowly back out the bracket bolts. Turn the bolts counter-clockwise. If you encounter significant resistance, turn the bolt back clockwise half a turn, apply more penetrating oil, and try backing it out again. Work slowly to avoid shearing the bolt head. Once the bolts are removed, pull the metal brackets off the bushings. If they are stuck due to road grime or rusted metal, insert a flathead screwdriver or small pry bar between the bracket and the subframe to pry them free.

Step 4: Extract the Old Bushings and Clean the Sway Bar

Most sway bar bushings feature a pre-cut split along one side to allow them to slip over the metal bar. Locate this split, pull the bushing open, and slide it off the sway bar. If the bushing is old and hardened, you may need to use a pry bar or flathead screwdriver to open the split.

With the bushings removed, inspect the contact areas on the sway bar. You will likely find a buildup of rust, old rubber residue, and road grit. Take a piece of medium-grit emery cloth or a wire brush and thoroughly clean the metal surface of the bar where the new bushing will sit. Wipe the area clean with brake cleaner. The surface must be smooth and free of pitting or scaly rust; a rough surface will rapidly abrade and destroy your new bushing, resulting in premature failure.

Warning: Inspect the sway bar itself for deep pitting or rust-induced cracks, especially near the bushing shoulders. A structurally compromised sway bar can snap under cornering loads, causing sudden, dangerous changes in vehicle handling. Replace the entire bar if structural integrity is compromised.

Step 5: Lubricate and Install the New Bushings

Open the split on your new bushing and slip it over the cleaned portion of the sway bar. Ensure that the flat side of the bushing matches the mounting orientation of the subframe, and that the split faces the correct direction. Usually, the split should face toward the front of the vehicle or downward, depending on the original manufacturer layout, to prevent water and debris from settling inside the split.

If you are installing rubber bushings, do not apply standard grease. Most high-quality rubber bushings are designed to run dry, though some technicians apply a thin layer of specialized dry-film lubricant or soapy water to assist with installation. If you are installing aftermarket polyurethane bushings, apply a generous coating of non-water-soluble synthetic silicone or PTFE grease to the inner bore of the bushing. Polyurethane does not yield or stretch like rubber, and dry polyurethane bushings will create a persistent, loud squeaking noise when the sway bar rotates.

Step 6: Reinstall the Brackets and Torque to Specification

Slide the metal brackets back over the new bushings. Align the bracket bolt holes with the threaded holes in the subframe. Hand-thread the bolts back into the holes to ensure they are not cross-threaded.

Using your socket wrench, snug the bolts down evenly, alternating side-to-side and bolt-to-bolt. This ensures that the bracket compresses the new bushing uniformly against the subframe. Once the bolts are snug, use a calibrated torque wrench to tighten the fasteners to your vehicle’s specific torque values. Generally, these values range from 18 to 35 lb-ft (24 to 47 Nm). Do not over-torque these bolts, as the threads in the subframe can easily strip, requiring thread repair inserts. Reinstall the wheels if they were removed, lower the vehicle back to the ground, and torque the wheel lug nuts to specification.

Bushing Material Comparison & Torque Specifications

Choosing the correct bushing material depends on your vehicle application, driving habits, and tolerance for NVH (Noise, Vibration, and Harshness). Use the comprehensive comparison table below to determine the best material choice for your replacement.

Common Installation Failures & Field Fixes

• Scenario 1: The bracket bolts strip out the threads in the aluminum or thin-steel subframe during final tightening.




  • Root Cause: Over-tightening without a torque wrench, or cross-threading the bolt during manual entry.
  • Actionable Fix: Do not attempt to use a larger bolt. Use a thread repair kit (such as a Heli-Coil or Time-Sert) to install a high-strength stainless steel thread insert matching the original bolt pitch. Alternatively, if there is open access behind the subframe, install a slightly longer Grade 8 bolt and secure it with a matching locking nut on the back.

• Scenario 2: The suspension emits a high-pitched squeaking sound when driving over speed bumps immediately after installation.




  • Root Cause: Polyurethane bushings installed without proper non-water-soluble synthetic lubrication, or rubber bushings contaminated with petroleum grease that has degraded the material.
  • Actionable Fix: Remove the brackets and bushings. Clean the sway bar and bushing surface with brake cleaner. If using polyurethane, reapply a heavy layer of marine-grade synthetic silicone or PTFE grease to the inner diameter of the bushing. If using rubber, replace the damaged bushings and install them clean and dry.

• Scenario 3: The bracket bolt holes will not line up with the subframe mounting holes during reassembly.




  • Root Cause: The vehicle suspension is not resting under neutral load. If only one side of the car was jacked up, or if the wheels are turned, the sway bar is under tension and twisting away from its resting position.
  • Actionable Fix: Ensure both sides of the axle are raised equally on jack stands. If the bar is still slightly out of alignment, use a hydraulic bottle jack under the low end of the sway bar to gently jack it upward until the bracket holes align perfectly with the subframe threads.

• Scenario 4: The new bushing has an inner diameter that is too large, leaving a visible gap around the sway bar.




  • Root Cause: Purchasing a bushing designed for a different suspension trim package or engine configuration.
  • Actionable Fix: Do not tighten the bracket down to compensate for a loose bushing; this will cause excessive play and immediate handling issues. Measure the sway bar diameter with a digital caliper directly adjacent to the bushing seat and order the exact matching size in millimeters.

Frequently Asked Questions

Do I need to replace sway bar links when replacing the bushings?

While it is not strictly mandatory, it is highly recommended. Sway bar end links are subjected to the same mileage and environmental wear as the bushings; replacing both components simultaneously ensures complete suspension quietness and restores original handling dynamics without requiring you to lift the vehicle twice.

Should I grease rubber sway bar bushings?

No, standard rubber bushings should not be greased. Petroleum-based greases will break down natural rubber chemistry, causing it to soften, swell, and disintegrate. If assembly lubrication is required to slide the bushing onto the bar, use a drop of soapy water or a specialized dry-film spray that evaporates completely after installation.

Can bad sway bar bushings cause a clunking sound?

Yes, a distinct metallic clunking or popping noise when driving over bumps, potholes, or uneven driveways is the primary symptom of failed bushings. When the inner diameter of the bushing stretches or disintegrates, the steel sway bar is free to knock directly against the steel mounting bracket or subframe.

Is it safe to drive with worn-out sway bar bushings?

Yes, it is generally safe to drive short distances with worn bushings, but your vehicle will exhibit increased body roll in turns and less responsive steering. Avoid high-speed cornering or sudden evasive maneuvers, as the reduced anti-roll stability can affect your control over the vehicle under emergency conditions.

Restore Your Vehicle's Handling and Ride Quality

Upgrading or replacing your worn sway bar bushings is one of the most cost-effective ways to restore that quiet, precise, new-car feel to your steering and suspension. Take the time to inspect your entire undercarriage, select the ideal bushing material for your driving style, and use proper torque specifications to ensure a durable, safe installation.
