How To Check The PCV Valve: A Complete Diagnostic Guide

Testing a Positive Crankcase Ventilation (PCV) valve requires checking both mechanical pintle movement and vacuum performance under normal engine operating conditions. A fully functional PCV valve must rattle freely when shaken manually and draw a steady manifold vacuum of 12 to 20 inches of mercury (in-Hg) at idle. Identifying a stuck or clogged valve prevents severe crankcase overpressurization, excessive oil consumption, engine seal failure, and unmetered air leaks.

Pre-Diagnostic Inspection & Diagnostic Tool Assembly

A Positive Crankcase Ventilation (PCV) valve controls the flow of blow-by gases—unburned hydrocarbons and combustion byproducts that escape past the piston rings into the crankcase—back into the intake manifold to be safely burned. Diagnosing this mechanical check valve requires minimal automotive gear, but performing tests correctly prevents false readings caused by deteriorated rubber hoses, manifold vacuum leaks, or heavy sludge contamination.

Before starting any diagnostic test, ensure the vehicle is parked on a level surface with the parking brake engaged and the engine turned off. Allow the engine bay to cool sufficiently to prevent burns from the exhaust manifold or valve cover.

Essential Equipment & Materials

• Safety Gear: Nitrile gloves and shatterproof eye protection.
• Basic Hand Tools: Needle-nose pliers, standard screwdriver set, and socket set (for threaded or clamped PCV units).
• Diagnostic Equipment: Handheld vacuum pump with an integrated mechanical gauge (0–30 in-Hg range).
• Chemical Cleaners: Solvent-based carburetor or throttle body cleaner spray.
• Consumables: Shop towels, replacement PCV valve grommet, and fuel/oil-resistant vacuum tubing (if existing lines are brittle).

Prerequisite Standards & Metric Benchmarks

• Average Diagnostic Duration: 15 to 30 minutes.
• Estimated DIY Cost: $0 (using existing tools) to $25 (for replacement valve and vacuum hose).
• Normal Engine Vacuum: 17 to 21 in-Hg at sea level during stable idle.
• Acceptable Valve Sealing Tolerance: Zero air passage when pressure is applied in the reverse direction (from the intake manifold side toward the crankcase).

Diagnostic Workflow for Testing PCV Valve Integrity

Step 1: Locate and Extract the PCV Valve Assembly

1. Open the engine hood and locate the PCV valve on the upper portion of the engine. In standard overhead valve (OHV) and overhead cam (OHC) configurations, the valve sits directly in a rubber grommet on the valve cover or oil separator plate.
2. Trace the thick rubber vacuum hose connecting the intake manifold or plenum to the top of the valve cover.
3. Use needle-nose pliers to compress and slide back any retention clamps holding the vacuum hose to the PCV valve port.
4. Twist the vacuum hose gently back and forth to break the heat seal, then pull the hose off the valve fitting.

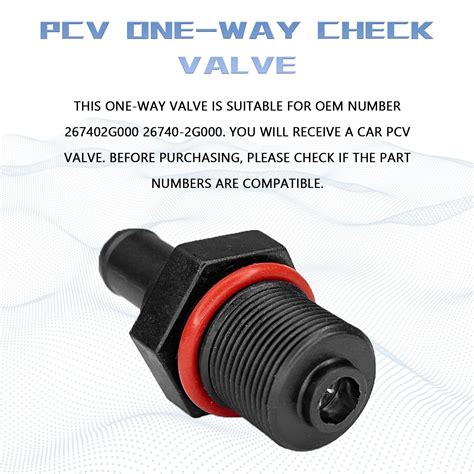

5. Grasp the PCV valve body firmly and pull it straight up out of its rubber valve cover grommet. If the valve is a threaded metal design (common on older or high-displacement engines), use a deep socket to unthread it counterclockwise from the valve cover.

Warning: Brittle, heat-aged rubber grommets can crack and drop hardened fragments into the valve cover gallery during removal. If the grommet feels hard or rigid, replace it immediately to prevent internal engine contamination and vacuum leaks.

Step 2: Conduct the Mechanical Auditory Shake Test

1. Hold the extracted PCV valve between your thumb and index finger.
2. Shake the valve vigorously back and forth along its longitudinal axis.
3. Listen for a sharp, distinct metallic clicking or rattling sound. This noise indicates that the internal spring-loaded pintle (or heavy check ball) slides freely within its housing.
4. If the valve produces a muffled click or no sound at all, varnish, carbonized oil, or engine sludge has bound the internal pintle.

Pro-Tip: While a passing shake test confirms that the internal pintle is free, it does not guarantee proper seal integrity under engine vacuum. Always combine the shake test with a vacuum verification test.

Step 3: Perform the Physical Vacuum Suction Test (Engine Running)

1. Reconnect the PCV valve to its intake manifold vacuum hose while leaving the valve body pulled free from the valve cover grommet.
2. Start the engine and allow it to settle into a normal, stable idle speed.
3. Place a gloved finger or a stiff piece of cardstock over the exposed bottom inlet port of the PCV valve (the end that normally sits inside the valve cover).
4. Feel for strong, immediate suction against your finger. You should hear a distinct "hissing" sound as vacuum draws past the internal pintle.
5. If you feel no vacuum suction, the vacuum supply hose is pinched, clogged with carbon, or disconnected at the intake manifold plenum port.

Step 4: Measure Vacuum Pressure with a Bench Testing Pump

1. Remove the PCV valve completely from the vehicle.
2. Connect the barb fitting of a handheld manual vacuum pump to the intake-manifold side (outlet) of the PCV valve using a tight-fitting rubber adapter.
3. Pump the handheld unit until the gauge reads approximately 15 in-Hg of vacuum.
4. Observe the gauge dial for 30 seconds. A healthy PCV valve designed for metered airflow will hold a controlled vacuum or bleed off slowly according to OEM specifications.
5. Connect the vacuum pump to the crankcase side (inlet) of the valve and apply pressure or vacuum. The internal check valve must immediately block reverse airflow. Complete fluid or air passage in reverse indicates internal check-valve seal failure.

Step 5: Perform the Oil Filler Cap Pressure Test (In-Situ)

1. Reinstall the PCV valve securely into the valve cover grommet and ensure all vacuum lines are fully connected.
2. Start the engine and bring it to normal operating temperature.
3. Remove the engine oil filler cap from the valve cover while the engine is idling.
4. Place a thin, flat piece of stiff paper or cardstock over the open oil filler neck opening.
5. Observe the paper: a operational PCV system creates a slight negative pressure, pulling the paper down against the filler neck opening. If the paper is pushed upward by escaping gases, blow-by volume is exceeding PCV capacity, or the PCV circuit is completely blocked.

PCV Valve Diagnostic Methods & Technical Benchmark Comparison

Resolving Crankcase Pressure Diagnostic Anomalies

Scenario 1: PCV Valve Stuck Completely Open

• Root Cause: Heavy carbon deposits, metal debris, or a broken internal spring hold the pintle in its wide-open position. This allows unmetered, raw air to flow directly from the crankcase into the intake manifold, bypassing the throttle body air meter.
• Actionable Fix: Replace the PCV valve immediately. Inspect the spark plugs for lean-running conditions (white ash deposits) and clear any stored Diagnostic Trouble Codes (DTCs) such as P0171 or P0174 (System Too Lean) using an OBD-II scanner.

Scenario 2: PCV Valve Stuck Closed or Clogged

• Root Cause: Carbonized oil varnish and sludge bind the internal pintle against its seat, preventing blow-by gases from venting out of the crankcase into the intake manifold.
• Actionable Fix: Remove the valve and flush the interior thoroughly with solvent-based carburetor cleaner to dissolve varnish. If the pintle fails to rattle freely after flushing, replace the valve. Clean out the crankcase breather tube and check the valve cover baffle for oil sludge accumulation.

Scenario 3: Engine Oil Pushing Out of Dipstick or Main Seals

• Root Cause: Severe crankcase overpressurization caused by a non-functioning PCV system or excessive engine blow-by bypassing worn piston rings.
• Actionable Fix: Inspect the PCV valve and its connected vacuum lines for complete blockages. If the PCV valve and vacuum sourcing pass all suction tests, perform a cylinder leak-down test and dry/wet compression test to evaluate piston ring integrity.

Scenario 4: Whistling or Squeal Noise at Idle

• Root Cause: High engine vacuum drawing air past hardened, cracked PCV mounting grommets or degraded vacuum hose connections, creating a high-velocity unmetered air leak.
• Actionable Fix: Spray small bursts of electronic cleaner or non-chlorinated brake cleaner around the PCV grommet and vacuum connections while the engine idles. If engine RPM changes, replace the degraded rubber grommet, cracked plastic fittings, or hardened vacuum lines.

Frequently Asked Questions

Can a bad PCV valve cause oil leaks or high engine pressure?

Yes, a stuck-closed PCV valve directly causes high crankcase pressure. When blow-by gases cannot escape through the intake manifold, internal crankcase pressure builds up until it forces engine oil past valve cover gaskets, oil pan seals, or front and rear main crankshaft seals.

What happens if I drive with a faulty PCV valve?

Driving with a failed PCV valve leads to severe engine performance issues and structural damage. A stuck-open valve causes engine misfires, rough idling, fuel-trim imbalances, and lean running conditions, while a stuck-closed valve causes rapid oil sludge formation, seal blowouts, and high oil consumption.

How often should a PCV valve be inspected or replaced?

A PCV valve should be inspected during every major routine engine service or roughly every 15,000 to 30,000 miles. Most manufacturers recommend proactive replacement every 30,000 to 50,000 miles, as carbon buildup naturally accumulates inside the valve over time.

How do I know if my engine uses an integrated oil separator instead of a standard PCV valve?

Modern turbocharged and direct-injected engines often use a multi-stage oil separator plate or membrane diaphragm (PCV assembly) built directly into the valve cover rather than a simple inline plastic valve. If your engine lacks a traditional removable valve, inspect the valve cover for an integrated diaphragm cap and test for internal diaphragm tears using a smoke machine or crankcase pressure transducer.

Protect Your Engine with Regular Crankcase Maintenance

Properly testing and maintaining your vehicle's PCV valve ensures balanced engine vacuum, lower oil consumption, and long-term seal longevity. If your diagnostic tests reveal a sticking pintle, vacuum loss, or oil contamination, install a high-quality OEM replacement valve and fresh vacuum lines immediately to restore peak engine efficiency.
