How To Check Radiator Pressure: A Step-by-Step Diagnostic Guide

To check radiator pressure safely and accurately, connect a specialized cooling system pressure tester to the radiator filler neck or expansion tank using a matching adapter, then manually pressurize the system to the exact rating stamped on your radiator cap. If the tester's pressure gauge drops by more than one pound per square inch (PSI) over a ten-minute observation window, a leak is present within the sealed cooling loop. Never attempt this procedure on a hot engine, as pressurized, boiling coolant can cause severe thermal burns and physical injury.

Safety Protocol and Required Diagnostics Equipment

Automotive cooling systems operate as pressurized, closed-loop thermal management networks. As engine temperatures rise, the coolant expands, creating hydrostatic pressure. This pressure is regulated by the radiator cap to raise the boiling point of the liquid coolant. Specifically, every 1 PSI of pressure added to the system raises the boiling point of a standard 50/50 ethylene glycol and water mixture by approximately 3 degrees Fahrenheit (1.6 degrees Celsius). A fully pressurized system operating at 15 PSI prevents boiling at temperatures up to 268 degrees Fahrenheit (131 degrees Celsius).

Because of this extreme thermal energy, attempting to diagnose or open any part of the cooling system while hot is highly dangerous. Before beginning any pressure test, the engine must cool completely. This ensures the coolant contracts, system pressure drops back to atmospheric levels, and the liquid temperature falls below 100 degrees Fahrenheit (38 degrees Celsius).

Pre-Procedure Planning Checklist

• Essential Gear and Tools:

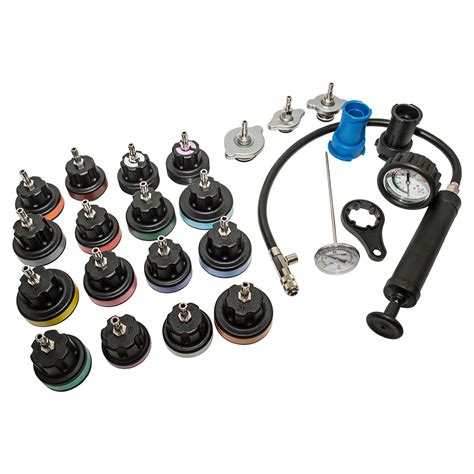

  • Manual cooling system pressure tester pump with quick-disconnect coupler.
  • Vehicle-specific threaded or bayonet-style radiator neck adapters.
  • ANSI-approved safety glasses or face shield.
  • Heavy-duty nitrile or mechanics gloves.
  • Clean shop towels or microfiber cloths.
  • Ultraviolet (UV) leak detection dye and a UV flashlight (optional, for pinpointing micro-leaks).
  • Distilled water or pre-diluted OEM-specified coolant (to top off any fluid lost during testing).

• Mandatory Prerequisite Knowledge:




  • Location of the primary pressure point (either the physical radiator cap or the pressurized expansion tank cap).
  • The vehicle's specific system pressure rating, which is typically stamped on top of the radiator cap or detailed in the factory service manual.
  • Understanding of standard coolant flow directions and hose routing.

• Estimated Budget and Duration:




  • Financial Investment: $0 to $150. Many local auto parts retailers offer pressure tester kits through free tool-rental programs, or you can purchase a professional-grade kit for permanent ownership.
  • Time Commitment: 30 to 45 minutes of total working and observation time.

Step-by-Step Cooling System Pressure Testing

Step 1: Verify Engine Cool-Down and Safety

Before touching any cooling component, open the hood and conduct a safety check. Place your hand near, but not directly on, the upper radiator hose. If you feel heat radiating from the hose, or if the hose feels rigid and tense when gently squeezed, the system is still hot and pressurized. Wait at least two to three hours after the engine has run before proceeding.

Once the engine is cold to the touch, squeeze the upper radiator hose again. It should feel soft and compliant. Wrap a thick shop towel over the radiator cap or expansion tank cap. Slowly rotate the cap counterclockwise to its first safety detent. This allows any residual air pressure to vent safely down the overflow tube. Once the venting sound stops, press down firmly on the cap and rotate it fully counterclockwise to remove it.

Warning: Never rely solely on the dashboard temperature gauge to determine if the cooling system is safe to open. Dash gauges measure engine metal or cylinder head temperature and can display "cold" even if pressurized steam pockets remain trapped inside the upper radiator tank.

Step 2: Inspect the Filler Neck and Radiator Cap

Examine the physical condition of the radiator filler neck or expansion tank threads. Look for plastic cracks, metal corrosion, or deep scratches along the inner sealing seat where the cap's rubber gasket rests. Wipe the seat clean with a damp shop towel to remove rust scale, dried coolant crust, or debris that could prevent a perfect airtight seal during the pressure test.

Inspect the radiator cap itself. Examine the main spring, the upper sealing gasket, and the lower spring-loaded plunger seal. If you notice torn elastomer seals, a collapsed spring, or distorted metal ears on a bayonet-style cap, the cap must be replaced.

Step 3: Select and Mount the Correct Testing Adapter

Open your pressure tester kit and identify the adapter that matches the thread pitch or bayonet locking tabs of your vehicle's radiator neck. Hand-thread or lock the adapter onto the radiator filler neck. Ensure the adapter sits flat and its internal rubber gasket compresses evenly against the filler neck seat.

Once the adapter is secured, pull back the collar on the pressure tester pump's quick-disconnect coupler. Push the coupler firmly onto the adapter fitting until it clicks into place. Tug upward gently on the coupler to verify that it is locked on and will not blow off under pressure.

Pro-Tip: If you are testing a system with a pressurized expansion tank rather than a direct radiator cap, you must use a threaded adapter that seals the tank's overflow port. If the overflow port remains open, air will bleed out of the reservoir during pumping, making it impossible to hold pressure.

Step 4: Pressurize the Cooling System to Specification

Locate the pressure rating stamped on the face of the vehicle's radiator cap. This is usually listed in PSI, kilopascals (kPa), or bar (e.g., 1.1 bar translates to roughly 16 PSI; 100 kPa equals 14.5 PSI).

Hold the pressure tester pump body with one hand and grasp the plunger handle with the other. Begin pumping slowly while keeping your eyes on the tester's dial gauge. Watch the needle rise steadily. Stop pumping the moment the needle aligns with the exact pressure rating specified on your radiator cap.

Warning: Do not over-pressurize the system. Pumping the pressure tester past the rated specification of the radiator cap (for example, pressurizing a 13 PSI system to 25 PSI) can rupture aged plastic radiator tanks, crack the heater core matrix inside the cabin, or blow out weakened water pump seals.

Step 5: Conduct the Static Pressure Drop and Leak Search

With the system fully pressurized to specification, set a timer for 10 minutes. Do not disturb the vehicle during this period. Watch the gauge needle closely:

1. Stable Needle: If the needle remains stationary at the target pressure for the entire 10 minutes, your cooling system is structurally sound and free of leaks.
2. Dropping Needle: If the needle begins to fall, a leak is present.

If the pressure drops, grab a flashlight and inspect the engine bay. Trace the entire cooling path starting from the upper radiator hose, moving to the radiator core, the plastic side tanks, the water pump snout and weep hole, the thermostat housing, the bypass hoses, and the heater core inlet and outlet lines at the firewall. Look for pooling liquid, dripping water, or tiny pinhole sprays of mist escaping under pressure.

Step 6: Test the Radiator Cap Independently

A cooling system can fail even if the radiator, hoses, and engine block are completely sealed. If the radiator cap fails to hold its rated pressure, coolant will boil prematurely and escape into the non-pressurized overflow bottle, causing the engine to overheat.

To test the cap, connect the radiator cap to the matching adapter provided in your tester kit. Connect the adapter to the pressure tester pump. Pump the handle to pressurize the cap. The pressure gauge should rise to the cap's rated limit (e.g., 16 PSI) and then rapidly drop or stabilize as the internal spring-loaded valve opens to vent excess pressure. If the cap vents early (e.g., at 8 PSI) or fails to hold any pressure at all, the internal spring has weakened, and you must install a new radiator cap.

Radiator Pressure Specifications and Tool Compatibility

Different vehicle platforms, engine configurations, and performance designs require different operating pressures. The table below outlines typical pressure standards, maximum safe diagnostic thresholds, and the typical adapters required for accurate pressure testing across various vehicle types.

Diagnosing Common Pressure Failures and System Leaks

Scenario 1: The pressure gauge drops rapidly, but there are no visible external coolant leaks in the engine bay.

• Root Cause: The system is leaking internally. Coolant is bypassing closed barriers and entering the combustion chambers, the crankcase, or the transmission cooling loop. This is typically caused by a blown cylinder head gasket, a cracked cylinder head, a warped engine block, or a failed internal transmission cooler inside the radiator tank.
• Actionable Fix: Pull the engine oil dipstick and inspect the oil. If the oil looks like milky, light-brown chocolate milk, coolant is mixing with the oil due to a blown head gasket or cracked block. Stop driving immediately to prevent bearing damage. Perform a chemical combustion leak test (block test) to check for exhaust gases in the radiator neck. If the oil is clean, inspect the automatic transmission fluid (ATF). If the ATF is pink and strawberry-milkshake-like, the internal radiator cooler has ruptured, requiring immediate radiator replacement and a transmission flush.

Scenario 2: The pressure drops slowly, and a sweet, syrupy smell is present inside the passenger cabin.

• Root Cause: The heater core has developed a pinhole leak. Because the heater core is located inside the dashboard HVAC housing, leaking coolant will drip into the cabin floor rather than onto the ground under the engine.
• Actionable Fix: Pull back the front passenger-side carpet and feel the foam backing for wetness or slimy residue. Inspect the windshield for a greasy film that reappears after defroster use. To confirm, locate the heater core inlet and outlet hoses at the engine-side firewall, disconnect them, and connect them together using a bypass coupler. Re-run the pressure test. If the pressure drop stops with the heater core bypassed, the heater core is damaged and must be replaced.

Scenario 3: The pressure tester loses pressure, but you hear a faint hissing sound coming directly from the tester connection.

• Root Cause: The pressure tester adapter is not seated correctly, or the adapter's internal rubber sealing washer is torn, worn out, or mismatched for your vehicle's filler neck.
• Actionable Fix: Relieve the tester pressure using the pressure release valve on the pump body. Disconnect the quick-coupler, remove the adapter, and inspect its lower rubber sealing ring. Wipe the inner lip of the radiator neck again. Reinstall the adapter, making sure it is threaded on straight and tight. Apply a thin smear of clean coolant or silicone grease to the adapter's rubber seal to help it seat, then repressurize the system.

Scenario 4: The system holds cold pressure perfectly, but the engine overheats and expels coolant during highway driving.

• Root Cause: Combustion gas leakage or a localized blockage. While the static cold test proves the physical seals can hold 15 PSI of static pressure, it does not simulate the extreme dynamic pressures (often exceeding 100+ PSI) of combustion gases forcing their way past a fire-ring seal on a head gasket under load.
• Actionable Fix: Perform a block gas test using a blue detector fluid that turns yellow or green when exposed to carbon dioxide in the radiator airspace. Alternatively, check for bubbles rising in the expansion tank while the engine is running. If bubbles are present, or if the detector fluid changes color, the head gasket is failing under combustion pressures and requires replacement.

Frequently Asked Questions

Can I check radiator pressure without a specialized pressure tester tool?

While you cannot measure exact PSI drops without a gauge, you can perform a basic manual pressure check by letting the engine reach normal operating temperature, parking the vehicle, and squeezing the upper radiator hose with gloved hands. If the hose feels completely soft and offers no resistance, the system is not building pressure, pointing to a failed radiator cap seal or a major leak that prevents pressurization.

How long should a radiator hold pressure during a diagnostic pressure test?

A healthy cooling system should hold its target pressure with zero drop for at least 10 to 15 minutes. In professional repair shops, technicians sometimes leave the system pressurized for up to 30 minutes to locate slow, microscopic leaks that only drip when the metal components expand or contract.

What does it mean if my cooling system builds up too much pressure?

Excessive cooling system pressure (indicated by rock-hard radiator hoses or coolant spraying past a brand-new radiator cap) is almost always caused by combustion gases entering the cooling jacket. This occurs when a blown head gasket or cracked cylinder head allows high-pressure engine cylinder gases to escape directly into the surrounding coolant passages.

Is it safe to use a leak-sealer additive to fix a pressure leak?

Avoid using liquid leak-sealer additives to fix pressure leaks. While these products can temporarily plug small holes, they also settle in and clog the narrow passages of your radiator core and heater core, reducing overall heat transfer efficiency and potentially causing severe engine overheating later on.

Maintain Peak Cooling System Performance

Regular pressure testing is one of the most effective ways to identify small cooling system issues before they turn into major roadside breakdowns. If your radiator pressure test reveals a slow leak, address the failing hose, radiator, or gasket immediately to protect your engine from damaging thermal cycles.
