How To Clean Filter On Oxygen Concentrator: The Complete Maintenance Guide For Patient Safety
Maintaining an oxygen concentrator requires cleaning the gross particle intake filter weekly using warm water and mild dish soap to ensure oxygen purity remains between 87% and 96%. Filters must be completely air-dried before re-insertion to prevent moisture from damaging the molecular sieve beds, a critical step that protects the compressor and extends the device's operational lifespan.
Essential Preparation and Equipment for Concentrator Maintenance
Before attempting any maintenance on medical-grade respiratory equipment, it is vital to understand that the cleanliness of the intake system directly correlates to the internal pressure and the concentration of oxygen delivered. Oxygen concentrators function by pulling in ambient air, removing nitrogen through a process called Pressure Swing Adsorption (PSA), and delivering concentrated O2 to the patient. If the filter is obstructed, the compressor must work harder, leading to overheating, decreased oxygen output, and potential mechanical failure.
To execute a professional-grade cleaning, you must gather specific materials that do not introduce volatile organic compounds (VOCs) or oils into the system. Oils and hydrocarbons are highly reactive with high-concentration oxygen and represent a significant fire hazard.
Mandatory Maintenance Checklist
- Essential Cleaning Agents: Mild, non-scented dish detergent (e.g., Dawn) or a specialized medical equipment disinfectant. Avoid citrus-based cleaners or petroleum-based products.
- Drying Surface: A clean, lint-free microfiber towel or a dedicated drying rack placed in a well-ventilated, dust-free environment.
- Replacement Inventory: Always keep at least two gross particle filters on hand to allow for a rotation cycle (one in use, one drying).
- Technical Knowledge: Access to the specific manufacturer's service manual (Inogen, Philips Respironics, Invacare, or DeVilbiss) to locate all filter access points.
- Time Benchmark: 10 minutes for the cleaning process; 12 to 24 hours for total air-drying time.
Comprehensive Step-by-Step Filter Sanitization Process
The following procedure applies to the external gross particle filters found on most stationary and portable oxygen concentrators (POCs). These filters are designed to capture hair, dust, and large airborne particulates before they reach the secondary HEPA filtration system.
Step 1: Power Isolation and Surface Decontamination
Safety is the primary concern when handling medical electronics. Unplug the stationary unit from the wall outlet or remove the battery from a portable unit. Before touching the filters, wipe down the exterior cabinet of the concentrator with a damp cloth to prevent surface dust from falling into the filter intake port once the mesh is removed.
Warning: Never perform filter maintenance while the machine is running. Operating the unit without a filter, even for a few minutes, can allow microscopic debris to contaminate the sieve beds, leading to permanent degradation of oxygen purity.
Step 2: Extracting the Gross Particle Filter
Locate the filter vent, typically found on the back or side of the machine. Most filters are made of a foam-like material or a fine plastic mesh. Gently pull the filter out of its housing. If the filter is located behind a door or panel, use a plastic pry tool or your fingers to release the latch. Do not use screwdrivers or metal tools that could scratch the intake housing or puncture the filter material.
Step 3: Submersion and Manual Agitation
Fill a clean basin with lukewarm tap water and a small amount of mild detergent. Submerge the filter and gently squeeze it repeatedly. This action forces the soapy water through the porous structure to loosen trapped dust, pet dander, and skin cells.
Pro-Tip: If the filter appears discolored or "greasy" due to proximity to a kitchen or smoke, allow it to soak for 15 minutes before agitation to ensure all lipid-based contaminants are emulsified.
Step 4: High-Volume Rinsing
Hold the filter under a stream of cool, running water. Ensure the water flows in the opposite direction of the normal airflow (from the "clean" side to the "dirty" side) to flush particles out rather than deeper into the mesh. Continue rinsing until the water runs clear and no soap bubbles remain. Residual soap can dry and create a film that restricts airflow.
Step 5: Moisture Extraction and Air-Drying
Place the wet filter between two layers of a lint-free towel and press down firmly to absorb excess moisture. Do not wring or twist the filter, as this can tear the foam structure or stretch the mesh, creating gaps that allow debris to pass through. Place the filter on a flat surface in a dust-free area.
Warning: Do not use hair dryers, heat guns, or tumble dryers to speed up the process. Excessive heat can melt the synthetic fibers of the filter. Furthermore, the filter must be 100% dry; even a small amount of moisture can be pulled into the compressor, causing the zeolite granules in the sieve beds to "clump," which ruins the machine’s ability to concentrate oxygen.
Step 6: Secondary Filter Inspection (HEPA/Internal)
While the external filter is drying, inspect the internal HEPA filter if your model allows user access. These are usually hard-cased filters that cannot be washed. If the HEPA filter appears gray or black, it must be replaced with a new unit. Most manufacturers recommend internal filter replacement every 12 months or 5,000 operational hours.
Dynarex 5 Liter Oxygen Concentrator - BKC

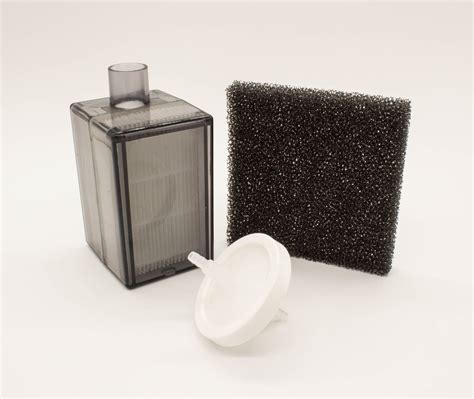

Technical Specifications and Filtration Parameters
Different components within an oxygen concentrator have varying maintenance requirements and lifespans. Understanding these technical thresholds ensures the device remains within FDA-regulated performance windows.
| Filter Type | Primary Function | Cleaning Frequency | Replacement Schedule | Material Composition |
|---|---|---|---|---|
| Gross Particle Filter | Captures large debris/dust | Weekly (Washing) | 6–12 Months | Open-cell Polyurethane Foam |
| Intake HEPA Filter | Filters microscopic bacteria | Cannot be washed | 1 Year / 5,000 Hours | Pleated Glass Fiber |
| Bacterial Filter | Final stage O2 purification | Single-use/Dispensary | Per Patient Change | Hydrophobic Paper |
| Sieve Bed (Zeolite) | Nitrogen Adsorption | N/A (Internal) | When O2 < 85% | Zeolite Mineral Granules |
| Compressor Filter | Protects internal motor | Professional Service Only | 2–3 Years | Felt or Synthetic Mesh |
Common Filtration Failures and Professional Fixes
Even with regular cleaning, mechanical issues can arise. Identifying the root cause of an alarm or performance drop-off is essential for patient safety.
Scenario: "Low Oxygen" Alarm (O2 < 82%) Triggered
- Root Cause: A clogged intake filter is starving the compressor of air, or a damp filter was re-inserted, causing "poisoning" of the zeolite sieve beds.
- Actionable Fix: Remove the filter and check for obstructions. If the filter is clean and dry but the alarm persists, the sieve beds likely need professional replacement. Ensure the unit is at least 12 inches away from walls or curtains to maximize airflow.
Scenario: Concentrator Is Running Excessively Hot
- Root Cause: The gross particle filter is saturated with fine dust, forcing the cooling fan and compressor to work at maximum RPM to maintain pressure.
- Actionable Fix: Perform an immediate deep-clean of the filter. Use a vacuum hose to clear the intake vents on the machine housing itself. If heat persists, check the internal cooling fan for dust accumulation.
Scenario: Vibrating or Whistling Noise During Operation
- Root Cause: The filter is not seated correctly in its housing, or a tear in the filter mesh is creating a high-pressure air leak (the "reed effect").
- Actionable Fix: Inspect the filter for structural integrity. If any holes or thinning are visible, discard the filter and install a new OEM (Original Equipment Manufacturer) replacement. Ensure the filter frame is snapped securely into the chassis.
Frequently Asked Questions
Can I use a damp filter if I am in urgent need of oxygen?
No, you should never use a damp filter. Moisture is the primary enemy of the zeolite material inside the sieve beds; even a few drops of water can cause the chemical granules to fuse together, rendering the concentrator unable to produce oxygen. Use a backup oxygen tank or a spare dry filter instead.
Is it safe to use tap water for cleaning the foam filters?
Yes, tap water is generally acceptable for washing the external foam gross particle filters as long as it is thoroughly rinsed. However, if you live in an area with extremely hard water (high mineral content), using distilled water for the final rinse can prevent mineral deposits from stiffening the filter fibers over time.
How do I know when it is time to throw away a filter and buy a new one?
A gross particle filter should be replaced if it begins to crumble, loses its original shape, becomes permanently discolored even after washing, or shows signs of thinning/holes. As a general rule of thumb, replace these foam filters every 6 to 12 months to ensure optimal airflow and filtration efficiency.
Can I run the oxygen concentrator without the filter for a short period?
Operating an oxygen concentrator without its intake filter is highly discouraged. Without the filter, the machine draws in hair, dust, and microscopic debris directly into the compressor and sieve beds. This can lead to immediate mechanical damage or long-term reduction in oxygen purity that cannot be reversed without expensive repairs.
Does the filter affect the Liter Per Minute (LPM) output?
Yes, a dirty filter creates a pressure drop across the intake. While the flow meter might still show the desired LPM, the actual concentration of oxygen delivered may drop because the PSA cycle cannot function efficiently with restricted air volume. Regular cleaning ensures the patient receives the prescribed oxygen percentage.
Optimize Your Respiratory Health Maintenance
Strict adherence to a filter cleaning schedule is the most effective way to prevent costly repairs and ensure consistent medical-grade oxygen delivery. For more advanced technical support or to purchase certified replacement filters for your specific model, contact your local medical equipment provider today.
