How To Clear Brake Light On BMW: Step-by-Step Reset And Sensor Guide

To clear a brake warning light on a BMW, you must perform an electronic reset via the instrument cluster's Condition Based Service (CBS) menu, or replace a triggered physical brake wear sensor before initiating the reset sequence. If the physical brake wear sensor has contacted the rotor and broken its internal circuit loop, the dashboard light will remain active and refuse to clear until a new sensor is installed. This comprehensive guide covers the precise dashboard button patterns, sensor mechanics, and diagnostic steps required to permanently turn off the light across various BMW generations.

Essential Tools and Diagnostics for BMW Brake Light Resetting

Clearing a BMW brake light requires a clear understanding of whether you are dealing with a software-based service reminder or a physical hardware fault. Modern BMWs utilize a system called Condition Based Service (CBS) to monitor brake pad wear. The system relies on both mathematical wear models and physical, sacrificial brake wear sensors embedded in the inner brake pads of the front-left and rear-right wheels.

Before attempting a reset, you must verify the physical state of your brake pads. If you attempt to reset the CBS brake light while a worn sensor is still plugged into the vehicle, the system will reject the reset, often displaying a "Reset Unsuccessful" message or reverting the mileage counter to a series of dashes.

Required Materials and Prerequisite Benchmarks

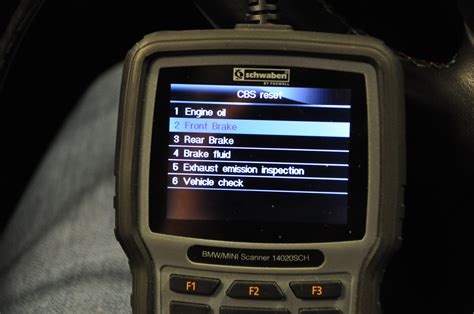

• Diagnostic Tools: A basic OBD-II scanner with BMW-specific software capabilities (such as Creator C310, Foxwell NT510, or a smartphone-based coding app like BimmerLink) is highly recommended, though manual dashboard button resets can be performed without external hardware.
• Replacement Hardware: One front-left and/or one rear-right BMW brake wear sensor (usually branded by OEM suppliers like Balo, Textar, or Jurid) if the physical brake pads have worn below 3 millimeters.
• Hand Tools (If replacing sensors): A 10mm socket, a small flathead screwdriver, safety glasses, and a floor jack with jack stands rated for your vehicle's curb weight.
• Estimated Budget: $0 for a simple dashboard button reset; $15 to $40 if replacing a wear sensor; $150 to $300 if replacing both pads and sensors.
• Estimated Duration: 10 minutes for a dashboard CBS reset; 45 to 60 minutes if physical sensor replacement is required.

Step-by-Step Guide to Clearing the BMW Brake Warning Light

The procedure for clearing a BMW brake light varies depending on the generation of your vehicle. Below are the precise steps for E-chassis, F-chassis, and G-chassis models, alongside instructions for replacing the hardware sensor if the electronic reset fails.

Step 1: Execute the Dashboard CBS Reset (E-Chassis and F-Chassis Models)

This method applies to highly popular older models such as the E90 3-Series, E60 5-Series, F30 3-Series, and F10 5-Series.

1. Sit in the driver's seat and ensure all doors, the hood, and the trunk are fully closed. If any door is open, the cluster may block access to the service menu.
2. Insert the key fob into the slot (for E-chassis) or ensure the fob is inside the cabin (for F-chassis).
3. Press the Start/Stop button once without pressing the brake pedal. This enters "Accessory" or "Ignition On" mode. Your instrument cluster must light up, but the engine must remain off.
4. Wait for any initial warning chimes, seatbelt reminders, or temporary messages to clear from the central display screen.
5. Locate the instrument cluster button. On E-chassis vehicles, this is the small black odometer reset button on the bottom left of the cluster screen. On F-chassis vehicles, this is the button on the lower-left corner of the speedometer housing.
6. Press and hold the odometer reset button for roughly 10 to 15 seconds. Do not let go when the yellow triangle warning icon appears. Continue holding until the cluster display changes to show a service icon (such as a brake pad icon, oil can icon, or vehicle inspection icon).
7. Release the button once the service icon appears.
8. Toggle through the different service items by pressing the odometer button repeatedly (or using the scroll wheel on the turn signal stalk for older E-chassis models) until you find the front or rear brake pad icon. The icon looks like a circle with dashed curved lines on either side.
9. Once the correct brake icon is displayed, press and hold the odometer reset button again for about 3 seconds until the text changes to "Reset?" or "Perform Reset?".
10. Release the button, then immediately press and hold it down one more time for 3 to 5 seconds. A small clock graphic or progress bar will appear, followed by the message "Reset Successful" or a newly updated mileage figure (typically 30,000 to 50,000 miles).

Pro-Tip: If the reset display switches to "------" or says "Reset Unsuccessful," your physical wear sensor is damaged. The CBS module cannot perform a software reset when it detects an open electrical circuit through a broken sensor wire.

Step 2: Execute the Diagnostic Mode Reset (G-Chassis Models)

G-chassis BMWs (such as the G20 3-Series, G30 5-Series, and G01 X3) feature updated software architecture that requires entering "Diagnostic Mode" rather than standard accessory mode.

1. Sit in the driver's seat with all doors and lids completely closed.
2. Without pressing the brake pedal, rapidly press the engine Start/Stop button three times in quick succession (within two seconds).
3. The instrument cluster will display "Diagnostic Mode Active" in the center screen.
4. Press and hold the odometer reset button (located on the lower-left side of the digital cluster panel) for 15 to 20 seconds.
5. Release the button when the instrument cluster changes to show the service menu.
6. Press the odometer button repeatedly to scroll through the menu items until you reach "Front Brakes" or "Rear Brakes."
7. Once selected, press and hold the odometer button until the display prompts you to confirm the reset.
8. Release the button, then immediately press and hold it down again until the progress bar completes and indicates a successful reset.
9. Press the Start/Stop button once to exit Diagnostic Mode.

Step 3: Replace the Physical Brake Wear Sensor (If Reset Fails)

If your dashboard reset was unsuccessful, you must replace the physical brake wear sensor. The sensor is a simple loop of wire encased in a plastic block that clips directly onto the brake pad. When the pad wears down to a critical thickness (roughly 3mm), the brake rotor contacts the plastic block, cutting the internal wire loop and alerting the computer.

1. Secure the vehicle on a level surface, apply the parking brake, loosen the wheel lug bolts on the wheel containing the sensor (front-left or rear-right), jack up the car, and support it with jack stands. Remove the wheel.
2. Locate the sensor wire running from the inner brake pad up into a black plastic junction box mounted in the wheel well.
3. Open the junction box door, unplug the sensor connector from the vehicle wiring harness, and unclip the sensor wire from its various mounting brackets on the brake caliper and suspension components.
4. Use a flathead screwdriver to gently pry the old sensor head out of the slot on the inner brake pad backing plate. If the sensor has melted or broken due to heat, clean any remaining plastic debris out of the metal slot.
5. Push the metal clip of the new sensor firmly into the brake pad slot until it clicks into place.
6. Route the new wire along the exact same path as the old one, snapping it into the plastic retention clips to prevent it from rubbing against the spinning wheel or suspension arms.
7. Plug the new sensor connector into the vehicle harness inside the junction box, close the box securely, reinstall the wheel, torque the lugs to your chassis specification (typically 140 Nm / 103 lb-ft for modern models), and lower the vehicle.
8. Repeat the dashboard CBS reset steps outlined in Step 1 or Step 2. The system will now allow a successful reset because the circuit loop is closed once more.

Warning: Do not attempt to bypass the wear sensor by cutting the wires and twisting them together permanently. While this closes the loop and allows a reset, it leaves you without an active safety warning system, which can lead to catastrophic brake failure and rotor damage when the pads wear out completely.

BMW Brake System Technical Specifications and Thresholds

Resolving Failed Resets and Persistent BMW Brake Alerts

Even when following standard procedures, BMW electronic systems can occasionally present hurdles. Below are common real-world failure scenarios and how to resolve them.

• Scenario 1: The reset button does not trigger the CBS menu, and instead shows the time or trip odometer screen.




  • Root Cause: The car is not in the correct power mode, or a door/hood is open. If you hold the button while the engine is running or in basic radio-power mode, the menu will not load.
  • Actionable Fix: Turn off the ignition completely. Open and close the driver's door to reset the modules. Ensure your seatbelt is buckled, all passenger doors are closed, and then press the Start button once without your foot on the brake pedal before trying again.

• Scenario 2: You receive a "Reset Unsuccessful" message every time you attempt a reset on a newly installed sensor.




  • Root Cause: The replacement sensor wire is faulty, not fully seated in the harness connector, or is a cheap aftermarket component with incorrect electrical resistance.
  • Actionable Fix: Unplug the sensor at the junction box. Use a digital multimeter set to Ohms to test the resistance across the two pins of the sensor. A new sensor should read close to zero Ohms (continuity). If it reads open circuit, the sensor is defective out of the box and must be replaced.

• Scenario 3: The yellow handbrake light stays illuminated on your dash even after performing a successful CBS brake pad reset.




  • Root Cause: This light serves dual functions. If the handbrake is fully disengaged, this light indicates that the brake fluid level in the master cylinder reservoir has dropped below the minimum safety line.
  • Actionable Fix: Locate the translucent brake fluid reservoir under your hood (typically on the driver's side near the firewall). Check the fluid level against the MAX and MIN markings. If it is low, top it off with approved DOT 4 low-viscosity synthetic brake fluid to turn the light off.

Frequently Asked Questions

Can I reuse my old BMW brake wear sensor when changing my brake pads?

You can only reuse the old brake wear sensor if the warning light was never triggered on your dashboard. If the plastic tip of the sensor has not made contact with the rotor, its internal wire loop is still intact, and it can be carefully removed from the old pad and installed into the new one.

What is the difference between a red and yellow brake light on a BMW dashboard?

A yellow brake light generally indicates that your brake pads are nearing the end of their calculated service life and a CBS reset will be due soon. A red brake light indicates a critical fault, such as a fully severed brake wear sensor, a dangerously low brake fluid level, or a malfunction in the anti-lock braking (ABS) and dynamic stability control (DSC) systems.

Why does my mileage count show dashes instead of numbers after resetting?

Dashes appear when the CBS system detects a mismatch between the calculated wear state and the physical sensor readings. If you reset the CBS without replacing a worn-down sensor, the module gets confused by the conflicting data and displays dashes to indicate that the service monitoring is inactive.

Do I need a special coding tool to clear a BMW brake light?

No, a coding tool is not strictly required. Every BMW model features a manual button combination sequence on the instrument cluster that allows owners to clear CBS warning lights. However, using a coding tool or specialized software can bypass manual steps and instantly diagnose which specific sensor is causing a fault.
