Comprehensive Guide To Conduit Multipliers In Electrical Engineering For 2026
Accurately calculating conduit fill is a critical mechanical and electrical task governed by the National Electrical Code (NEC). When pulling multiple conductors of varying sizes through a single raceway, electricians and engineers must utilize conduit multipliers and fill percentages to prevent thermal damage, excessive pulling tension, and code violations. This comprehensive reference outlines the engineering principles, standard formulas, and operational workflows required for precise raceway design in 2026.
Understanding the Engineering Fundamentals of Raceway Fill
The National Electrical Code strictly regulates the percentage of the cross-sectional area of a conduit that can be occupied by conductors. Exceeding these limits causes severe thermal accumulation, which degrades wire insulation and creates acute fire hazards under heavy load currents.
When pulling more than two current-carrying conductors through a single raceway, ampacity adjustment factors must be applied alongside physical fill constraints. Conduit multipliers assist in determining the exact physical dimensions, usable cross-sectional areas, and bending radii required for complex commercial and industrial installations.
Key Factors Influencing Conductor Installation
- Conductor Insulation Type: Different insulation materials (such as THHN, XHHW, or RHW) feature distinct outer diameters, even within the same American Wire Gauge (AWG) size.
- Ambient Temperature: Higher ambient operating temperatures require stricter adherence to fill caps and ampacity derating tables.
- Raceway Material: Rigid Metal Conduit (RMC), Electrical Metallic Tubing (EMT), and Polyvinyl Chloride (PVC) schedule types possess unique internal diameters due to varying wall thicknesses.
- Number of Bends: Total angular deviation between pull points impacts pulling tension and sidewall pressure calculations.
The Mathematical Framework: Calculating Conduit Area and Fill Percentages
Executing code-compliant installations requires a firm grasp of the mathematical constants and tables provided in Chapter 9 of the NEC. The cross-sectional area of a circle is calculated using the standard geometric formula where area equals pi multiplied by the radius squared. Because wire insulation introduces irregular outer profiles, industry professionals rely on standardized tables rather than manual geometric measurements.
Standard NEC Fill Limits: - 1 Conductor: 53% Maximum Fill - 2 Conductors: 31% Maximum Fill - 3 or More Conductors: 40% Maximum Fill
When evaluating a raceway containing mixed wire sizes, the sum of the cross-sectional areas of all enclosed conductors must not exceed the permitted percentage of the internal cross-sectional area of the selected conduit.

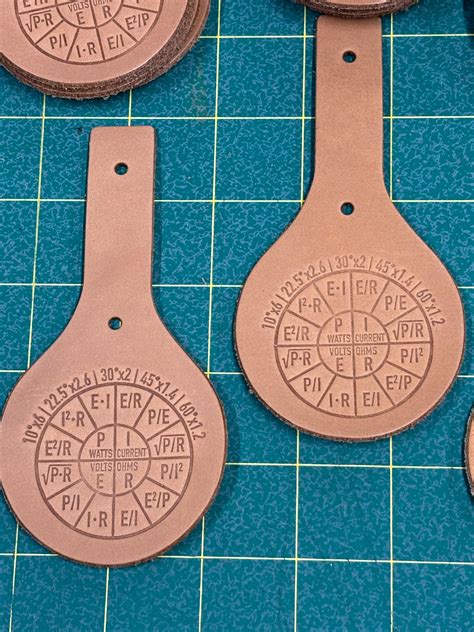

Conduit Offset Multiplier - Research Freetimers
Comparative Analysis of Conduit Types and Internal Dimensions
Selecting the appropriate raceway involves balancing mechanical protection, cost, and internal usable area. The following comparison highlights standard trade sizes and their structural attributes under current 2026 standards.
| Conduit Trade Size | EMT Internal Area (Sq. Inches) | RMC Internal Area (Sq. Inches) | PVC Schedule 40 Area (Sq. Inches) | Maximum 40% Fill (EMT) |
|---|---|---|---|---|
| 1/2 Inch | 0.304 | 0.314 | 0.275 | 0.122 Sq. In. |
| 3/4 Inch | 0.533 | 0.549 | 0.493 | 0.213 Sq. In. |
| 1 Inch | 0.864 | 0.887 | 0.797 | 0.346 Sq. In. |
| 1-1/4 Inch | 1.496 | 1.526 | 1.396 | 0.598 Sq. In. |
| 1-2/2 Inch | 2.036 | 2.074 | 1.903 | 0.814 Sq. In. |
| 2 Inch | 3.356 | 3.408 | 3.165 | 1.342 Sq. In. |
Note: Internal areas vary slightly by manufacturer and exact material composition, but certified installations must rely on Chapter 9 tables for official plan approvals.
Step-by-Step Procedure for Determining Conduit Fill and Multipliers
Implementing a flawless wire pull requires a methodical approach to sizing raceways. Follow this structured workflow to ensure compliance and avoid costly field modifications.
- Inventory the Conductor Schedule: List every individual wire entering the raceway, noting its specific AWG or kcmil size and insulation type (e.g., 500 kcmil THHN, 12 AWG THHN).
- Consult NEC Chapter 9, Table 5: Look up the exact cross-sectional area for each distinct conductor type and size from the standardized lookup tables.
- Sum the Total Area: Add the individual cross-sectional areas of all conductors together to find the aggregate fill area.
- Determine the Fill Percentage: Count the total number of current-carrying and grounding conductors. Apply the 40% rule for installations containing three or more conductors.
- Select the Raceway: Cross-reference the aggregate area against Chapter 9, Table 4 to select a conduit trade size whose 40% internal area equals or exceeds the total conductor area.
- Apply Derating Factors: If the raceway contains more than three current-carrying conductors, adjust the ampacity values according to NEC Table 310.15(C)(1).
Expert Installation Advice: When pulling long runs with multiple 90-degree bends, avoid filling the raceway to the absolute maximum 40% limit. Keeping actual fill closer to 30 or 35 percent significantly reduces pulling friction, prevents insulation stripping, and preserves room for future system expansions.
Pros and Cons of High-Density Raceways
Maximizing conduit capacity by grouping numerous circuits into a single oversized raceway presents distinct operational trade-offs that engineers must weigh carefully during the design phase.
Advantages:
- Substantial reduction in material costs by eliminating multiple parallel conduit runs.
- Faster physical installation times in congested ceiling cavities and cable trays.
- Streamlined visual layout in exposed industrial and commercial environments.
Disadvantages:
- Severe ampacity derating penalties can require stepping up wire sizes, neutralizing cost savings.
- Increased pulling tension risk, which can stretch or damage copper and aluminum conductors.
- Higher troubleshooting complexity when identifying or replacing damaged circuit segments.
Frequently Asked Questions About Conduit Calculations
What is the maximum conduit fill percentage allowed for three or more wires?
The National Electrical Code permits a maximum fill of 40 percent of the total internal cross-sectional area of the conduit when housing three or more conductors. Exceeding this limit compromises heat dissipation and violates electrical safety standards.
How do conduit multipliers affect wire ampacity?
When more than three current-carrying conductors occupy a single raceway, heat accumulates rapidly. The NEC requires ampacity derating multipliers to be applied to the base wire rating to prevent insulation breakdown from thermal overload.
Are grounding conductors included in conduit fill calculations?
Yes, all conductors within the raceway—including equipment grounding conductors and bonding jumpers—must be accounted for when calculating total cross-sectional area and fill percentages.
Can different wire insulation types be mixed in the same calculation?
Yes, but you must look up the exact cross-sectional area for each specific insulation type (such as comparing THHN versus XHHW) using the official code tables, as outer diameters vary significantly.
What is the best strategy for pulling conductors near maximum fill limits?
Always utilize high-grade synthetic cable pulling lubricant, deploy proper mechanical pulling grips, and ensure that total bend angles between pull boxes do not exceed 360 degrees to minimize physical damage.
Optimizing Your Electrical Infrastructure Design
Mastering conduit multipliers and fill calculations is essential for delivering safe, code-compliant, and cost-effective electrical distribution systems. Precision in raceway engineering protects critical assets, ensures long-term operational reliability, and satisfies all regulatory inspection criteria. Contact our engineering team today to review your project specifications and optimize your upcoming electrical infrastructure plans.
