How To Convert Fluorescent To LED: A Step-by-Step Retrofit Guide

Upgrading old linear fluorescent fixtures to high-efficiency LED tubes involves bypassing the ballast to supply line voltage directly to the tombstones or utilizing a direct-fit plug-and-play lamp. Bypassing the ballast (UL Type B retrofit) is the industry standard for maximum longevity and energy savings, eliminating future ballast failures by feeding 120V to 277V AC directly to the light sockets. Correctly identifying whether your fixture utilizes shunted or non-shunted tombstones is the critical safety step that prevents short circuits during direct-wire installations.

Pre-Retrofit Planning and Essential Electrical Tooling

Converting fluorescent fixtures to LED requires proper planning, physical inspection of your current fixtures, and the correct set of electrical tools. Before cutting any wires, you must determine whether you are executing a UL Type A (Plug-and-Play), UL Type B (Ballast Bypass/Direct-Wire), or UL Type C (External Driver) retrofit.

Type A installations require no rewiring but leave you vulnerable to future ballast failures. Type B ballast bypass conversions are highly recommended because they permanently eliminate the ballast, which is the most common failure point in linear lighting systems.

This guide focuses primarily on the Type B Ballast Bypass method due to its superior efficiency, reliability, and long-term cost benefits.

Equipment, Materials, and Benchmark Checklist

• Essential Hand Tools: Wire strippers (capable of handling 12 AWG to 18 AWG), insulated lineman's pliers, needle-nose pliers, and a magnetic-tip Phillips head screwdriver.
• Safety Gear: Non-contact voltage tester (calibrated for 90V–1000V AC), OSHA-compliant safety glasses, and insulated work gloves.
• Consumables and Connectors: Twist-on wire nuts (standard yellow and orange sizes) or push-in wire connectors, electrical tape, and UL-certified retrofit warning labels (often included with Type B LED tubes).
• Replacement Parts: Single-pin or bi-pin LED tubes (matching the length and pin spacing of your old T8, T12, or T5 tubes), and new non-shunted or shunted tombstones (sockets) if your existing ones are cracked, brittle, or incompatible with your wiring configuration.
• Prerequisite Technical Knowledge: Understanding of basic AC electrical circuits (Line, Neutral, and Ground connections) and National Electrical Code (NEC) article 410 rules on luminaire maintenance.
• Project Benchmarks:


  • Estimated Budget: $10 to $25 per fixture (including LED tubes and basic wiring supplies).
  • Estimated Duration: 15 to 30 minutes per fixture depending on familiarity and ceiling height.

Step-by-Step Ballast Bypass and LED Installation

Follow these detailed steps to safely disconnect your old fluorescent ballast and wire the fixture directly to the building's electrical mains.

Step 1: Isolate Power and Verify De-energization

Never work on a live electrical circuit. Go to your building's main electrical panel, locate the circuit breaker controlling the lighting circuit, and switch it to the OFF position. Place a lockout tag on the breaker panel to prevent accidental reconnection.

Once back at the fixture, attempt to turn on the light switch to verify the circuit is dead. Remove the fixture lens or grate, then use a calibrated non-contact voltage tester. Place the tip of the tester near the incoming hot wire (typically black) behind the ballast cover plate to ensure there is absolutely no voltage present.

Warning: Wall switches only interrupt the hot wire. If the neutral wire is shared with another active circuit, touching it can still result in a severe electrical shock. Always turn the power off at the main breaker panel.

Step 2: Strip Down the Fixture and Inspect the Sockets

Carefully remove the existing fluorescent tubes. Standard bi-pin tubes require a 90-degree twist to slide out of the tombstones. Set them aside safely for proper hazardous waste disposal, as fluorescent lamps contain toxic mercury vapor.

Squeeze the sides of the metal ballast cover plate to release it from the fixture frame, exposing the ballast, the incoming supply wires, and the wiring harness feeding the tombstones on both ends. Inspect the existing tombstones for physical damage, heat discoloration, or cracking. Damaged sockets must be replaced before proceeding.

Step 3: Identify Tombstone Type (Shunted vs. Non-Shunted)

This is the most critical technical step of a direct-wire installation. Sockets (tombstones) are categorized as either shunted or non-shunted.

• Shunted Tombstones: These sockets have their internal electrical contacts joined together. They present only a single path for electricity. Visually, they often have a single wire entry hole on each side, or have an internal jumper.
• Non-Shunted Tombstones: These sockets keep the two contacts separate, presenting two distinct electrical paths. Visually, they feature two separate wire entry holes on each side of the socket base.

If you are using single-ended Type B LED tubes (where both Line and Neutral connect to only one end of the tube), you must use non-shunted tombstones at the powered end. Applying Line and Neutral to a shunted tombstone will cause a direct short circuit, instantly tripping the breaker and destroying the LED lamp upon powering up. If you are installing double-ended Type B LED tubes (Line connects to one end of the fixture, Neutral to the other), you can use either shunted or non-shunted tombstones.

Step 4: Cut and Remove the Ballast

Locate the wires exiting the ballast. Using your wire strippers or lineman's pliers, cut all wires connected to the ballast as close to the ballast casing as possible. This leaves you with the maximum length of wire attached to the tombstones for splicing.

Remove the mounting screw securing the ballast to the fixture body, and slide the heavy ballast out. Dispose of the ballast in accordance with local environmental regulations (older magnetic ballasts may contain harmful PCBs).

Step 5: Wire the Sockets Directly to the Mains

Depending on the specific wiring configuration of your new Type B LED tubes, follow either the single-ended or double-ended wiring protocol.

Configuration A: Single-Ended LED Tubes (Requires Non-Shunted Sockets)

1. Identify the single end of the fixture that will receive power. The opposite end will act purely as a physical support holder.
2. On the powered end, strip 3/8-inch of insulation off the wires leading to the non-shunted tombstone.
3. Connect the incoming hot wire (usually black) to one pin contact of the socket by inserting it into one of the wire ports.
4. Connect the incoming neutral wire (usually white) to the other pin contact of the socket by inserting it into the opposite wire port on the same tombstone.
5. If wiring multiple tubes in parallel, run jumper wires from the hot contact of the first tombstone to the hot contact of the second tombstone, and repeat this process for the neutral wires.

Configuration B: Double-Ended LED Tubes (Compatible with Shunted or Non-Shunted Sockets)

1. Group all the wires coming from the tombstones on the left side of the fixture. Strip the ends and twist them together with the incoming hot wire (black) using an approved wire nut.
2. Group all the wires coming from the tombstones on the right side of the fixture. Strip the ends and twist them together with the incoming neutral wire (white) using an approved wire nut.
3. This sends Line voltage to one end of every installed tube, and Neutral voltage to the opposite end.

Pro-Tip: Ensure the bare copper ground wire of your incoming service is securely bonded to the metal chassis of the light fixture using a green grounding screw or grounding clip. Grounding is vital for electrical safety and reduces electromagnetic interference (EMI).

Step 6: Reassemble, Label, and Test

Neatness prevents future electrical faults. Tuck all wires safely back inside the metal housing, ensuring no wires are pinched when you snap the metal ballast cover plate back into position.

Apply the adhesive-backed UL-required warning label directly to the ballast cover plate where it will be highly visible to anyone replacing the lamps in the future. This label warns that the fixture has been modified to run direct-wire LEDs and can no longer accept standard fluorescent tubes.

Align the pins of your Type B LED tubes and insert them into the tombstones. For single-ended tubes, make sure the end of the tube with the printed electrical specifications is inserted into the powered tombstone. Restore power at the circuit breaker panel and flip the light switch to verify the LEDs illuminate immediately without humming or flickering.

Technical Specifications and Retrofit Methods

Selecting the correct retrofit methodology depends on your facility's budget, maintenance capability, and safety goals. The table below compares the electrical characteristics, installations, and lifespans of the four primary options for modernizing linear lighting systems.

Common Installation Failures and Field Corrective Actions

Even straightforward electrical installations can run into physical or structural roadblocks. Review these common issues and their diagnostic solutions to keep your retrofit project moving forward safely.

Issue 1: The circuit breaker trips immediately upon flipping the switch

• Root Cause: A direct short circuit has been wired into the system. This almost always occurs when single-ended Type B LED tubes are installed into shunted tombstones, bringing the hot and neutral supply lines into direct contact with each other inside the socket.
• Actionable Fix: Turn off the circuit breaker immediately. Verify the model of LED tube you purchased is single-ended. Inspect the tombstones at the powered end using a digital multimeter set to continuity mode. Touch the leads of the meter to the two pin contacts of a single tombstone. If the meter beeps, the socket is shunted. Replace it with a new non-shunted tombstone, wire it correctly, and test the circuit again.

Issue 2: The installed LED tubes do not turn on at all

• Root Cause: The most common reasons are reversing the orientation of single-ended tubes, broken socket contacts, or loose wire splices behind the ballast cover.
• Actionable Fix: Verify that the powered end of a single-ended LED tube is seated in the powered tombstone. Look for the "AC Input" or "L/N" indicator printed on one of the plastic ends of the tube. If the orientation is correct, turn off the breaker, open the ballast cover plate, and check the tightness of all wire nuts or push-in connectors. Ensure the wire insulation was stripped back 3/8-inch so that the metal conductor is making physical contact inside the wire nut, not the plastic jacket.

Issue 3: The LED tubes flicker continuously, flash intermittently, or buzz loudly

• Root Cause: This is typically the result of installing Type A (Plug-and-Play) LED tubes in a fixture with an incompatible or failing electronic ballast. It can also be caused by an unstable supply voltage or loose neutral connections in a Type B ballast bypass setup.
• Actionable Fix: If using Type A tubes, consult the manufacturer's online compatibility matrix to verify if your exact ballast model is supported; if not, return the tubes and swap them for Type B direct-wire lamps. If this occurs on a Type B system, check the neutral line connection at the fixture junction box. A loose neutral wire will create high electrical resistance, causing flickering and voltage drops. Tighten all connections with clean wire splices.

Frequently Asked Questions

Do I need to replace the tombstones when converting to LED?

You only need to replace the tombstones if you are installing single-ended Type B LED tubes and your current fixtures use shunted tombstones, or if the existing sockets are physically cracked, brittle, or charred. If you are using double-ended Type B LED tubes, your existing sockets are completely reusable regardless of whether they are shunted or non-shunted.

What is the difference between shunted and non-shunted tombstones?

Shunted tombstones have internally joined electrical contacts, creating a single electrical pathway to both pins of the lamp. Non-shunted tombstones feature separate internal contacts, allowing for two independent pathways. Shunted tombstones are common in instant-start T8 fixtures, while non-shunted tombstones are standard in rapid-start T12 and T8 fixtures.

Can I use T8 LED tubes in a T12 fluorescent fixture?

Yes, you can use T8 Type B LED tubes in a T12 fixture as long as you perform a ballast bypass. T8 and T12 fluorescent tubes share the same G13 medium bi-pin base spacing, making them physically interchangeable. Because T12 magnetic ballasts are highly inefficient and are completely bypassed during a Type B retrofit, the T8 LED tube will run perfectly on direct line voltage.

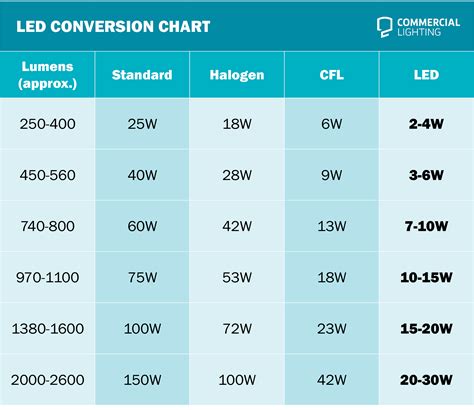

How much energy do I save by converting from fluorescent to LED?

Converting fluorescent to LED typically yields an energy reduction of 40% to 60% per fixture. For example, a standard four-lamp T8 fixture consuming approximately 128 watts of power can be retrofitted with four Type B LED tubes drawing only 12 to 15 watts each, reducing the total fixture power draw to 48–60 watts while maintaining or improving light output.

Is a ballast bypass LED retrofitting project safe for DIYers?

Yes, a ballast bypass is highly safe for DIYers as long as the electrical power is completely turned off at the main circuit breaker and verified dead using a reliable non-contact voltage tester before touching any wires. Following simple wiring rules, utilizing proper wire nuts, and applying the conversion safety labels to the fixture ensures code compliance and long-term operating safety.
