How To Cut Mirror Glass: A Professional Guide To Precision Scoring And Breaking

Cutting mirror glass requires a precise, continuous score on the front reflective surface followed by an immediate, controlled snap along the fracture line. Success hinges on maintaining consistent pressure, using a professional-grade tungsten carbide wheel, and ensuring the work surface is perfectly level to prevent uncontrolled cracking of the glass substrate.

Essential Preparation and Technical Requirements

Executing a clean cut on mirror glass is significantly more complex than standard window glass because the reflective backing and metallic coating can interfere with the scoring process. Before initiating the cut, you must ensure your workspace is clean, flat, and free of debris; even a microscopic grain of sand beneath the glass can cause a catastrophic failure when pressure is applied.

Equipment and Material Checklist

• Essential Tools: A professional-grade oil-fed glass cutter with a tungsten carbide wheel, a high-density industrial T-square or straight edge, and a pair of professional glass running pliers.

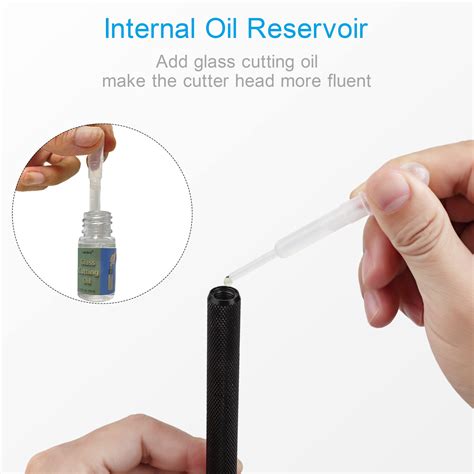

• Lubrication Requirements: Use a dedicated glass-cutting oil to lubricate the wheel, which reduces friction, prevents overheating of the carbide, and ensures a cleaner fracture line.
• Safety Gear: Heavy-duty cut-resistant gloves, ANSI-rated safety goggles to protect against glass shards, and a vacuum cleaner equipped with a HEPA filter for debris management.
• Workspace Standards: A large, perfectly level table covered with a soft, non-slip material such as felt or a heavy-duty yoga mat to provide a cushioned base that distributes pressure evenly.
• Preparation Benchmark: Allocate at least 60 to 90 minutes for initial practice on scrap glass; the skill is highly tactile and requires developing "muscle memory" for the exact pressure threshold needed for your specific glass thickness.

Precision Execution Workflow for Mirror Fabrication

Step 1: Surface Preparation and Cleaning

Clean the front surface of the mirror thoroughly using an ammonia-free glass cleaner and a lint-free microfiber cloth. Any residual dust, grease, or fingerprints will cause the cutting wheel to skip or veer off the intended line, resulting in a jagged, uneven edge. Measure your desired dimensions twice and mark the cutting path using a non-permanent marker on the front (reflective) side.

Step 2: Setting the Straight Edge

Align your T-square or professional straight edge exactly 2 to 3 millimeters away from your marked line. Because the cutter wheel sits slightly offset from the edge of the tool, you must account for this distance to ensure the wheel travels exactly along your intended path. Secure the straight edge with clamps if possible to prevent any shifting during the scoring stroke.

Step 3: Scoring the Glass

Hold the glass cutter like a pencil, keeping the handle vertical. Place the wheel at the far edge of the glass and apply firm, steady pressure as you pull the cutter toward you in one continuous motion. You are looking to achieve a faint, consistent "hissing" sound—if the score sounds like loud grating, your pressure is too high; if it is silent, it is too low.

Warning: Never pass over the same score line twice. Re-scoring a line causes the glass to splinter, creates microscopic micro-fractures, and prevents a clean snap.

Step 4: The Controlled Snap

Position the glass so the score line is perfectly aligned with the edge of your table or the center jaw of your running pliers. Apply gentle, rapid pressure on the short side of the glass to snap it cleanly along the score. If the glass is large, use the running pliers to apply pressure starting from one end of the score line and working toward the other, allowing the crack to propagate along the path of least resistance.

Step 5: Edge Finishing and Smoothing

After the snap, the edges will be razor-sharp and potentially jagged. Use a silicon carbide stone or a fine-grit diamond abrasive pad to lightly hone the edges. Hold the abrasive at a 45-degree angle to the edge to create a soft, beveled finish, which prevents future chipping and makes the piece safe to handle.

Technical Parameters and Material Selection

Common Field Failures and Technical Remedies

• Failure: The Score Line Fails to Run (The Crack Veers Off)




  • Root Cause: Inconsistent pressure during the scoring stroke or an uneven cutting surface.
  • Actionable Fix: Ensure the glass is supported on a perfectly level, cushioned surface. Maintain a constant velocity and pressure from start to finish. If the crack veers, do not attempt to force it; discard the piece and recalibrate your pressure technique on a scrap sample.

• Failure: The Mirror Backing Chips During the Snap




  • Root Cause: The cutter wheel is dull, or you are scoring on the wrong side (the backing side).
  • Actionable Fix: Always score on the reflective (front) side. If chipping persists, replace your carbide wheel. A dull wheel crushes the glass rather than creating a clean fissure.

• Failure: Glass Shards and Splintering at the Edge




  • Root Cause: Applying too much pressure, which causes the glass to shatter downward instead of fracturing along the score.
  • Actionable Fix: Reduce the downward force by 15-20%. The goal is to create a "micro-fissure," not to etch deep into the glass substrate.

Frequently Asked Questions

Can I cut a tempered mirror using standard methods?

No, tempered mirror glass cannot be cut after it has undergone the tempering process. Any attempt to score or cut tempered glass will cause the entire sheet to shatter instantly into thousands of small, granular pieces due to the high internal tension of the material.

Is it necessary to use oil with a professional glass cutter?

Yes, using oil is mandatory for professional results. The oil lubricates the tungsten carbide wheel, keeping it cool and preventing the buildup of glass dust, which ensures the wheel rotates freely and produces a smooth, consistent score line without skipping.

How do I remove the sharp edge after cutting?

After the snap, the edges are dangerously sharp. Use a dedicated diamond hand pad or a silicon carbide sharpening stone to hone the edge. Always work in a single direction away from the glass surface to prevent the abrasive from picking up glass shards and scratching the mirror's face.

What is the ideal angle for the glass cutter?

The glass cutter should be held perpendicular to the surface of the mirror. Maintaining a 90-degree angle ensures that the force is distributed evenly through the wheel into the glass, which is critical for creating a deep enough score to allow for a clean, straight break.

Master Professional Mirror Fabrication Today

Refining your glass-cutting technique allows for custom mirror dimensions that perfectly suit your architectural or decorative requirements. Consult our technical support team if you require specialized diamond-tipped tools or industrial-grade glass handling supplies for high-volume custom projects.
