How To Build An Electric Guitar: A Professional Luthier’s Guide To Design And Assembly

Constructing a high-performance electric guitar requires precise geometric alignment, particularly regarding the scale length and the relationship between the nut, frets, and bridge. By maintaining tolerances within 0.01 inches and utilizing stable tonewoods with appropriate Janka hardness ratings, builders can achieve professional-grade intonation and resonant sustain.

Engineering the Build: Material Selection and Precision Tooling

Before making the first cut, a builder must establish a blueprint based on a specific scale length—the distance between the nut and the bridge saddles. The two most common standards are 25.5 inches (standard for S-style and T-style guitars) and 24.75 inches (standard for single-cut and archtop styles). This measurement dictates the placement of every fret and the bridge, leaving zero margin for error.

Essential Material and Tool Inventory

• Lumber and Tonewoods: For the body, select woods like American Ash, Alder, or Mahogany, ensuring the moisture content is between 6% and 8%. For the neck, Hard Rock Maple is the industry standard for stability. Fretboards require dense hardwoods like Rosewood, Ebony, or Pau Ferro to resist wear.
• Measurement and Precision Gear: Digital calipers (accurate to 0.001"), a notched straightedge for checking neck relief, a 24-inch precision steel rule, and a fret slotting miter box.
• Power and Hand Tools: A 1.5 HP plunger router with various pattern bits, a bandsaw for rough shaping, a drill press for bridge and tuner holes, and a high-wattage soldering iron (at least 40W) for electronics.

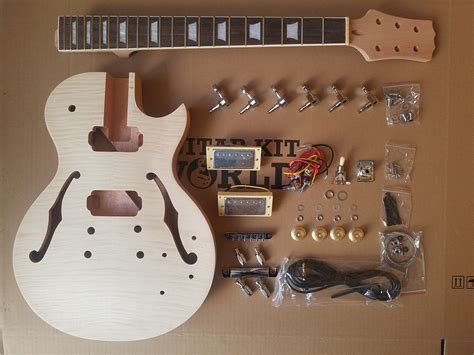

• Required Hardware: A two-way adjustable truss rod, a set of six tuners (matching the headstock configuration), a bridge assembly (fixed or tremolo), and a set of electromagnetic pickups (single-coil or humbucker).

The Luthier’s Workflow: A Step-by-Step Construction Guide

Step 1: Design, Template Creation, and Body Routing

The foundation of any build is the centerline. Every measurement is taken from a single line drawn down the middle of the body and neck blanks. Use 1/4-inch MDF (Medium Density Fiberboard) to create templates for the body shape, pickup cavities, and the neck pocket.

• Trace the template onto your body blank, ensuring the grain runs parallel to the centerline.
• Rough-cut the body shape using a bandsaw, staying roughly 1/16 of an inch outside your line.
• Attach the MDF template using heavy-duty double-sided tape and use a flush-trim router bit to bring the wood to the exact final dimensions.
• > Warning: Always route in the direction of the grain to prevent "tear-out," which can ruin a body blank instantly. Take shallow passes of no more than 1/8 inch at a time.

Step 2: Crafting the Neck and Installing the Truss Rod

The neck is the most sensitive component. It must withstand approximately 100 to 150 pounds of string tension without warping.

1. Cut a channel down the centerline of the neck blank to house the two-way truss rod. The channel depth must allow the rod to sit slightly below the surface of the wood.
2. Glue the fretboard onto the neck blank using high-strength PVA glue, ensuring the truss rod is not accidentally glued into the channel.
3. Calculate fret positions using the "Rule of 17.817." To find the distance of the first fret from the nut, divide the scale length by 17.817. Subtract that result from the scale length to find the remaining distance, and repeat for each subsequent fret.
4. Install the frets using a fret press or a dead-blow hammer. Level and crown the frets using a 12-inch or 9.5-inch radius block to ensure the fretboard matches the desired curvature.

Step 3: Routing the Neck Pocket and Joining Components

The neck pocket is the "heart" of the guitar's resonance. It must be a "press-fit," meaning the neck should stay in the pocket even without screws or glue when the body is held upside down.

• Route the neck pocket to a depth that allows the fretboard to sit approximately 1/4 inch above the body surface.
• For bolt-on necks, use a drill press to ensure the four mounting holes are perfectly vertical. Use a ferrule or a neck plate to distribute the pressure.
• Check the alignment by running a string or high-tensile thread from the nut position to the bridge position. The thread must run perfectly parallel to the edges of the fretboard.

Step 4: Electronic Integration and Shielding

Electric guitars function via electromagnetic induction. To prevent unwanted "60-cycle hum" or radio interference, the internal cavities must be shielded.

1. Coat the pickup and control cavities with conductive copper tape or graphite shielding paint. Ensure the shielding is connected to the common ground.
2. Wire the potentiometers (usually 250k ohms for single-coils and 500k ohms for humbuckers).
3. Solder the "hot" wire from the pickup to the selector switch and the ground wire to the back of the volume potentiometer.
4. > Pro-Tip: Use a "star grounding" technique where every ground wire meets at a single point (usually the back of the volume pot) to eliminate ground loops that cause buzzing.

Step 5: Final Assembly, Nut Slotting, and Setup

Once the finish (nitrocellulose or polyurethane) has cured, install the hardware.

• Install the bridge, ensuring it is positioned so that the saddles have enough travel to move both forward and backward from the theoretical scale length point. This is necessary for intonation.
• Cut the nut slots using specialized nut files. The height at the first fret should be approximately 0.015 inches on the treble side and 0.020 inches on the bass side.
• Adjust the bridge saddle height to achieve your desired "action." A standard starting point is 4/64 of an inch at the 12th fret for all strings.

Tonewood Comparison and Technical Hardware Specifications

Selecting the right materials determines the instrument's weight, balance, and frequency response. The following table outlines the physical properties of the most common materials used in electric guitar construction.

Troubleshooting Common Construction and Setup Failures

Building an instrument involves managing wood movement and electrical interference. Even experienced luthiers encounter the following issues during the final assembly phases.

• Excessive String Buzz (Lower Frets)


  • Root Cause: The nut slots are cut too deep, or the neck has "back-bow" due to excessive truss rod tension.
  • Actionable Fix: Measure the neck relief at the 7th fret using a feeler gauge. If there is no gap, loosen the truss rod (counter-clockwise) to create a slight relief of 0.010 inches. If the nut is too low, replace it or "shim" it with a thin piece of veneer.
• Inconsistent Intonation (Notes Sharp or Flat at the 12th Fret)


  • Root Cause: The bridge is not placed correctly relative to the scale length, or the saddle travel is restricted.
  • Actionable Fix: Use a tuner to check the open string against the fretted note at the 12th fret. If the fretted note is sharp, move the saddle away from the neck (lengthen the string). If it is flat, move the saddle toward the neck.
• Loud Hum That Disappears When Touching Strings


  • Root Cause: The bridge is not properly grounded to the electronics circuit.
  • Actionable Fix: Ensure a ground wire runs from the back of a potentiometer through a small hole in the body to make physical contact with the metal bridge plate or a tremolo claw.

Frequently Asked Questions

What is the most difficult part of making an electric guitar?

The neck-to-body joint and the fretwork are the most challenging aspects because they require extreme precision. A neck pocket that is off by even a fraction of a degree can cause the strings to be misaligned with the pickups and the edges of the fretboard, rendering the instrument unplayable.

Can I build an electric guitar without power tools?

While it is technically possible using hand saws, planes, and rasps, it is significantly more difficult to achieve the required tolerances. A router is almost essential for creating clean, deep cavities for pickups and electronics that align with the pickguard or mounting rings.

How do I choose between a 25.5" and 24.75" scale length?

The 25.5" scale (Fender style) provides more string tension, which results in a brighter, "snappier" sound. The 24.75" scale (Gibson style) has less tension, making the strings easier to bend and producing a warmer, thicker tone. Your choice should depend on your playing style and preferred tonal characteristics.

Why is shielding the internal cavities necessary?

Electronic pickups act as antennas that can pick up electromagnetic interference from lights, computers, and amplifiers. Lining the cavities with conductive copper or aluminum tape creates a Faraday cage, which traps this interference and sends it to the ground before it reaches your signal chain.

How long does the finish take to dry before assembly?

If using nitrocellulose lacquer, you must wait at least 2 to 4 weeks for the finish to "outgas" and harden enough for wet sanding and buffing. If you assemble the guitar too early, the hardware may sink into the soft finish, causing permanent indentations or "checking."

Finalize Your Custom Build

Mastering the art of lutherie transforms a raw piece of timber into a precision musical tool. By adhering to these technical standards and focusing on geometric accuracy, you can create a custom instrument that rivals high-end boutique offerings.
