How To Find Model Number On Scag Patriot
Locating the model and serial number on a Scag Patriot zero-turn mower requires inspecting the heavy-duty structural steel frame near the operator's platform, typically on the left or right main rail. Having these exact manufacturing identifiers ready ensures precise parts ordering for routine maintenance, warranty claims, and engine-specific replacements.
Pre-Operation & Equipment Checklist
Locating equipment identification numbers on commercial-grade zero-turn radius lawn mowers like the Scag Patriot requires minimal tooling, though preparation ensures a safe and efficient inspection process. Because Scag stamps and prints these crucial details on metallic foil tags or directly into structural steel, grime, grass clippings, and weather oxidation frequently obscure the text.
- Essential Gear & Tools: Clean microfiber cloth, automotive degreaser or mild detergent, a scraper or soft-bristle brush, a high-lumen LED flashlight or headlamp, and a smartphone camera for capturing hard-to-reach angles.
- Mandatory Prerequisite Knowledge & Standards: Ensure the zero-turn mower is parked on a completely flat, level surface, the ignition key is removed, the parking brake is firmly engaged, and the engine has fully cooled to prevent accidental burns or movement.
- Estimated Budget & Duration Benchmarks: Financial cost is zero dollars, and the entire identification inspection process typically requires between three to seven minutes depending on build-up accumulation.
Step-by-Step Scag Patriot Identification Retrieval
Step 1: Secure and Prep the Mower Frame

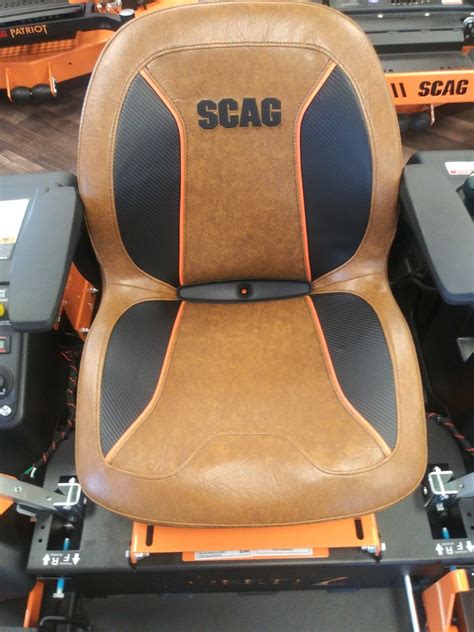

Park the Scag Patriot on a solid surface, engage the mechanical parking brake levers, and shut down the air-cooled or liquid-cooled Kawasaki or Kohler engine. Walk to the operator's station and lift the cushioned suspension seat forward into its locked service position to expose the underlying hydraulic pumps, transaxles, and main frame rails.
Warning: Never lift the seat or lean over structural components while the engine is running or the transmission is disengaged on an incline.
Step 2: Locate the Main Serial Number Plate
Position yourself on the right-hand side of the machine (from the perspective of sitting in the operator's seat facing forward) and look down at the primary vertical or horizontal structural steel frame tube just beneath the footplate or near the right drive tire assembly. Scag Manufacturing affixes a metallic foil identification tag to this area that displays the complete model designation, the unique serial number, and the manufacturing date code.
Pro-Tip: If the metallic tag is painted over, heavily weathered, or missing due to frame repairs, look for the secondary stamped serial number that is laser-etched or die-stamped directly into the steel frame rail nearby.
Step 3: Identify the Engine-Specific Identification Data
Recognize that the main Scag frame identification tag will provide the chassis model and serial number, but engine manufacturers require their own separate identification data for parts such as air filters, spark plugs, and oil filters. Walk around to the rear engine compartment guard and locate the separate engine identification sticker, which is usually positioned on the blower housing shroud, valve cover, or near the muffler guard depending on whether your Patriot features a Kawasaki FX series or Kohler engine.
Step 4: Document and Verify the Nomenclature
Record the exact alpha-numeric strings using a notepad or photograph the plates with your smartphone to eliminate transcription errors. Cross-reference your recorded characters against your original purchase invoice, engine manual, or the official Scag online parts lookup catalog to confirm compatibility before purchasing replacement blades, belts, or hydrostatic components.
How to find my Zyxel product's model number? | Zyxel Networks
Scag Patriot Identification Reference Matrix
| Identification Type | Primary Location on Machine | Data Provided | Common Maintenance Application |
|---|---|---|---|
| Chassis Serial Plate | Right-side main frame rail near footplate | Model number, serial number, build date | Deck belts, idler pulleys, spindles, frame parts |
| Engine ID Decal | Rear engine shroud or valve cover | Engine model, spec number, family code | Air filters, oil filters, spark plugs, gaskets |
| Transaxle Tag | Hydro-Gear pump housing body | Transaxle model and serial numbers | Hydraulic oil filters, bypass valves, fan kits |
| Deck Decal | Upper surface of cutter deck shell | Cutting width and deck configuration | Blades, anti-scalp wheels, discharge chutes |
Common Identification Retrieval Failures & Field Fixes
- Root Cause: The metallic foil ID tag is completely scratched, faded, or covered in baked-on engine grease and grass debris.
- Actionable Fix: Apply a citrus-based degreaser or WD-40 to the tag area, let it sit for two minutes, and gently wipe clean using a non-abrasive microfiber towel. Never use metal scrapers or harsh steel wool, as this will scratch off the remaining ink characters.
- Root Cause: The factory sticker was torn off during a previous frame powder-coating or repair service.
- Actionable Fix: Locate the secondary stamped serial number indented directly into the steel frame rail, or inspect your original equipment dealer purchase receipt and engine owner's manual where serial numbers are legally registered.
- Root Cause: The engine model number is legible, but the spec number is missing, leading to incorrect replacement parts.
- Actionable Fix: Consult the official engine manufacturer website by entering the overarching engine series and matching your specific horsepower rating and shaft configuration to the visual parts diagram.
Frequently Asked Questions
Where is the exact model number located on a Scag Patriot?
The primary model and serial number tag on a Scag Patriot is located on the right-hand side main structural frame tube near the operator's footplate. On some model years, you may also find a secondary verification sticker positioned near the rear engine guard or beneath the seat deck plate.
What is the difference between the Scag model number and serial number?
The model number identifies the specific engineering configuration of your zero-turn mower, such as deck width and engine option. The serial number is a unique tracking code assigned to your individual machine during assembly for warranty and manufacturing tracking.
Can I order parts using only the Scag serial number?
Yes, authorized Scag parts dealers can use your unique serial number to pull up the exact bill of materials for your specific production run. However, providing both the model number and serial number guarantees 100 percent accuracy when sourcing replacement components.
What engine brands are typically found on Scag Patriot mowers?
Scag Patriot zero-turn mowers are primarily equipped with commercial-grade Kawasaki FX series or high-performance Kohler engines. Each engine brand maintains its own independent identification plate separate from the main Scag frame tag.
How do I decode my Scag Patriot manufacturing date?
The build date is typically printed directly on the main serial number plate in a standard month/year format. If it is represented by a code, your local Scag dealer can interpret the factory sequence instantly via their dealer portal.
Maintain your commercial turf equipment with confidence by keeping your specific Scag Patriot model and serial numbers recorded in a safe place for fast, accurate parts acquisition.
