How To Fire Clay Without A Kiln: Complete Guide To Primitive And Alternative Firing Techniques
Firing clay without an electric or gas kiln requires utilizing alternative methods such as pit firing, barrel firing, or makeshift backyard setups to reach thermal transformation temperatures between 1,100°F and 1,600°F. While these low-fire methods cannot achieve the vitrification of modern high-fire ceramics, they effectively harden terra cotta and earthenware pieces through direct exposure to combustible carbon and open flames.
Pre-Operation & Equipment Checklist
Engaging in non-kiln ceramic firing demands careful thermal management, proper fuel selection, and strict adherence to safety protocols to prevent explosive kiln-sitter failures or severe burns. Because open-air and pit-firing methods subject raw clay to rapid, uncontrolled temperature spikes, preparation begins with choosing the correct body composition—specifically grogged earthenware or terra cotta—which tolerates thermal shock far better than fine-grained porcelain or high-silica stoneware.
- Essential Gear and Materials:
- Raw, thoroughly bone-dry earthenware or terra cotta pieces (completely free of trapped moisture or air pockets)
- Refractory brick or ungalvanized steel fire rings/drums to contain the thermal zone
- Kiln wash or aluminum foil (for protective saggers, optional)
- Dry organic combustible fuels: hardwoods (oak, maple), dry leaves, pine needles, sawdust, and paper
- Chemical colorants and carbon-trapping agents: table salt, copper carbonate, seaweed, copper wire, and horse hair
- Heavy-duty welding or leather fire-handling gloves, safety goggles, and a P95 particulate respirator mask
- Mandatory Prerequisite Knowledge:
- Understanding of the quartz inversion phase and the critical need for absolute bone-dryness to eliminate steam explosions
- Familiarity with local burn bans, weather conditions (low wind and zero rain), and safe clearance distances from structures
- Estimated Budget and Duration Benchmarks:
- Financial investment: $20 to $100 depending on sourced fuel and metal drum acquisition
- Time investment: 4 to 6 hours for active firing, followed by 12 to 24 hours of undisturbed cooling time
Step-by-Step Alternative Firing Workflow
Step 1: Bone-Dry Conditioning and Sagger Preparation

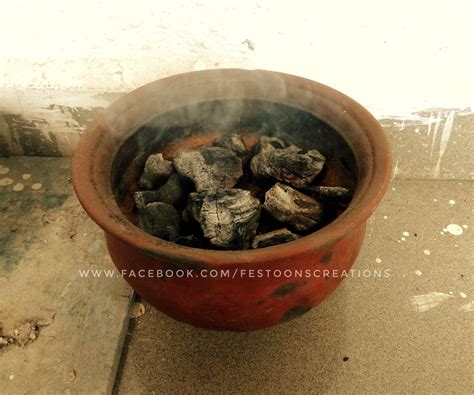

Before introducing any clay piece to thermal energy, verify that the object has reached a true bone-dry state over a minimum of seven to fourteen days of slow air drying. Tap the vessel gently; a high-pitched ring indicates dryness, while a dull thud signals retained capillary water that will instantly vaporize and shatter the piece upon heating. To protect fragile surfaces from direct, aggressive flame licking and thermal shock, construct a makeshift sagger by wrapping the pieces in corrugated cardboard or placing them inside a closed, unglazed terra cotta flowerpot lined with fine sawdust.
Warning: Never attempt to fire greenware that feels cool to the touch or retains any moisture. Trapped water turns to steam at 212°ayer(100°C), expanding 1,600 times in volume and causing the ceramic body to violently explode inside the fire pit.
Step 2: Excavating and Constructing the Fire Pit
Select a dry, sheltered patch of ground outdoors and dig a pit approximately two to three feet wide and two feet deep, or position a clean, 55-gallon steel drum with strategic draft holes punched near the bottom. Line the base of the pit with a thick foundational layer of dry sand, coarse gravel, or broken refractory brick to insulate the floor and promote upward draft circulation. Place an initial bed of quick-ignition kindling, dry twigs, and crumpled newspaper across the bottom layer to ensure a rapid, uniform ignition sequence across the entire pit footprint.
Step 3: Packing the Pottery and Combustible Layers
Carefully arrange your bone-dry ceramic pieces within the pit or barrel, interlocking them with reactive combustible materials that create dynamic surface reductions and smoke patterns. Pack dry sawdust, shredded paper, crushed nutshells, and dried organic matter tightly around and inside the vessels to starve localized areas of oxygen, which produces rich black, gray, and earthy flashed colorations. Layer the stack progressively: alternate rings of pottery with heavy combustible fuels, copper wire, and handfuls of coarse salt for iridescent chemical flashing effects, finishing with a top cap of dry hardwood logs.
Step 4: Ignition, Thermal Ramp, and Stoking
Ignite the kindling bed at multiple points around the perimeter to ensure the fire spreads evenly inward and upward through the fuel stack rather than tunneling through a single hot spot. Monitor the thermal ramp closely over the first two hours, slowly adding medium-sized hardwood logs to maintain a steady, creeping temperature increase without triggering catastrophic thermal shock fractures. Keep the fire burning consistently until all the wood has reduced to a glowing bed of red-hot coals, ensuring the core temperature of the clay has crossed the crucial minimum threshold of 1,100°F (593°C) where chemical water of hydration is permanently driven off.
Step 5: Cooling Phase and Post-Process Retrieval
Allow the fire to burn down completely and leave the pit or barrel entirely undisturbed for a minimum of 12 to 24 hours to prevent thermal shock during the cooling cycle. Opening the pit or uncovering the drum too early exposes the hot ceramic matrix to cold ambient air, instantly causing micro-fracturing or complete structural failure. Once the internal temperature drops to ambient levels and the ash can be safely touched with bare leather gloves, carefully unearth your fired vessels, brush away residual ash and carbon soot, and seal porous surfaces with liquid acrylic sealer or beeswax if intended for liquid containment.
How to Make Pottery at Home Without a Kiln — Modern Potters
Comparative Analysis of Non-Kiln Firing Methodologies
| Firing Method | Average Temperature Range | Primary Fuel Sources | Best Suited For | Key Limitations |
|---|---|---|---|---|
| Pit Firing | 1,100°F – 1,400°F | Hardwood, sawdust, organic debris, straw | Decorative vessels, sculptures, unglazed earthenware | Porous finish, lack of structural vitrification, unpredictable thermal shock |
| Barrel Firing | 1,300°F – 1,600°F | Charcoal, scrap lumber, dry leaves, metal drums | Uniform terra cotta, smoke-flashed decorative pottery | Requires metal fabrication, heavy smoke production, intensive monitoring |
| Raku / Torch Firing | 1,500°F – 1,800°F | Propane weed burner, sawdust reduction bins | Small tiles, thin-walled sculptural items, beads | High risk of thermal cracking, extreme safety hazards, restricted size limits |
Common Site Failures and Field Fixes
- Explosion and Shattering During Initial Heating
- Root Cause: Trapped mechanical water within the clay body rapidly vaporized into steam due to a temperature rise exceeding 212°F before full dehydration occurred.
- Actionable Fix: Extend drying times to a minimum of two weeks, test for dryness using the cheek-temperature method, and implement a much slower pre-heating ramp by surrounding the ware with warm ashes for an hour before direct flame contact.
- Dull, Chalky, and Weak Ceramic Structure
- Root Cause: The fire failed to reach the essential quartz inversion temperature, meaning the clay only dried out rather than undergoing chemical ceramic sintering.
- Actionable Fix: Increase the volume of dense hardwood fuel, insulate the pit sides with firebrick, and use a digital infrared thermometer or pyrometric cone pack rated for low-fire earthenware to verify peak temperatures.
- Surface Cracking Caused by Thermal Shock
- Root Cause: The temperature differential across the cross-section of the clay body was too extreme, or the cooling phase occurred too rapidly due to premature unearthing.
- Actionable Fix: Ensure uniform wall thickness across all handmade pieces (aiming for consistent 3/8-inch thickness) and strictly enforce a mandatory 24-hour cooling window before exposing fired items to open air.
Frequently Asked Questions
Can I make waterproof pottery without a kiln?
No, pottery fired without a kiln remains in a low-fire earthenware state without true vitrification, meaning the ceramic matrix remains porous and absorbent. To make primitive non-kiln pottery hold liquids, you must apply a natural sealant such as beeswax, pine resin, or liquid acrylic polymer to the interior surfaces after firing.
What kind of clay is best for firing without a kiln?
Coarsely grogged terra cotta or earthenware clay bodies perform best for non-kiln firing because the added grog (pre-fired, crushed ceramic particles) creates microscopic channels that allow trapped steam to escape and enhances overall thermal shock resistance.
How do I know if my clay reached a high enough temperature?
Without a digital pyrometer, you can assess whether your clay has reached maturity by checking for a change in color, a harder surface that cannot be scratched easily with a metal nail, and a resonant metallic ring when tapped, indicating that chemical water has been driven off.
Can I use a regular campfire to fire my pottery?
Yes, a traditional campfire can fire pottery, but it requires careful management to avoid uneven heating zones that cause cracking. Building a bed of coals, placing the pre-warmed ware gently on top, and slowly building a controlled teepee fire over the pieces yields the best results.
Master the art of primitive ceramics today by sourcing your local earthenware, gathering your organic combustibles, and building your first backyard firing pit for an authentic, hands-on crafting experience.
