How To Fix A GFCI Outlet: A Technical Guide To Troubleshooting And Repair

To fix a GFCI outlet, you must first distinguish between a localized mechanical failure, a downstream ground fault, and a line-side power loss by performing a systematic reset and voltage continuity test. Most residential GFCI issues stem from a tripped internal solenoid or improper "Line" versus "Load" wiring, requiring a calibrated multimeter to verify that the unit is receiving 120V across the hot and neutral terminals while maintaining a trip threshold between 4mA and 6mA.

Essential Diagnostics and Electrical Repair Inventory

Before attempting to service a Ground Fault Circuit Interrupter (GFCI), it is imperative to understand the National Electrical Code (NEC) requirements, specifically Article 210.8, which mandates these devices in high-moisture areas. Fixing a GFCI involves more than just pushing a button; it requires analyzing the integrity of the entire branch circuit. You must ensure you have the correct diagnostic equipment to measure leakage current and voltage potential. If the outlet is part of a daisy-chained circuit, a failure at the primary GFCI will result in power loss at all "protected" downstream outlets.

Required Tools and Technical Specifications

• Non-Contact Voltage Tester: Rated for at least 100V-1,000V AC to ensure the circuit is de-energized before handling.
• Digital Multimeter (DMM): Capable of measuring AC voltage with a CAT III safety rating for residential branch circuits.
• GFCI Receptacle Tester with LED Indicators: To verify correct wiring polarity and to perform a simulated 5mA ground fault test.
• Insulated Screwdriver Set: Phillips #2 and Square Drive (Robertson) #1 for terminal screws.
• Wire Strippers/Crimpers: For 12-gauge or 14-gauge copper conductors.
• Replacement GFCI Unit: Must be UL-listed, self-testing (mandated for units manufactured after 2015), and match the circuit amperage (15A or 20A).

Project Benchmarks

• Estimated Duration: 30 to 60 minutes depending on the complexity of the circuit.
• Technical Skill Level: Intermediate; requires familiarity with circuit breakers and basic electrical theory.
• Budget Estimate: $20 - $40 for a high-quality, weather-resistant (WR) or tamper-resistant (TR) replacement unit.

Technical Execution: Restoring GFCI Protection and Power

Repairing a GFCI outlet requires a methodical approach that moves from external mechanical checks to internal electrical diagnostics. Because these devices are designed to save lives by detecting current leakage to ground, any repair that bypasses safety features is strictly prohibited.

Step 1: Perform the Mechanical Reset and Load Analysis

The most frequent cause of a "broken" GFCI is a simple trip caused by a momentary surge or moisture. However, if the reset button does not "click" or stay depressed, the unit may not be receiving power, or the internal sensing solenoid has failed.

1. Unplug all appliances from the GFCI and any other outlets connected downstream on the same circuit.
2. Press the "Test" button. You should hear a distinct click, and the "Reset" button should pop out.
3. Press the "Reset" button firmly. If it springs back immediately without locking, proceed to electrical testing.
4. Check the main service panel (breaker box). A tripped GFCI often indicates a simultaneous trip at the circuit breaker if a hard short-to-ground occurred.

Warning: Never attempt to force a reset button. If the internal latching mechanism does not engage, forcing it can damage the plastic housing and create a fire hazard.

Step 2: De-Energize and Safety Verification

Before removing the wall plate, you must isolate the circuit. Modern GFCI units often have a "reverse line-load miswire" protection feature that prevents the outlet from being reset if it is wired incorrectly or if power is absent.

1. Locate the specific breaker in your service panel and switch it to the "Off" position.
2. Use a non-contact voltage tester at the face of the outlet to confirm the absence of an electromagnetic field.
3. Remove the mounting screws and gently pull the GFCI unit out of the junction box, keeping the wires attached.
4. Test each wire lead again with the non-contact tester to ensure no "phantom voltage" or shared neutrals are present from adjacent circuits.

Step 3: Identify Line and Load Conductors

A critical failure point in GFCI installations is the confusion between "Line" and "Load" wires. The "Line" wires provide power from the breaker, while the "Load" wires carry protected power to downstream outlets.

1. With the wires still attached, note their positions. Modern GFCI units usually have yellow tape covering the "Load" terminals to prevent accidental usage.
2. Disconnect all four wires (two hot, two neutral) and the bare copper ground.
3. Carefully spread the wires so they do not touch anything.
4. Temporarily turn the breaker back on.
5. Using your multimeter set to AC Voltage, identify which pair of wires reads approximately 120V. This pair is your Line side.
6. Turn the breaker back off immediately after identification.

Pro-Tip: Label the "Line" wires with electrical tape. If you find power on both sets of wires, you have a dangerous back-feed situation that requires a professional electrician to diagnose.

Step 4: Inspect Terminal Connections and Wire Integrity

Often, a GFCI fails because of high-resistance connections or "back-stabbed" wires that have vibrated loose over time. High resistance creates heat, which can trip the sensitive thermal-magnetic sensors inside the GFCI.

1. Examine the wire ends for oxidation (black or green crust) or heat damage (melted insulation).
2. If the wire is damaged, snip the end and strip exactly 5/8 of an inch of fresh copper.
3. Ensure the copper is wrapped clockwise around the side-terminal screws or inserted fully into the "clamp" style back-wire ports.
4. Tighten the terminal screws to a torque of approximately 14 inch-pounds. Loose connections are the leading cause of "nuisance tripping."

Step 5: Replace the GFCI Unit (If Necessary)

If the wiring is correct and the breaker is on, but the unit still won't reset or the "End of Life" LED (usually red or amber) is illuminated, the internal circuitry is compromised.

1. Connect the bare copper or green ground wire to the green grounding screw on the new GFCI.
2. Connect the identified "Line" Hot (usually black) to the brass screw marked "Line."
3. Connect the "Line" Neutral (white) to the silver screw marked "Line."
4. If you have downstream outlets, connect the "Load" wires to the remaining brass and silver terminals. If not, leave the yellow tape on the Load terminals.
5. Gently fold the wires into the box, ensuring the bare ground wire does not contact any of the hot terminals.
6. Secure the outlet to the box and replace the cover plate.

Step 6: Final Verification and System Testing

Once the unit is installed and the breaker is toggled to "On," you must verify the protective function.

1. The status LED should be green (or off, depending on the brand; check the manufacturer’s manual).
2. Press the "Reset" button to energize the face.
3. Insert your GFCI Receptacle Tester. It should show two amber lights (Correct Wiring).
4. Press the "Test" button on the tester. The GFCI should trip instantly, cutting power to the tester and any downstream outlets.
5. Reset the GFCI one last time.

Comparative Specifications for GFCI Selection

When selecting a replacement or troubleshooting an existing unit, understanding the technical differences between GFCI types is essential for maintaining code compliance.

Troubleshooting Common Circuit Failures

If the steps above do not resolve the issue, the problem likely exists within the branch circuit or the environment rather than the outlet itself.

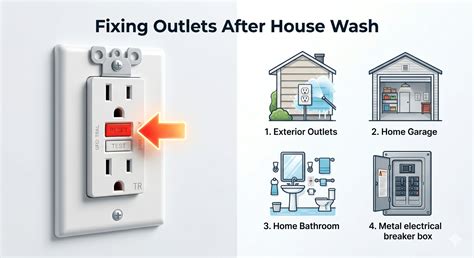

• Scenario: GFCI Trips Only When It Rains




  • Root Cause: Moisture ingress in an outdoor junction box or a downstream light fixture.
  • Actionable Fix: Inspect all exterior boxes for compromised gaskets or lack of silicone sealant. Dry the interior of the box with a heat gun and replace standard covers with "In-Use" bubble covers that remain weatherproof while items are plugged in.

• Scenario: Unit Trips Immediately Under Any Load




  • Root Cause: A "Neutral-to-Ground" fault. If the white neutral wire touches the bare ground wire anywhere in the circuit, it creates a parallel path for current that the GFCI detects as a leak.
  • Actionable Fix: Inspect all downstream outlets and junction boxes. Ensure neutral wires are not touching the metal casing or the grounding conductors.

• Scenario: "End-of-Life" Light is Solid Red




  • Root Cause: The internal MOV (Metal Oxide Varistor) or sensing circuit has been damaged by a voltage surge or has reached its functional limit.
  • Actionable Fix: This is a non-repairable internal failure. You must replace the entire GFCI unit immediately, as it no longer provides ground-fault protection.

• Scenario: GFCI Trips When a Motor Starts (e.g., Refrigerator or Power Tool)




  • Root Cause: Inductive "noise" or high in-rush current. Older motors often leak a small amount of current to the casing during startup.
  • Actionable Fix: If the leakage exceeds 5mA, the motor is failing. If the leakage is minimal, consider placing the motor on a dedicated non-GFCI circuit (if permitted by local code) or upgrading to a "High-Immunity" GFCI unit designed for inductive loads.

Frequently Asked Questions

Why won't my GFCI outlet reset even though there is power?

A GFCI will not reset if the internal latching mechanism has failed, if it is wired with the "Line" and "Load" reversed, or if there is an active ground fault downstream. Most modern units require power to be present on the "Line" side to engage the reset solenoid; if the breaker is off or the wire is loose, the button will simply pop back out without clicking.

Can I replace a GFCI with a regular outlet?

Only if the outlet is not in a location required by the NEC to have ground-fault protection (such as kitchens, bathrooms, garages, or outdoors). If you remove a GFCI that was protecting downstream outlets, you must ensure those outlets are either replaced with GFCIs or protected by a GFCI circuit breaker at the main panel to maintain safety standards.

How do I know if my GFCI is bad or if it's just tripped?

A "bad" GFCI will typically show a red warning light, refuse to reset despite having verified 120V power on the Line terminals, or fail to trip when the "Test" button is pressed. If the unit resets but trips immediately when a device is plugged in, the fault is likely in the device or the downstream wiring, not the GFCI itself.

Why does my GFCI have five wires instead of three?

The presence of five wires (one ground, two hot, and two neutral) indicates that the GFCI is being used to protect other "downstream" outlets. One pair of hot/neutral wires brings power in (Line), while the second pair sends protected power out to other locations (Load).

Upgrade Your Home Safety Standards

Properly functioning GFCI outlets are the primary defense against localized electrocution and electrical fires. If your troubleshooting reveals an aging or non-compliant electrical system, consider a comprehensive home safety audit to ensure all high-moisture zones meet current NEC specifications.
