How To Fix An Open Ground Electrical Outlet: Complete NEC-Compliant Repair Guide

An open ground electrical outlet occurs when the grounding path between the receptacle and the service panel is broken or non-existent, presenting a significant shock hazard and risk to sensitive electronics. Resolving this issue involves verifying the equipment grounding conductor (EGC) continuity, securing loose terminal connections, or installing a Ground Fault Circuit Interrupter (GFCI) as an NEC-compliant alternative for ungrounded vintage systems.

Initial Diagnostics and Electrical Safety Preparation

Before attempting any electrical remediation, it is critical to understand that an open ground is not merely a technical nuisance; it is a failure of the safety system designed to shunt fault current away from users. In a properly functioning 120V system, the equipment grounding conductor provides a low-impedance path to the earth, ensuring that if a hot wire touches a metal casing, the circuit breaker trips immediately. Without this path, the metal casing of an appliance can become energized, waiting for a human to complete the circuit to the ground.

To begin the repair process, you must gather specialized diagnostic tools and adhere to the National Electrical Code (NEC) Article 250 standards. The complexity of the fix depends on whether the house was originally wired with a ground wire or if you are dealing with a legacy two-wire system common in pre-1960s construction.

Essential Gear and Pre-Operation Requirements

• Diagnostic Tools: Three-prong receptacle tester (circuit analyzer), digital multimeter (DMM), and a non-contact voltage tester (NCVT).
• Manual Tools: Insulated screwdrivers (Phillips and Flathead), needle-nose pliers, wire strippers (10-18 AWG capacity), and a flashlight.
• Materials: Grounding pigtails (green insulated or bare copper), wire nuts (standard or push-in connectors), and replacement UL-listed receptacles (15A or 20A as per circuit rating).
• Prerequisite Knowledge: Ability to identify 14 AWG (15-amp circuits) versus 12 AWG (20-amp circuits) wiring and understanding of "Line" vs. "Load" terminals on GFCI devices.
• Estimated Duration: 30 to 60 minutes per outlet.
• Budget Benchmark: $5 to $30 depending on whether a standard receptacle or a GFCI unit is required.

Systematic Execution of Grounding Repairs

The resolution of an open ground condition follows a logical progression from simple mechanical failure to more complex circuit re-engineering. Follow these steps sequentially to ensure the safety and compliance of your electrical system.

Step 1: Circuit Verification and Power Isolation

The first priority is confirming the fault and isolating the power. Plug your receptacle tester into the outlet. An "Open Ground" reading is typically indicated by a specific light pattern (usually a single center light on most commercial testers). Once the fault is confirmed, locate the service panel and switch off the corresponding breaker.

Warning: Never rely solely on a wall switch to kill power. Always use a non-contact voltage tester at the outlet itself after turning off the breaker to ensure no "phantom voltage" or shared neutrals are present that could cause an accidental shock.

Step 2: Physical Inspection of the Receptacle

Unscrew the wall plate and the mounting screws holding the receptacle in the electrical box. Carefully pull the outlet forward to expose the wiring. Inspect the green grounding screw located at the bottom of the yoke. In many cases, the "open ground" is simply a result of the copper ground wire slipping out from under the screw or snapping off due to metal fatigue.

1. Check for a bare copper or green insulated wire tucked into the back of the box.
2. If the wire is present but disconnected, strip approximately 3/4 inch of insulation (if applicable).
3. Create a "U" shaped hook in the wire and loop it clockwise around the green grounding screw.
4. Tighten the screw firmly to ensure a gas-tight mechanical connection.

Step 3: Checking Box Continuity (Metal Boxes Only)

If you are working with an older home featuring armored cable (BX) or metal conduit (EMT) but no separate copper ground wire, the metal casing itself is intended to serve as the ground path. If the outlet is not "self-grounding," it may show an open ground if it is not making solid contact with the metal box.

1. Look for a small threaded hole in the back of the metal box (usually 10-32 thread size).
2. Install a green grounding screw into this hole and attach a copper pigtail.
3. Connect the other end of the pigtail to the green screw on the receptacle.
4. If the tester still shows an open ground, the conduit path back to the panel is likely broken, requiring a more advanced fix.

Step 4: The GFCI Workaround for Legacy Systems

In many older homes, there is no grounding conductor at all (two-wire Romex). The NEC (specifically Section 406.4(D)(2)) allows for the replacement of ungrounded two-prong outlets with three-prong outlets if they are GFCI-protected. This provides shock protection even without a physical ground wire.

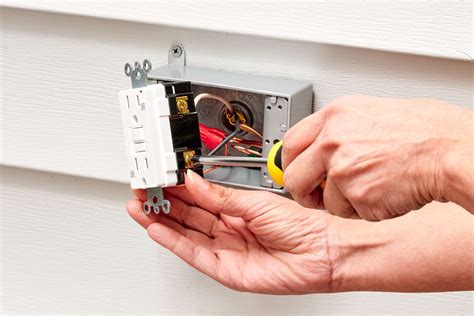

1. Install a GFCI receptacle at the beginning of the circuit or at the specific outlet location.
2. Connect the Hot (Black) and Neutral (White) wires to the "Line" terminals.
3. Leave the green grounding screw on the GFCI empty.
4. Apply the mandatory "No Equipment Ground" sticker (included in the GFCI box) to the faceplate. This informs future users and inspectors that while the outlet provides safety, it does not provide a path for surge protection.

Pro-Tip: If you protect an entire circuit with one GFCI at the "Line" position, all downstream outlets can be standard three-prong outlets, provided they are all labeled "GFCI Protected" and "No Equipment Ground."

Step 5: Final Testing and Reassembly

Push the wires back into the box, ensuring the ground wire does not come into contact with the hot or neutral terminals. Secure the receptacle and the faceplate. Restore power at the breaker. Use your receptacle tester again; if you used the GFCI method, the tester will still show "Open Ground," which is expected. However, pressing the "Test" button on the GFCI should successfully trip the device, confirming the safety mechanism is functional.

Grounding Infrastructure and Material Benchmarks

The following table outlines the technical specifications and requirements for various grounding scenarios encountered during residential repairs. Proper identification of these parameters is essential for NEC compliance.

Field Resolutions for Persistent Grounding Faults

In complex scenarios, a simple tightening of a screw may not resolve the issue. Below are real-world failure modes and the professional remedies required to rectify them.

• Scenario 1: The "Bootleg Ground" Discovery




  • Root Cause: A previous occupant connected a jumper wire from the neutral terminal to the ground terminal on the receptacle. This tricks simple testers into showing "Correct Wiring" but is extremely dangerous as it can energize the appliance casing if the neutral wire breaks.
  • Actionable Fix: Immediately remove the jumper wire. Identify if a true ground exists. If not, follow the Step 4 GFCI installation protocol to achieve legal and safe protection.

• Scenario 2: Broken Grounding Conductor Inside the Sheathing




  • Root Cause: Aggressive pulling of wires during original installation or corrosion has snapped the copper wire inside the Romex jacket, usually just outside the box entry point.
  • Actionable Fix: Carefully strip back the outer jacket of the cable to expose at least one inch of the remaining ground wire. Use a push-in wire connector to attach a new pigtail extension. If the wire is broken too far back to reach, the circuit section must be re-pulled or converted to GFCI protection.

• Scenario 3: Non-Conductive Paint or Corrosion on Metal Boxes




  • Root Cause: Thick layers of paint or rust between the receptacle yoke and the metal box prevent a solid electrical bond, causing an intermittent or open ground reading on self-grounding outlets.
  • Actionable Fix: Scrape away paint or rust from the contact points of the box. Use a dedicated grounding pigtail screwed directly into the back of the box rather than relying on the mounting screws for the ground path.

• Scenario 4: Open Ground at the Main Panel




  • Root Cause: The main grounding electrode conductor (the wire going to the ground rod or water pipe) has become disconnected or corroded.

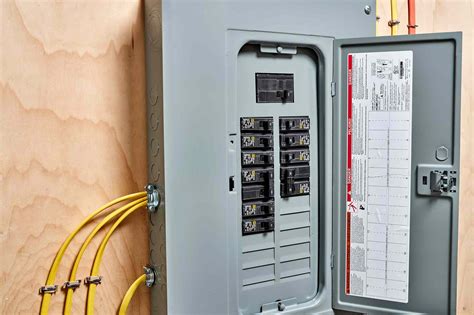

  • Actionable Fix: Inspect the service panel. If the main ground bus is not properly bonded to the casing or the external ground electrode, this is a whole-house safety failure. Tighten the lugs on the ground bus bar or call a licensed electrician to replace the grounding electrode system if corrosion is present.

Frequently Asked Questions

Can an open ground cause a fire?

While an open ground itself doesn't typically start a fire, it prevents the circuit breaker from tripping during a ground fault. This can lead to sustained arcing or energized metal surfaces that can eventually ignite nearby combustible materials if a fault occurs.

Why does my tester say "Open Ground" on a GFCI?

Standard plug-in testers often show "Open Ground" on GFCIs installed in older homes because there is no physical ground wire to complete the tester's internal circuit. This is acceptable under NEC 406.4(D)(2)(b) as long as the "No Equipment Ground" label is applied and the GFCI's internal trip mechanism functions.

Is it safe to use a computer on an open ground outlet?

It is not recommended. Surge protectors require a functional ground path to divert excess voltage. Without a ground, a surge protector is essentially a power strip, leaving your sensitive electronics vulnerable to voltage spikes and electromagnetic interference.

What is the difference between a neutral and a ground?

The neutral (grounded conductor) is a current-carrying conductor that returns power to the source under normal conditions. The ground (equipment grounding conductor) is a safety path that only carries current during a fault. They should only ever be connected at the main service panel's bonding jumper.

How do I fix an open ground if there is no wire in the box?

If there is no ground wire and you cannot run new cables, the most cost-effective and code-compliant fix is to install a GFCI receptacle. This provides the necessary life-safety protection required by modern building codes without the need for a full house rewire.

Ensure Your Home Electrical Safety Today

Correcting an open ground is an essential step in maintaining a safe and modern electrical infrastructure for your household. If you encounter a situation where the grounding path remains elusive or if your service panel shows signs of significant corrosion, consult a licensed electrical contractor to perform a comprehensive site safety audit.
