How To Identify An Agate Rock: A Field Guide To Banding, Hardness, And Optical Properties

Identifying an agate rock requires evaluating its physical characteristics against microcrystalline silica standards: a Mohs hardness rating of 6.5 to 7.0, distinct translucent diaphaneity under backlighting, conchoidal fracturing, and a waxy to vitreous luster. Raw field specimens typically exhibit concentric color banding, a pockmarked cortex or rind, and a higher relative density than surrounding host sedimentary rocks. Field identification is verified by performing light-transmittance checks, scratch resistance tests, and microscopic surface texture analysis.

Pre-Fieldwork Gear and Diagnostic Toolset

Field identification of cryptocrystalline quartz varieties like agate ($SiO_2$) requires specialized equipment to differentiate authentic specimens from lookalikes such as jasper, chert, slag glass, and banded calcite. Before searching alluvial deposits, gravel bars, or volcanic basalt flows, assemble a field testing kit that allows for non-destructive optical and physical examination.

Essential Gear, Standards, and Benchmarks

• Essential Field Gear: High-output LED flashlight (minimum 300 lumens or dedicated gemological light pen), 10x–20x doublet or triplet jeweler's loupe, steel nail or pocketknife (hardness ~5.5), glass plate (hardness ~5.5), hardened steel file (hardness ~6.5), spray bottle filled with clean water, micro-fiber cloth, and safety glasses.
• Prerequisite Knowledge Standards: Familiarity with the Mohs Scale of Hardness, understanding diaphaneity classifications (transparent, translucent, opaque), knowledge of quartz crystallization habits, and recognition of regional host-rock geology (e.g., vesicular basalt, amygdaloidal cavities, gravel terraces).
• Budget and Time Benchmarks: A complete entry-level diagnostic kit costs between $30 and $75. Individual field tests require approximately 2 to 5 minutes per specimen once gathered.

Field Protocol for Identifying Agate Rocks

[Visual Check: Banding & Husk] -> [Light Test: Translucency] -> [Scratch Test: Mohs 6.5-7] -> [Fracture Check: Conchoidal]

Step 1: Execute the Backlight and Translucency Diagnostic

The defining optical characteristic separating agate from opaque cryptocrystalline quartz (such as jasper) is diaphaneity. Agate is semi-translucent to translucent, allowing light to pass through its crystalline structure.

1. Clean the rock surface using water and a cloth to remove clay, dirt, and loose iron oxides.
2. Position a high-intensity LED light source directly against the thinnest edge or surface of the specimen.
3. Observe whether light penetrates the interior matrix. An authentic agate will transmit light at least 2 to 5 millimeters into the rock, revealing internal colors, suspended mineral inclusions, or subsurface shadow lines.
4. Rotate the light source across the specimen to identify areas where light transmission changes, indicating density variations between individual silica bands.

Pro-Tip: If a specimen appears completely dark and blocks all light transmission even along razor-thin edges, it is classified as opaque jasper or chert, not agate, regardless of surface patterns.

Step 2: Inspect for Microcrystalline Banding and Surface Husk Texture

Agates form when silica-rich fluid deposits successive microscopic layers of chalcedony inside rock cavities. This process leaves distinct external and internal visual signatures.

1. Hold the specimen under direct sunlight or a white light source and inspect it with a 10x jeweler's loupe.

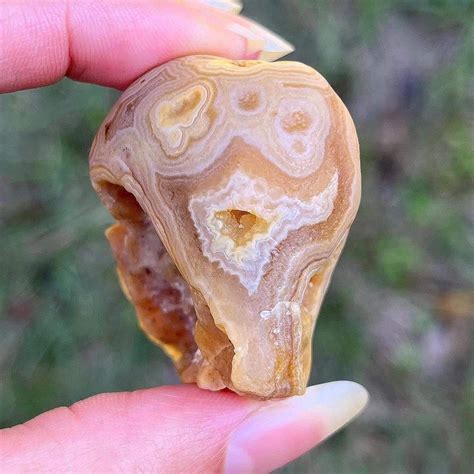

2. Search for concentric, fortification, or parallel banding. Fortification bands feature sharp, angular turns mimicking medieval castle outlines.
3. Examine the exterior rind or cortex of rough, unpolished specimens. Raw agates frequently exhibit an "orange-peel," pit-marked, or brain-like texture caused by the soft host rock (such as zeolites or calcite) leaching away over geological time.
4. Look for "windows"—naturally broken corners where water movement or impact has exposed the smooth, banded interior.

Warning: Do not confuse color staining on the exterior of a rock with internal microcrystalline banding. Surface iron staining follows cracks erratically, whereas true agate banding follows the geometry of the original cavity walls.

Step 3: Perform the Mohs Hardness Test

Agate consists of dense microcrystalline quartz with a fixed Mohs hardness rating between 6.5 and 7.0. This hardness separates agate from softer minerals like calcite, fluorite, serpentine, and soft glass.

1. Select an unexposed or non-aesthetic surface on the specimen to prevent ruining display quality.
2. Attempt to scratch the rock using a standard steel nail or pocketknife blade (Mohs 5.5) using moderate pressure. The steel tool should slide off without cutting into the mineral. If a line appears, wipe it with a wet finger; metal rubbing off onto the rock can create a false line.
3. Attempt to scratch a glass plate (Mohs 5.5) with a sharp edge of the rock specimen. An agate will scratch the glass smoothly.
4. Apply a hardened steel file (Mohs 6.5) to the rock. An authentic agate will resist scratching from the file, or show only minimal abrasion under heavy force.

Step 4: Analyze Conchoidal Fracture and Luster

When subjected to mechanical impact, microcrystalline quartz breaks along smooth, curved surfaces rather than flat cleavage planes.

1. Examine existing chips, broken edges, or weathered fractures on the rock surface.
2. Look for conchoidal fracturing—curved, shell-like break patterns featuring smooth concentric ridges, identical to broken glass or obsidian.
3. Assess the surface luster along fresh or worn fracture surfaces. Agate exhibits a waxy, greasy, or vitreous (glass-like) luster.
4. Check for granular textures. If the broken edge feels gritty like fine sandpaper or appears dull and chalky under a 10x loupe, the specimen is likely quartzite or sandstone rather than chalcedony.

Step 5: Verify Density and Specific Gravity

Agate has a consistent specific gravity ranging from 2.58 to 2.64. This makes it denser than porous rocks like pumice or weathered limestone, but lighter than heavy metallic ores like hematite or galena.

1. Place the specimen in your hand alongside a piece of common basalt, granite, or river quartz of similar size.
2. Gauge the relative weight ("heft"). Agates feel solid, dense, and heavy for their volume due to tightly packed micro-silica fibers.
3. To calculate exact specific gravity in a lab setting: Weigh the dry specimen on a digital scale ($W_{dry}$ in grams). Suspend the specimen in water on the scale using a thin thread to measure displaced mass ($W_{wet}$). Calculate specific gravity using the standard formula:

$$\text{Specific Gravity} = \frac{W_{dry}}{W_{dry} - W_{wet}}$$

1. Verify that the result falls within the 2.58–2.64 range.

Physical and Mineralogical Specifications of Chalcedony Varieties

The following diagnostic matrix provides precise comparative standards to differentiate agate from common mineral lookalikes and synthetic materials encountered during field sampling.

Common Field Misidentifications and Diagnostic Solutions

Even experienced rockhounds encounter tricky specimens. Field weathering, mineralization, and physical erosion can obscure identifying traits. Below are common failure scenarios and their solutions.

Scenario 1: Industrial Slag Glass Mistaken for High-Grade Agate

• Root Cause: Glass slag possesses a waxy-to-vitreous luster, high translucency, and conchoidal fractures, leading field collectors to mistake industrial waste for raw fire agate or blue agate.
• Actionable Fix: Examine the interior matrix under 10x or 20x magnification. Industrial glass contains spherical, perfectly round air bubbles created during rapid factory cooling. Agates form slowly via water deposition and contain no round gas bubbles. Additionally, perform a hardness test; slag glass scratches easily with a standard file (Mohs 5.5–6.0), whereas agate resists it.

Scenario 2: Opaque Mineral Coating Masking Agate Bands

• Root Cause: Rough agates collected from volcanic beds are often coated in a thick, dark rind of iron oxide, manganese oxide, or weathered basalt matrix, blocking light and hiding interior bands.
• Actionable Fix: Do not rely on surface appearance alone. Search the specimen for natural impact fractures ("windows") or sub-crop chips. Wet the rock with water to change light refraction on the surface, or slice a small section off one end using a lapidary trim saw with diamond-grit blade to evaluate the cross-section.

Scenario 3: Banded Travertine or Onyx Confused with Fortification Agate

• Root Cause: Banded travertine (calcite) exhibits striking parallel layers that visually mimic banded agate, causing misidentification based on color patterns alone.
• Actionable Fix: Perform a non-destructive Mohs scratch test using a steel pocketknife or copper penny. Travertine has a Mohs hardness of 3.0 and will scratch easily under moderate pressure. Apply a single drop of 10% dilute hydrochloric acid (or household vinegar); calcite will effervesce (fizz) due to carbon dioxide release, whereas chemically inert agate ($SiO_2$) will show no reaction.

Scenario 4: Granular Quartzite Misidentified as Rough Agate Nodules

• Root Cause: Rounded, river-worn quartzite cobbles can exhibit soft color variations and translucency that resemble raw, unbanded chalcedony nodules.
• Actionable Fix: Inspect the specimen surface under direct light with a 10x loupe. Quartzite is a metamorphic rock composed of fused quartz sand grains, exhibiting an interlocking sugar-like, granular texture. Agate is microcrystalline, meaning its individual crystals are far too small to be resolved with an optical loupe, presenting a completely smooth, continuous matrix.

Frequently Asked Questions

How can you tell if a rock is an agate without breaking it open?

Examine the rock’s weight, surface texture, and optical properties under sunlight or a flash light. Look for translucent edges where light penetrates the matrix, a pit-marked or "brain-like" exterior rind, and natural chips showing smooth conchoidal fractures. High-grade flashlights pressed directly against the stone will often reveal subsurface bands without needing to break the specimen open.

What is the primary difference between jasper and agate?

The key difference between jasper and agate is diaphaneity (light transmittance). Both are microcrystalline quartz (Mohs hardness 6.5–7.0), but agate is translucent to semi-translucent, allowing light to pass through thin sections. Jasper contains high concentrations of particulate iron oxides and clay inclusions that render it 100% opaque.

Can you find agates in ordinary riverbeds or gravel pits?

Yes, agates are commonly found in gravel deposits, riverbeds, and ocean beaches far from their original volcanic source. Because microcrystalline silica is resistant to physical erosion and chemical weathering, durable agate nodules survive long-distance transport along ancient glacial drainage networks and river channels.

Does an authentic agate always feature colored bands?

While concentric or fortification banding is the most recognizable trait, some agate varieties feature non-banded structural inclusions. For example, moss agates and dendritic agates contain green chlorite or black manganese oxide inclusions that resemble trees or plants within a translucent chalcedony matrix, lacking traditional geometric layers.
