How To Inscribe A Circle In A Square: A Precise Geometric Guide
An inscribed circle, or incircle, is defined by its perfect tangency to all four sides of a square, with the circle's diameter exactly equal to the square's side length. Achieving this construction requires finding the geometric center of the square—the intersection of its diagonals—and using the distance from that center to any midpoint of a side as the precise radius for the circle.
Pre-Procedure Geometric Planning and Tools
Before beginning the construction of an incircle, accuracy is paramount. Because geometric proofs rely on the intersection of lines, even a minor deviation in measurement can lead to a failure in tangency. This process is a foundational exercise in Euclidean geometry, requiring standard drafting equipment to ensure the radius remains consistent across all four quadrants of the square.
- Essential Tools: A high-quality mechanical pencil (0.5mm for precision), a metal-edged ruler or straightedge, a professional-grade geometry compass with a locking adjustment knob, and a drafting triangle or protractor to verify right angles.
- Mandatory Prerequisites: A surface that is perfectly flat and stable to prevent compass slippage. Understanding the properties of a square is essential, specifically that the diagonals are perpendicular bisectors of one another.
- Time and Accuracy Benchmarks: Expect 5 to 10 minutes for manual drafting. Accuracy is measured by the circle's failure to overlap or miss the square's sides; a successful construction leaves no visible gap between the arc and the midpoint of each square edge.
Systematic Execution for Geometric Inscription
Step 1: Establishing the Square Foundation
Begin by drawing a square of your desired dimension. Use a straightedge and a 90-degree drafting triangle to ensure every corner is perfectly square. Label your vertices as A, B, C, and D in a clockwise fashion. Using a ruler, verify that all side lengths are identical. If your sides differ by even a fraction of a millimeter, the circle will not be truly inscribed, leading to elliptical gaps at the tangency points.
Step 2: Locating the Geometric Center
The center of your circle must coincide exactly with the geometric center of the square. To find this, use your straightedge to draw two diagonal lines, connecting opposite corners (A to C and B to D). The point where these two lines intersect is the exact center of the square.
Pro-Tip: Use a needle-point awl or the sharpest lead possible to mark the intersection point. A faint indentation in the paper provides a secure anchor for the compass point, preventing it from sliding while you draw the circle.
Step 3: Determining the Radius for Tangency
The radius of an inscribed circle is mathematically defined as half the length of the square's side. Place your compass point on the center mark established in Step 2. Expand the compass so that the lead rests exactly on the midpoint of any one of the four sides of the square. To locate the midpoint accurately, place your ruler along the side and mark the exact center point.
Step 4: Drafting the Inscribed Circle
Once the compass is set to the radius (half the side length), check the tangency point again. Ensure the lead rests exactly on the midpoint of the side. Gently rotate the compass in a smooth, continuous motion, applying consistent downward pressure. If the compass is adjusted correctly, the lead should graze the midpoint of all four sides simultaneously.
Warning: Avoid applying excessive lateral pressure on the compass. High-quality geometry compasses are designed for rotation; leaning the device to one side will create an oval or a distorted arc rather than a true circle.
(2) To inscribe 4 circles in a given regular square in such a way, that e..
Technical Parameters of Circle-in-Square Construction
The relationship between the dimensions of the square and the inscribed circle is fixed by the ratio of the diameter to the side length, which must remain 1:1. The following table highlights the critical geometric metrics required for professional accuracy.
| Parameter | Mathematical Constraint | Geometric Outcome |
|---|---|---|
| Diameter of Circle | Must equal Side Length (s) | Perfect tangency on all sides |
| Radius of Circle | Exactly s / 2 | Minimum distance from center to side |
| Center Location | Intersection of Diagonals | Point of radial symmetry |
| Tangency Points | Midpoints of square sides | Four points of contact |
Common Geometry Failures and Precision Fixes
Even with proper equipment, the transition from theoretical geometry to manual drafting often yields errors. Identifying these early allows for quick corrections before the final ink or permanent mark is made.
- Failure Scenario: The Circle Overlaps or Misses the Sides.
- Root Cause: The compass radius was set incorrectly, or the square sides are not parallel/equal.
- Actionable Fix: Re-measure the side length of the square and divide by two. Recalibrate the compass by using a ruler to set the distance between the needle and the lead to that exact value.
- Failure Scenario: The Center Point Has Drifted.
- Root Cause: The compass needle slipped during the initial rotation because the center mark was too shallow or the paper shifted.
- Actionable Fix: Use a small piece of drafting tape to secure the paper to the desk. If the center mark is compromised, re-draw the diagonals with a sharper lead to locate the new, true intersection point.
- Failure Scenario: Non-Circular or Elliptical Result.
- Root Cause: The compass legs are not locked tightly, or the compass is being tilted during the rotation.
- Actionable Fix: Tighten the pivot screw on the compass head. Ensure the handle remains vertical throughout the entire 360-degree rotation to maintain a perfectly horizontal arc path.
Frequently Asked Questions
Why must the diagonals be used to find the center?
The diagonals of a square are the lines of symmetry. Their intersection is the only point equidistant from all four sides, which is a requirement for any circle to be perfectly inscribed within a closed polygon.
Can I inscribe a circle if the square is tilted on the page?
Yes. The geometric properties of the square remain constant regardless of its orientation. As long as you find the intersection of the diagonals to locate the center and measure the distance to a midpoint, the orientation of the square does not affect the process.
Does the thickness of the pencil lead matter?
Lead thickness significantly impacts the perceived accuracy of the tangency. Using a 0.5mm lead provides a thinner line than a 0.7mm lead, reducing the margin of error at the exact point where the circle meets the side of the square.

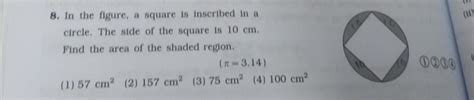

What is the difference between an inscribed circle and a circumscribed circle?
An inscribed circle sits inside the square, touching the midpoints of the sides. A circumscribed circle sits outside the square, with its circumference passing through all four corners (vertices) of the square.
Master Your Drafting Skills with Precision Geometry
Achieving high-level precision in geometric construction is a foundational skill for architects, engineers, and designers alike. Practice these steps consistently to ensure your drafting remains accurate for every technical project you undertake.
