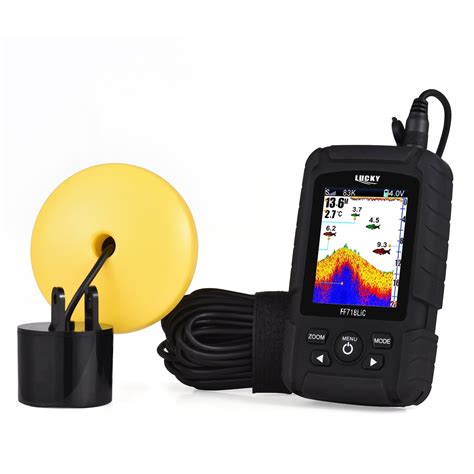

How To Install A Depth Finder On A Boat: A Marine Electronics Guide

Installing a marine depth finder requires precise transducer placement, clean 12-volt marine electrical integration, and proper waterproof sealing to ensure accurate bottom tracking at high speeds. By following structured protocols for transom, through-hull, or in-hull mounting, you protect your vessel's hull integrity while securing real-time bathymetric data.

Marine Electronics Planning & Equipment Calibration

Equipping your vessel with a sonar system demands meticulous preparation to prevent common failure points such as transducer aeration, voltage drops, and water intrusion. Whether you are installing a basic 2D sonar or a high-frequency CHIRP system, proper layout planning before drilling a single hole determines operational success on the water.

• Essential Gear, Tools, and Materials: Marine-grade tinned copper wire (14-gauge or 12-gauge), an inline fuse holder with a 3-amp to 5-amp fuse, heat-shrink butt connectors, marine-grade silicone sealant (such as 3M 5200 or 4200 depending on permanence requirements), stainless steel mounting hardware, electric drill with assorted bits, marine grade hole saw (if mounting an in-dash unit), and zip ties.
• Prerequisite Knowledge and Standards: Familiarize yourself with ABYC (American Boat and Yacht Council) standards for marine electrical installations, specifically regarding DC system fusing and wire sizing. Understand your hull material (fiberglass, aluminum, or wood) to select the correct transducer style and sealant compatibility.
• Estimated Budget and Duration Benchmarks: Expect a financial investment ranging from $150 for entry-level units to over $1,000 for advanced multi-function displays (MFDs) with side-scan capabilities. The installation process typically requires 3 to 5 hours of labor for a clean, professional finish.

Step-by-Step Transducer and Display Installation Workflow

Step 1: Select and Mark the Transducer Mounting Location

For outboard or stern-drive boats, the transom is the most common mounting point. Select a location on the transom that stays submerged at all operating speeds and remains completely clear of water turbulence generated by strakes, steps, through-hull fittings, or the propeller. Measure at least 15 inches away from the propeller arc on the starboard (right) side for standard single-engine setups, ensuring the propeller rotation pushes aerated water away from the transducer face. Hold the transducer bracket against the hull, level it horizontally, and mark the screw hole locations with a pencil.

Warning: Never mount a transducer directly in line with a water intake pickup or a high-speed water pickup, as the resulting air bubbles will instantly blind the sonar unit while underway.

Step 2: Drill Pilot Holes and Seal the Transom

Using a drill bit matched to your mounting screws, drill shallow pilot holes at your marked locations. Dip the threads of your stainless steel screws into marine-grade silicone sealant before driving them into the transom. Fill the pilot holes completely with sealant to prevent water intrusion into the transom core, which can cause structural rot in fiberglass-encapsulated wood or composite transoms. Attach the mounting bracket loosely, adjust the transducer angle so the trailing edge sits roughly 1/8 inch lower than the leading edge, and tighten the hardware down firmly.

Step 3: Route Transducer and Power Cables Safely

Route your transducer cable from the transom to the console or helm station, taking care to keep it completely away from high-current engine wiring harnesses, ignition wires, and battery cables to prevent electromagnetic interference (EMI) on your sonar screen. Secure the cable along the transom and gunwales using UV-resistant zip ties and screw-down clamp bases every 18 inches. When passing the cable through the transom or deck, always use a marine cable clam shell fitting filled with sealant to maintain a watertight barrier.

Step 4: Mount the Head Unit and Establish Power Connections

Find an ergonomic, weather-protected position on your dash or helm console for the display unit, ensuring it sits within direct line of sight and comfortable reach. Use the gimbal bracket template to mark your mounting holes and, if necessary, use a hole saw to cut the access port for the rear wiring harness. Connect the power leads to a dedicated marine fuse block or directly to your vessel's main battery switch through a dedicated 3-amp inline fuse. Always connect the positive (red) wire to the fused positive terminal and the negative (black) wire to the common ground bus bar, utilizing marine heat-shrink connectors for all splices.

Pro-Tip: Solder all electrical connections before applying heat-shrink tubing to create a vibration-proof bond that withstands constant wave pounding and salt spray corrosion.

Sonar Technology & Transducer Matrix Comparison

Diagnosing Sonar Anomalies and Field Remedies

• Symptom: Complete loss of bottom reading at speeds above 15 MPH.


  • Root Cause: Transducer is riding above the waterline, or turbulent micro-bubbles are flowing across the transducer face.
  • Actionable Fix: Lower the transducer bracket by 1/8 to 1/4 inch so it sits deeper in the laminar water flow, or adjust the running angle parallel to the water line.
• Symptom: Screen displays digital depth flashing or erratic "000" readings.


  • Root Cause: Loose power connections causing voltage drops, or severe electrical interference from the alternator or trolling motor.
  • Actionable Fix: Verify battery voltage under load, ensure proper grounding bus connection, and route the transducer cable away from engine alternator wiring.
• Symptom: Excessive surface clutter or "noise" obscuring fish arches and bottom contours.


  • Root Cause: Sensitivity (gain) set too high, or surface noise filter turned off.
  • Actionable Fix: Manually decrease the sonar gain setting until the water column clears, or engage the built-in noise rejection and surface clutter filter settings in the unit menu.

Frequently Asked Questions

Can I install a depth finder transducer on an aluminum boat?

Yes, but you must ensure you select a transom-mount or weld-on bracket designed for aluminum hulls, and avoid mounting it over structural ribs or rivets that create turbulence. Many boat owners use a transducer mounting board attached with marine adhesive to avoid drilling permanent holes into the aluminum transom.

Do I need to drill a hole in my hull for a depth finder?

Not necessarily. While traditional thru-hull transducers require a precise hole cut through the bottom of the boat, transom-mount transducers mount to the exterior stern, and in-hull shoot-through transducers bond to the inside of solid fiberglass hulls without any exterior penetration.

Why is my depth finder showing the wrong depth?

Inaccurate depth readings are usually caused by an incorrect transducer offset setting in the display menu, marine growth buildup on the transducer face, or air bubbles trapped beneath the transducer surface while running at speed.

Can I connect my depth finder directly to the starting battery?

While technically possible, it is strongly recommended to wire your depth finder to a dedicated fuse block or auxiliary marine accessory panel. Connecting directly to a cranking battery that powers high-draw components like trim tabs or starter motors can introduce voltage spikes that disrupt sonar performance.

How do I clean marine growth off my transducer?

Never use harsh petroleum solvents, acetone, or abrasive metal scrapers on a plastic transducer face, as this can permanently damage the sonar crystal element. Instead, use a soft nylon brush, warm soapy water, or a specialized marine cleaner to gently wipe away algae and barnacles.
