A Comprehensive Guide On How To Install A Drawer Slide For Precise Cabinetry

Installing drawer slides requires a precise alignment process involving lateral clearance calculations and structural leveling to ensure smooth, friction-free operation. By securing the cabinet member to the carcass and the drawer member to the box using a 32mm hole pattern, you can achieve a professional, flush-mount finish that supports rated load capacities without binding or sagging.

Precision Planning and Essential Hardware Inventory

Before initiating the installation, you must verify the cabinet interior dimensions and ensure the drawer box is constructed with the correct setback to accommodate the slide mechanism. Drawer slides, specifically ball-bearing side-mount and undermount varieties, require a specific clearance—typically 1/2 inch plus 1/32 inch for side-mount models—between the drawer side and the cabinet wall.

• Essential Hardware and Tools:




  • Full-extension ball-bearing slides or undermount soft-close glides.
  • Number 6 or number 8 pan-head wood screws (typically 1/2 inch for the drawer and 5/8 inch for the cabinet).
  • High-precision torpedo level or laser level.
  • Combination square and marking gauge.
  • Cordless drill with a depth-stop collar and driver bits.
  • Drawer slide jig or spacer blocks.
  • Tape measure (calibrated in 1/16-inch increments).

• Technical Prerequisites:




  • Verify the drawer box is square by measuring diagonals; a discrepancy greater than 1/8 inch will cause binding.
  • Ensure the cabinet face frame or frameless box sides are perfectly vertical.
  • Confirm the chosen slide length matches the cabinet depth within 1 inch to ensure full extension capability.
  • Estimated duration: 45 to 60 minutes per drawer for a first-time installer.

Systematic Installation Workflow for Cabinet and Drawer Members

Step 1: Layout and Marking the Cabinet Member

Begin by determining the vertical position of your drawer. Mark a reference line on the inside of the cabinet wall where the top of the slide will sit. When installing multiple drawers, use a story pole—a piece of wood cut to the exact height of the drawer openings—to ensure uniform spacing between the slides. Place the slide against the cabinet wall, aligning the top edge with your reference mark, and ensure the slide is held back from the front edge of the cabinet by the thickness of your drawer front (if using inset drawers) or flush with the face frame (if using overlay drawers).

Pro-Tip: Always use a self-centering Vix bit to drill pilot holes for the cabinet member screws. This ensures the screw is perfectly centered in the mounting slot, preventing the slide from shifting when tightened.

Step 2: Securing the Cabinet Member

Drive screws through the elongated horizontal slots of the cabinet member first. These slots are critical because they allow for minor horizontal adjustments. Do not fully tighten these screws; leave them just loose enough to permit fine-tuning later. Use a level to confirm the slide is perfectly horizontal. Once the slide is positioned and level, drive a screw through one of the round holes to lock the slide in its final, permanent location.

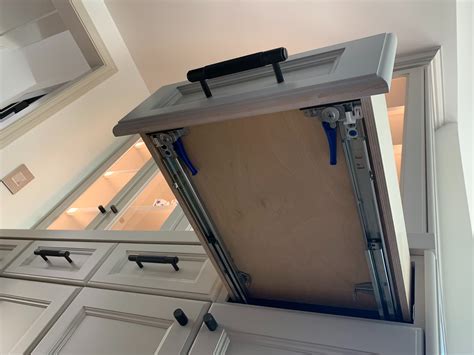

Step 3: Attaching the Drawer Member

The drawer member of the slide must be attached to the side of the drawer box. Invert the drawer or use a pair of drawer slide jigs to hold the member at the correct height. The standard rule is to measure from the bottom of the drawer side up to the mounting line. Position the drawer member so that the wheel or release lever is at the front. Drive the mounting screws into the pilot holes, ensuring the heads of the screws are flush or slightly countersunk; protruding screw heads will interfere with the bearing carriage and prevent the drawer from closing fully.

Step 4: Final Alignment and Engagement

Slide the drawer members into the cabinet members. If using ball-bearing slides, you may need to depress the release levers located on the inner members to allow them to bypass the cabinet rollers. Once engaged, cycle the drawer in and out five to ten times. If the drawer feels stiff or rubs against the cabinet, loosen the screws in the horizontal cabinet slots, shift the slide slightly to increase the gap, and re-tighten. If the drawer front is crooked, adjust the vertical alignment using the vertical slots found on the slide mechanism.

Technical Specifications for Drawer Slide Selection

Resolving Common Site Failures and Field Fixes

• Failure: Drawer binds during the final three inches of travel.


  • Root Cause: The slide is not parallel or the mounting screws are protruding and obstructing the ball-bearing carriage.
  • Actionable Fix: Remove the drawer and inspect the screw heads for nicks or burrs. Counter-sink any raised screws and verify the cabinet member is perfectly level across its entire length.
• Failure: Drawer slides out or slams shut too quickly.


  • Root Cause: The cabinet is out of level, causing gravity to force the drawer to open or close on its own.
  • Actionable Fix: Adjust the cabinet level by adding thin shims under the cabinet base. If the slide has an integrated soft-close dampener, check for debris inside the dampener track.
• Failure: Significant lateral play or "wobble" when the drawer is fully extended.


  • Root Cause: Insufficient side clearance or incorrect slide size relative to the drawer width.
  • Actionable Fix: Add thin plastic shims between the slide and the cabinet wall to narrow the gap, or verify that the drawer box width matches the manufacturer's recommended clearance specifications exactly.

Frequently Asked Questions

Can I install drawer slides without a jig?

Yes, you can install drawer slides using a spacer block made from a scrap piece of wood cut to the precise height of your drawer opening. While a jig simplifies the process, a carefully measured spacer ensures consistent height across all drawers in a bank.

Why do my drawer slides have elongated holes?

The elongated, horizontal slots are intentionally designed to allow for lateral adjustment after the initial mounting. These slots provide the necessary tolerance to fine-tune the drawer position so it sits perfectly flush with the cabinet face without friction.

How much weight can standard side-mount slides handle?

Standard full-extension ball-bearing slides are typically rated for 75 to 100 pounds. Always consult the manufacturer's data sheet, as exceeding these limits can lead to premature failure of the ball-bearing retainers and potential cabinet damage.

What is the difference between overlay and inset drawer installation?

Overlay drawer fronts sit on top of the cabinet frame, requiring the slides to be mounted flush with the front. Inset drawers sit inside the frame, meaning you must set the slide back from the front edge by the thickness of the drawer front plus the desired reveal distance.

Should I lubricate my drawer slides?

Generally, no. Most modern ball-bearing slides are factory-lubricated with a high-viscosity grease designed to collect minimal dust. If they become noisy, use a dry silicone spray, as oil-based lubricants will attract sawdust and create a grinding paste that destroys the bearings.

Upgrade your cabinetry projects today by selecting the correct hardware and applying these precision-mounting techniques to ensure a lifetime of smooth, reliable drawer function. Achieve professional results by verifying your measurements at every stage of the assembly process.
