How To Install An EZ Pass Transponder Correctly For Seamless Toll Collection
Correctly installing an EZ Pass transponder involves mounting the device on the interior windshield directly behind your rearview mirror using the provided dual-lock adhesive strips. Ensuring proper placement prevents lane gate failures, avoids erroneous video tolling charges, and guarantees immediate RF reader communication across all participating toll networks.
Pre-Operation and Equipment Checklist
Before mounting your electronic toll collection device, you must understand the structural requirements of modern windshields and radio frequency (RF) physics. Transponders rely on line-of-sight microwave signals to communicate with overhead gantry antennas and toll lane readers. Metallic window tints, heated windshield grids, and thick composite glass can severely attenuate these signals, making correct placement essential.
- Essential Gear and Tools: Standard interior EZ Pass transponder unit, two weather-resistant 3M dual-lock adhesive strips (included with your kit), isopropyl rubbing alcohol wipes, and a clean microfiber cloth.
- Mandatory Prerequisite Knowledge: Identification of the non-metallized clear zone on your vehicle's windshield, verification of active account status, and confirmation that the transponder type (interior hangtag versus exterior license plate-mounted device) matches your vehicle specifications.
- Budget and Time Benchmarks: Zero material cost outside of standard account replenishment; estimated completion time is under ten minutes.
Step-by-Step EZ Pass Windshield Mounting Workflow
Step 1: Clean and Prepare the Windshield Surface
Select a mounting location on the interior windshield approximately one to two inches below the top edge of the glass and centered directly behind the rearview mirror. This hides the unit from the driver's direct field of view while placing it in the optimal transmission zone. Take an isopropyl alcohol wipe and thoroughly clean a three-by-three-inch square of glass. Wipe away all accumulated road film, moisture, and interior protectant residues. Allow the glass surface to dry completely for at least sixty seconds to ensure optimal chemical bonding for the adhesive strips.
Warning: Never mount an EZ Pass transponder over metallic tinting strips or defroster heating elements, as metal films block radio frequency signals and cause toll read failures.
Step 2: Configure and Apply the Dual-Lock Adhesive Strips
Retrieve the two clear plastic dual-lock adhesive strips supplied with your transponder. Peel away the protective paper liner from one side of both strips. Press the sticky sides firmly against the back flat surface of the transponder unit. For optimal structural hold, place one strip near the top edge of the transponder and the second strip near the bottom edge. Ensure the interlocking plastic mushroom heads face outward away from the device housing.
Pro-Tip: Make sure the directional arrow printed on the transponder points toward the front of the vehicle and faces the sky, never facing inward toward the passenger cabin.

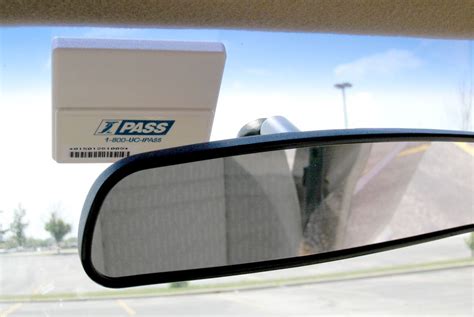

Step 3: Mount the Transponder to the Glass
Peel away the remaining protective liners from the exposed adhesive sides of the dual-lock strips now attached to your transponder. Carefully align the device behind your rearview mirror in the pre-cleaned zone. Press the transponder firmly against the glass for a full fifteen seconds, applying even pressure across the entire housing to engage the adhesive and the plastic interlocking stems. Double-check that the unit sits level and securely fastened without any wobbling or loose corners.
Amazon.com: FLLIK EZ Pass Holder for Windshield, Transponder Holder for ...
Transponder Mounting Specifications and Vehicle Compatibility
| Vehicle Windshield Type | Recommended Transponder Type | Optimal Placement Zone | Signal Attenuation Risk |
|---|---|---|---|
| Standard Laminated Glass | Interior Standard Unit | Center, behind rearview mirror | None (Standard performance) |
| Heated / Electrically Coated Glass | Exterior License Plate Unit | Front bumper license plate bracket | High (Requires exterior mount) |
| Metallic Tinted Windshield | Interior Suction Cup / External | Designated non-tinted service window | Moderate to High |
| Commercial Truck / Semi-Truck | Heavy Duty Velcro Mount | Lower center or upper windshield | Low to Moderate |
Common Installation Failures and Field Fixes
- Failure: The transponder consistently fails to read at toll plazas despite being mounted on the windshield.
- Root Cause: The vehicle features an invisible metallic solar coating or heating element embedded in the glass that blocks RF signals.
- Actionable Fix: Relocate the transponder to a designated non-metallized cutout area specified in your vehicle owner manual, or order an exterior license plate-mounted transponder from your customer service center.
- Failure: The transponder unit detaches from the glass and falls onto the dashboard during temperature extremes.
- Root Cause: The windshield was not properly cleaned with isopropyl alcohol, leaving oily residue that degraded the 3M adhesive bond.
- Actionable Fix: Clean the glass and the back of the transponder with fresh alcohol wipes, allow to dry, and apply fresh replacement dual-lock strips.
- Failure: The user holds the transponder by hand out the window instead of mounting it permanently.
- Root Cause: Misconception that temporary holding prevents battery drain or tracking.
- Actionable Fix: Mount the device permanently. Hand-held positioning introduces human error, timing delays, and safety hazards at highway speeds.
Frequently Asked Questions
Can I leave my EZ Pass transponder on the dashboard instead of mounting it?
Leaving the transponder loose on the dashboard is strongly discouraged. Rapid acceleration, sudden braking, or sharp turns can cause the device to slide into footwells or distract the driver. Furthermore, dashboard placement often results in failed reads because the unit sits below the optimal line-of-sight angle required by overhead lane antennas.
What should I do if I drive a rental car?
If you are operating a rental vehicle, you can temporarily use your personal interior transponder by holding it up against the windshield when passing through the toll lane, or by registering the rental car license plate to your account online before travel. Many agencies also offer built-in toll programs, but using your own mounted or held unit works effectively provided you enter the rental license plate details into your account portal to prevent video billing disputes.
Does the EZ Pass transponder battery ever die?
Yes, internal lithium batteries inside standard interior transponders have a finite lifespan, typically lasting between three to five years. Most agencies automatically monitor battery voltage levels during lane passes and will ship a replacement unit to your address free of charge before the internal power source fails completely.
Can I paint or decorate my EZ Pass transponder?
You must never paint, wrap, apply metallic stickers, or alter the exterior housing of your transponder. Modifying the exterior shell interferes with microwave frequency transmission and can cause the toll lane equipment to misread your account data, resulting in missed tolls and administrative violation fees.
How do I switch my transponder between multiple family vehicles?
You can easily transfer a transponder between authorized family vehicles by purchasing extra sets of dual-lock mounting strips from retail outlets or your regional service center. Clean the mounting area in the secondary vehicle, snap the transponder onto the new strips, and verify that all vehicle license plates are actively linked to your master electronic toll account.
Maintain complete control over your highway commutes by keeping your transponder properly secured, up-to-date, and registered with current vehicle information.
