How To Install A Hot Tub: The Professional Guide To Site Preparation And Setup
Installing a hot tub requires a level, load-bearing foundation capable of supporting approximately 100 to 150 pounds per square foot once filled with water and bathers. The process necessitates a dedicated electrical circuit, typically 240V/50A, alongside precise placement to ensure accessibility for both routine water maintenance and potential equipment repairs.
Critical Site Planning and Logistical Requirements
Before physical installation begins, the site must meet strict geotechnical and electrical standards to ensure the longevity of the vessel and the safety of the users. A hot tub is a significant structural load; placing it on an undersized deck or soft soil can lead to cabinet warping, plumbing leaks, or severe structural failure of the foundation.
- Essential Gear and Materials:
- Structural base materials: Reinforced 4-inch concrete slab, high-density spa pads, or pressure-treated timber frames with crushed gravel base.
- Electrical components: GFCI disconnect box, liquid-tight flexible conduit, outdoor-rated THHN copper wire, and heavy-duty wire nuts.
- Delivery tools: Heavy-duty furniture dollies, non-marking lifting straps, and a spirit level at least 4 feet in length.
- Safety and code compliance: Current National Electrical Code (NEC) guidelines, local municipal building permits, and a dedicated 240V circuit breaker.
- Benchmarks: Total installation typically requires two to three experienced individuals and a full day of labor, excluding the curing time for concrete slabs.
Executing the Installation Workflow
Step 1: Foundation Construction and Site Preparation
The foundation must be perfectly level to ensure proper water circulation and to prevent air locks in the pumps. If utilizing a concrete slab, ensure the surface is poured at least 4 inches thick and reinforced with wire mesh or rebar. For a gravel base, remove the topsoil, lay down a landscape fabric, and fill with 4 to 6 inches of compacted 3/4-inch crushed stone.
Warning: Never place a hot tub directly on grass or dirt, as shifting soil will cause the spa shell to distort and the internal frame to shift, which voids most manufacturer warranties.
Step 2: Electrical Circuitry and GFCI Integration
All permanent hot tub installations require a hard-wired connection to a dedicated 240V circuit controlled by a GFCI-protected disconnect box. Mount the disconnect box at least 5 feet away from the water’s edge but within sight of the spa to comply with NEC safety standards. Run the conduit from the main service panel to the disconnect, then bridge the connection to the hot tub’s internal terminal block using the appropriate gauge copper wiring based on the manufacturer’s amperage requirements.
Step 3: Positioning and Final Leveling
Using a professional spa dolly, maneuver the tub into its final position. Once positioned, place your level on the rim of the spa shell. If the spa is not level, use composite shims designed for moisture resistance to elevate the low corners. Never use wood shims, as they will rot and compress over time, leading to a loss of levelness.
Step 4: Plumbing Connections and Water Integration
Check all pump unions and heater connections to ensure they are hand-tightened after transit, as vibration during delivery often loosens these fittings. Once the electrical service is verified, fill the spa through the filter compartment to prevent air from entering the plumbing lines. After filling, activate the power and immediately monitor the control panel for error codes or signs of water leaks at the pump union seals.
How To Install Beachcomber Hot Tub Jets at Christian Liao blog
Technical Parameters and Foundation Material Comparison
| Foundation Type | Structural Integrity | Installation Complexity | Drainage Efficiency | Cost Level |
|---|---|---|---|---|
| Reinforced Concrete | Maximum | High | Excellent | High |
| Spa Pads (HDPE) | Moderate | Very Low | High | Low |
| Crushed Stone / Gravel | Moderate | Moderate | Excellent | Low |
| Paver Stones | Low-Moderate | High | Moderate | Moderate |
Addressing Common Installation Failures and Field Remedies
- Root Cause: Airlock in the pump system following initial fill.
- Actionable Fix: With the power off, loosen the pump union fitting slightly until a steady stream of water appears, indicating the trapped air has escaped, then re-tighten the union immediately.
- Root Cause: GFCI breaker trips immediately upon powering up.
- Actionable Fix: Check for a neutral wire miswire at the terminal block; the white neutral wire from the spa must connect to the load-neutral terminal in the GFCI box, not the grounding bus bar.
- Root Cause: Spa shell appears bowed or distorted after filling.
- Actionable Fix: The foundation has shifted or was never perfectly level. Drain the spa completely, verify the foundation flatness, and shim the base corners until the shell measurements are equidistant from the floor at all four corners.
Frequently Asked Questions

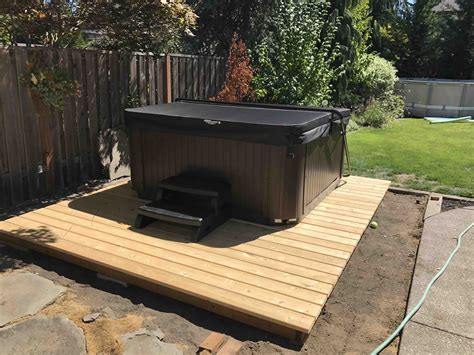

Can I install a hot tub on a wooden deck?
Yes, provided the deck is engineered to support the specific weight of the spa, which usually exceeds 100 pounds per square foot. You must consult a structural engineer or the deck’s original blueprints to verify the joist spacing and load-bearing capacity before installation.
Do I need a permit for a hot tub?
Most municipalities require an electrical permit for the hard-wired 240V connection, and some require a building permit for the foundation. Always check with your local building department to ensure your installation complies with local ordinances and safety setbacks.
How far should the disconnect box be from the spa?
The NEC requires the GFCI disconnect to be at least 5 feet from the inside wall of the hot tub. This distance prevents a bather from touching the electrical shut-off while inside the water, ensuring the installation meets critical safety standards.
How long does it take for a hot tub to heat up?
Most standard hot tubs will heat at a rate of 2 to 3 degrees Fahrenheit per hour. Expect an initial fill to take 24 to 48 hours to reach the optimal soaking temperature of 102 degrees, depending on the ambient air temperature and the quality of the insulation cover.
