How To Install A MrCool Mini Split: Complete Step-by-Step DIY Guide

Successfully installing a MrCool DIY mini-split requires precise execution of structural, mechanical, and electrical steps, most notably mounting the indoor handler, core-drilling the wall, and routing the pre-charged line set. By utilizing the proprietary Quick Connect line-set technology, homeowners can completely bypass the need for a vacuum pump or EPA certification. Strict adherence to torque specifications, drain-line slopes, and National Electrical Code (NEC) standards is required to ensure system efficiency and prevent component failure.

Pre-Installation Prep, Required Clearances, and Tool Checklist

Before commencing the installation process, selecting the optimal mounting locations for both the indoor air handler and the outdoor condenser is critical to maximize thermodynamic efficiency and airflow. The indoor wall unit must be mounted on an exterior-facing wall with at least 6 inches of clearance from the ceiling and 5 inches from adjacent side walls. It must also be positioned at least 7 feet above floor level to optimize convection currents.

The outdoor condenser unit must be installed in an open area free of obstructions. It requires at least 12 inches of clearance on its rear and left (intake) sides, a minimum of 24 inches of clearance on the front (discharge) side, and at least 79 inches of overhead clearance. Do not place the unit directly on the ground; use a pre-formed concrete pad, composite equipment pad, or heavy-duty steel wall bracket.

Required Materials and Tools Checklist

To ensure an uninterrupted workflow, compile the following tools and materials before starting:

• Core Equipment: MrCool DIY Mini-Split Kit (Indoor Air Handler, Outdoor Condenser, Pre-charged Quick Connect Line Set, and 16/4 stranded communication cable).
• Power and Hand Tools: Hammer drill (with 3.5-inch or 90mm hole saw bit), stud finder, digital torpedo level, adjustable wrench, and metric open-ended wrenches.
• Precision Torque Tools: Digital torque wrench and compatible metric crowfoot flare-nut adapters (sizes 19mm, 22mm, 24mm, 27mm, and 30mm depending on BTU capacity).
• Electrical Supplies: Outdoor non-fused electrical disconnect box (60-amp rated), 10 AWG or 12 AWG THHN/THWN-2 copper wiring (based on system amperage requirements), liquid-tight flexible conduit (whip) with matching strain relief connectors, and a dedicated circuit breaker.
• Testing and Sealing Supplies: Gas-leak detector spray (or liquid dish soap-and-water solution), non-hardening wall duct seal putty, and heavy-duty UV-resistant cable ties.

Preparation and Planning Benchmarks

• Estimated Duration: 4 to 6 hours for a single-zone system (excluding dedicated electrical run from the main panel).
• Estimated Budget: $1,500 to $4,500 depending on the BTU capacity (typically ranging from 12,000 to 36,000 BTUs) and electrical run distance.
• Skill Level: Intermediate DIY; requires basic structural carpentry, plumbing assembly, and safe 120V/240V electrical wiring knowledge.

The Step-by-Step MrCool Mini Split Installation Process

Step 1: Mounting the Indoor Wall Bracket

The mounting plate must bear the entire weight of the indoor air handler during thermal cycling and fan rotation. Failure to secure the plate to wall studs can lead to structural sag and eventual unit failure.

1. Locate the studs within your target mounting zone using a stud finder. Mark their center paths clearly.
2. Position the metal wall bracket against the wall. Use a digital torpedo level to verify that the bracket is perfectly horizontal. Even a slight tilt can cause water to pool and overflow the indoor condensate pan.
3. Mark the screw hole locations directly over the identified wall studs.
4. Secure the bracket to the studs using the heavy-duty mounting screws provided. If a stud is unavailable at a crucial mounting point, utilize heavy-duty metal toggle bolts instead of plastic drywall anchors.
5. Apply downward pressure by hand on the bracket to confirm structural stability and ensure zero deflection.

Step 2: Boring the Wall Sleeve Hole

The wall penetration serves as the primary conduit for the copper refrigerant lines, electrical communication cable, and condensate drain hose. It must be executed with a precise downward slope.

1. Locate the designated exit point on the wall relative to your mounting bracket (typically on the bottom left or bottom right of the plate, depending on your model).
2. Mark the center point of the 3.5-inch (90mm) exit hole.
3. Drill a pilot hole from the interior through to the exterior using a long drill bit.
4. Using a 3.5-inch hole saw bit, cut the wall penetration. Crucial: You must drill at a 5-to-7-degree downward angle toward the outside.

Warning: Drilling the wall sleeve completely flat or with an upward slope will disrupt gravity-fed condensate drainage. This results in water backing up into the indoor fan wheel assembly, causing immediate water damage to your interior drywall and promoting toxic mold growth.

1. Measure the thickness of the wall and cut the supplied plastic wall sleeve to match. Insert the sleeve through the wall from the inside.

Step 3: Preparing and Routing the Piping and Cables

Before hanging the indoor unit, you must group, insulate, and pass the mechanical lines safely through the wall sleeve without damaging the pre-charged copper lines.

1. Unroll the line set on a flat surface. Do not make sharp bends; ensure a minimum bend radius of 3.9 inches (100mm) to avoid pinching or kinking the copper tubes.
2. Route the 16/4 stranded communication cable from the back of the indoor air handler through the electrical channel to join the line set.
3. Position the flexible plastic condensate drain hose beneath the copper refrigerant lines. The drain hose must remain at the absolute lowest point of the bundle to prevent air-locking or water backup.
4. Wrap the entire bundle (two copper lines, one communication cable, and one drain hose) tightly together using the provided vinyl wrap. Ensure the wrap extends from the back of the air handler up to the exterior exit point.

Step 4: Hanging the Indoor Air Handler

Hanging the air handler is a two-person task that requires careful alignment to prevent crimping the internal piping.

1. Lift the indoor air handler and carefully feed the wrapped bundle through the plastic wall sleeve to the outside.
2. Tilt the top of the air handler toward the wall and hook the upper chassis clips onto the top lip of the mounting plate.
3. Verify the unit is centered and sitting flush against the wall.
4. Gently push the bottom of the air handler toward the bracket until you hear the lower latches snap and lock into place.
5. Check that the unit does not rock or pull away from the wall bracket.

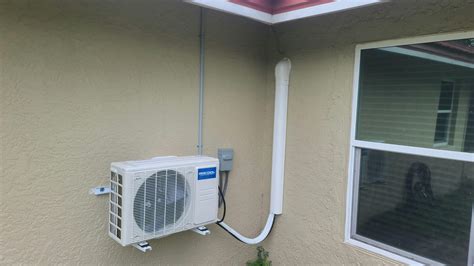

Step 5: Setting the Outdoor Condenser

The outdoor unit must be stable, level, and elevated above potential snow, water, or debris accumulation to operate efficiently.

1. Place a composite or concrete equipment pad on a level, compacted gravel base, or secure a structural steel bracket to the exterior wall studs.
2. Carefully place the condenser onto the pad or bracket.
3. Install rubber vibration-isolation pads (waffle pads) under each foot of the condenser. This steps dampens low-frequency harmonic vibrations that could otherwise transfer into the home's structure.
4. Bolt the condenser feet securely to the pad or bracket to prevent shifting during high-wind events.

Step 6: Routing and Connecting the Quick Connect Line Set

The MrCool DIY system relies on pre-charged refrigerant line sets sealed with leak-proof valve connectors. Do not use standard HVAC copper flaring tools.

1. Route the pre-charged lines from the wall penetration down to the outdoor condenser's service valves. Ensure the lines do not contact sharp edges or concrete.
2. Remove the protective plastic dust caps from the indoor and outdoor line ends and the corresponding condenser fittings. Verify all threads are completely clean and free of debris.
3. Align the female connector of the line set directly with the male fitting on the condenser. Thread them together by hand first to prevent cross-threading.
4. Using two open-ended wrenches (one holding the backing nut of the valve body stationary to prevent torque transfer, and the other rotating the active compression nut), tighten the connection until it is snug.
5. Apply a digital torque wrench with a crowfoot adapter to tighten the connection to the exact manufacturer torque specification.

Pro-Tip: Torque values vary by line diameter. Over-tightening will deform the brass flare face, leading to catastrophic slow leaks, while under-tightening will fail to compress the internal sealing rings. Refer to the engineering specifications table below to match torque values to your specific line-set size.

1. Repeat this process for both the liquid (smaller) and suction/gas (larger) lines at the condenser and wall-exit connections.

Step 7: Executing Electrical Connections

All electrical work must comply with local codes and the National Electrical Code (NEC). Before touching any wiring, verify that the main breaker is switched off and locked out.

1. Run a dedicated electrical circuit from your main breaker panel to an outdoor, rain-tight, non-fused disconnect box mounted within line-of-sight of the condenser.
2. Install a liquid-tight flexible conduit (whip) from the disconnect box to the side electrical panel of the condenser.
3. Connect the power supply wires (typically two hot wires and one ground wire for 230V systems, or one hot, one neutral, and one ground for 115V systems) to the terminal block marked L1, L2, and Ground.
4. Remove the outdoor condenser's wire cover to expose the communication terminal block.
5. Connect the 16/4 stranded communication cable coming from the indoor unit to terminals 1, 2, 3, and Ground.

Warning: The wire colors on terminals 1, 2, and 3 must match the indoor unit's terminal blocks exactly (e.g., Terminal 1: Black, Terminal 2: White, Terminal 3: Red, Ground: Green). Mismatching these wires will cause immediate component failure of the main control board when powered on.

Step 8: Leak Testing and System Commissioning

Before releasing the pre-charged refrigerant into the system, you must verify that all mechanical connections are airtight.

1. Thoroughly spray all newly connected brass joints at the condenser and the exterior wall connection with an HVAC-grade leak-detection spray or a concentrated soapy water solution.
2. Remove the protective valve caps from the condenser's brass service valves to expose the internal hex-head stems.
3. Insert an Allen/hex wrench into the liquid valve stem (smaller valve). Rotate the stem counter-clockwise 90 degrees for 5 seconds, then close it to pressurize the line set with gaseous refrigerant.
4. Visually inspect every joint for the formation of expanding bubbles. If any bubbles appear, tighten the flare joint immediately with your torque wrench to the upper range limit.
5. Once confirmed leak-free, fully open both the liquid and suction service valves by turning the hex stems counter-clockwise until they stop.
6. Replace the brass valve caps and torque them to 15 ft-lbs to seal the service ports.
7. Wrap all exposed brass connections at the outdoor unit with the provided insulation sleeves and secure them with UV-resistant zip ties.
8. Seal the wall penetration around the plastic sleeve using the non-hardening duct seal putty to prevent drafts, moisture ingress, and pest intrusion.
9. Switch on the main electrical breaker, flip the outdoor disconnect switch to "ON," power up the indoor air handler using the remote, and select "Cooling Mode" to test system operation.

Engineering Specifications and Installation Metrics

The following matrix outlines the critical mechanical, electrical, and structural tolerances required for a successful, code-compliant MrCool DIY mini-split installation.

Troubleshooting Common Installation Failures

Scenario 1: Condensate Water Leaking From the Indoor Unit

• Root Cause: The drain line has been kinked, routing has an upward slope within the wall sleeve, or the wall sleeve itself was drilled flat or sloping upward instead of down.
• Actionable Fix: Unclip the bottom of the indoor air handler and inspect the drain line. Ensure it sits at the absolute bottom of the line set bundle. Verify the 3.5-inch wall sleeve slopes downward at a minimum 5-degree angle. Clear any kinks or traps from the flexible drain line.

Scenario 2: System Fails to Boot and Displays "EL 01" Error Code

• Root Cause: Signal communication failure caused by loose terminal connections, broken wires, or mismatched color coding between the indoor and outdoor terminals.
• Actionable Fix: Shut off the system power at the main breaker and disconnect box. Open the electrical panels on both the indoor air handler and the outdoor condenser. Check that the wire connected to Terminal 1 inside matches the wire on Terminal 1 outside. Repeat this process for Terminals 2 and 3. Tighten all screw-down terminals securely.

Scenario 3: Refrigerant Hissing or Loss of Cooling Performance

• Root Cause: A micro-leak at one of the brass Quick Connect joint fittings due to incorrect torque application or cross-threading during assembly.
• Actionable Fix: Turn off the system immediately to prevent compressor damage from oil loss or low pressure. Spray gas-leak detector on all four flare connections. Once bubbles identify the leaking connection, use two wrenches to verify tightness and torque the fitting to its designated specification. Do not over-torque past the maximum limit. If the seal remains compromised, the line set or coupling must be replaced.

Frequently Asked Questions

Do I need to vacuum the lines for a MrCool DIY installation?

No, you do not need a vacuum pump or manifold gauge set to install a MrCool DIY mini-split. The system's proprietary Quick Connect line sets are pre-charged with R-410A refrigerant and sealed at the factory, allowing you to connect them without introducing moisture or air into the closed loop.

What size breaker and wire gauge do I need for a MrCool mini split?

Breaker and wire requirements depend entirely on the BTU capacity of your unit. A standard 12,000 BTU 115V system typically requires a dedicated 15A or 20A single-pole breaker and 12 AWG wire, whereas larger 18,000, 24,000, and 36,000 BTU 230V systems require a 20A to 40A double-pole breaker and 10 AWG or 8 AWG copper wire.

Can I shorten or cut the MrCool Quick Connect line set?

No, you must never cut, splice, or shorten the pre-charged MrCool DIY line sets. Doing so will release high-pressure refrigerant, void the warranty, and introduce air and moisture into the system. If you have excess line length, loop it flat horizontally on the ground behind the outdoor condenser unit.

Does installing a MrCool DIY mini split void the warranty?

No, the MrCool DIY series is specifically designed and warrantied for self-installation. Unlike traditional systems that require licensed HVAC technicians to vacuum and release refrigerant to validate the warranty, MrCool covers parts and compressor replacements for self-installed DIY models, provided you register the unit online within 60 days of purchase and follow the instruction manual.
