How To Install An Oil Catch Tank: A Complete Step-by-Step Technical Guide

Installing an oil catch tank intercepts blow-by gases from the PCV system, trapping oil mist and carbon-forming vapors before they foul the intake tract and intercooler. Proper execution requires routing high-temperature, oil-resistant hoses securely between the positive crankcase ventilation valve and the intake manifold while maintaining correct vacuum integrity.

Pre-Operation and Equipment Checklist

Installing an aftermarket oil catch can requires precision planning to ensure vacuum leaks do not occur, unmetered air does not enter the engine, and hoses withstand extreme under-hood thermal cycles. Whether addressing direct-injection carbon buildup or preparing a forced-induction engine for track duty, proper staging minimizes installation time and prevents costly post-installation mechanical issues.

• Essential Tools and Materials:


  • Quality oil catch tank (baffled design recommended for optimal oil separation)
  • Mounting bracket, bolts, and washers (or heavy-duty zip ties/custom fabrication metal if universal)
  • Oil- and fuel-resistant hosing (typically 3/8-inch or 1/2-inch inner diameter SAE 30R7 or SAE 30R10 rated)
  • Hose pinch clamps or constant-tension worm gear clamps
  • Thread seal tape (PTFE) or liquid thread sealant for tank fittings (if NPT threads are dry)
  • Basic hand tools: socket set, ratchet, screwdrivers, utility knife or hose cutters
  • Degreaser and shop towels for cleanup
• Prerequisite Standards:


  • Engine must be completely cool to the touch to prevent thermal burns and ensure rubber hoses are pliable.
  • Identify the exact PCV (Positive Crankcase Ventilation) source port and the intake manifold return port before cutting any lines.
• Budget and Duration Benchmarks:


  • Estimated duration: 1 to 2 hours.
  • Estimated cost: $50 to $250 depending on universal versus vehicle-specific kits.

Step-by-Step Installation Procedure

Step 1: Strategic Placement and Mounting Bracket Fabrication

Select a rigid, vibration-minimized location in the engine bay that remains accessible for regular fluid draining. Ideal mounting zones include the inner fender well, strut tower bolts, or factory-unused threaded bosses on the chassis or radiator support. Avoid mounting the tank directly against hot exhaust components like turbochargers or exhaust manifolds to prevent boiling off trapped condensation inside the reservoir. Bolt the bracket securely to the chassis, ensuring the catch tank sits vertically straight so the dipstick or drain valve functions accurately.

Pro-Tip: Position the catch tank slightly lower than the PCV valve output if possible, promoting a natural gravity assist for the condensed oil droplets returning to the reservoir.

Step 2: Removing the Factory PCV Hose Assembly

Locate the factory rubber or plastic hose connecting the crankcase ventilation outlet (typically on the valve cover or PCV valve) to the intake manifold or intake piping. Carefully release any spring-loaded factory clamps using pliers. Twist and pull the factory hose gently to break the seal against the barbed fittings.

Warning: Do not cut factory pre-formed hoses until you have verified your replacement hose routing, as you may need to reference the original line length or reuse unique end-fittings.

Step 3: Fitting NPT Adapters and Securing Tank Connections

If your catch tank features threaded ports, wrap the male NPT fittings with two to three layers of fuel-resistant PTFE thread tape or apply a thin film of liquid thread sealant. Thread the fittings into the inlet and outlet ports of the catch can and tighten them securely, avoiding overtightening which can crack aluminum housings. Push your oil-resistant hosing onto the barbed fittings of the catch can. Secure each connection with a high-quality hose clamp, tightening until the hose rubber depresses slightly beneath the clamp band.

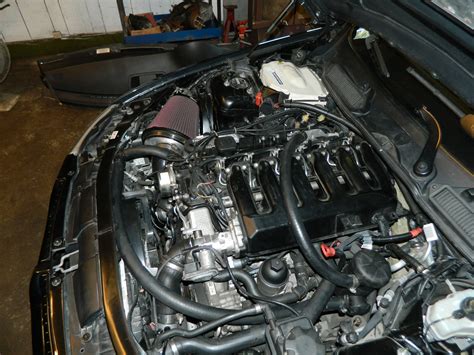

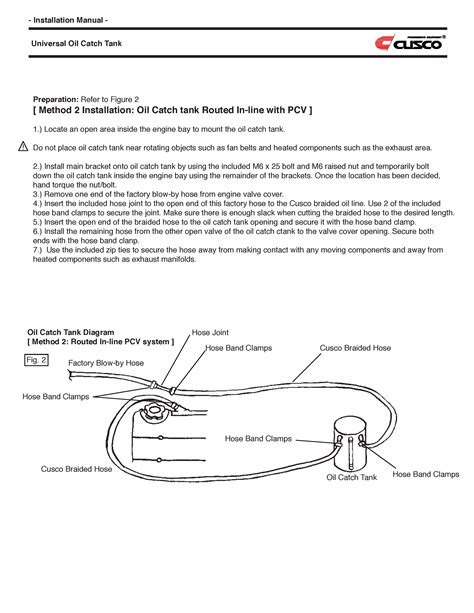

Step 4: Routing the Inlet and Outlet Hoses

Measure and cut two lengths of hose: one running from the engine PCV output to the catch tank inlet, and a second running from the catch tank outlet to the intake manifold vacuum source. Route the hoses carefully away from serpentine belts, moving pulleys, sharp sheet metal edges, and high-heat exhaust paths. Secure the hoses at regular intervals using zip ties to prevent chafing and fatigue from engine vibration.

Pro-Tip: Ensure there are no sharp kinks or tight 90-degree bends in the hose routing, as flow restrictions can create excessive crankcase pressure and blow out engine seals.

Step 5: Final Inspection and Leak Testing

Double-check every hose connection, clamp tightness, and mounting bolt before starting the vehicle. Ensure that all electrical connectors or vacuum lines accidentally disturbed during the process are securely reattached. Start the engine and let it idle while inspecting the entire catch can assembly for vacuum leaks, hissing noises, or oil seepage. Check the engine dashboard for any Check Engine lights or unmetered air codes before taking the vehicle on a short test drive.

Technical Specifications and Catch Tank Design Comparison

Common Installation Failures and Field Fixes

• Root Cause: Vacuum leaks causing rough idle and P0171/P0174 lean codes.


  • Actionable Fix: Inspect all hose connections, fitting threads, and the catch can dipstick O-ring. Use a unlit propane torch or smoke machine to locate unmetered air entry points and secure loose clamps.
• Root Cause: Hose collapse under heavy acceleration due to inadequate wall stiffness.


  • Actionable Fix: Replace standard rubber vacuum line with steel-braided or heavy-wall reinforced silicone/rubber hosing specifically rated for vacuum and oil exposure (SAE 30R10).
• Root Cause: Milky white sludge accumulating inside the reservoir during winter months.


  • Actionable Fix: This is normal moisture condensation mixing with oil vapor. Drain the tank more frequently in colder climates, or install an insulated wrap around the catch can body.
• Root Cause: Oil blowing past turbo seals or pushing dipsticks out due to crankcase over-pressurization.


  • Actionable Fix: Check for undersized catch can fittings or internal restrictions/clogs in the baffling. Ensure your hosing inner diameter matches or exceeds the factory PCV port diameter (typically 3/8-inch minimum).

Frequently Asked Questions

How often do I need to empty my oil catch tank?

Drain intervals depend heavily on engine condition, driving habits, and climate. For most street-driven vehicles, checking and emptying the tank every 3,000 miles during routine oil changes is sufficient. Track cars or high-mileage engines with increased blow-by require emptying every 500 to 1,000 miles until you establish an accurate consumption baseline.

Will installing an oil catch tank void my factory warranty?

Under the Magnuson-Moss Warranty Act in the United States, a manufacturer cannot deny warranty coverage simply because aftermarket parts are installed unless they prove the aftermarket part directly caused the mechanical failure. However, poorly installed lines causing engine fires or vacuum leaks resulting in engine damage will not be covered by factory powertrain warranties.

Do I need a dual-outlet catch tank for my turbocharged car?

Forced-induction engines generate positive crankcase pressure under boost as well as vacuum under idle and light cruising. A standard single-line catch can may only capture blow-by during boost, whereas dual-valve or dual-inlet setups accommodate both PCV operation states and prevent boost from pressurizing the crankcase.

Can water and fuel mix with the oil in the catch can?

Yes, short-trip driving habits prevent the engine oil from reaching full operating temperature, allowing unburnt fuel and atmospheric moisture to accumulate in the crankcase. This condensation travels through the PCV system and collects in the catch tank as a milky, coffee-colored sludge, which is entirely normal and requires regular disposal.
