How To Install A Walking Foot: A Complete Step-by-Step Sewing Guide

Installing a walking foot requires mounting the accessory to your sewing machine’s presser bar while simultaneously positioning its mechanical fork arm directly over the needle clamp screw. This dual-connection design synchronizes the foot's upper feed dogs with the machine's lower feed dogs to ensure even, multi-layer fabric feeding. Precise physical alignment and proper shank-height compatibility are mandatory to prevent needle breakage and mechanical timing damage.

Pre-Installation Assessment and Sewing Machine Checklist

Before attempting to mount a walking foot (also known as an even feed foot), you must identify your sewing machine's shank style. Walking feet are not universally interchangeable; their design depends on the height and angle of your machine's presser bar. Using an incompatible foot will cause the needle to strike the sole plate, leading to bent needles, ruined fabric, or timing misalignment in your hook assembly.

To determine your machine's shank height, lower the presser bar lifter completely. Measure the distance from the center of the thumb screw hole (where the foot attaches to the bar) straight down to the needle throat plate:

• Low Shank: Measures approximately 1/2 inch (12.7 mm) from the screw hole center to the throat plate. This is the most common configuration for modern domestic machines.
• High Shank: Measures approximately 1 inch (25.4 mm) from the screw hole center to the plate. This is common on semi-professional, heavy-duty, and vintage computerized machines.
• Slant Shank: Features an angled presser bar tilting forward toward the user, unique to specific vintage Singer models.
• Snap-On Standard: Many modern machines use snap-on feet attached to an adapter (or "ankle"). To install a walking foot, this adapter must be completely removed to expose the bare presser bar.

Tool, Material, and Parameter Checklist

• Essential Equipment:


  • Machine-compatible walking foot (low-shank, high-shank, or brand-specific variant).
  • Short flathead screwdriver or the multi-tool supplied with your sewing machine.
  • A fresh, high-quality needle appropriate for your fabric type (e.g., 90/14 Jeans or Quilting needle).
  • Clean scrap fabric of equal thickness to your target project for test stitching.
• Mandatory Safety & Setup Rules:


  • Power down the sewing machine completely by turning off the rocker switch and unplugging the power cord from the wall outlet.
  • Place a soft cloth or a small piece of paper over the throat plate opening to prevent dropped mounting screws from falling into the bobbin area.
• Estimated Duration & Budget:


  • Time Required: 5 to 10 minutes.
  • Cost: $15 to $60 depending on whether you use an aftermarket universal foot or an original equipment manufacturer (OEM) part.

Precision Step-by-Step Walking Foot Installation

Follow this systematic sequence to mount, align, and secure your walking foot. Do not skip the physical verification steps, as running the machine under motor power with an improperly seated foot can shear the needle or bend the presser bar.

Step 1: Power Down and Raise the Needle Bar

To eliminate any risk of accidental motor activation, disconnect your machine from its power source. Rotate the handwheel toward you (counterclockwise) until the needle bar reaches its absolute highest point of travel. Raise the presser foot lever to its fully elevated position. This creates maximum clearance between the presser bar, the needle clamp, and the needle plate, allowing you to slide the bulky walking foot mechanism into place without obstruction.

Step 2: Remove the Existing Presser Foot and Mounting Ankle

Most modern sewing machines utilize a snap-on presser foot system attached to a metal ankle. Locate the thumb screw on the left side of the presser bar. Using your short flathead screwdriver, turn the screw counterclockwise to loosen it. Do not completely remove the screw from the presser bar; backing it out 3 to 4 full rotations is usually sufficient. Slide the entire ankle assembly downward and off the presser bar. Place the standard foot and ankle aside.

Warning: Never use pliers to loosen or tighten the presser bar thumb screw. Excess force can strip the threads inside the presser bar, requiring a costly mechanical repair.

Step 3: Align the Walking Foot Fork Arm with the Needle Clamp

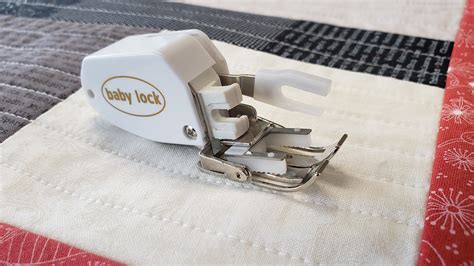

Pick up the walking foot. Locate the plastic or metal fork arm (sometimes designed as a single lever or a dual-pronged yoke) extending from the right side of the foot. This arm must sit directly over or straddle the needle clamp screw. As the needle bar moves up and down during a stitch cycle, it moves this fork arm, which mechanically drives the walking foot's upper teeth to pull the top layer of fabric in perfect synchronization with the lower feed dogs.

Hold the walking foot with your right hand and guide it from the rear left of the machine toward the presser bar. Ensure the fork arm points upward and rests squarely on top of the needle clamp screw.

Step 4: Mount the Foot Hook onto the Presser Bar

While keeping the fork arm resting securely on the needle clamp screw, align the open mounting C-slot of the walking foot with the bare presser bar. Slide the slot forward until the presser bar is fully seated inside the mounting bracket.

Using your left hand, hold the walking foot flat and level against the presser bar to ensure it is not tilted. Tighten the presser bar thumb screw clockwise with your fingers until it makes firm contact with the bracket. Take your flathead screwdriver and give the screw an additional quarter-turn clockwise to secure it. The foot must be locked tight; any wobble will cause uneven feeding and skipping stitches.

Pro-Tip: If your walking foot includes an interchangeable open-toe or closed-toe sole plate, ensure the sole plate is locked into its retaining tabs before mounting the entire assembly to the machine.

Step 5: Conduct a Manual Clearance and Cycle Test

Before restoring power to the machine, you must verify that the needle aligns perfectly with the center slot of the walking foot sole plate.

1. Slowly rotate the handwheel toward you by hand.
2. Watch the needle descend through the needle hole in the walking foot. Ensure it does not graze the front, back, or sides of the opening.
3. Observe the presser foot lift and move backward as the needle rises, then drop flat as the needle descends.
4. If you plan to use a zigzag or decorative stitch, manually cycle the machine through one complete stitch pattern to verify that the needle clears the maximum width boundaries of the sole plate opening.

Machine Shank Compatibility and Technical Specifications

Selecting the correct walking foot depends entirely on matching the physical dimensions of your machine's shank and the width of its feed dogs. Use the following technical reference table to cross-reference your machine parameters before running your first stitch.

Mechanical Diagnostics and Troubleshooting

Using a walking foot introduces several moving parts to your sewing area. If you encounter irregular feeding, noise, or stitch defects, use the following diagnostic procedures to resolve the issue.

• Scenario: Severe mechanical knocking or clicking noise during operation.




  • Root Cause: The walking foot fork arm is not sitting on top of the needle clamp screw. If the arm slips underneath the screw or is caught behind it, the needle bar will strike the plastic casing of the walking foot on every downstroke.
  • Actionable Fix: Power down the machine. Loosen the presser bar screw, lift the walking foot, and re-position it so the fork arm sits squarely over the needle clamp screw. Turn the handwheel manually to verify the noise has stopped.

• Scenario: Fabric drifts to one side or fails to feed smoothly.




  • Root Cause: The presser foot pressure is set too low for the thickness of the fabric layers, or the upper teeth of the walking foot are not engaging with the lower feed dogs.
  • Actionable Fix: Increase the presser foot pressure using your machine’s top tension dial (if equipped). Ensure that the machine’s feed dogs are raised (not dropped for free-motion quilting) and that the walking foot is screwed tightly onto the presser bar so it cannot twist during operation.

• Scenario: Needle breaks immediately upon starting the machine.




  • Root Cause: A wide zigzag or decorative stitch width was selected while using a walking foot with a narrow, straight-stitch-only needle slot.
  • Actionable Fix: Replace the needle. Change your stitch setting to a center needle position straight stitch. If using a zigzag stitch, manually turn the handwheel to verify clearance across the entire stitch width before stepping on the foot pedal.

• Scenario: Squeaking sound during moderate-to-high speed sewing.




  • Root Cause: Friction between the plastic internal levers and metal joints of the walking foot mechanism.
  • Actionable Fix: Apply a single drop of high-grade, clear sewing machine oil to the pivot pins located inside the walking foot housing. Never use household lubricants or WD-40, which attract dust and can stain your fabric.

Frequently Asked Questions

Do I need to lower my machine's feed dogs when sewing with a walking foot?

No, the feed dogs must remain in their raised, active position. The walking foot relies entirely on the upward and forward motion of the lower feed dogs to coordinate its own top feed dog movement. Lowering the feed dogs will prevent the fabric from feeding through the machine.

Can I sew in reverse while a walking foot is installed on my machine?

It is highly recommended to limit or completely avoid reverse sewing with a walking foot. The internal feed mechanism of a walking foot is mechanically designed to pull fabric forward. Backstitching can bind the internal levers, tangle your threads, or damage the delicate upper feed dog linkage.

Why does my walking foot have a long, bent metal bar in the packaging?

This bar is a quilting guide (or seam guide). It slides horizontally into the mounting hole on the back of the walking foot. By adjusting the distance of this guide from your needle, you can sew perfectly parallel lines of decorative stitching or quilting without needing to mark your fabric first.

Why is my walking foot leaving dark marks or scuffs on my light-colored fabric?

This usually occurs due to excess factory oil on the walking foot's internal spring linkages or due to friction between plastic teeth and delicate materials. Wipe the bottom of the sole plate with a microfiber cloth dipped in rubbing alcohol, and run several test seams on scrap fabric to clear any migrating lubricant before sewing your main project.
