How To Know If Your Pool Is Leaking: The Definitive Diagnostic Guide

Detecting a pool leak early prevents structural damage, landscaping erosion, and hundreds of dollars in wasted water and chemical treatments. By systematically eliminating environmental evaporation and testing structural components using the bucket test and pressure evaluations, you can isolate the precise point of failure.

Pre-Operation & Equipment Checklist

Differentiating between normal evaporation and an actual structural breach requires precise observation and standard pool management tools. Before beginning any diagnostic procedures, you must account for local weather conditions, daily wind velocity, and ambient humidity that naturally deplete water levels.

• Essential Gear and Tools: A standard 5-gallon plastic bucket, a permanent marker, a waterproof measuring tape or ruler, a roll of standard duct tape, pool dye testing kits (phenol red or specialized leak locator dye), and a pressure gauge set if testing underground plumbing lines.
• Prerequisite Knowledge and Standards: According to standard aquatic industry metrics, natural evaporation should not exceed one-quarter (0.25) of an inch per day in most temperate climates. Any loss exceeding this threshold indicates a structural or plumbing compromise requiring physical investigation.
• Estimated Budget and Duration Benchmarks: The diagnostic process is completely free if using household items like a bucket and marker, or up to $30 if purchasing a specialized pool dye kit. Total active diagnostic time spans between 24 to 48 hours, primarily driven by observation periods.

Step-by-Step Leak Detection Workflow

Step 1: Execute the Bucket Test to Measure Water Loss

1. Turn off your automatic pool fill line if applicable so it does not skew the results.
2. Fill your standard 5-gallon plastic bucket with pool water until the internal water level matches the external pool water level.
3. Place the bucket on the second step of the pool, ensuring it is partially submerged by at least five inches to maintain identical thermal equilibrium.
4. Use a permanent marker or waterproof tape to mark the water level on the inside of the bucket and on the outside of the bucket (or pool tile).
5. Leave both the pool and the bucket undisturbed for 24 hours.
6. Measure the drop in water level for both the bucket and the pool using a ruler. If the pool water level has dropped significantly more than the water level inside the bucket, you are experiencing a leak rather than standard evaporation.

Warning: Heavy rainfall during the 24-hour testing window will invalidate the bucket test. If it rains, empty the bucket, refill it to match the pool, and restart the 24-hour observation period.

Step 2: Perform the Pump-On versus Pump-Off Static Test

1. Observe your pool water loss rate over a 24-hour period with the pool filtration system running continuously.
2. Reset your baseline and observe the pool water loss rate over a subsequent 24-hour period with the pump and filtration system completely turned off.
3. Compare the two measurements. If the water loss is notably greater while the pump is running, the leak is located within the pressurized return lines, filter assembly, multiport valve, or pump housing. If the water loss is equal or greater when the pump is off, the leak is likely located in the suction line, skimmer throat, structural shell, or vinyl liner.

Step 3: Conduct a Dye Test on Structural Vulnerabilities

1. Turn off all pool pumps, water features, and automatic cleaners to ensure total water stillness and eliminate local currents.
2. Fill your leak detector syringe or squeeze bottle with specialized pool dye (or food coloring if dye is unavailable).
3. Approach suspected weak points, such as light niches, main drains, structural return fittings, main skimmer throat edges, and any visible liner tears or plaster cracks.
4. Slowly release a small amount of dye near the surface of the suspected area while holding the syringe steady.
5. Watch the directional flow of the dye stream; if water is actively escaping through a micro-crack or failing seal, the dye will be forcefully drawn directly into the opening.

Pro-Tip: Wear polarized sunglasses when conducting a dye test to eliminate surface glare, allowing you to clearly observe the movement of the dye against pool plaster, tile, or vinyl liners.

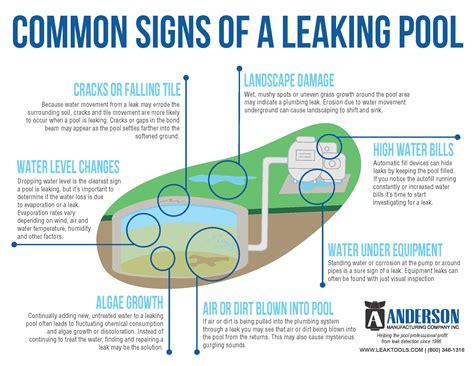

Step 4: Inspect the Surrounding Soil and Equipment Pad

1. Walk the perimeter of your pool deck and inspect adjacent landscaping for damp spots, soggy soil, or unseasonably lush patches of grass, which indicate subterranean plumbing breaks.
2. Inspect the equipment pad for puddles, pooling water, active dripping from PVC joints, or continuous discharge out of the waste or backwash line, which points to a failing multiport valve gasket.
3. Check the skimmer assembly deck joints for separation, as expanding and contracting concrete frequently shears the plastic throat of the skimmer away from the pool deck.

Leak Location and Diagnostic Method Comparison

Common Pool Failures and Field Fixes

• Root Cause: A separation or structural gap around the plastic skimmer throat where it meets the concrete or vinyl pool wall.


  • Actionable Fix: Clean out debris from the expansion joint around the skimmer mouth, prime the surface, and apply a specialized, underwater-curing hydraulic cement or two-part epoxy pool putty designed for structural sealing.
• Root Cause: A failing main drain hydrostatic valve or a cracked underground suction line beneath the pool deck.


  • Actionable Fix: Hire a professional leak detection service utilizing electronic acoustic listening devices and helium gas testing to pinpoint the exact underground break without tearing up the entire pool deck.
• Root Cause: Micro-tears in a vinyl liner caused by sharp objects, pool toys, or pet claws.


  • Actionable Fix: Cut a circular patch of vinyl liner material, apply a specialized underwater vinyl adhesive to the back of the patch, fold it in half while underwater, unfold it over the tear, and press firmly to squeeze out trapped air bubbles.
• Root Cause: A worn spider gasket inside the pool filter's multiport valve, causing continuous water loss out of the waste line.


  • Actionable Fix: Shut off the power, remove the top cover of the multiport valve, extract the damaged rubber spider gasket, clean the channel thoroughly with isopropyl alcohol, and press a replacement OEM gasket into place using a non-petroleum-based lubricant.

Frequently Asked Questions

How much water loss per day is normal for a swimming pool?

Natural evaporation typically accounts for a water loss of one-eighth to one-quarter of an inch per day, depending heavily on wind speed, local temperatures, and relative humidity. If your pool loses more than a quarter of an inch daily, or if your automatic fill float is constantly engaging, you are experiencing a leak.

How do I know if the leak is in my pool plumbing or the liner?

Performing the pump-on versus pump-off test is the most effective way to separate plumbing issues from structural liner issues. If the pool continues to leak at the exact same rate when the filtration system is turned off, the leak is structural. If the leak slows down or stops when the pump is turned off, the leak is located in the pressurized plumbing lines.

Can I use regular food coloring for a pool dye test?

Yes, standard food coloring works in a pinch for leak detection, provided the pool pump is completely turned off and there is zero surface wind. However, specialized pool dye is heavier, denser, and formulated to sink slowly rather than dissipate immediately, making it much easier to track micro-currents pulling toward a leak.

What is the most common place for a pool to leak?

The most common point of structural failure in inground pools is the interface between the plastic skimmer throat and the surrounding concrete deck or pool wall. Ground shifting, thermal expansion, and aging building materials frequently cause these rigid joints to crack and separate over time.
