How To Label An Electrical Panel: Step-by-Step Circuit Mapping & Directory Guide

Accurately labeling an electrical panel requires a systematic process of circuit mapping, temporary load testing, and permanent identification compliant with National Electrical Code (NEC) Section 408.4. By systematically tracing individual breakers using a digital circuit breaker finder or a two-person audit, homeowners and technicians can transform an obscure panel into a precise directory within two to four hours. Complete labeling prevents accidental power interruption, streamlines emergency isolation, and eliminates diagnostic delays during future electrical repairs.

Essential Gear, Code Standards, and Pre-Mapping Requirements

Properly mapping and labeling an electrical service panel requires accurate tools, safe working protocols, and an understanding of regulatory standards. Under Section 408.4(A) of the National Electrical Code (NEC), every circuit and circuit modification must be legibly identified as to its clear, evident, and specific purpose. Generic designations such as "Plugs," "Lights," or "Spare" fail compliance audits because they do not specify the exact location or load served by the branch circuit.

Before initiating the mapping process, secure the necessary equipment and establish safety boundaries around the panel environment. Working with an exposed dead-front cover removed should only be performed by qualified personnel. For standard panel identification on an intact panel face, basic electrical testing devices provide accurate tracing without requiring direct contact with live busbars.

• Essential Tools and Testing Gear:


  • Digital electronic circuit breaker finder (transmitter and automatic receiver wand)
  • Three-prong GFCI receptacle circuit analyzer
  • Non-contact voltage tester (NCVT) rated CAT III/CAT IV
  • Two-way radios or mobile phones (for a two-person mapping process)
  • Thermal transfer label printer with industrial laminate vinyl tape (or printed cardstock insert)
  • Painter's masking tape and fine-tip permanent marker for temporary indexing
  • Plug-in nightlights or portable desk lamps (for visual load checking)
• Mandatory Prerequisite Knowledge and Regulatory Standards:


  • NEC 110.22: Requirements for clear identification of disconnecting means.
  • NEC 408.4(A): Field marking requirements for circuit directories. Labels must not depend on transient conditions (e.g., "Dad's Workshop").
  • NFPA 70E: Basic electrical safety standards for working around open panels.
• Estimated Budget and Time Benchmarks:


  • Total Equipment Cost: $35 to $130 (assuming purchase of an entry-level circuit finder and industrial label maker).
  • Execution Duration: 2 to 4 hours for standard 100A–200A residential panels containing 20 to 42 circuit breaker positions.

Step-by-Step Electrical Panel Circuit Tracing and Mapping

Step 1: Prepare the Panel Surface and Establish a Temporary Directory Index

Open the outer door of the electrical enclosure to expose the circuit breakers and existing directory card. Inspect the breaker layout to determine the numbering scheme used by the enclosure manufacturer. Standard panels sequence odd numbers along the left vertical column (1, 3, 5, 7...) and even numbers along the right column (2, 4, 6, 8...), though some commercial designs sequence horizontally across rows.

Apply a short strip of painter’s masking tape directly adjacent to each breaker handle on the metal dead-front panel. Write temporary index numbers on the tape matching the panel's physical slot position. If an existing directory card is present inside the door, photograph it with a smartphone to retain a baseline reference before making modifications.

Warning: Do not remove the protective metal dead-front cover plate during this process. Live panel busbars carry lethal voltage. All tracing procedures described below can and must be conducted with the dead-front panel securely screwed in place.

Step 2: Methodically Trace Circuits Using Electronic Equipment or Manual Auditing

Tracing can be executed independently using an electronic circuit breaker finder or as a two-person team using plug-in loads and verbal communication.

If using a digital circuit breaker finder:

1. Plug the transmitter unit into an active receptacle on the target circuit. Verify the transmitter status LEDs indicate correct wiring polarity and active line voltage.
2. Move to the electrical panel and scan the receiver wand down the row of breakers, keeping the tip perpendicular to the breaker bodies.
3. Complete a initial calibration pass over all breakers without stopping. The receiver will beep at multiple points as it adjusts its internal signal gain.
4. Perform a second scan at a slower speed. The receiver will emit a continuous tone and solid visual signal only at the specific breaker feeding the active transmitter.

If executing a two-person manual audit:

1. Connect temporary loads (such as high-visibility lamps or loud radios) into target receptacles.
2. Turn off a single branch circuit breaker.
3. Have the second person walk the building with a non-contact voltage tester and receptacle analyzer to document every outlet, light fixture, and hardwired appliance that lost power.
4. Record the specific room names, wall orientations, and load types served by that single breaker on a tracking sheet.

Pro-Tip: De-energize and trace one branch circuit at a time rather than shutting off the main service disconnect breaker. Shutting off individual branch circuits preserves power to sensitive equipment like medical devices, network hardware, and refrigeration units on other circuits.

Step 3: Identify and Map Dedicated Heavy-Duty 240V and High-Draw Loads

Heavy-duty appliances operate on dedicated circuits and usually connect to double-pole breakers occupying two vertical panel spaces. These circuits supply 240-volt loads or high-amperage 120-volt equipment.

Systematically test high-draw appliances to confirm their corresponding breaker spaces:

1. Switch off the 30A, 40A, or 50A double-pole breakers individually.
2. Verify loss of operation at the electric clothes dryer, central air conditioner compressor, heat pump handler, electric kitchen range, water heater, or EV charging station.
3. Inspect 20A single-pole breakers to isolate dedicated 120V kitchen and utility loads, including the over-the-range microwave, garbage disposal, dishwasher, refrigerator, sump pump, and dedicated bathroom GFCI circuits.

Step 4: Standardize Location Descriptions and Eliminate Ambiguous Terminology

Once every device is mapped to a breaker number, translate raw notes into standardized, precise, and compliant labels. Replace broad terms with spatial and functional descriptors.

For example:

• Instead of writing "Bedrooms," write "Bedrooms 1 & 2 Overhead Lights & North Wall Outlets."
• Instead of writing "Kitchen," write "Kitchen Countertop Receptacles - East & South Walls (GFCI Protected)."
• Instead of writing "Outside," write "Exterior Rear Patio Receptacles & Garage Soffit Lights."

Ensure every single space—including disconnected or inactive spare breakers—is explicitly categorized on your master draft list.

Step 5: Print, Apply, and Protect the Permanent Code-Compliant Directory

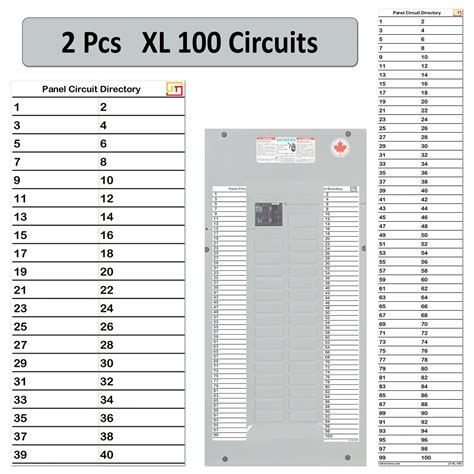

Construct the final directory card using either an official manufacturer replacement card insert or a digital spreadsheet printed on heavy cardstock. Alternatively, generate individual laminated label strips using an industrial label printer equipped with 0.5-inch or 0.75-inch vinyl tape.

1. Wipe down the interior metal panel door with isopropyl alcohol to clean off dust and oils, ensuring full adhesive bonding.
2. Align printed labels precisely with their corresponding breaker pole numbers.
3. Slide the finalized directory card into the clear plastic protective door slot, or affix the printed vinyl labels directly beside each breaker position on the dead-front face.
4. Affix a clear plastic adhesive sleeve over paper directory cards to protect the text against humidity, rust, and ambient basement dust.

Pro-Tip: Save your panel mapping layout as a digital spreadsheet file on a cloud storage drive. Print a physical copy to keep inside the panel, and retain the digital file to easily edit and reprint updated labels whenever you perform future electrical remodeling.

Standard Electrical Circuit Identification & Labeling Specifications

The following reference table outlines typical residential circuit configurations, corresponding overcurrent protection parameters, required wire gauges, and code-compliant labeling formats:

Troubleshooting Common Circuit Mapping and Identification Issues

Shared Neutral or Multi-Wire Branch Circuits (MWBC) Trip Unexpectedly

• Root Cause: Two independent 120V hot conductors share a single neutral conductor back to the neutral busbar on separate single-pole breakers. De-energizing only one side of the circuit while testing can cause current unbalances, false signals on tracing tools, or unexpected tripping of GFCI/AFCI protection devices.
• Actionable Fix: Inspect the panel for multi-wire branch circuits (typically identified by 3-wire Romex containing black, red, white, and ground conductors entering a single cable clamp). Per NEC 210.4(B), install an approved handle-tie or convert the single-pole units into a simultaneous double-pole breaker. Label the directory to reflect both served zones (e.g., "Multi-Wire Circuit: Dining Room Outlets / Den Lighting").

Phantom Voltage Signals During Circuit Finder Tracing

• Root Cause: The high-frequency tracing signal emitted by the transmitter unit induces a secondary electromagnetic voltage onto adjacent, parallel wires routed through the same conduit or stud bays. This causes the receiver wand to beep over multiple adjacent breakers, creating false positives.
• Actionable Fix: Lower the sensitivity threshold on the receiver wand. Connect an active resistive load (such as a 100-watt incandescent lamp or a plug-in load tester) into the same duplex receptacle alongside the transmitter. The additional current draw collapses the induced stray signal, allowing the receiver to isolate the primary line breaker lug.

Unlabeled Breakers Controlling Hidden Subpanel Feeds or Remote Disconnects

• Root Cause: Historical modifications or home additions introduced subpanels, attic transformers, or outdoor junction boxes fed directly from the main panel without updating the original directory.
• Actionable Fix: Use a clamp-on AC digital ammeter over the load conductor leaving the mystery breaker. Turn on suspicious high-load systems throughout the property (e.g., detached garage subpanel, exterior landscape lighting transformer, crawlspace sump pump feed) while observing real-time current draw on the meter display. Once the load drop is observed, label the breaker with its primary feeder destination.

Frequently Asked Questions

What does NEC code require for electrical panel labeling?

National Electrical Code (NEC) Section 408.4 requires every circuit breaker and fuse to be clearly and legibly identified with its specific, accurate purpose. Terminology must be durable, permanently affixed to the enclosure door or face, and avoid generic or transient descriptions like "Plugs" or "John's Room."

Can I use handwritten labels on an electrical panel directory?

Handwritten entries are permitted under NEC regulations only if they are clearly legible, written in ink, and permanently affixed to the factory directory card. However, printed thermal-laminated tape or machine-printed cardstock directories are preferred because they resist smudging, fading, and degradation caused by humidity and age.

How do I label a double-pole breaker controlling 240-volt circuits?

A double-pole breaker occupies two vertical panel slots but controls a single 240-volt load or a combined multi-wire branch circuit. Identify the breaker by spanning its description across both assigned pole numbers on the directory card (e.g., listing "Electric Clothes Dryer" across slots 14 and 16).

What should I do if a single breaker controls outlets in multiple rooms?

When a single branch circuit feeds devices spread across multiple rooms, list the primary room first followed by the specific secondary locations. For example, write "Master Bedroom Outlets (North/East Walls) & Hall Closet Lighting" to ensure technicians can isolate the entire dead zone quickly during an outage.

Upgrade Your Electrical Panel Organization and Safety Standards

Maintaining a fully audited, highly legible electrical panel directory is a fundamental step toward home safety and efficient property maintenance. Take the time to audit your system today, or consult a licensed electrician to evaluate your panel's overall capacity, labeling, and code compliance.
