How To Light The Pilot On A Water Heater: A Comprehensive Safety And Technical Guide

Lighting a standing pilot water heater requires isolating the gas supply, locating the pilot assembly behind the access panel, and utilizing the piezoelectric igniter or a long-reach lighter to heat the thermocouple. Success is verified when the burner remains ignited after the gas control knob is released, confirming that the thermocouple has generated sufficient millivoltage to hold the gas valve open.

Pre-Operation Safety Protocols and Equipment Requirements

Before attempting to ignite a pilot light, you must ensure the area is free of volatile organic compounds or flammable vapors. Water heaters are ignition sources; if you smell a strong sulfur or rotten-egg odor, do not attempt to light the pilot. Evacuate the premises and contact your utility provider or a licensed plumbing professional immediately.

• Required Gear: A long-reach butane lighter (if the factory-installed piezo igniter is faulty), a flashlight for inspecting the pilot assembly, and protective eyewear to guard against dust or debris displaced during the lighting process.
• Prerequisite Knowledge: Identify your heater type. Standard gas heaters utilize a standing pilot with a thermocouple, while modern residential units often feature electronic ignition systems (Direct Spark or Hot Surface Ignition) that do not have a pilot light for the user to ignite manually.
• Safety Standards: Always adhere to the National Fuel Gas Code (NFPA 54). Ensure the water heater is properly ventilated and that the combustion chamber is not obstructed by lint or dust.
• Duration: The manual lighting process typically requires 5 to 10 minutes, assuming the pilot assembly is clean and the thermocouple is functional.

Step-by-Step Pilot Ignition Workflow

Step 1: Locating and Preparing the Gas Control Valve

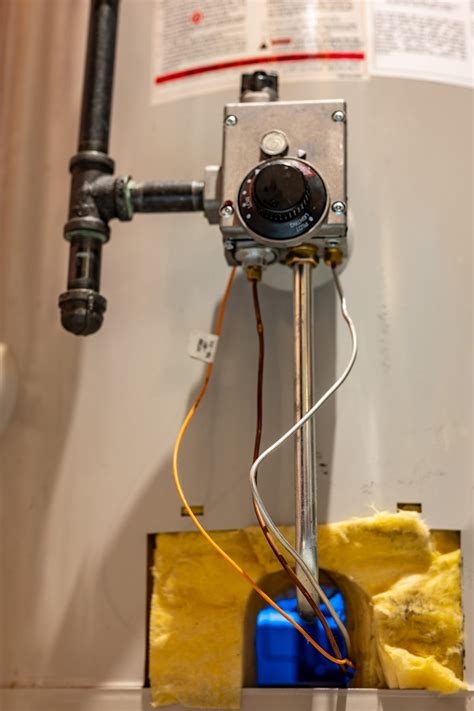

Locate the gas control valve mounted on the side of the tank. You will see a dial with markings including Pilot, Off, and On. Rotate the control knob to the Off position and wait exactly five minutes. This waiting period allows any residual gas that may have accumulated in the combustion chamber to dissipate, preventing a minor flare-up during ignition.

Step 2: Accessing the Pilot Assembly

Remove the outer access panel cover located at the base of the water heater. You will likely see an inner glass or metal viewing port. Use your flashlight to identify the pilot burner assembly; this is where the gas supply tube and the thermocouple—a small copper-clad sensor—converge.

Step 3: Engaging the Pilot Gas Flow

Turn the gas control knob to the Pilot setting. On most models, you must depress the knob firmly and hold it down. This physical action manually bypasses the safety shut-off valve, allowing gas to flow specifically to the pilot assembly. Do not release the knob at any point during the ignition sequence.

Step 4: Igniting the Pilot

While holding the control knob down, press the red or black piezoelectric igniter button repeatedly until you see a flame appear in the burner chamber. If your unit lacks a piezo igniter, use a long-reach lighter to apply a flame directly to the pilot burner tip. Continue to hold the gas control knob down for approximately 60 seconds after the flame appears.

Warning: If the pilot flame goes out immediately after releasing the knob, the thermocouple is likely not being heated sufficiently or is failing. Repeat the process, ensuring the pilot flame is fully enveloping the tip of the thermocouple.

Step 5: Setting to Operating Temperature

Once you have held the knob for the required duration to heat the thermocouple, slowly release the knob and rotate it to the On position. You should hear the main burner ignite shortly thereafter. Replace the access panel cover to maintain the structural integrity of the combustion chamber.

Technical Specifications and Component Parameters

The efficacy of your water heater depends on specific millivolt thresholds generated by the pilot assembly. If the thermocouple fails to generate these levels, the gas valve will remain in the closed position as a fail-safe measure.

Troubleshooting Common Pilot Failures

If you cannot maintain a pilot flame, investigate these frequent root causes before concluding the valve is defective.

• Root Cause: Dirty Thermocouple. Over time, carbon buildup acts as an insulator, preventing the thermocouple from detecting the pilot flame's heat.


  • Actionable Fix: Use a fine-grit emery cloth or sandpaper to gently clean the tip of the thermocouple until it appears shiny, then retry the ignition sequence.
• Root Cause: Insufficient Gas Pressure. If the pilot flame appears small, orange, or flickers violently, the orifice may be obstructed.


  • Actionable Fix: Inspect the pilot burner supply line for spider webs or debris. Use a soft brush to clear the air intake, but do not use wire, as this can enlarge the orifice and alter the BTU output.
• Root Cause: Thermocouple Misalignment. The thermocouple must be positioned directly in the pilot flame path.


  • Actionable Fix: Verify that the thermocouple tip is engulfed in the blue portion of the pilot flame. If it is sitting too high or too far to the side, gently bend the mounting bracket until it is correctly positioned.

Frequently Asked Questions

Why does my pilot light keep going out?

The most common reason for a pilot flame extinguishing is a faulty thermocouple that can no longer generate the necessary millivoltage to hold the gas valve open. Alternatively, a draft or negative pressure in the mechanical room can blow the flame out, indicating an issue with the heater's venting system or combustion air supply.

Is it dangerous to light a water heater?

Lighting a water heater is safe provided you follow the manufacturer's specified steps and ensure no gas odors are present. If you suspect a gas leak or if the flame exhibits abnormal colors like yellow or orange instead of a crisp blue, discontinue efforts immediately and consult a professional.

Can I replace the thermocouple myself?

Yes, replacing a thermocouple is a standard maintenance task. It typically involves disconnecting the nut from the gas control valve, removing the thermocouple from the pilot bracket, and installing the new unit, ensuring the connection is snug but not over-tightened.

What should a healthy pilot flame look like?

A healthy pilot flame should be sharp, stable, and primarily blue in color, with perhaps a very small hint of yellow at the very tip. If the flame is large, yellow, and lazy, it suggests poor combustion or a buildup of debris at the pilot burner.
