How To Lower String Action: The Definitive Guide To Professional Guitar Setup

Optimizing string action requires a precise three-step calibration of the truss rod for neck relief, the nut slot depth for first-fret playability, and the bridge height for overall clearance. For most electric guitars, a professional standard target is 4/64" (1.58mm) on the bass side and 3/64" (1.19mm) on the treble side, measured at the 12th fret.

Pre-Adjustment Diagnostics and Professional Tooling Requirements

Before making mechanical changes to an instrument, you must understand that string action is a holistic system. Lowering the action is not simply a matter of turning a single screw; it is an interplay between the straightness of the neck, the height of the nut, and the elevation of the bridge saddles. If one component is out of alignment, lowering the action will inevitably result in localized fret buzz or "dead notes" where the string cannot vibrate freely.

The environment also plays a critical role. Wood is a hygroscopic material that expands and contracts with changes in humidity and temperature. Always allow your instrument to acclimate to a room’s climate for at least 24 hours before attempting a setup. Furthermore, ensure you are using a fresh set of your preferred string gauge, as different tensions will pull on the neck with varying force, altering your measurements.

Essential Setup Gear and Benchmarks

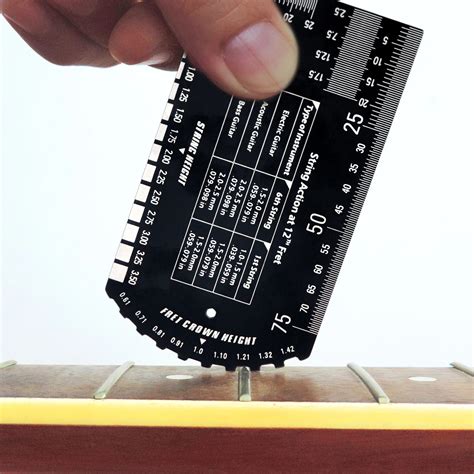

• String Action Gauge: A precision stainless steel ruler graduated in 64ths of an inch and millimeters.
• Feeler Gauges: A set ranging from .002" to .025" for measuring neck relief and nut height.
• Capo: Required to fret the strings at the first fret during relief measurements.
• Allen Wrenches/Hex Keys: Specifically sized for your truss rod (commonly 4mm, 5mm, or 1/8") and bridge saddles (commonly 1.5mm or .050").
• Nut Files: Specialized gauged files (only if the nut requires lowering).
• Precision Screwdrivers: For bridge and intonation adjustments.
• Estimated Duration: 45 to 90 minutes for a complete, stable setup.
• Standard Tension: All measurements must be taken while the guitar is tuned to its standard performing pitch.

The Systematic Workflow for Reducing String Height and Optimizing Playability

The following steps must be performed in this exact order. Adjusting the bridge before the neck relief is a common amateur mistake that leads to inconsistent results and unnecessary frustration.

Step 1: Evaluating and Adjusting Neck Relief (The Truss Rod)

Neck relief is the slight forward curvature of the fretboard. To lower action, the neck must be nearly flat, but a perfectly straight neck often causes buzzing in the lower frets.

1. Tune the guitar to pitch.
2. Place a capo at the first fret.
3. Depress the low E string at the fret where the neck joins the body (usually the 17th or 19th fret).
4. Use a .010" (0.25mm) feeler gauge to measure the gap between the bottom of the string and the top of the 7th or 8th fret.
5. If the gap is larger than .012", the neck has too much relief (up-bow). Turn the truss rod nut clockwise (righty-tighty) in 1/8-turn increments to tighten it and flatten the neck.
6. If the string is touching the 7th fret, the neck is too straight or back-bowed. Turn the truss rod counter-clockwise (lefty-loosey) to loosen it.

Pro-Tip: Always wait 5-10 minutes after a truss rod adjustment for the wood to settle before re-measuring. Never force a truss rod that feels stuck; if it resists significant pressure, consult a professional luthier to avoid snapping the rod.

Step 2: Optimizing Nut Slot Depth

If the action feels stiff near the headstock, the nut slots are likely too high. This is a common factory setting to prevent buzzing, but it ruins playability.

1. Press the string down between the 2nd and 3rd frets.
2. Look at the clearance between the string and the 1st fret. There should be a microscopic gap, roughly the thickness of a human hair (.003" to .005").
3. Alternatively, use a feeler gauge without pressing the string. A standard target for the low E is .020" and .010" for the high E, measured between the fret and the string.
4. If the gap is too large, use a nut file specifically gauged for that string. File at an angle pointing toward the tuning pegs to maintain a clear "witness point" at the front of the nut.
5. File two or three strokes, then re-tune and re-measure.

Warning: Filing a nut slot too deep is a permanent mistake that usually requires replacing the entire nut or using the "super glue and bone dust" fill method. Proceed with extreme caution and frequent measurements.

Step 3: Adjusting Bridge and Saddle Height

Once the neck is straight and the nut is set, you can finally adjust the bridge to your desired height. This is the primary method for lowering the action across the middle and upper registers of the fretboard.

1. On a Fender-style bridge (individual saddles), use a hex key to lower each saddle. You must maintain the radius of the fretboard; if your fretboard has a 9.5" radius, the strings must follow that same curve.
2. On a Gibson-style (Tune-O-Matic) bridge, use the thumbwheels or flathead screws on the two posts to lower the entire bridge assembly.
3. On an acoustic guitar, you must remove the bridge saddle and sand the bottom on a perfectly flat surface with 220-grit sandpaper. To lower the action by 1/64" at the 12th fret, you must remove 2/64" (1/32") from the bottom of the saddle.
4. Measure the distance at the 12th fret from the top of the fret wire to the bottom of the string. Aim for 4/64" on the bass side and 3/64" on the treble side for electrics.

Step 4: Final Intonation and Radius Check

Lowering the action changes the geometry of the string, which alters its intonation.

1. Check the tuning of the open string, then check the tuning of the same string fretted at the 12th fret.
2. If the fretted note is sharp, move the saddle away from the neck (increase string length).
3. If the fretted note is flat, move the saddle toward the neck (decrease string length).
4. Verify that no strings are "fretting out" (choking) when you perform whole-step bends in the upper register. If they choke, you have lowered the action too far for the fretboard radius, or you have an unlevel fret.

Standard Action Height Specifications by Instrument Type

The following measurements serve as an industry-standard baseline. Player preference may dictate slightly higher action for heavy hitters or slightly lower for light-touch virtuosos. Measurements are taken at the 12th fret.

Diagnosing Post-Setup Buzz and Mechanical Failures

Even with perfect measurements, you may encounter issues. Use these diagnostic steps to identify the root cause of playability problems following an action reduction.

• Scenario: Consistent buzzing on the first 3-5 frets only.


  • Root Cause: The neck is too straight or has a slight back-bow, providing insufficient clearance for the string's initial vibration arc.
  • Actionable Fix: Loosen the truss rod by 1/8 to 1/4 turn to add "relief" (forward bow) to the neck.
• Scenario: Buzzing only on the 12th fret and above.


  • Root Cause: The bridge is too low, or there is a "rise" in the tongue of the fretboard where it meets the body.
  • Actionable Fix: Raise the bridge saddles slightly until the buzz disappears. if the issue persists, a luthier may need to "fall away" sand the upper frets.
• Scenario: A single "dead" note on one specific fret while others are clear.


  • Root Cause: A high fret. One fret wire has likely unseated from its slot or was never leveled correctly at the factory.
  • Actionable Fix: Use a "fret rocker" to identify the high spot. The fret will require localized leveling, crowning, and polishing.
• Scenario: Open strings buzz when played, but buzzing stops when fretted.


  • Root Cause: The nut slots have been filed too deeply.
  • Actionable Fix: Replace the nut or temporarily shim it. Professional repair involves filling the slot with a mixture of bone dust and cyanoacrylate glue, then re-filing to the correct depth.

Frequently Asked Questions

Will lowering my action cause my guitar to lose sustain?

While extremely low action can slightly reduce sustain because the string's vibration is physically restricted by its proximity to the frets, a well-executed setup often improves sustain by ensuring proper contact points at the nut and bridge. If you notice a significant drop in sustain, your action is likely too low for your playing technique.

How often should I adjust my guitar's action?

You should check your action at least twice a year, specifically during seasonal changes (Spring and Autumn) when humidity levels fluctuate. If you change string gauges (e.g., moving from .009s to .011s), a full setup is mandatory to compensate for the increased tension.

Can I lower the action on an acoustic guitar without sanding the saddle?

If the high action is caused by excessive neck relief, you can lower it by tightening the truss rod. However, if the neck is already straight, the only way to lower the action at the bridge is to physically remove material from the bottom of the saddle.

Why does my high E string "choke out" during big bends?

This occurs when the action is so low that the string hits the higher frets as it moves across the radius of the fretboard. This is especially common on vintage-style guitars with a rounder (7.25") radius. The solution is to slightly raise the treble side bridge saddle or perform a compound radius fret level.

Is it possible to have "zero" neck relief?

While some players prefer a perfectly flat neck, it is rarely practical. Most guitars require at least a small amount of relief (.005" to .010") to allow the string to vibrate in its elliptical pattern without hitting the frets in the middle of the neck.

Achieve Peak Performance with Professional Maintenance

Mastering your guitar’s setup is the most effective way to eliminate technical hurdles and focus entirely on your music. If you find that mechanical issues persist despite following these steps, seeking a professional fret leveling will ensure your instrument can handle the ultra-low action you desire.
