How To Make A Grid In Photoshop For Precise Layout Design

Creating a precise grid in Adobe Photoshop is the foundation for maintaining visual hierarchy, alignment, and professional layout consistency. By leveraging the built-in Guide Layout tools and View menu settings, users can generate mathematically accurate structures tailored to specific document dimensions, bleed requirements, and gutter margins.

Pre-Procedure Configuration and Project Setup

Before generating a grid, your canvas must be established with the correct technical specifications to ensure that the grid scales proportionately to your output medium. Whether designing for mobile UI, print media, or social assets, the grid serves as the structural skeleton of your project.

• Essential Tools: Adobe Photoshop CC, a calibrated monitor, and a defined design scope.
• Prerequisite Knowledge: Proficiency in pixel-to-inch conversions and understanding of bleed vs. trim margins.
• Document Standards: For print, maintain a minimum resolution of 300 pixels per inch. For web/UI, work in RGB color mode with standard pixel dimensions.
• Time Commitment: Executing a manual or automated grid layout typically requires 2 to 5 minutes of setup time.

Step-by-Step Technical Execution of Grid Layouts

Step 1: Initialize the New Guide Layout

Navigate to the top menu bar and select View, then choose New Guide Layout. This window is the primary control center for your grid structure. If you are starting with a blank slate, this tool allows for immediate input of columns, rows, and margins. Ensure that the Preview box is checked so you can observe the grid alignment relative to your artboard in real-time.

Step 2: Define Columns and Rows

Within the New Guide Layout dialog, input the number of columns and rows required for your specific design system. For standard web layouts, a 12-column grid is the industry standard for responsiveness. For simpler print flyers, a 4-column structure may suffice. Under the Width and Gutter fields, specify your desired spacing. A gutter of 20 to 30 pixels is commonly used to ensure adequate negative space between content elements.

Step 3: Configure Margin Settings

The Margin section dictates the padding between the edge of your document and the start of your grid. Setting equal margins on the top, bottom, left, and right is standard for balanced layouts. If you are designing for physical printing, increase the left or right margin to account for binding areas or fold gutters.

Pro-Tip: Save your custom grid configurations by clicking the Preset dropdown menu at the top of the New Guide Layout dialog to streamline your workflow for future projects.

Step 4: Utilizing the Non-Parametric Grid Overlay

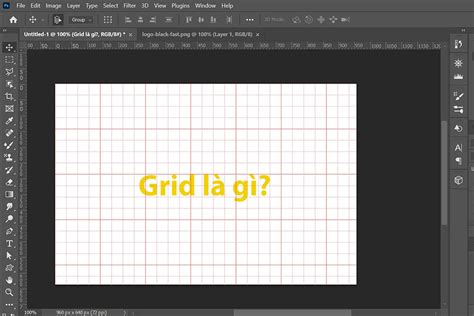

If your project requires a simple pixel-based reference rather than a custom column layout, go to Edit, select Preferences, and choose Guides, Grid, and Slices. In the Grid section, define the Gridline Every value to match a specific pixel increment, such as 10, 50, or 100 pixels. Toggle the visibility of this grid by pressing Command plus the apostrophe key on macOS or Control plus the apostrophe key on Windows.

Warning: Excessive grid density can lead to visual clutter. Disable the pixel grid when working on high-fidelity visual effects or complex color grading to avoid eye fatigue and maintain clear focus on the pixel data.

Technical Specifications for Layout Grids

The following table outlines standard grid configurations based on the intended output medium. These parameters ensure that your designs adhere to professional alignment standards across various platforms.

Common Alignment Failures and Field Fixes

Even with automated tools, technical errors can occur during the layout phase. Refer to the following list to resolve common grid-related issues.

• Root Cause: Guides are not snapping to objects.


  • Actionable Fix: Ensure that View, then Snap, and View, then Snap To are both enabled. Verify that the Snap To Guides option is specifically checked in the submenu.
• Root Cause: The grid is invisible despite being configured.


  • Actionable Fix: Check the View menu under Show. Ensure that Guides and Grid are toggled on. If the guide color is similar to your background, change the guide color in Preferences under Guides, Grid, and Slices.
• Root Cause: The grid layout does not cover the entire artboard.


  • Actionable Fix: Ensure your active layer is an Artboard rather than a standard layer. If using standard layers, reset the guides by choosing View, then Clear Guides, and re-applying the New Guide Layout.

Frequently Asked Questions

How do I lock my guides after setting them up?

After placing your guides, navigate to the View menu and select Lock Guides. This prevents accidental movement of your grid structure while you are moving, resizing, or editing layers on the canvas.

Can I save a grid layout to use on other Photoshop documents?

Yes, within the New Guide Layout dialog box, click the Preset dropdown menu and select Save Preset. You can then load this configuration on any future document by selecting it from the same dropdown menu.

Why does my grid look blurry when I zoom in?

The standard grid overlay in Photoshop is a non-destructive, vector-based visual aid. If your guides appear blurry, ensure that your View settings are at 100 percent zoom, as monitor scaling can sometimes cause visual artifacts in the grid lines.

What is the difference between Guides and the Pixel Grid?

Guides are user-defined lines that you position manually or via the New Guide Layout tool to dictate design zones. The Pixel Grid is a permanent, system-level overlay that highlights individual pixels when you zoom in beyond 500 percent.
