How To Measure A Trailer Axle: The Definitive Technical Guide For Accurate Replacement

To accurately measure a trailer axle, you must determine the precise distance between the hub faces and the center-to-center distance of the spring seats. These primary metrics, combined with the spindle size and bolt pattern, ensure the replacement axle aligns perfectly with the trailer frame while maintaining proper wheel clearance and weight distribution.

Pre-Measurement Preparation and Equipment Requirements

Before attempting to measure an axle, it is vital to understand that precision is measured in sixteenths of an inch. An error as small as a quarter-inch can result in tires rubbing against the trailer frame or the leaf springs being under constant lateral stress, leading to premature failure of the suspension components. If you are replacing a bent or broken axle, the measurements should ideally be taken from the trailer frame or the remaining functional components to ensure the new axle corrects any existing geometry issues.

Essential Tools and Equipment

• Heavy-Duty Jack and Jack Stands: Mandatory for securing the trailer frame; never measure an axle while the trailer is supported only by a hydraulic jack.
• Long-Reach Steel Measuring Tape: A 10-foot or 25-foot tape is necessary to span the entire width of the axle in a single pull.
• Digital Calipers: Required for measuring spindle diameters and bearing journals to the thousandth of an inch.
• Large C-Clamps or Vise-Grips: Useful for securing one end of the measuring tape if you are working alone.
• Chalk or Paint Marker: To mark the center points of the springs and hubs for visual verification.
• Cleaning Supplies: A wire brush and degreaser to clean the spindle and hub face for accurate contact.

Technical Benchmarks

• Estimated Duration: 45 to 60 minutes for a single-axle setup; 90+ minutes for tandem or triple axles.
• Standard Accuracy Tolerance: +/- 1/16th of an inch.
• Safety Standard: Ensure the trailer is on a level, concrete surface to prevent shifting and to provide a reliable baseline for vertical measurements.

The Systematic Axle Measurement Workflow

Measuring an axle requires a specific sequence to ensure that the relationship between the mounting points (spring centers) and the wheel mounting surfaces (hub faces) remains consistent with the manufacturer’s original specifications.

Step 1: Secure the Trailer and Remove the Wheels

Begin by loosening the lug nuts while the trailer is still on the ground. Raise the trailer frame using a high-capacity jack until the tires clear the ground. Place jack stands under the frame—not the axle—to allow the suspension to hang freely or sit in its natural unloaded state. Remove the wheels and tires entirely. This is crucial because measuring with wheels attached introduces the variable of wheel offset, which will lead to an incorrect "Hub Face" calculation.

Warning: Never crawl under a trailer supported only by a jack. Ensure the frame is locked on stands and the front hitch is either connected to a vehicle or securely blocked to prevent pivoting.

Step 2: Determine the Hub Face-to-Hub Face Dimension

The "Hub Face" measurement is the most critical metric for any axle. This is the distance from the flat surface where the wheel studs emerge on one side of the trailer to the exact same surface on the opposite side.

1. Locate the flat, vertical surface of the hub where the wheel rim makes contact.
2. Hook the end of your measuring tape onto the outside of one hub face.
3. Stretch the tape across the axle to the outside of the opposite hub face.
4. Ensure the tape is straight and not sagging or catching on the axle tube.
5. If the hubs are removed, measure from the "Spindle Shoulder"—the point where the inner bearing stops on the spindle—and then add the known thickness of the hubs you intend to use.

Step 3: Measure the Spring Center-to-Center Distance

The Spring Center measurement dictates where the axle will actually bolt to the trailer’s leaf springs. If this measurement is off, the springs will be forced inward or outward, causing "dog-tracking" or catastrophic shackle failure.

1. Locate the center of the spring seat (the metal pad welded to the axle where the U-bolts wrap around).
2. Measure from the center of the bolt hole on the left spring seat to the center of the bolt hole on the right spring seat.
3. If the axle is missing, measure the distance between the centers of the leaf springs as they hang from the trailer frame.
4. Double-check this measurement by measuring from the inside of one spring to the outside of the other; this often provides a more distinct edge to measure against while representing the same center-to-center distance.

Pro-Tip: If you are measuring for a torsion axle, you do not have spring centers. Instead, you must measure the "Outside Bracket Dimensions," which is the distance from the outer edge of one mounting bracket to the outer edge of the other.

Step 4: Calculate the Axle Overhang

Overhang is the distance from the center of the spring to the face of the hub. This is calculated as: (Hub Face - Spring Centers) / 2. Most standard axles have an overhang between 6 and 9 inches. If your calculated overhang exceeds 10 inches, you risk bending the spindle at the point where it joins the axle tube due to excessive leverage. If you are custom-building a trailer, ensure your overhang provides at least 2 inches of clearance between the tire sidewall and the trailer frame.

Step 5: Identify the Spindle and Bearing Profile

If you are ordering a "drop axle" (where the spindle is offset from the tube) or need to replace bearings, you must identify the spindle size.

1. Use digital calipers to measure the diameter of the spindle at the "Inner Bearing Seat" (the larger diameter near the grease seal) and the "Outer Bearing Seat" (the smaller diameter near the nut).
2. Record these diameters in decimals (e.g., 1.375" and 1.063").
3. Note the spindle shape: Is it a straight spindle (same diameter for both bearings) or a tapered spindle?
4. If the axle is a "Drop Axle," measure the distance from the center of the axle tube to the center of the spindle. Standard drops are usually 4 inches or 6 inches.

Step 6: Determine the Bolt Pattern

The bolt pattern (or lug pattern) is defined by the number of bolts and the diameter of the circle they form.

• 4-Lug: Measure center-to-center of two opposite studs.
• 5-Lug: Measure from the back of one stud to the center of the second stud over. This mimics the diameter of the circle. Common 5-lug patterns are 5-on-4.5 inches.
• 6 and 8-Lug: Measure from the center of one stud to the center of the stud directly opposite across the hub.

Trailer Axle Technical Specifications and Capacity Indicators

The following table correlates axle tube diameters with standard weight capacities and bearing configurations. This helps verify that the measurements you have taken align with industry-standard load ratings.

Common Measurement Pitfalls and Field Resolutions

Failure Scenario 1: Measuring an Axle While Bent

• Root Cause: An axle that has hit a curb or been overloaded will likely be bowed or pushed backward, making any linear measurement across the tube inaccurate.
• Actionable Fix: Instead of measuring the axle itself, measure the trailer frame. Identify the center point of the front spring hangers on both sides. Measure the distance between these hangers to find your true Spring Center. Use the distance from the frame edge to determine the required Hub Face by adding the necessary tire clearance.

Failure Scenario 2: Misidentifying Hub Face vs. Overall Length

• Root Cause: Ordering an axle based on "Total Tip-to-Tip Length" rather than Hub Face. Axle manufacturers do not use total length as a standard because spindle nut lengths vary.
• Actionable Fix: Always specify the "Hub Face" measurement to the supplier. If the hubs are missing, provide the "Shoulder-to-Shoulder" measurement (the base of the spindles) and state clearly that the measurement is without hubs.

Failure Scenario 3: Incorrect Spring Center due to "Spring Spread"

• Root Cause: On older trailers, leaf springs can flatten or "splay" outward over time, meaning the distance between the springs at the axle mounting point is wider than the distance at the hanger.

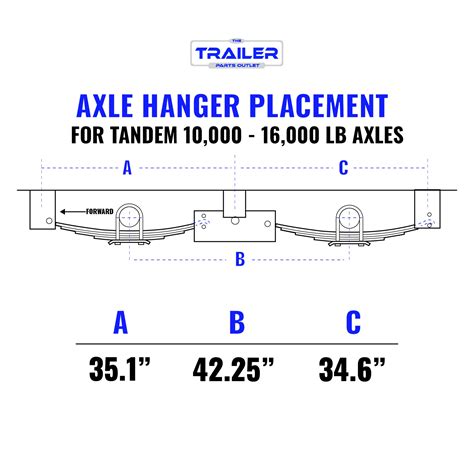

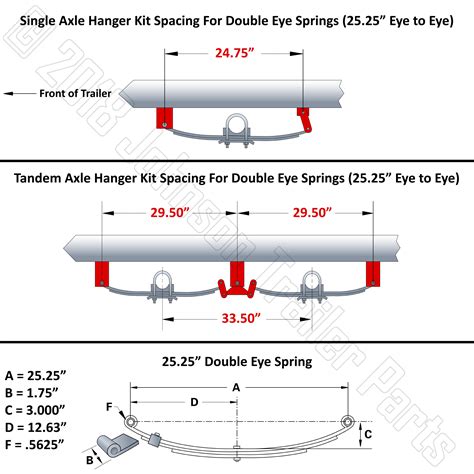

• Actionable Fix: Measure the distance between the spring hangers welded to the trailer frame (the "top" of the suspension). This measurement is fixed and does not change with spring wear, providing the most accurate "Spring Center" baseline for a new axle.

Failure Scenario 4: Overlooking the Axle Camber

• Root Cause: Most trailer axles have a slight upward bend (camber) in the middle of the tube. Measuring the tube as a straight line can slightly underrepresent the actual metal length required.
• Actionable Fix: Keep the measuring tape taut and level; do not follow the curve of the axle. Axles are sold by their straight-line Hub Face measurement, and the camber is factored in during the manufacturing process to ensure that once under load, the axle flattens out for even tire wear.

Frequently Asked Questions

Should I measure the axle with the weight of the trailer on it?

No. Measurements should be taken with the trailer frame supported on jack stands so the axle is not compressed. This ensures that the spring centers and camber are in a "neutral" state, providing the most consistent data for a replacement order.

What if my trailer uses a torsion axle instead of leaf springs?

Torsion axles do not have spring centers. You must measure the distance between the outside of the mounting brackets (the metal plates that bolt to the frame). You also need to specify the "Starting Angle" of the torsion arm (e.g., 10 degrees up, 0 degrees, or 22.5 degrees down) to ensure the ride height remains correct.

How do I measure for a drop axle versus a straight axle?

The primary measurements (Hub Face and Spring Centers) remain the same. However, you must also measure the "Drop," which is the vertical distance from the center of the spindle to the center of the main axle tube. Standard drops are usually 4 inches or 6 inches, designed to lower the trailer's center of gravity.

Can I change my hub face measurement to fit wider tires?

You can, but you must ensure that the "Spring Center" measurement remains identical to your frame width. If you increase the Hub Face to accommodate wider tires, you increase the "Overhang," which places more stress on the spindles. Always consult the axle manufacturer’s maximum overhang rating before widening your track.

Expert Axle Support and Procurement

Accurate measurement is the only way to guarantee the safety and longevity of your trailer’s suspension system. Once you have documented your Hub Face, Spring Center, and Bearing Profile, consult with a certified axle distributor to ensure your specifications meet the necessary load-bearing requirements for your specific application.
