How To Open A Heating And Air Conditioning Control Panel: A Professional Technical Guide
Accessing an HVAC control panel requires isolating electrical power at the circuit breaker to prevent high-voltage contact and utilizing the correct mechanical interface to avoid damaging fragile plastic housing or circuit boards. By following manufacturer-specific entry protocols, you can safely perform diagnostics, replace batteries, or inspect wiring integrity without compromising the operational lifespan of the thermostat or zone controller.
Essential Preparation, Safety Protocols, and Tool Requirements
Attempting to open an HVAC control panel, whether it is a residential wall-mounted thermostat or a commercial rooftop unit (RTU) control board, requires a structured approach to prevent static discharge (ESD) and electrical injury. Before initiating access, ensure you have verified the specific make and model, as proprietary latch systems vary significantly between manufacturers like Honeywell, Nest, Ecobee, and Trane.
- Essential Tooling: Precision Phillips-head screwdriver (size #0 or #1), flat-head jeweler’s screwdriver for prying, non-conductive plastic spudger, and a digital multimeter for voltage verification.
- Safety Prerequisites: Always confirm power status at the HVAC service disconnect switch or the primary electrical panel. Never attempt to access a control board while the equipment is energized unless performing live-voltage testing by a certified technician.
- Environmental Requirements: Work in a low-humidity environment to reduce static electricity risk. If handling exposed circuit boards, use an anti-static wrist strap connected to a grounded surface.
- Operational Benchmark: Estimated duration for standard thermostat access is 5 to 10 minutes; industrial control cabinets may require 20 to 30 minutes for proper panel door securement.
Systematic Procedure for Control Panel Access
Step 1: Secure Electrical Isolation and Workspace Prep
Before making physical contact with the unit, locate the circuit breaker panel in your home or facility. Identify the switch labeled "Furnace," "Air Handler," or "HVAC" and move it to the "Off" position. If you are accessing a wall-mounted thermostat, the low-voltage (24VAC) circuit is typically protected by the equipment fuse, but full isolation at the breaker remains the industry standard for risk mitigation. Use a non-contact voltage tester on the exterior of the enclosure to verify the absence of current before proceeding.
Step 2: Identify the Mechanical Latching Mechanism
HVAC controllers utilize three primary fastening systems: tension-based snap-fits, bottom-mounted set screws, or sliding faceplate tracks. Inspect the bottom, sides, and top of the unit for small recessed holes.
Warning: If a screw is present, do not attempt to pry the faceplate off directly. Forcing a screwed-in unit will snap the plastic tabs, rendering the casing permanently loose. Use the precision screwdriver to back out the screw halfway, then apply gentle, even pressure to the faceplate to release the internal retention clips.
Step 3: Managing Delicate Internal Components
Once the outer housing is disengaged, pull the faceplate away from the wall or mounting base slowly. Many modern smart thermostats utilize a ribbon cable or a multi-pin connector to bridge the faceplate to the backplate. Exercise caution to ensure you do not put tension on these connectors. If you encounter a wire harness, locate the release tab on the connector and depress it firmly before pulling. Avoid touching the copper pins directly, as oils from human skin can lead to oxidation and poor conductivity over time.
Step 4: Internal Inspection and Diagnostic Access
With the panel open, perform a visual inspection for signs of heat stress, such as browned components, melted insulation, or the presence of debris. Use compressed air in short, controlled bursts to remove dust from circuit board surfaces. If your intent is to inspect wiring, confirm that the wire colors match the terminal labels (e.g., R, W, Y, G, C) according to the National Electrical Code (NEC) color-coding standards.

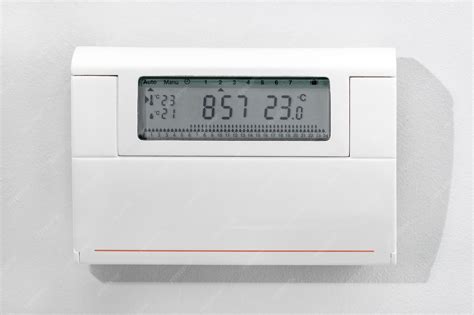

Premium Photo | Air conditioning control panel mounted on the wall of ...
Technical Comparison of HVAC Control Interface Methods
| Interface Type | Primary Access Method | Mechanical Risk Factor | Best Practice |
|---|---|---|---|
| Smart Touchscreen | Hidden bottom screw | High (Display fracture) | Use plastic spudger |
| Analog Mechanical | Snap-fit base | Moderate (Clip fatigue) | Slide upward then pull |
| Industrial RTU Panel | Latched metal door | Low (Hinge alignment) | Use T-handle key |
| Wireless Hub/Base | Friction-fit cover | Low (Housing warp) | Even, steady pressure |
Common Field Failures and Remediation Strategies
- Mechanical Tab Failure: If a plastic retaining clip snaps during removal, the faceplate will lose flush-mount contact. Remedy this by applying a small piece of removable mounting putty inside the housing to ensure constant contact with the baseplate pins.
- Corrosion on Terminals: High humidity can cause copper wire oxidation at the screw terminals. If power is intermittent, remove the wires, trim the corroded end, re-strip to 1/4 inch, and re-insert into the terminal block.
- Static Discharge (ESD) Shock: Touching the CPU component after walking on carpet can cause a reset loop. Always ground yourself by touching a metal pipe or appliance chassis before opening the inner control board housing.
- Stuck Faceplate Latch: If the release button feels jammed, do not force it. Use a small drop of isopropyl alcohol around the perimeter of the button to break down any accumulated dust or grime, then re-attempt pressure.
Frequently Asked Questions
How do I open a Nest thermostat faceplate?
The Nest Learning Thermostat does not require screws; it is held to the base by magnets. Simply pull the display portion directly away from the wall base with even pressure, and it will pop off, exposing the wiring terminals.
What should I do if the thermostat feels stuck to the wall?
Check for a tiny hex screw or Phillips screw located on the bottom edge of the thermostat base. Some installers use these as security locks; back the screw out completely before attempting to remove the faceplate.
Is it safe to open the HVAC panel while the AC is running?
No. Opening the control panel while the system is under load is dangerous due to exposed high-voltage components in the primary furnace control board or the condenser unit. Always cut the power before removing any access panels.
Does opening the control panel void the equipment warranty?
Generally, basic maintenance access such as replacing batteries or checking wiring does not void a warranty. However, tampering with the circuit board, bypassing safety sensors, or soldering components will almost certainly void manufacturer coverage.
Ensure your climate control systems operate at peak efficiency by verifying all electrical connections and internal components are free from debris or oxidation. If you encounter persistent technical issues or complex wiring faults, consult a licensed HVAC professional to prevent localized equipment failure or fire hazards.
