How To Paint Baseboard Heaters: The Complete Step-by-Step Restoration Guide
Transforming yellowed, scuffed, or rusted baseboard heaters requires high-temperature-resistant coatings and rigorous surface preparation to prevent blistering and peeling under thermal cycling. This comprehensive guide details how to safely clean, sand, prime, and paint hydronic or electric baseboard units using specialized enamel formulations for a durable, factory-like finish.
Pre-Operation & Equipment Checklist
Revitalizing baseboard heaters is a straightforward weekend DIY project that significantly elevates a room's interior aesthetic. However, skipping critical preparation steps—such as using standard latex wall paint instead of heat-resistant enamel—will result in rapid discoloration, bubbling, and noxious off-gassing when the heating season begins.
Before starting, gather the necessary equipment and verify your workspace requirements:
- Essential Gear and Materials: High-heat spray enamel or acrylic-alkyd brush-on enamel (rated for at least 200 degrees Fahrenheit), 120-grit and 220-grit sandpaper, a high-density foam roller and angled brush (if not spray painting), trisodium phosphate (TSP) substitute cleaner, microfiber tack cloths, painter's tape, and heavy-duty drop cloths.
- Safety and Environmental Setup: Nitrile gloves, safety glasses, an N95 respirator (especially if spray painting), and adequate room ventilation.
- Prerequisites and Standards: The heating system must be completely turned off and cold to the touch. Ambient room temperature should be between 50 and 85 degrees Fahrenheit with relative humidity below 70 percent for optimal paint curing.
- Scope and Benchmarks: Budget roughly 4 to 6 hours of active work spread across two days, factoring in dry and cure times. Expect to spend $30 to $60 on specialized supplies.
Step-by-Step Baseboard Heater Restoration Workflow
Step 1: De-energize and Disassemble the Units
Begin by shutting off the power source to electric baseboard heaters at the circuit breaker box, or turn off the boiler system and zone valves for hydronic (hot water) heaters. Ensure the metal housing is completely cool. Carefully remove the snap-on or screw-fastened accessories, including end caps, dampers, and front cover plates. For electric units, you may need to detach the front baffle to access internal dust accumulation.
Warning: Never attempt to paint or clean a baseboard heater while the electrical circuit is live or while the pipes are hot. Verify total system shutdown using a non-contact voltage tester on electric models.
Step 2: Clean and Degrease the Metal Surfaces
Baseboard heaters naturally draw in dust, pet dander, and airborne oils, which prevent new paint from adhering. Vacuum the interior fins and housing thoroughly using a brush attachment. Wash all exterior metal surfaces with a TSP substitute mixed in warm water to strip away grease and grime. Rinse the metal thoroughly with clean water and wipe it completely dry with a microfiber towel. Allow the components to air dry for at least two hours.
Step 3: Sand and Profile the Existing Finish
Examine the metal housing for peeling paint, rust spots, or glossy factory finishes. Hand-sand the entire exterior surface using 120-grit sandpaper to rough up the existing gloss and create a mechanical bond for the primer. For localized rust spots, sand down to bare metal. Switch to 220-grit sandpaper to smooth out any transition lines. Wipe away all sanding dust using a tack cloth dampened slightly with denatured alcohol.

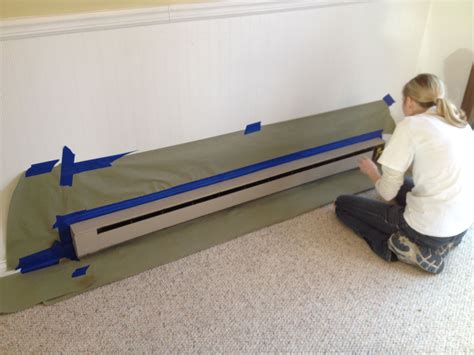

Step 4: Mask Surrounding Areas and Apply Primer
Protect your flooring, baseboards, and walls by sliding heavy-duty cardboard or folded drop cloths underneath the heater backplate. Apply blue painter's tape meticulously along the wall and floor edges touching the heater. Apply a thin, even coat of a rust-inhibiting, high-heat metal primer. If you are painting over bare metal or rusty patches, an etching primer is mandatory. Let the primer cure according to the manufacturer's instructions, typically 2 to 4 hours.
Pro-Tip: Lightly de-nib the dried primer coat with a 220-grit sanding sponge to remove microscopic dust bumps before applying your finish coats for an ultra-smooth finish.
Step 5: Apply Heat-Resistant Finish Coats
Shake your high-heat spray can vigorously for two minutes, or stir your brush-on enamel thoroughly. Apply the paint in light, sweeping passes if using a spray can, maintaining a distance of 8 to 10 inches to prevent runs and sags. If brushing, use an angled synthetic brush for corners and a high-density foam roller for flat panels. Apply two thin coats rather than one heavy coat, waiting the recommended recoat window between applications. Reinstall all covers only after the paint has fully cured for at least 24 hours.
What Type Of Paint To Use On Baseboard Heaters at Edward Zoller blog
Coating Selection Matrix for Baseboard Restoration
| Coating Type | Application Method | Heat Tolerance | Best Use Case | Cure Time |
|---|---|---|---|---|
| High-Heat Aerosol Enamel | Spray Can | Up to 1200°F | Electric baseboards, grilles, and severely rusted areas | 24 Hours |
| Acrylic-Alkyd Enamel | Brush and Roller | Up to 200°F | Standard hydronic hot-water baseboards | 48 Hours |
| Rust-Inhibiting Metal Primer | Spray or Brush | Up to 400°F | Bare steel, iron, and rust-prone surfaces | 4 Hours |
Common Restoration Failures and Field Fixes
- Blistering and Bubbling Shortly After Heating:
- Root Cause: The paint was applied over unprimed rust, moisture, or oil residue, or the heating system was turned on before the coating fully cured.
- Actionable Fix: Scrape away the bubbled paint down to bare metal, feather the edges with 120-grit sandpaper, clean with denatured alcohol, spot-prime with a rust-inhibiting metal primer, and reapply the finish coat.
- Yellowing of White Paint Over Time:
- Root Cause: Using standard interior latex paint instead of a non-yellowing, heat-rated alkyd or acrylic enamel that breaks down under thermal stress.
- Actionable Fix: Sand the discolored surface lightly to create a mechanical key, wipe clean, and apply two coats of a high-heat appliance or radiator enamel formulated to resist thermal yellowing.
- Paint Sagging and Running During Application:
- Root Cause: Holding a spray can too close to the metal surface, or overloading the paintbrush with too much product in a single pass.
- Actionable Fix: Allow the sagging paint to dry completely, sand the runs flat and smooth using 220-grit sandpaper, wipe away the dust, and apply a thin, controlled coat.
- Chipping Along Edges and Joints:
- Root Cause: Inadequate surface sanding on factory-gloss finishes, or failing to degrease areas frequently handled during installation.
- Actionable Fix: Feather the chipped edges with fine-grit sandpaper, wipe down with a degreaser, and touch up the affected spots using an artist's brush or a targeted spray burst.
Frequently Asked Questions
Can I use regular wall paint on baseboard heaters?
No, standard latex wall paint lacks the necessary thermal elasticity and heat tolerance. When the heater turns on, standard paint will quickly blister, crack, peel, and emit unpleasant odors. Always use a specialized high-heat enamel or appliance paint rated for elevated temperatures.
Do I need to remove the baseboard heaters from the wall to paint them?
Complete removal is rarely necessary. You can successfully paint baseboard heaters in place by detaching the snap-on front covers, end caps, and dampener panels. Thoroughly mask off the adjacent walls and flooring using painter's tape and drop cloths to prevent overspray or drips.
How long should I wait before turning on the heaters after painting?
You should wait a minimum of 24 to 48 hours for the paint to completely cure at room temperature before firing up the heating system. When you first turn the system on, set it to a low temperature for the initial hour to allow the coating to fully polymerize without thermal shock.
Why do my freshly painted baseboard heaters smell when turned on?
A slight odor during the initial heating cycle is normal as residual solvents in the enamel finish off-gas under heat. This smell typically dissipates within a few hours. Ensure adequate room ventilation by opening windows slightly during the first operational cycle after painting.
How do I prevent rust from returning on metal baseboard covers?
Preventing rust requires complete mechanical removal of existing oxidation down to bright metal, followed immediately by a dedicated rust-inhibiting metal primer. Sealing the bare steel blocks oxygen and moisture, which are the two primary catalysts for ferrous metal corrosion.
