The Complete Guide To Programming Somfy Remotes For Motorized Window Treatments

Programming a Somfy remote requires synchronizing the RTS (Radio Technology Somfy) or IO signal between the transmitter and the internal motor through specific button sequences and power cycles. This process establishes precise upper and lower travel limits, motor rotation direction, and the programming of custom intermediate positions, ensuring your motorized blinds, shutters, or awnings operate within safe mechanical thresholds.

Pre-Programming Requirements and Hardware Audit

Before initiating the synchronization sequence, you must identify the specific technology used by your Somfy motor. Somfy systems typically operate on one of two protocols: RTS (433.42 MHz) or IO-homecontrol (868-870 MHz). Most residential motorized shades and awnings utilize RTS, while more complex integrated home automation systems may use IO. You must also ensure that the motor is receiving a consistent power supply and that no other motorized products are powered on during the initial pairing phase to prevent accidental cross-programming.

• Essential Equipment: A functional Somfy remote (Situo, Telis, or Smoove models), a paperclip or specialized "Prog" tool for recessed buttons, and a fresh CR2430 or CR2032 lithium battery.
• Prerequisite Knowledge: Familiarity with the "jog" or "jiggle" response—a brief up-and-down movement the motor makes to confirm it has received a command.
• Time Benchmark: Initial pairing takes approximately 5 to 10 minutes per channel, while a full factory reset and limit reconfiguration may require 15 to 20 minutes.
• Safety Standard: Ensure the path of the shade or awning is clear of obstructions to prevent motor strain or fabric damage during the limit-setting phase.

Comprehensive Step-by-Step Somfy Remote Programming Workflow

The following procedures cover the most common installation scenarios, from initial wake-up to setting the favorite "My" position. These steps apply to the vast majority of Somfy RTS motors found in roller shades, Roman blinds, and outdoor awnings.

Step 1: Initiating Communication and Wake-Up

The first step is to wake the motor from its factory sleep mode. Ensure the motor is plugged into a power source or that the battery pack is fully connected. If you are programming multiple motors, it is vital to disconnect power from all motors except the one you are currently configuring.

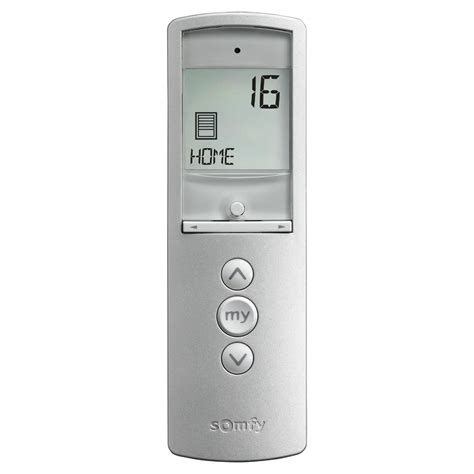

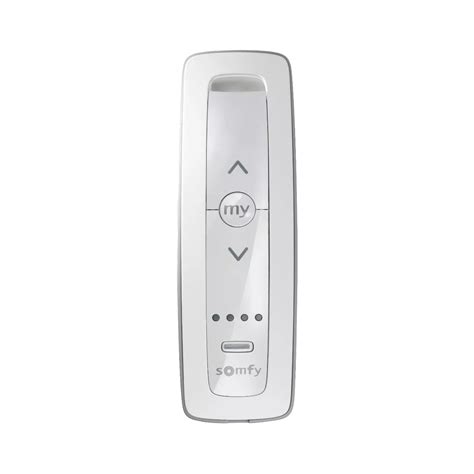

1. Pick up the remote control and select the desired channel if you are using a multi-channel remote (like the Telis 4 or Situo 5).
2. Press and hold the Up and Down buttons simultaneously until the motorized window treatment performs a brief jog (an up-and-down movement).
3. This jog indicates that the motor is now in programming mode and is ready to accept commands from this specific remote channel.

Step 2: Testing and Reversing Motor Direction

Once the motor is paired, you must verify that the buttons correspond to the correct movement. If you press the Down button and the shade moves up, the motor's internal polarity must be reversed.

1. Press the Down button. If the shade moves down, proceed to Step 3.
2. If the shade moves up, press and hold the center My (or Stop) button for approximately five seconds until the motor jogs.
3. Test the direction again by pressing the Down button. The motor should now respond correctly. This step must be completed before setting the travel limits.

Step 3: Establishing the Upper and Lower Travel Limits

Setting the limits defines where the shade starts and stops. Failure to set these correctly can lead to the fabric unrolling too far or the motor attempting to pull the shade through the headrail.

1. Press and hold the Up button to move the shade to your desired upper limit. Once it reaches the top, release the button. You can fine-tune the position with short presses of the Up or Down buttons.
2. Once the upper position is perfect, press and hold the My and Down buttons simultaneously. The shade will begin to move downward. Release the buttons once the shade starts moving.
3. Stop the shade near the desired lower limit by pressing the My button. Use the Up and Down buttons to adjust the lower limit precisely.
4. Once the lower position is set, press and hold the My and Up buttons simultaneously. The shade will begin to move upward toward the previously set upper limit.
5. Allow the shade to stop automatically at the upper limit.

Step 4: Finalizing and Locking the Programming

The motor now "remembers" the limits, but they are not yet permanently stored in the internal memory. To lock these settings, you must perform a final confirmation.

1. Press and hold the center My button until the motor performs a jog. This confirms the limit settings.
2. Turn the remote over and locate the recessed Prog button on the back of the transmitter.
3. Using a paperclip or the end of a pen, press and hold the Prog button briefly until the motor jogs one last time.
4. The motor is now out of programming mode and will function with standard button presses.

Step 5: Configuring the "My" Favorite Position

The "My" position allows you to set a custom intermediate height, such as halfway down to reduce glare while maintaining a view.

1. Move the shade to the exact position you want as your favorite using the Up or Down buttons.
2. Press and hold the My button for five seconds until the motor jogs.
3. To test it, move the shade to any other position and then give the My button a short press. The shade will automatically travel to your custom favorite spot.

Somfy Remote Model Specifications and Comparison

Understanding the technical differences between remote models helps in troubleshooting range issues or channel conflicts. RTS technology relies on a rolling code system to prevent interference from other household electronics.

Technical Troubleshooting for Motor Synchronization Failures

Even with high-end Somfy equipment, external interference or incorrect sequencing can lead to programming failures. Here are the most common real-world issues encountered by professional installers.

• The 2-10-2 Factory Reset Sequence




  • Root Cause: The motor has become unresponsive, or the limits are incorrectly locked, requiring a total system purge.
  • Actionable Fix: Perform a power cut reset. Disconnect the motor from power for 2 seconds. Reconnect it for 10 seconds. Disconnect it again for 2 seconds. Reconnect it permanently. The motor will move or jog. Then, hold the Prog button on the back of the remote until the motor jogs twice. This completely clears the motor memory, allowing you to start Step 1 again.

• Motor Jogs but Does Not Save Limits




  • Root Cause: The motor was not exited from "Programming Mode" correctly, often because the Prog button on the back was not pressed at the end of the sequence.
  • Actionable Fix: Repeat Step 4. Ensure you use a paperclip to press the recessed button on the back of the remote until you see the confirmation jog.

• Intermittent Signal Response




  • Root Cause: Radio frequency interference or low battery voltage causing the RTS signal to drop.
  • Actionable Fix: Replace the CR2430 battery immediately. If the issue persists, check for large metal objects or wireless routers placed directly between the remote and the motor, as these can attenuate the 433.42 MHz signal.

• Remote Operates Multiple Shades Simultaneously




  • Root Cause: Multiple motors were powered on during the initial pairing process, and they all "listened" to the same channel assignment.
  • Actionable Fix: You must isolate each motor by disconnecting their power sources. Reset each motor individually using the 2-10-2 method and re-program them one at one time while the others are powered off.

Frequently Asked Questions

How do I add a second remote to an existing Somfy motor?

To add a new remote, take the already programmed remote and press the Prog button on the back until the motor jogs. Immediately pick up the new remote, select the desired channel, and press its Prog button until the motor jogs again. The new remote is now paired with the same settings.

What should I do if my Somfy remote battery dies?

Simply slide the battery cover off or unscrew the back plate (depending on the model) and replace the lithium coin cell battery. Replacing the battery does not erase the motor's memory or limits, so no re-programming is necessary once the new battery is installed.

Why does my shade only move in small increments when I press the button?

This usually means the motor is still in "User Mode" without limits set, or it is in "Tilting Mode" intended for Venetian blinds. To fix this, you generally need to perform a full factory reset and follow the travel limit programming sequence from start to finish.

Can I program a Somfy RTS remote to an IO motor?

No, RTS and IO-homecontrol are different radio protocols and are not cross-compatible. You must use an RTS transmitter with an RTS motor and an IO transmitter with an IO motor. Most remotes have the technology type printed on the back or near the battery compartment.

How do I delete a single remote from the motor's memory?

Take a remote that you want to keep paired with the motor and press the Prog button on the back until the motor jogs. Then, take the remote you want to delete and press its Prog button until the motor jogs. The second remote is now removed from the motor's memory.
