How To Pull Fuel Injectors: The Complete Professional Removal Guide
Pulling fuel injectors requires depressurizing the high-pressure fuel rail, systematically disconnecting the electrical connectors and mounting hardware, and carefully extracting the injectors without damaging the fragile O-rings, pintle caps, or fuel rail bores. Executing this procedure correctly prevents dangerous gasoline leaks, vacuum anomalies, and costly component replacements on modern port injection or direct injection powerplants.
Pre-Operation & Initial Setup Requirements
Successful fuel injector removal demands meticulous preparation to manage residual fuel pressure, prevent environmental contamination, and preserve fragile plastic or rubber components. Working on a warm engine increases the risk of fuel boiling over or severe burns, so always begin with a completely cold engine resting on a flat, level surface with the parking brake securely engaged.
- Essential Gear and Tools: Metric socket set (shallow and deep, 10mm through 14mm), combination wrenches, flathead screwdriver, specialized injector removal pliers (optional but recommended), clean microfiber shop towels, safety glasses, nitrile gloves, a Class B fire extinguisher, a vacuum extractor or clean catch pan, and fresh upper and lower Viton O-rings along with pintle caps for reinstallation.
- Prerequisite Standards: Knowledge of automotive fuel safety protocols, understanding of quick-disconnect electrical locking tabs, and familiarity with relieving Schrader-valve fuel pressures or cycling the fuel pump fuse.
- Benchmarks and Scope: The entire procedure typically takes between 1.5 to 3 hours depending on intake manifold clearance, and carries a moderate difficulty rating (Level 3 out of 5) due to tight engine bay packaging.
Step-by-Step Fuel Injector Extraction Procedure
Step 1: Relieve Fuel System Pressure
- Locate the fuel pump relay or fuse inside the under-hood power distribution center or cabin fuse panel.
- Start the engine, pull the fuse or relay while the engine is running, and allow the remaining fuel in the lines to burn off until the engine stalls naturally.
- Crank the starter for an additional three to five seconds to ensure absolute zero pressure remains in the high-pressure fuel rail.
- Disconnect the negative battery terminal using a 10mm wrench and tuck the cable safely away to prevent accidental electrical arcing near open gasoline vapors.
Warning: Never skip pressure relief. Even with the engine off, automotive fuel systems can retain pressures exceeding 50 to over 2000 psi in direct-injection setups, creating a severe fire hazard and high-speed spray risk.
Step 2: Clear Intake and Accessory Obstructions
- Remove the engine beauty cover, plastic acoustic damping panels, and the air intake ducting running from the air filter housing to the throttle body.
- Unbolt and set aside any vacuum lines, coolant hoses, or electrical brackets obstructing clear physical access to the intake manifold and fuel rail.
- Plug any open throttle body or intake runner ports immediately with clean shop towels to prevent debris, dirt, or stray hardware from falling into the combustion chambers.
Step 3: Disconnect Electrical Harnesses
- Inspect the wiring harness clips attached to each fuel injector solenoid.
- Slide the red or gray secondary locking tabs backward on each connector using a small flathead screwdriver.
- Depress the primary plastic release levers firmly and pull straight back on the connector body. If a tab is brittle, gently assist it with a pick tool, taking care not to crack the harness housing.
Step 4: Detach the Fuel Rail and Extract Injectors
- Unbolt the fuel rail mounting fasteners, which are typically secured by two to four 10mm or 12mm bolts or studs bolted directly to the cylinder head or intake manifold.
- Rock the fuel rail gently from side to side to break the static friction holding the injector O-rings inside their respective manifold or cylinder head bores.
- Pull the fuel rail straight upward with even pressure across its length so all injectors exit the ports simultaneously.
- Recover any fuel injectors that remain seated in the cylinder head rather than the rail by twisting and pulling them upward using specialized extraction pliers or gloved hands.
Pro-Tip: Smear a tiny drop of clean engine oil or petroleum jelly on the new O-rings during reassembly. Never use silicone grease, as it can foul oxygen sensors and catalytic converters permanently.

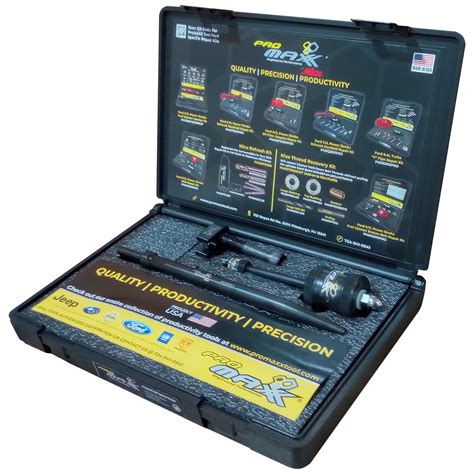

Ford Power Stroke 6.7L Fuel Injector Seal Puller & Saver
Fuel Delivery System Comparison and Service Specs
| Injector Type | Operating Pressure | Common Removal Challenge | Replacement Interval / Service Rule |
|---|---|---|---|
| Port Fuel Injection (PFI) | 40 – 60 PSI | Brittle plastic connectors and vacuum leaks from old O-rings | Inspect every 60,000 miles; replace O-rings on every extraction |
| Gasoline Direct Injection (GDI) | 500 – 3,000+ PSI | Extreme carbon coking binding the tip inside the combustion chamber | Clean tips ultrasonically; replace Teflon combustion seals and expanders |
| Sequential Multiport Injection | 45 – 85 PSI | Restricted clearance under upper intake plenums | Use torque-limiting extensions; replace rail mounting isolators |
Common Extraction Complications & Field Fixes
- Stuck Injectors Bound by Carbon: Direct injection tips often bake inside the cylinder head due to combustion chamber exposure. Root Cause: Hardened carbon deposits locking the nozzle taper to the cylinder head bore. Actionable Fix: Apply a penetrating solvent around the injector base, let it soak for 30 minutes, and use a slide-hammer injector puller adapter to apply controlled upward shock loads rather than twisting.
- Broken Electrical Connector Tabs: Plastic locking clips become brittle from continuous under-hood heat cycling. Root Cause: Ultraviolet exposure and high thermal loads degrading the PBT/Nylon polymer. Actionable Fix: Replace the damaged pigtail harness using waterproof heat-shrink butt connectors, or secure the loose connector safely with zip-ties temporarily until a permanent repinning can occur.
- Torn O-Rings Left Behind: Old rubber seals swell and shear off during extraction. Root Cause: O-ring vulcanization against aluminum bore walls. Actionable Fix: Inspect the intake port thoroughly with a flashlight and inspection mirror, and extract any leftover rubber fragments with a long magnetic pickup or dental pick before installing new components.
Frequently Asked Questions
Do I need to replace my fuel injector O-rings every time I pull them?
Yes, you must always replace upper and lower O-rings and backup washers whenever fuel injectors are removed. Compressed rubber seals lose their elasticity and sealing integrity over time, which will cause dangerous fuel leaks, air vacuum anomalies, and rough idle conditions if reused.
Can I clean fuel injectors myself after pulling them?
You can perform a basic bench-cleaning operation by connecting a 12-volt pulse generator and a pressurized aerosol cleaner can to the injector inlet. However, for severely fouled direct-injection units, professional ultrasonic cleaning and flow testing bench services are necessary to restore correct spray patterns.
How do I relieve high-pressure fuel safely on direct injection engines?
Direct injection systems operate at extreme pressures that persist long after engine shutdown. You must disconnect the fuel pump control module or fuse, run the engine until it stalls, and wait at least 30 minutes for the high-pressure mechanical pump and rail to bleed down naturally before opening any fittings.
What causes a fuel injector to stick or seize in the cylinder head?
Continuous exposure to combustion byproducts, extreme heat cycles, and carbon buildup cause the tight tolerances between the injector nozzle and cylinder head bore to fuse together. Regular fuel system additives and timely maintenance help minimize excessive carbon accumulation around the injector tips.
