How To Read Monitor At Hospital: A Comprehensive Guide To ICU And ER Patient Displays

Hospital bedside monitors, commonly referred to as multi-parameter monitors, continuously aggregate and display critical physiological metrics including heart rate, blood pressure, oxygen saturation, and respiratory rate. Mastering the color-coded waveform displays and numerical thresholds allows family members and healthcare trainees to quickly identify baseline stability versus acute clinical deterioration.

Decoding the Bedside Terminal: Equipment and Baseline Standards

Before attempting to interpret clinical data, understanding the layout of the physiological monitor is essential. Modern intensive care unit (ICU) and emergency room (ER) monitors standardize data streams across specific channels, typically color-coded to prevent medical errors.

• Essential Gear and Materials: Bedside multi-parameter monitor, 3-lead or 5-lead electrocardiogram (ECG) cables, pulse oximetry finger probe, non-invasive blood pressure (NIBP) cuff, and an optional arterial line or capnography sensor.
• Mandatory Prerequisite Knowledge: Familiarity with baseline human vital sign ranges, understanding standard color-coding conventions (ECG is typically green/white, oxygen saturation is red/yellow, blood pressure is blue/white), and recognizing alarm priority tiers (low, medium, high).
• Operational Duration Benchmarks: Continuous real-time monitoring occurs 24 hours a day during acute admissions, with non-invasive blood pressure cycles typically auto-programmed to measure every 15 to 60 minutes depending on patient stability.

Step-by-Step Patient Monitor Interpretation Workflow

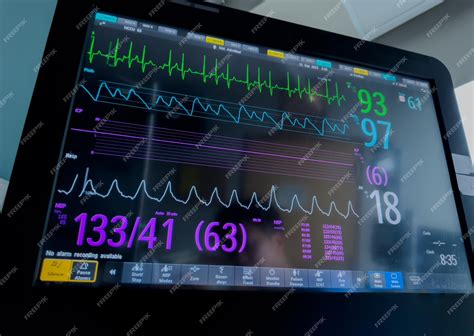

Step 1: Analyze the Electrocardiogram (ECG) and Heart Rate

Locate the top channel on the monitor, which is universally dedicated to the electrocardiogram trace and heart rate (HR), typically displayed in green or white. Count the numerical heart rate value, which represents ventricular contractions per minute, with a normal adult resting baseline ranging from 60 to 100 beats per minute. Observe the rhythm waveform to ensure consistent QRS complexes (the sharp upward and downward spikes representing ventricular depolarization).

Pro-Tip: Do not panic over momentary heart rate spikes or drops that correspond to patient movement or coughing; always correlate the waveform artifact with the physical state of the patient before assuming a true arrhythmia.

Step 2: Evaluate Oxygen Saturation (SpO2)

Find the numeric value labeled SpO2, accompanied by a plethysmographic waveform that pulses up and down in sync with the heartbeat, usually displayed in blue or yellow. Check the percentage value, where a normal healthy adult reading ranges from 95% to 100% on room air. Note the perfusion index (PI) or signal strength indicator to ensure the finger probe is receiving an adequate pulsatile signal and is not compromised by cold extremities or nail polish.

Warning: An oxygen saturation reading below 92% generally warrants clinical attention, while values consistently dropping below 88% indicate hypoxemia requiring immediate supplemental oxygen or respiratory intervention.

Step 3: Read Blood Pressure (NIBP or Arterial Line)

Locate the blood pressure parameter, which displays two primary numbers in millimeters of mercury (mmHg) separated by a slash, such as 120/80, along with a mean arterial pressure (MAP) in parentheses. The top number represents systolic pressure during heart contraction, the bottom number represents diastolic pressure during cardiac relaxation, and the MAP reflects the average arterial pressure driving blood through systemic organs. Normal adult resting blood pressure is generally defined as less than 120/80 mmHg with a MAP between 70 and 100 mmHg.

Step 4: Monitor Respiratory Rate and End-Tidal CO2

Examine the respiratory rate (RR) metric, which measures the number of breaths a patient takes per minute, alongside the capnography waveform if an end-tidal carbon dioxide (EtCO2) line is attached. A normal adult respiratory rate ranges from 12 to 20 breaths per minute, characterized by regular, even waveform heights. Sudden flattening of the capnography waveform or a respiratory rate dropping below 8 breaths per minute signals acute respiratory depression or airway obstruction.

Technical Parameters and Normal Physiological Thresholds

Common Monitor Troubleshooting and Alarm Management

• False Low Oxygen Saturation Alarms:


  • Root Cause: Poor peripheral circulation, cold hands, patient motion, or dark nail polish interfering with the infrared light absorption of the pulse oximetry probe.
  • Actionable Fix: Reposition the sensor to a different finger, warm the patient's hand, or move the probe to the earlobe or forehead for central perfusion reading.
• Disconnected ECG Lead Artifacts:


  • Root Cause: Loose electrode patches, dry electrode gel, or patient shifting causing static interference and erratic waveform spikes on the screen.
  • Actionable Fix: Firmly press down the perimeter of each sticker lead, wipe skin with an alcohol pad to remove oils before replacing old electrodes, and check that the leadwire snap connectors are securely attached.
• Repeated Non-Invasive Blood Pressure Inflation Failures:


  • Root Cause: Incorrect cuff size, a folded or kinked air hose, or excessive patient arm movement during the automated inflation cycle.
  • Actionable Fix: Select a cuff width that covers approximately 40% of the upper arm circumference, straighten the rubber hose without sharp bends, and instruct the patient to keep their arm still and resting flat at heart level during measurements.

Frequently Asked Questions

What do the different colored waveforms on a hospital monitor mean?

Hospital monitors standardize colors to help clinicians quickly identify parameters at a glance, with ECG traces typically shown in green or white, oxygen saturation in red or yellow, and blood pressure in blue or white. The matching numerical values adopt the same color scheme as their respective live waveforms. A flashing color or highlighted number usually corresponds to a priority alarm limit violation.

Why is the heart monitor beeping with a yellow or red flashing light?

Monitors use visual and auditory alarms programmed with specific threshold limits set by the medical team for each individual patient. Yellow alarms indicate medium-priority warnings such as a parameter drifting outside safe preset bounds, while red alarms represent high-priority emergencies like cardiac arrest, ventricular fibrillation, or severe oxygen desaturation requiring immediate intervention. Never silence an alarm permanently without investigating the underlying physiological cause or notifying a nurse.

What is MAP and why is it displayed on the blood pressure monitor?

MAP stands for Mean Arterial Pressure, which calculates the average arterial pressure throughout one cardiac cycle, taking into account that the heart spends more time in diastole than systole. A normal MAP ranges between 70 and 100 mmHg, and clinicians monitor this metric closely because a value consistently below 65 mmHg indicates that vital organs like the brain and kidneys are not receiving sufficient blood perfusion.

How can I tell the difference between a real medical emergency and a loose monitor wire?

A real clinical emergency is usually confirmed when multiple parameters decline simultaneously, such as a drop in heart rate accompanied by a falling blood pressure and a declining oxygen saturation. Conversely, isolated anomalies—such as a sudden flatline on the ECG accompanied by a calm patient who is talking or breathing normally—almost always indicate a detached lead wire, a dislodged sensor, or a motion artifact rather than a true crisis.

Mastering hospital monitor readings bridges the gap between anxiety and empowerment during acute medical care stays. Review facility-specific alarm parameters with the bedside nursing staff to ensure accurate interpretation of every specialized clinical data stream.
