How To Remove A Drill Chuck: The Definitive Mechanical Guide

Removing a drill chuck requires specific mechanical leverage, careful application of kinetic force, and an understanding of the spindle-to-chuck interface, whether it utilizes a Jacobs taper, a threaded mount, or a locking screw. Achieving a successful removal depends on identifying the mounting system and employing the correct extraction method—wedges, pullers, or simple hand tools—without compromising the runout accuracy of the drill spindle.

Preparation and Essential Tooling Requirements

Before initiating the removal, you must correctly identify the mounting interface of your drill chuck. The three primary standards are Jacobs Taper (a friction-fit conical press), Threaded (screwed directly onto the spindle nose), and internal retaining screw (common in keyed and keyless chucks on modern power tools). Proceeding without identifying the interface can result in irreparable damage to the spindle bearings or the chuck collar.

• Essential Tools:


  • Brass or dead-blow hammer (do not use hardened steel to avoid marring the spindle).
  • Chuck wedge or a flat steel drift tool.
  • Allen wrenches or Torx bits for internal locking screws.
  • Penetrating oil (such as PB Blaster or WD-40 Specialist) for seized tapers.
  • Bench vise with soft aluminum or plastic jaws.
• Safety Requirements: Always disconnect the power source or remove the battery pack. Wear safety glasses to protect against metal filings or dislodging debris.
• Benchmarks: The process typically takes 15 to 30 minutes. If the chuck is significantly seized due to corrosion, allow at least one hour for penetrating oil to saturate the interface before applying mechanical force.

Technical Execution for Chuck Extraction

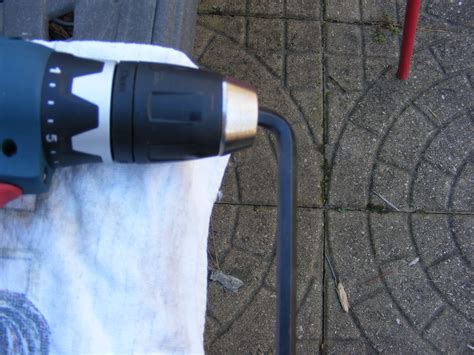

Step 1: Secure the Spindle and Remove Retaining Hardware

If you are working on a portable power drill, the chuck is almost always secured by a reverse-threaded screw located deep inside the chuck jaws. Open the chuck jaws fully to reveal the screw head. If the screw is rusted, apply a small amount of heat or penetrating oil to break the bond. Use the appropriate driver to turn the screw clockwise—remember, this is typically a left-hand thread. Once the screw is removed, you can move to the mounting separation.

Step 2: Extracting Threaded Chucks

For drill presses or older hand drills where the chuck threads directly onto the spindle, you must prevent the spindle from rotating. Use a wrench on the spindle flats, or if no flats are provided, secure the spindle pulley or gear train. Position a drift punch into the base of the chuck collar and tap sharply in the counter-clockwise direction.

Warning: Never use excessive force on the drill housing itself to provide leverage, as the gear housing is often made of cast aluminum or high-density plastic, which will crack under torsional stress.

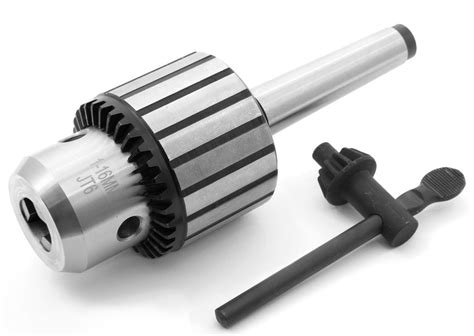

Step 3: Removing Tapered Jacobs Chucks

Tapered chucks rely on friction. The most effective way to remove them without specialized hydraulic pullers is the wedge method. Insert two identical steel wedges between the back of the chuck and the spindle bearing housing. Tap the wedges simultaneously with two hammers. The opposing force creates a consistent downward pressure that forces the chuck off the taper. If the chuck does not release, apply heat to the chuck body while keeping the spindle cool; the differential expansion will often loosen the grip.

Step 4: Final Cleaning and Inspection

Once the chuck is detached, clean the spindle nose using a lint-free cloth and mineral spirits. Inspect the taper for signs of scoring, pitting, or burrs. If the spindle nose is damaged, it will cause the new chuck to wobble, known as runout. Use a fine-grit stone or a jeweler’s file to gently remove any high spots on the spindle before installing the replacement.

Comparative Mounting Standards and Extraction Methods

Field Troubleshooting for Seized Components

• Frozen Taper due to Corrosion: If the chuck refuses to budge after using wedges, the taper is likely rusted. Apply a mixture of acetone and automatic transmission fluid (50/50 mix) to the interface. Let it soak for 24 hours. The low viscosity allows the fluid to penetrate the microscopic gaps between the taper surfaces.
• Stripped Internal Retaining Screw: If the Allen key spins in the screw head, use an impact driver or a screw extractor kit. Do not attempt to drill out the screw unless you are prepared to replace the entire spindle, as metallic shavings can contaminate the spindle bearings and cause premature failure.
• Chuck Body Rotation During Removal: If the spindle rotates while you are applying force, you have failed to secure the spindle shaft. Never rely on the internal motor brake to hold the spindle. You must mechanically lock the shaft using a vise grip or a dedicated spanner wrench on the flats of the shaft.

Frequently Asked Questions

Do I need to remove the internal screw for all chucks?

No, only for modern power drills that utilize a keyed or keyless chuck mounted on a threaded spindle or a short taper. Older stationary drill presses with Morse or Jacobs tapers do not use an internal locking screw.

Will applying heat damage the drill?

Applying moderate heat with a heat gun is safe, but avoid using an oxy-acetylene torch. Excessive heat will ruin the temper of the spindle steel and melt the internal grease or plastic seals, rendering the tool useless.

Can I reuse a chuck after removing it?

You can reuse a chuck if the jaw teeth are not chipped and the collar rotation is smooth. However, if the chuck was removed because of excessive wobble, the internal bearing races are likely worn, and replacement is strongly recommended.

What is a Jacobs Taper and why is it so tight?

A Jacobs Taper is a self-locking conical geometry. When pushed onto the spindle under load, the friction increases exponentially. This design ensures that the chuck does not spin off when drilling in reverse or under high torque conditions.
