How To Remove An EGR Valve: A Comprehensive Technical Guide
Removing an Exhaust Gas Recirculation (EGR) valve is a necessary maintenance task to resolve engine performance issues caused by carbon buildup or internal diaphragm failure. This procedure involves disconnecting electrical and vacuum lines, unbolting the assembly from the intake or exhaust manifold, and clearing the passages to restore optimal exhaust gas flow and emission control.
Essential Preparation and Specialized Tooling Requirements
Executing an EGR valve removal requires a disciplined approach to prevent damage to sensitive engine components and vacuum hoses. Because EGR systems operate in high-heat environments, fasteners are frequently seized by thermal cycling and corrosion. Preparation should focus on safety, accessibility, and the management of fragile sealing surfaces.
- Essential Tooling: A comprehensive socket set (metric and imperial), high-quality penetrating oil (such as PB Blaster or Kroil), a calibrated torque wrench, a wire brush or carbon scraper, and a set of flared nut wrenches for vacuum/coolant lines.
- Safety Gear: Nitrile gloves to prevent exposure to soot and residual fuel, safety glasses to protect against carbon debris, and a fire extinguisher if working near fuel rails.
- Prerequisite Knowledge: Understanding of basic vacuum line routing, awareness of manifold absolute pressure (MAP) sensor locations, and ability to identify gasket types (metal vs. fiber).
- Time and Budget Benchmarks: A typical extraction takes between 45 and 90 minutes depending on accessibility. Professional shop labor costs can exceed 200 dollars, whereas a DIY intervention requires only the cost of penetrating fluid and a new gasket set (typically 15 to 40 dollars).
Systematic Extraction and Removal Workflow
Step 1: Engine Cooling and Access Optimization
Ensure the vehicle engine has been inactive for at least three hours. Perform a visual inspection to locate the EGR valve; it is usually mounted on the intake manifold or the side of the cylinder head. Remove the engine cover if necessary. If your vehicle utilizes an electronically controlled EGR, disconnect the electrical connector by depressing the release tab. Do not pull on the wiring harness, as heat-aged plastic connectors are prone to snapping.
Step 2: Vacuum Line and Coolant Passage Management
Many EGR systems utilize a vacuum actuator. Carefully remove the rubber vacuum lines, labeling each one with masking tape to ensure correct reinstallation. If the EGR valve is liquid-cooled (common in diesel and high-performance gasoline engines), a small amount of coolant will leak upon disconnection. Keep a drain pan positioned directly beneath the engine block and use hose pinch-off pliers to minimize fluid loss.
Step 3: Fastener Liberation and Penetrant Application
Before attempting to remove the mounting bolts, apply a liberal amount of penetrating oil to the threads. Allow the solvent to soak for at least 15 minutes. Use a six-point socket rather than a twelve-point socket to reduce the risk of rounding the bolt heads. If a bolt feels seized, do not apply excessive force; tighten it slightly to break the corrosion seal, then attempt to back it out in small increments.
Warning: Never use an impact driver on frozen manifold bolts. The vibration can easily snap a stud flush with the head, which necessitates complex drilling and extraction procedures.
Step 4: Component Extraction and Surface Preparation

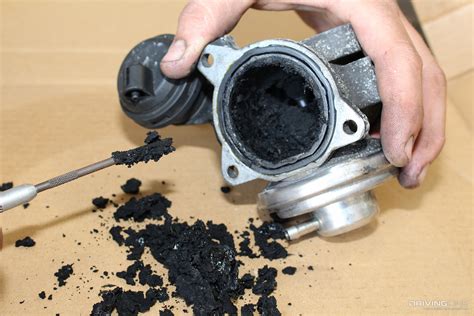

Gently pry the valve away from the manifold using a flathead screwdriver if it is stuck by the gasket. Once removed, inspect the internal passages for excessive soot accumulation. Use a razor-style scraper to remove old gasket material from the mounting surface. Ensure no debris falls into the open intake or exhaust port, as this can cause catastrophic engine damage upon startup.
How to Replace EGR Valve 1998-2012 Ford Ranger | 1A Auto
EGR Valve Technical Specifications and System Variations
Understanding the differences between system architectures is critical for successful removal and replacement. The following table outlines the key operational differences and maintenance requirements for the three primary EGR system categories.
| EGR Type | Actuation Method | Common Failure Point | Maintenance Requirement |
|---|---|---|---|
| Vacuum-Operated | Vacuum Diaphragm | Ruptured internal seal | Inspect hoses for cracking |
| Electronically Controlled | Solenoid/Stepper Motor | Carbon-fouled pintle | Clean passages every 50k miles |
| Liquid-Cooled | Heat Exchanger | Internal coolant leak | Check for coolant in exhaust |
Common Field Failures and Remediation Strategies
- Issue: Rounded Bolt Heads. The constant heat-cool cycles cause fasteners to fuse with the aluminum manifold. If the bolt head rounds off, use a bolt extractor socket or a high-quality set of locking pliers to apply force as close to the manifold face as possible.
- Issue: Stubborn Carbon Deposits. If the valve is physically stuck despite removing all mounting hardware, the carbon buildup is acting as an adhesive. Use a heat gun to gently warm the metal manifold (not the plastic parts) to expand the aluminum slightly, then gently tap the valve body with a rubber mallet to break the seal.
- Issue: Damaged Threaded Studs. If a stud comes out with the nut or is stripped upon removal, chase the threads in the engine head using a thread tap of the correct pitch and diameter. Always use a small amount of high-temperature anti-seize compound on new studs to prevent future recurrence.
Frequently Asked Questions
Can I clean the EGR valve instead of replacing it?
Yes, if the valve's failure is solely due to carbon blockage of the pintle or internal passages, cleaning with an aerosolized carburetor or throttle body cleaner can restore function. However, if the internal diaphragm is torn or the electronic motor has burned out, the component must be replaced.
What are the symptoms of a faulty EGR valve?
Common indicators include a rough idle, engine hesitation during acceleration, a noticeable decrease in fuel economy, and the illumination of the Check Engine Light with codes such as P0401 or P0403. You may also experience engine knocking or pinging under load due to increased combustion temperatures.
Do I need a new gasket every time I remove the EGR valve?
Always install a new gasket. Old gaskets are typically compressed and heat-hardened, meaning they will not provide an airtight seal upon reinstallation. Reusing an old gasket often leads to vacuum leaks, which trigger poor air-fuel mixture ratios and additional diagnostic trouble codes.
Does removing the EGR valve improve performance?
While a faulty EGR valve negatively impacts performance, removing or "deleting" the valve on a vehicle designed for it is illegal in many jurisdictions for on-road use. It can lead to higher NOx emissions and may prevent the vehicle from passing mandatory emissions testing or state inspections.
Maintain your vehicle’s compliance and reliability by ensuring your EGR system is correctly serviced or replaced according to manufacturer intervals. Consult your specific service manual to verify torque specifications before finalizing your installation.
