How To Remove A Graphics Card: Complete Step-by-Step Hardware Guide
Removing a graphics card requires methodical preparation, discharging static electricity, and carefully releasing the PCIe slot retention clip to prevent permanent damage to your motherboard. By following a structured approach to power isolation, cable management, and mechanical unlocking, you can safely extract any GPU regardless of its size or cooling shroud design.
Pre-Operation & Physical Preparation Checklist
Before opening your PC chassis, you must gather the correct workspace environment, specific hand tools, and a firm grasp of standard anti-static protocols. Graphic processing units (GPUs) are sensitive electronic assemblies carrying surface-mount components and delicate printed circuit boards that are vulnerable to electrostatic discharge (ESD) and physical torque.
- Essential Tools and Materials:
- No. 2 Phillips-head magnetic screwdriver (for chassis screws)
- Non-conductive plastic spudger or long-handled nylon tool (optional, for hard-to-reach retention clips)
- Anti-static wrist strap connected to a verified earth ground, or a clean wooden/rubber-matted workspace
- Microfiber cloth and compressed air canister for immediate dust remediation around the slot area
- Prerequisite Standards and Benchmarks:
- System completely powered down and AC power cord physically detached from the rear power supply unit (PSU)
- Monitor display cables (DisplayPort 1.4/2.0, HDMI 2.1) cleanly unthreaded from the rear I/O bracket
- Estimated operational duration: 15 to 25 minutes for first-time builders
- Zero liquid cooling leaks or adjacent radiator blockages that require partial disassembly
Step-by-Step GPU Extraction Procedure
Step 1: System Power Isolation and Internal Cooling
Shut down your operating system completely using the standard shutdown command, avoiding hybrid sleep or hibernation modes. Switch the physical power toggle on the back of your power supply unit to the "O" (off) position, then press and hold the computer's front panel power button for 5 to 10 seconds. This drains residual electrical charge stored within the capacitors on the motherboard and graphics card PCB.
Warning: Never attempt to remove or install a graphics card while the system is plugged into a live wall outlet or while the power supply is switched on, as standby voltage (5VSB) remains active across the PCIe lanes and can instantly fry integrated circuits.
Step 2: Accessing the Interior Chassis
Lay your computer tower horizontally on a flat, non-conductive workbench or table with the motherboard tray facing downward. Remove the side panel of the chassis by unscrewing the thumbscrews at the rear, sliding the panel backward, and lifting it clear. If you are using a tempered glass panel, place it securely on a soft blanket away from foot traffic to prevent shattering.

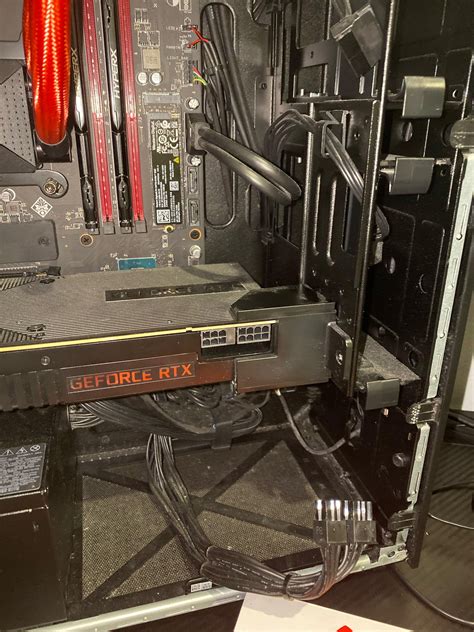

Step 3: Disconnecting PCIe Power Cables
Locate the auxiliary power cables plugged into the edge of your graphics card (typically 6-pin, 8-pin, or the newer 16-pin 12VHPWR/12V-2x6 connectors). Pinch the small plastic locking latch on the underside or top of each connector housing with your thumb and forefinger, and gently pull straight out. Avoid yanking or twisting the individual wires, as this can pull terminal pins out of the plastic housing or damage the solder joints on the GPU PCB.
Pro-Tip: If a high-draw card like an NVIDIA GeForce RTX 4080 or AMD Radeon RX 7900 XTX utilizes a stiff 12VHPWR cable, support the back of the PCB with your free hand while rocking the connector slightly side to side to break the friction fit.
Step 4: Removing Rear I/O Expansion Slot Fasteners
Identify the metal bracket holding the graphics card to the rear interior wall of the computer chassis. Remove the screws securing the GPU's I/O shield using your Phillips-head screwdriver. Keep these screws separated in a magnetic tray, noting that they are frequently coarser thread-forming screws unique to computer cases compared to the fine-thread screws used for motherboards.
Step 5: Unlocking the PCIe Slot Retention Clip
Move your hand to the rear-most end of the PCIe x16 slot where the graphics card plugs into the motherboard. Locate the plastic retention mechanism, which is typically a pivoting lever or a push-down sliding tab. Press this tab downward (or push it outward toward the back of the case) until you hear or feel a distinct click, which signifies that the internal locking tooth has cleared the notch on the graphics card's edge connector.
Step 6: Extracting the Graphics Card from the Motherboard
Grasp the outer edges of the graphics card with both hands—one near the power connector edge and the other near the rear I/O bracket. Lift the card upward with even, balanced pressure, rocking it gently from front to back only if necessary to clear tight chassis cutouts. Once the gold edge fingers slide completely free of the PCIe slot, lift the card straight out of the case and place it flat on an anti-static bag or a clean, non-conductive surface.
How To Disable Graphics Card at Harrison Grove blog
Hardware Specifications & Interface Comparison
| Interface Standard | Maximum Bandwidth (x16) | Power Delivery Limit | Common Form Factor |
|---|---|---|---|
| PCIe 3.0 | 15.75 GB/s | 75W (Slot) | Mid-range to older legacy GPUs |
| PCIe 4.0 | 31.50 GB/s | 75W (Slot) | Modern mid-to-high tier GPUs |
| PCIe 5.0 | 63.00 GB/s | 75W (Slot) + 600W (Aux) | Enthusiast next-generation GPUs |
| PCI | 133 MB/s | N/A | Obsolete expansion standard |
Troubleshooting Common Removal Challenges
- Root Cause: The PCIe retention clip is completely inaccessible due to a massive dual-tower CPU air cooler or a bulky liquid cooling radiator blocking overhead access.
- Actionable Fix: Use a long, non-conductive plastic spudger or the flat handle of a clean paintbrush to gently press down on the retention tab from a diagonal angle. Never use raw metal screwdrivers directly adjacent to the motherboard traces, as a slip will permanently gouge the PCB.
- Root Cause: The graphics card is stuck because the rear I/O bracket is catching on the interior divider lip of the computer chassis.
- Actionable Fix: Ensure all fastening screws have been fully removed from the bracket. Tilt the card slightly upward from the power connector side while gently guiding the I/O tabs out of the chassis vertical slot.
- Root Cause: The 16-pin 12VHPWR power connector is tightly fused or heat-welded due to high electrical resistance and sustained thermal load.
- Actionable Fix: Inspect the latch mechanism for melting or plastic deformation. If the connector is fused, do not pull violently; use a pair of needle-nose pliers to squeeze the locking lever completely down while gently wiggling the housing loose.
Frequently Asked Questions
Do I need to uninstall my graphics drivers before removing the card?
If you are upgrading to a brand new card from the same manufacturer, an immediate driver uninstall is typically unnecessary. However, if you are switching brands (such as moving from an NVIDIA card to an AMD card), running a utility like Display Driver Uninstaller (DDU) in Windows Safe Mode is strongly recommended to prevent software conflicts and system instability.
Can I remove a graphics card while the PC is in sleep mode?
No, never remove hardware components while a computer is in sleep or hibernation mode. The motherboard continues to supply standby current to the PCIe slots and memory banks, which can cause severe electrical short circuits, component burnout, or total motherboard failure.
What should I do if the PCIe retention clip breaks off?
A broken plastic retention clip is inconvenient, but it does not render your motherboard unusable. The primary function of the clip is to prevent the card from sagging or pulling out if the PC is moved; the card will still function normally in the PCIe slot as long as it is securely bolted to the rear chassis expansion slots.
How do I prevent static electricity from damaging the graphics card?
Discharge static buildup by touching an unpainted metal surface of your plugged-in (but powered-off) power supply chassis before touching internal components. Alternatively, wear a certified anti-static wrist strap clipped to a reliable earth ground throughout the entire procedure.
Is it normal for the graphics card to feel difficult to pull out of the slot?
Yes, modern PCIe slots feature heavy-duty metal reinforcement armor and tight friction tolerances to support heavy, triple-slot cooling assemblies. As long as the rear retention clip is fully depressed and all screws are removed, a firm, even vertical pull will safely release the card.
