How To Reprogram A Body Control Module: A Comprehensive Technical Guide

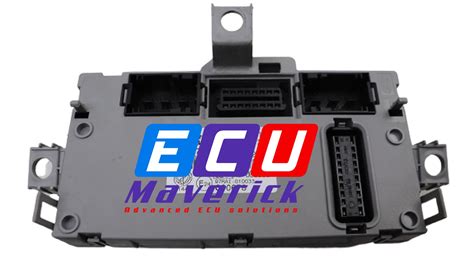

Reprogramming a Body Control Module (BCM) requires establishing a stable J2534 passthrough connection between an OEM-approved diagnostic interface and the vehicle’s Controller Area Network (CAN) bus. Success depends on maintaining a constant 12.6V to 14V power supply to prevent module bricking during the flashing process, which involves overwriting the firmware or updating the software configuration to match the vehicle’s specific VIN and optional equipment set.

Pre-Procedure Requirements and Diagnostic Prerequisites

Before attempting to flash or reprogram a BCM, you must ensure the electrical integrity of the vehicle. A voltage drop during the write cycle can permanently corrupt the module's memory, rendering the BCM unresponsive. Modern vehicles utilize complex gateway modules that manage communication between the On-Board Diagnostic (OBD-II) port and the BCM; failure to account for these gateways will result in communication timeouts.

Essential Equipment and Infrastructure Checklist:

• Diagnostic Hardware: A J2534-compliant pass-through device (e.g., Autel VCI, Snap-on Pass Thru Pro, or Drew Technologies Mongoose).
• Power Stability: A regulated battery maintainer or professional-grade power supply unit capable of providing a clean 13.5V constant current.
• Software Interface: OEM subscription access (e.g., GM AC Delco TDS, Ford FDRS/FJDS, or Chrysler WiTECH 2.0).
• Connectivity: A high-speed internet connection for cloud-based verification and a dedicated Windows-based laptop meeting OEM minimum RAM and CPU requirements.
• Duration: Allocate 45 to 90 minutes for the entire process, including software updates and final configuration.
• Budget: Expect costs ranging from $40 for a short-term OEM software subscription to $1,500+ for professional J2534 hardware.

Procedural Workflow for BCM Reprogramming

Step 1: Battery Conditioning and Voltage Stabilization

Connect your battery power supply to the vehicle’s battery terminals. Do not rely on a standard trickle charger, as they may fluctuate voltage when the vehicle’s accessory systems draw power during the diagnostic handshake. Confirm that the voltage remains between 13.0V and 14.0V throughout the entire duration of the procedure.

Step 2: Diagnostic Communication Handshake

Plug the J2534 device into the OBD-II port and link it via USB or Bluetooth to your workstation. Open the OEM diagnostic software and perform a full "Auto-VIN" scan. This allows the software to pull the specific build sheet (AS-BUILT data) from the manufacturer’s servers. If the software cannot identify the BCM or returns a communication error, check the fuse block for blown BCM-related fuses or a compromised CAN high/low wire.

Step 3: Module Initialization and Identification

Select the BCM from the module list and navigate to the Programming or Setup menu. The software will display the current calibration ID versus the available update version. If you are replacing a used BCM, the software will prompt for a VIN write or a "Proxi-Alignment," which syncs the BCM’s configuration to the existing body electronics (such as the instrument cluster and telematics unit).

Warning: Do not disconnect the J2534 device or close the software while the progress bar is active. A power interruption at this stage will cause a "checksum error," often necessitating the replacement of the physical module.

Step 4: Firmware Flashing and Configuration

Initiate the flash process. You may hear the cabin electronics clicking or see the dash lights flash; this is normal as the BCM resets its internal relays. Once the firmware is written, the software will require you to perform a final configuration. This involves inputting the vehicle's specific option codes (e.g., fog light presence, keyless entry type, or trailer tow package) to ensure the BCM interprets input signals correctly.

Step 5: Post-Programming DTC Clearing and Verification

After the progress bar reaches 100%, cycle the ignition to the "Off" position for the duration specified by the software (usually 60 seconds). Once the BCM has reset, perform a full "Clear All DTCs" command. Even successful flashes create temporary communication faults that must be purged to prevent "check engine" or "service light" alerts. Finally, verify the operation of the functions controlled by the BCM, such as power locks, lighting, and windshield wipers.

Comparison of BCM Programming Methods and Standards

Addressing Post-Programming Failures and Field Complications

• Scenario: Communication Failure During Flash.

• Root Cause: Insufficient voltage or interference from active consumer electronics.

• Actionable Fix: Ensure all doors are closed (to prevent interior light draw), turn off climate control, and re-run the flash using a higher-rated constant voltage power supply.

• Scenario: Immobilizer/Security Light Remains Flashing.

• Root Cause: The BCM was programmed but not correctly synchronized with the Engine Control Module (ECM) or Immobilizer/Keys.

• Actionable Fix: Execute the "Immobilizer Sync" or "Key Learn" procedure within the security/body menus of the diagnostic software.

• Scenario: BCM Responds, but Specific Functions (e.g., Trunk Release) are Dead.

• Root Cause: The "Variant Coding" or "AS-BUILT" configuration did not match the vehicle's hardware options.

• Actionable Fix: Re-enter the coding menu and manually verify the configuration flags for the specific non-functioning circuits.

Frequently Asked Questions

Can I reprogram a BCM without an OEM subscription?

Generally, no. Modern BCMs are encrypted, and the firmware files are stored on secure manufacturer servers. While some generic scan tools allow for minor configuration changes, actual module reprogramming requires an OEM-authorized J2534 gateway.

What happens if I disconnect the battery during a BCM flash?

Disconnecting power during a flash procedure causes a partial write, which destroys the module's bootloader. This is known as "bricking" the module, and in most cases, the BCM must be replaced with a new unit because the corrupted memory is no longer accessible via the diagnostic port.

Does a used BCM need to be reprogrammed to work?

Yes. A used BCM contains the VIN and configuration data of the donor vehicle. To function correctly, you must overwrite the donor data with your vehicle's VIN and configuration, or the module will fail to communicate with the vehicle's other electronic control units.

How do I know if my BCM is actually failing?

Symptoms include flickering dashboard lights, random alarm triggers, inability to enter or exit specific vehicle modes, and loss of communication (U-code DTCs) across multiple modules. Always test for stable power and ground connections at the BCM connector before condemning the unit as faulty.
