How To Reset A Well Pump Pressure Switch Without A Lever: Complete DIY Diagnostic Guide

Resetting a well pump pressure switch that lacks a manual low-pressure cut-off lever requires dropping the system pressure below the cut-in threshold, clearing physical blockages in the pressure sensing nipple, or manually cleaning carbon-pitted contacts. Standard switches rely entirely on mechanical differential pressure to cycle, meaning a failure to engage indicates a hydraulic blockage, electrical interruption, or a tripped thermal overload on the pump motor itself. Following a precise diagnostic sequence allows you to safely restore water flow and recalibrate your system's operational thresholds.

Safety Protocol and Essential Tools for Well System Diagnostics

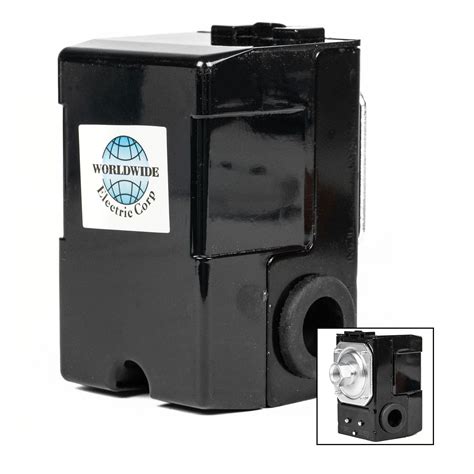

Working on a water well system exposes you to both high-voltage electricity (typically 115V or 230V AC) and high-pressure hydraulics. Before attempting to service or diagnose your pressure switch, you must understand the system's electrical layout and have the proper tools on hand. Standard pressure switches, such as the widely used Square D Pumptrol 9013FSG2, do not possess a manual "reset" button or external lever. Instead, they are mechanical double-pole single-throw (DPST) switches governed entirely by two internal springs.

To safely access, diagnose, and restore operation to a leverless pressure switch, assemble the following diagnostic kit:

• Non-Contact Voltage Tester & Digital Multimeter: To verify that electrical power is fully disconnected before touching any internal terminals.
• Insulated Screwdrivers (Flathead and Phillips): For removing the switch cover and adjusting the calibration springs.
• Fine-Grit Emery Cloth or Contact Cleaner: To clean oxidized or carbon-pitted electrical contact pads.
• Pre-set Tire Pressure Gauge: To measure the air pressure inside the bladder expansion tank.
• Plumber's Tape and Open-End Wrench Set: For removing and resealing the switch from the pressure nipple if a clog is suspected.

Plan for approximately 45 to 90 minutes of downtime to complete these steps. Ensure that your household is prepared for a temporary water shutoff during the procedure.

Step-by-Step Method to Reactivate a Standard Well Pressure Switch

Step 1: Isolate the Electrical Power and Confirm Zero Voltage

Before removing the plastic protective cover of your pressure switch, locate your home’s main electrical panel or the dedicated well pump sub-panel. Flip the double-pole circuit breaker governing the well pump to the "Off" position. Remove the retaining nut on the plastic cover of the pressure switch and slide the cover off. Hold a non-contact voltage tester next to the four wire terminals (the two outer "Line" inputs and the two inner "Load" outputs to the motor) to confirm that no live current is present.

Warning: Never touch the internal metal components of a pressure switch while the circuit breaker is active. Standard well pumps run on 230-volt currents, which can cause severe injury or death upon contact.

Step 2: Manually Depressurize the Plumbing System

A standard pressure switch cannot cycle "on" if the plumbing system is holding pressure above the cut-in threshold. If your pump has stopped running and your house has no water, the pressure gauge on the manifold should read zero. If the gauge reads above your cut-in pressure (typically 30 PSI or 40 PSI) but you have no water flow at your taps, the gauge is likely faulty or the system is experiencing a localized blockage.

Open a nearby hose bib, laundry tub faucet, or drain valve located at the base of the pressure tank manifold. Allow all residual water to drain completely until the physical pressure gauge drops to zero.

Step 3: Inspect and Clean the Electrical Contact Pads

Over time, the high-amperage current passing through the contact points creates electrical arcing. This arcing deposits carbon, causing pitting or welding of the contact pads, which prevents electrical continuity even when the springs physically push the contacts closed.

With the power verified as off, inspect the four sets of contact points inside the switch frame. If they appear black, burnt, or coated in a gray crust, slide a piece of fine-grit emery cloth or a small metal file between the contacts. Gently press the contact arms together and pull the abrasive paper through several times to scrape away the carbon buildup. Blow out any residual debris using dry compressed air or contact cleaner spray, allowing the assembly to dry completely.

Step 4: Clear the Pressure Sensing Nipple and Capillary Tube

The primary reason a leverless pressure switch fails to turn on is a physical blockage in the narrow passage leading to the diaphragm. Silt, rust, iron bacteria, and calcium scale accumulate inside the 1/4-inch galvanized or brass nipple that connects the switch to the water manifold. This trapped pressure tricks the internal diaphragm into thinking the system is still fully pressurized, preventing the switch from closing the contacts.

1. Disconnect the electrical wires from the four switch terminals, labeling them clearly for correct reinstallation.
2. Use an open-end wrench to unscrew the pressure switch counterclockwise from the pipe nipple.
3. Remove the pipe nipple from the water manifold.
4. Insert a stiff wire, drill bit, or long screwdriver through the center of the nipple to scrape out all compacted rust and scale.
5. Inspect the small hole on the bottom flange of the pressure switch itself. If it is clogged with sediment, clear it gently with a toothpick or small wire, taking care not to puncture the internal rubber diaphragm.
6. Apply fresh Teflon tape to the threads, reinstall the pipe nipple, and screw the pressure switch back into place. Reattach the electrical wires securely.

Step 5: Verify and Adjust the Bladder Tank Pre-Charge

If your pressure tank is improperly pressurized, your switch will cycle rapidly (chatter), causing the motor to overheat and trip its internal thermal overload. To check this:

Find the Schrader valve (air valve) on top of your blue or green pressure tank. Use a standard tire pressure gauge to read the air pressure while the water system is completely drained of water pressure. The air pre-charge must be exactly 2 PSI below the cut-in pressure of your switch.

For a standard 30/50 PSI system, the air tank must read 28 PSI. For a 40/60 PSI system, it must read 38 PSI. If the pressure is too low, use an air compressor to add air to the correct level. If water spurts out of the air valve during this test, the internal bladder has ruptured, and the entire tank must be replaced.

Step 6: Restore Power and Calibrate the Range Spring

Once the physical blockages are cleared and the tank pressure is verified, you can restore electrical power. Flip the circuit breaker back to the "On" position. If the pressure is zero, the contacts should immediately snap shut, and the pump should begin running.

If the pump does not start, you may need to adjust the mechanical activation point. Inside the switch, you will see two springs: a large spring (Range) and a small spring (Differential).

To lower the cut-in pressure (making it easier for the pump to turn on at a lower system pressure), turn the nut on the large spring counterclockwise using a 3/8-inch nut driver or deep socket. Turn it one full rotation at a time, checking to see if the contacts snap shut. If the pump turns on, monitor the pressure gauge on the manifold to watch where it cuts out.

Pro-Tip: Never adjust the small differential spring unless you are an experienced technician. The small spring changes the span between the cut-in and cut-out pressures. Keep it at the factory-set 20 PSI differential to avoid cycling issues.

Well Pressure Switch Technical Specifications and Calibration Metrics

The following matrix outlines the standard operating thresholds, electrical limits, and air pre-charge requirements for common residential well pump pressure switch configurations.

Troubleshooting Common Non-Lever Switch Failures and Field Fixes

When dealing with a switch that has no manual override lever, troubleshooting must isolate mechanical issues from electrical and hydraulic failures.

• Scenario 1: The pressure gauge reads 0 PSI, the contacts are physically touching, but the pump refuses to run.




  • Root Cause: The internal thermal overload protector on the submersible pump motor has tripped due to dry-running, low voltage, or an impeller blockage. Alternatively, the pump's starting capacitor inside the control box has blown.
  • Actionable Fix: Turn off the power. If you have an above-ground jet pump, feel the motor casing; if it is extremely hot, let it cool for 30 to 60 minutes to allow the automatic thermal overload switch to reset itself. If you have a submersible pump, open the wall-mounted control box and inspect the starting capacitor for bulging, leaking fluid, or burn marks. Replace the capacitor if it fails visual inspection or multimeter microfarad testing.

• Scenario 2: The pump runs constantly, exceeds the cut-out pressure (e.g., reaches 70 PSI on a 40/60 switch), and will not shut off.




  • Root Cause: Silt and sediment are packed tightly inside the sensing nipple, preventing water pressure from reaching the diaphragm to push the spring-loaded armature upward. It can also be caused by contacts that have welded together from electrical arcing.
  • Actionable Fix: Cut power to the system immediately to prevent bursting pipes or burning out the motor. Drain the water, remove the switch, and clear the scale from both the galvanized nipple and the diaphragm chamber inlet port. Inspect the contacts; if they are physically fused, replace the entire pressure switch assembly.

• Scenario 3: The switch clicks rapidly (chattering) when water is turned on, and water pressure is highly unstable.




  • Root Cause: The pressure bladder tank is waterlogged. Without an air cushion to compress, water (which is incompressible) causes the pressure to instantly spike to the cut-out point when the pump starts, and instantly drop to the cut-in point when a tap is opened.
  • Actionable Fix: Tap the side of your pressure tank. If it sounds dull and heavy from bottom to top, it is full of water. Check the air valve on top of the tank. If water leaks from the valve, the internal bladder has ruptured. Replace the pressure tank immediately to prevent the constant cycling from destroying your pump motor.

• Scenario 4: The switch clicks open and closed, but the contacts spark excessively and smell like ozone.




  • Root Cause: The contact pads are severely pitted and worn, creating high electrical resistance across the terminals. This drop in voltage can damage the pump motor windings.
  • Actionable Fix: Use a digital multimeter to measure the voltage across the "Line" terminals and compare it to the voltage across the "Load" terminals while the switch is closed. If you detect a voltage drop greater than 2 to 3 volts across the contacts, the switch is worn out. Replace the entire pressure switch assembly.

Frequently Asked Questions

Why does my well pump pressure switch not have a manual reset lever?

Standard well pump pressure switches are designed to operate automatically based solely on water system pressure. Manual reset levers are only installed on low-pressure cut-off switches (such as the M4 series), which shut down the pump permanently if the pressure drops below 15-20 PSI to protect the pump from running dry. Standard switches do not have this feature and will attempt to cycle whenever system pressure drops below the designated cut-in point.

Can I manually close the contacts of a pressure switch to force the pump to start?

While you can technically force the contacts closed using a dry, insulated wooden or plastic stick to test the motor, doing so on a live system is highly dangerous and not recommended. If you must test the pump, it is much safer to turn off the power, use a jumper wire safely, or clean the contacts and clean the sediment out of the pressure nipple to allow the system to operate naturally.

How do I know if my pressure switch is bad or if my pump is dead?

To isolate the issue, turn off the power and remove the switch cover. Use a multimeter set to resistance (Ohms) to check continuity across the closed contacts. If the contacts show continuity but the pump does not run when power is restored, check the voltage at the pump control box or the pump head itself. If 230 volts are reaching the pump but it remains silent and does not draw current, the pump motor or power cable has failed.

How long do leverless well pressure switches typically last before needing replacement?

A high-quality mechanical pressure switch generally lasts between 5 and 10 years depending on the cycling frequency of your system, the water quality, and the humidity of the installation location. High iron content, hard water scale, and damp crawl spaces will accelerate contact corrosion and diaphragm blockages, leading to premature failure.

Resolve Your Well System Challenges with Professional Support

If you have cleared your switch’s pressure nipple, verified your bladder tank's pre-charge, and cleaned the contacts but still lack running water, your system may have an underground electrical break, a failed pump motor, or a depleted well. Contact a licensed water well technician to run a professional amp-draw diagnostic and down-well inspection to restore your water supply safely and permanently.
