The Comprehensive Guide To Mastering Sprite Shading For 2D Game Assets

Sprite shading transforms flat, pixel-based graphics into three-dimensional forms by systematically manipulating light, shadow, and color value gradients. Achieving professional-grade results requires a disciplined approach to defining a singular light source, establishing a consistent color palette, and applying hard-edged or smooth-blended transitions to define depth and form.

Technical Fundamentals and Asset Preparation

Before executing specific shading techniques, ensure your production pipeline adheres to standard digital art practices. Sprite shading is not merely about adding dark spots; it is about simulating the physical interaction of light on volume. Working without a foundational structure leads to inconsistent assets that appear detached from the game environment.

• Essential Software Requirements: A raster-based editor supporting layers, blending modes, and customizable brush opacity (e.g., Aseprite, Photoshop, or Krita).
• Foundational Knowledge: Understanding of the color wheel, specifically how hue shifting (moving toward warmer or cooler colors when shifting light/shadow) impacts visual fidelity.
• Asset Constraints: Establishing a fixed pixel grid (e.g., 32x32 or 64x64) and a standardized light source vector (e.g., top-left at 45 degrees).
• Duration Benchmarks: A simple 32x32 character sprite should take approximately 30 to 60 minutes for high-quality shading, assuming the base silhouette is finalized.

Systematic Shading Execution Workflow

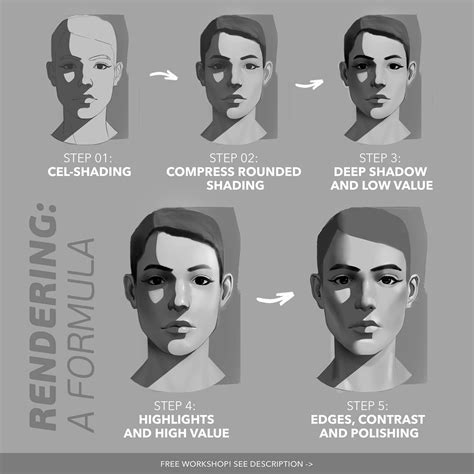

Step 1: Defining the Light Source and Primary Silhouette

Every sprite must commit to a primary light direction to maintain consistency across a project. Begin with a solid, mid-tone silhouette of your character or object. Place a visual marker, such as an arrow on a separate layer, to indicate the direction of the light source. This acts as a constant reference, preventing shading errors caused by intuition rather than physics. Ensure that your base silhouette is clean and free of anti-aliasing artifacts if you are working in a strictly low-resolution pixel art style.

Step 2: Establishing the Three-Tone Value Range

Standardize your palette by identifying three distinct color values: the base color, the highlight, and the shadow. The base color covers the majority of the surface that is neither directly illuminated nor in deep shadow. Apply the highlight tone to areas perpendicular to your established light source and the shadow tone to areas obstructed from it.

Pro-Tip: Avoid purely lowering the brightness of your base color for shadows. Instead, shift the hue toward blue or purple for shadows, and toward yellow or orange for highlights to create vibrant, professional-looking assets.

Step 3: Implementing Core Shadow Mapping

Core shadows occur where the light can no longer reach the surface due to the object's curvature. Use the shadow tone to define these areas, keeping the transitions sharp if you are adhering to a retro aesthetic or soft if you are aiming for a modern, painterly look. Pay close attention to concave areas, as these will naturally retain more shadow than convex features.

Step 4: Applying Occlusion and Reflected Light

Ambient occlusion is the darkening of crevices and points where two surfaces meet. Apply a deep, saturated shadow color to these contact points to ground the object in space. Furthermore, introduce a subtle, low-saturation reflected light on the shaded side of the sprite. This light bounces off the environment or the ground and hits the shadow area, preventing the sprite from looking muddy or flat.

Step 5: Final Polish and Contrast Verification

Zoom out to view the sprite at 1:1 scale. High-contrast areas should pop, while transitions should guide the eye across the form of the sprite. If the sprite appears indistinct, increase the contrast between your mid-tone and shadow. Remove any stray pixels that disrupt the silhouette, as the silhouette is the most important component for readability in game engines.

Quantitative Comparison of Shading Styles

Troubleshooting Common Sprite Rendering Failures

• Root Cause: Inconsistent Light Direction.
• Actionable Fix: Implement a layer-based guide in your project file that remains visible throughout the shading process, locking the light source at a fixed coordinate across all character assets.
• Root Cause: "Muddy" or Desaturated Colors.
• Actionable Fix: Revisit your hue shifting logic. Ensure your shadows lean toward cooler hues and highlights lean toward warmer hues; keep your base tones at mid-range saturation to provide room for adjustment.
• Root Cause: Loss of Silhouette Clarity.
• Actionable Fix: Toggle off the shading layers to review the silhouette. If the character shape is unrecognizable without shading, simplify the pose and reinforce the outer pixel boundaries before reapplying shadow details.
• Root Cause: Jagged or "Staircase" Edges.
• Actionable Fix: Use pixel-perfect brush settings to ensure your shadow lines follow the underlying grid structure. If using a soft brush, ensure you are manually cleaning up the edges to maintain the aesthetic integrity of the sprite.

Frequently Asked Questions

How do I choose the right color palette for sprite shading?

Start with a base color that fits the character's design, then adjust the saturation and hue for shadows and highlights. Use a color ramp—a row of 3 to 5 colors ranging from light to dark—to ensure the transitions feel natural and consistent across the entire asset.

Is dithering necessary for modern sprite shading?

Dithering is a stylistic choice rather than a necessity, often used to simulate gradients on limited hardware or to evoke a nostalgic aesthetic. For modern, high-resolution sprites, subtle gradients or banded shading are generally preferred unless you are intentionally pursuing a retro art style.

How do I shade small sprites without losing detail?

Focus on the silhouette and high-level forms rather than fine texture details. At small scales, exaggerated shadows and high-contrast highlights are more effective at communicating volume than complex color gradients, which often turn into noise at low resolutions.

Can I automate sprite shading?

While some engines support dynamic normal mapping that shades 2D sprites based on lighting, manual shading remains the gold standard for artistic control. Automation tools can assist with base-level occlusion, but manual refinement is required to achieve high-fidelity results.

Master the art of sprite shading today by implementing these foundational principles into your next game project and watch your assets come to life. Refine your technique through consistent practice and iterative testing within your game engine to ensure your characters possess both depth and readability.
