How To Safely Remove And Recover Car Freon: A Technical Guide To R-134a And R-1234yf Systems

Extracting refrigerant from an automotive HVAC system requires a sealed recovery process using a dedicated A/C recovery machine and manifold gauges to comply with EPA Section 609 regulations. The procedure involves connecting to the high- and low-side service ports and utilizing a vacuum-assisted pump to pull the refrigerant into a certified storage cylinder until system pressure stabilizes at 0 PSI.

Technical Requirements for Refrigerant Recovery and Handling

Removing refrigerant, commonly referred to by the brand name "Freon," is a critical prerequisite for replacing compressors, condensers, or evaporators. However, it is a strictly regulated process. In the United States, the Clean Air Act prohibits the intentional venting of any refrigerant into the atmosphere. To execute this correctly, a technician must differentiate between R-12 (found in pre-1994 vehicles), R-134a (standard from 1994–2014), and R-1234yf (the current industry standard for newer vehicles). Each gas requires specific recovery equipment to prevent cross-contamination of oils and chemical compounds.

Before beginning the extraction, you must gather the following specialized tools and safety gear:

• EPA-Certified Recovery Machine: A dedicated unit designed to pull a vacuum and compress the gas into a liquid state for storage.

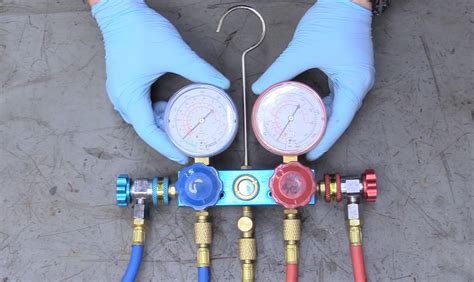

• Manifold Gauge Set: Featuring a high-pressure (red) hose and a low-pressure (blue) hose with vehicle-specific quick-connect couplers.
• Refrigerant Identifier (Optional but Recommended): To ensure the gas inside the system matches the label and is not contaminated with sealant or propane-based substitutes.
• Graduated Oil Catch Bottle: Many recovery machines automatically separate the PAG (Polyalkylene Glycol) or POE (Polyolester) oil from the gas; you must measure this volume to ensure the exact same amount is replaced during the recharge.
• Safety Gear: ANSI-approved safety goggles and heavy-duty nitrile or leather gloves. Refrigerant exists at extremely low boiling points and can cause instant cryogenic burns upon skin contact.
• Estimated Duration: 30 to 60 minutes depending on system capacity and ambient temperature.
• Budget Benchmarks: While a DIYer may spend $400–$800 on entry-level recovery equipment, professional shop rates for recovery typically range from $100 to $250.

Professional Procedure for Automotive Refrigerant Extraction

Refrigerant recovery is a delicate balance of pressure management and containment. The following steps outline the professional workflow for clearing an automotive A/C system while maintaining environmental compliance and equipment integrity.

Step 1: System Identification and Initial Inspection

Before any hoses are connected, locate the vehicle’s A/C specification label, usually found on the underside of the hood or the radiator support. This label identifies the refrigerant type (e.g., R-134a or R-1234yf) and the total system capacity in ounces or grams. Inspect the service ports for debris or damaged Schrader valves.

Warning: Never attempt to recover refrigerant if you suspect the system contains "Stop Leak" sealants without using a dedicated sealant filter. These chemicals can harden inside your recovery machine, causing permanent internal damage to the solenoid valves and compressor.

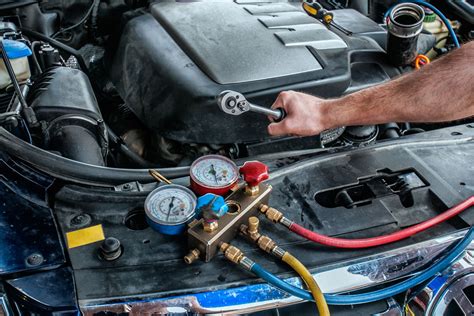

Step 2: Manifold Gauge Connection

Ensure the vehicle's engine and the A/C system are completely powered down. Close both the high-side and low-side valves on your manifold gauge set (turning them fully clockwise). Connect the blue low-side coupler to the larger-diameter suction line and the red high-side coupler to the smaller-diameter liquid line.

1. Push the quick-connect coupler onto the port until it clicks.
2. Rotate the coupler knob clockwise to depress the Schrader valve and open the flow.
3. Observe the static pressure on the gauges; at an ambient temperature of 75°F, a fully charged system should show approximately 70–80 PSI on both gauges.

Step 3: Priming the Recovery Unit

Connect the center utility hose (usually yellow) from the manifold gauge set to the inlet port of the recovery machine. If your machine requires a specific recovery cylinder, ensure the cylinder is sitting on a digital scale (if the machine doesn't have an internal scale) to prevent overfilling. Open the valves on the recovery cylinder and the inlet/outlet valves on the machine.

Step 4: Executing the Recovery Cycle

Power on the recovery machine and select the "Recover" setting. The machine’s internal compressor will begin pulling the gas from the car’s lines, passing it through a filter-drier, and condensing it into the storage tank.

• Monitor the manifold gauges as the pressure drops.
• The machine will typically run until the gauges reach 0 PSI or a slight vacuum (usually -5 to -10 inHg).
• Wait for 5 minutes after the machine stops. If the pressure rises back above 0 PSI, it indicates that "hidden" liquid refrigerant is still boiling off in the evaporator or condenser. Restart the recovery cycle to capture the remaining gas.

Pro-Tip: If the ambient temperature is cold, the recovery process will be significantly slower. You can speed up the extraction by carefully using a heat gun or warm water on the bottom of the vehicle's condenser and evaporator to encourage the liquid refrigerant to vaporize.

Step 5: Measuring Extracted Oil

Once the recovery is complete, most professional machines will perform an "Oil Drain" cycle. Open the oil drain valve on the machine to release any lubricant that was pulled out along with the refrigerant. Collect this oil in a graduated cylinder. You must record the exact amount (usually measured in ounces or milliliters) so you can add fresh oil back into the system during the eventual recharge. Failure to replace this oil can lead to premature compressor seizure.

Step 6: Final Verification and Disconnection

Close the valves on the manifold gauges and the recovery cylinder. Slowly disconnect the couplers from the vehicle’s service ports. You may hear a small "pop" of residual air, but there should be no significant release of gas. Replace the plastic dust caps on the vehicle’s service ports immediately to prevent moisture and dirt ingress.

Comparative Refrigerant Specifications and Pressure Thresholds

The following table highlights the technical differences between the two most common refrigerants found in modern vehicles. Understanding these metrics is vital for selecting the correct recovery settings and ensuring equipment compatibility.

Resolving Common Recovery System and Manifold Failures

During the recovery process, several technical hurdles can arise that prevent the system from reaching a full vacuum. Recognizing these failure points early saves time and protects the hardware.

• Scenario: Pressure Stalls and Refuses to Drop to 0 PSI




  • Root Cause: A restricted orifice tube or a stuck thermal expansion valve (TXV) is trapping liquid refrigerant in the evaporator core.
  • Actionable Fix: Apply gentle heat to the evaporator housing or wait 15–20 minutes for the pressures to equalize. Ensure both high and low side couplers are fully engaged and the manifold valves are open.

• Scenario: Recovery Machine Shuts Off Due to "High Pressure" Error




  • Root Cause: The recovery cylinder is full, or the discharge valve on the machine is closed, causing backpressure.
  • Actionable Fix: Verify the weight of the recovery cylinder against its Water Capacity (WC) rating. If it is at 80% capacity, switch to a fresh cylinder. Ensure all valves between the machine and the tank are fully open.

• Scenario: Oil Drain Valve Discharges Excessive Refrigerant




  • Root Cause: The machine was not allowed to finish its internal "clear" or "purge" cycle, leaving high-pressure gas in the oil separator.
  • Actionable Fix: Re-run the recovery cycle for an additional 2 minutes to ensure all gaseous refrigerant has been moved to the storage tank before attempting to drain the oil.

• Scenario: Slow Recovery in High Ambient Temperatures




  • Root Cause: High ambient heat increases the head pressure in the recovery cylinder, making it harder for the machine's compressor to push more gas into the tank.
  • Actionable Fix: Place the recovery cylinder in a bucket of ice water or a cool area to lower the internal tank pressure, facilitating an easier transfer of refrigerant.

Frequently Asked Questions

Can I legally vent refrigerant if I am just a DIYer?

No, Section 609 of the Clean Air Act applies to everyone, regardless of professional status. Venting refrigerant into the atmosphere is a federal offense that carries significant fines. You must use a recovery machine or take the vehicle to a certified shop to have the gas removed professionally before performing repairs.

How do I know if my car uses R-134a or R-1234yf?

Vehicles manufactured before 2013 almost exclusively use R-134a. Vehicles from 2013 to 2020 may use either, while almost all vehicles produced after 2021 use R-1234yf. The easiest way to verify is by checking the yellow or white A/C specification sticker under the hood or looking at the service port fittings, as R-1234yf ports are uniquely keyed.

Is it necessary to replace the filter-drier after taking the Freon out?

Yes, it is highly recommended. Whenever an A/C system is opened for repair, the desiccant inside the filter-drier or accumulator is exposed to atmospheric moisture. This moisture can combine with refrigerant to form acid, which corrodes the system from the inside out. Always install a new drier and perform a deep vacuum before recharging.

Can I reuse the refrigerant that I recovered from my car?

You can reuse the refrigerant in the same vehicle it was pulled from, provided your recovery machine has a high-quality filtration system to remove moisture and acid. However, you should never use recovered refrigerant in a different vehicle unless it has been professionally reclaimed and certified to AHRI 700 standards to prevent cross-contamination.

What happens if I mix R-134a and R-1234yf?

Mixing these refrigerants creates a non-azeotropic blend that will cause erratic cooling performance and potentially damage the compressor. Furthermore, contaminated refrigerant cannot be easily recycled and must be sent to a hazardous waste facility for destruction, which is an extremely expensive process.
