How To Test An Element In A Water Heater: A Step-by-Step Technical Guide
Testing a water heater element requires checking for electrical continuity and resistance using a multimeter set to the Ohms (Ω) function. A functional element should typically display a resistance reading between 10 and 16 ohms for a standard 240-volt 4500-watt unit, whereas a reading of infinity or zero indicates a failed component that must be replaced.
Critical Safety Protocols and Necessary Equipment
Before interacting with the high-voltage components of an electric water heater, you must prioritize electrical isolation. Water heaters operate at 240 volts and draw significant amperage; failure to disconnect power can result in fatal electric shock. Ensure the work area is dry, and use insulated tools to prevent accidental short-circuiting during the diagnostic process.
- Essential Equipment: A digital multimeter capable of measuring resistance (Ohms), a non-contact voltage tester, a Phillips head screwdriver, a flathead screwdriver, and a water heater element wrench (if replacement is required).
- Mandatory Prerequisites: Knowledge of basic electrical safety and the ability to identify the circuit breaker corresponding to the water heater.
- Estimated Duration: 30 to 45 minutes for diagnosis.
- Cost Benchmark: A quality digital multimeter costs approximately 30 to 50 dollars; replacement elements typically range from 20 to 40 dollars.
Executing the Multimeter Resistance Test
Step 1: Isolate the Power Source
Locate your home’s electrical service panel and identify the double-pole circuit breaker labeled for the water heater. Switch the breaker to the Off position. Once the power is cut, use your non-contact voltage tester on the exterior of the water heater’s access panels to verify that no current is present. Never assume the power is off simply because the thermostat was adjusted or the timer is active.
Step 2: Access the Heating Elements

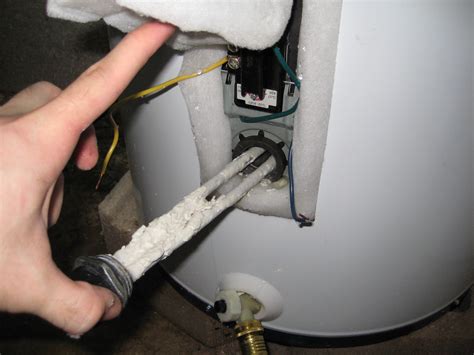

Remove the upper and lower access panels on the side of the water heater. You will likely need to move aside the insulation blanket or fiberglass batting to reveal the thermostat and the two screw terminals on the heating element. Before touching any wires, perform a final sweep with the non-contact voltage tester directly on the terminal screws to confirm zero voltage.
Step 3: Disconnect Terminal Leads
Use a screwdriver to loosen the screws holding the wires to the element terminals. Carefully pull the wires away from the terminals so they do not touch the casing or each other. It is helpful to take a photograph of the wiring configuration before disconnecting them to ensure you can reconnect the power leads accurately later.
Step 4: Perform the Ohmic Resistance Check
Set your digital multimeter to the lowest Ohms (Ω) setting, usually marked with the Greek omega symbol. Place one probe on each of the two screw terminals on the element. Do not worry about polarity, as resistance testing is non-directional. Observe the display carefully as you maintain firm contact with the terminal screws.
Pro-Tip: If your multimeter display shows a 1 or OL (Open Loop), this signifies infinite resistance, confirming that the internal heating coil is broken and the element is dead.
Step 5: Conduct the Ground Fault Test
To ensure the element has not shorted internally to the water heater tank, place one probe on a terminal screw and the other probe on the metal casing of the tank itself. The meter should show no reading (OL). If the meter displays any numeric resistance value, the element is grounded, which creates a dangerous short circuit and necessitates an immediate replacement.

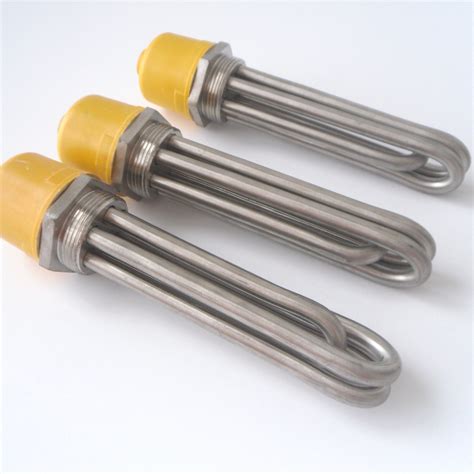

How To Make A Electric Heat Element at Elias Hull blog
Technical Specifications and Resistance Thresholds
The following table outlines the expected resistance values based on the power rating of the water heater element. These figures are calculated based on Ohm’s Law (Resistance = Voltage squared divided by Wattage) for a standard 240V residential heating circuit.
| Element Wattage | Theoretical Resistance (Ohms) | Expected Range (10% Tolerance) |
|---|---|---|
| 3500 Watts | 16.4 Ω | 14.8 to 18.0 Ω |
| 3800 Watts | 15.2 Ω | 13.7 to 16.7 Ω |
| 4500 Watts | 12.8 Ω | 11.5 to 14.1 Ω |
| 5500 Watts | 10.5 Ω | 9.5 to 11.6 Ω |
Troubleshooting Common Diagnostic Failures
Even with a steady hand, certain variables can complicate the diagnostic process. Address these scenarios to ensure an accurate assessment.
- Root Cause: Corroded Terminals. Over time, water leaks or condensation can cause terminal screws to corrode, preventing the multimeter probes from establishing a clean connection.
- Actionable Fix: Use a small wire brush or sandpaper to clean the surface of the terminals until the metal is bright and conductive before re-testing.
- Root Cause: Loose Wiring Connections. Sometimes the heating element is perfectly functional, but the spade connectors or wire lugs have loosened, preventing current from reaching the element.
- Actionable Fix: Check for signs of arcing (charred plastic or blackened wires). If present, replace the damaged wires and ensure the screws are tightened firmly against the connectors.
- Root Cause: The Thermostat is at Fault. If the element shows correct resistance but the water is still cold, the upper or lower thermostat may have failed to send the signal to the element.
- Actionable Fix: If the element tests within the acceptable Ohm range, use the multimeter to test the thermostat for continuity while the water is cold. A thermostat that does not allow current flow in the "On" position should be replaced.
Frequently Asked Questions
Does a water heater element have to be removed to be tested?
No, you do not need to remove the element from the tank to test it for resistance. As long as you have disconnected the power leads and the element is cooled down, you can test it while it remains threaded into the tank.
What does it mean if my meter reads 0 Ohms?
A reading of 0 Ohms indicates a short circuit, meaning the element has failed internally. This can sometimes cause the circuit breaker to trip immediately upon being reset, and the element must be replaced.
Why is my water heater only producing lukewarm water?
If the water is lukewarm rather than cold, it often indicates that only one of the two elements is functioning or that the upper thermostat is failing to trigger the lower element. Test both elements, as it is common for the lower element to fail due to sediment buildup.
Can I test a water heater element with the power on?
Never attempt to test a water heater element with the power on. Measuring resistance on a live circuit will damage your multimeter and poses a severe risk of electric shock, arc flash, or unintended damage to your electrical panel.
Maintain Your System’s Longevity
Regularly checking your heating elements every two to three years can prevent unexpected cold water outages and protect your plumbing infrastructure from sediment-related failures. If your diagnostics indicate a failed element, ensure you purchase an exact match based on the voltage and wattage specifications printed on your current element’s flange to maintain optimal system performance.
